Cylinder 70cc OM PSR 6-port 17.5mm PHBG exhaust powerfilter

€ 221,70
-10%
€ 199,50
Ex Tax: € 164,88
Puchshop Directly available Directly available
Model: 10100
Puchshop price Without shipping costs. VAT info.
Puchshop customer service

Do you need some help or advice?

Puchshop info Check out our info center or contact us!

Description

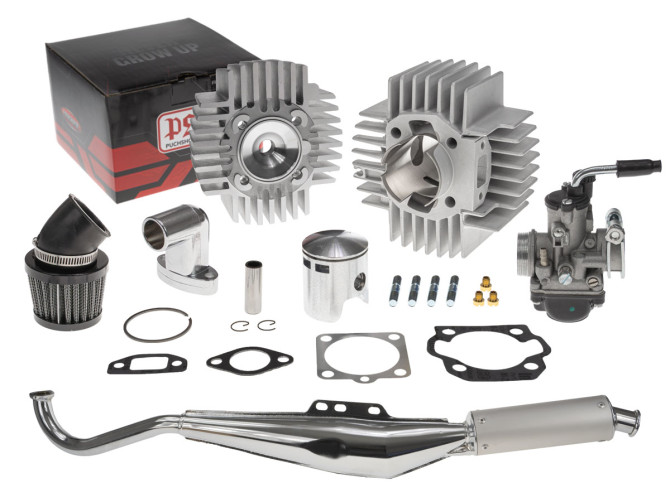

PSR 70cc cylinder set complete old model + exhaust!

Set contains:

  • 70cc PSR cylinder set old model.
  • Complete with piston (piston pin 12mm), piston rings and gasket set
  • 70cc cylinderhead old model.
  • 17.5mm Dellorto PHBG replica carburetor
  • Manifold 17-21mm.
  • Powerfilter black
  • 3x jet (76-78-80).
  • Cilindersleeve is 48mm outter diameter
  • Set is supplied with the Exhaust Puch Maxi / E50 28mm Bullet chrome

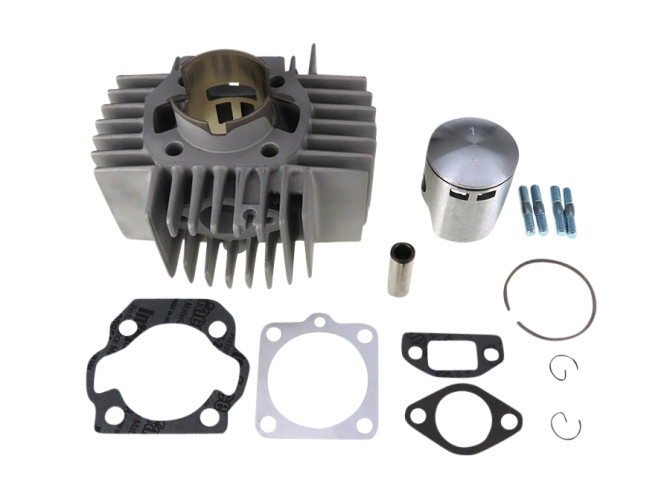

PSR 70cc cylinder (45mm)

  • Aluminium with Nicasil wall
  • 70cc 45mm
  • Fast 6 port cylinder
  • Piston (piston pin 12mm) and gaskets set included
  • Old model
  • Cylindersleeve outer diameter: 48mm

Tip: we always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

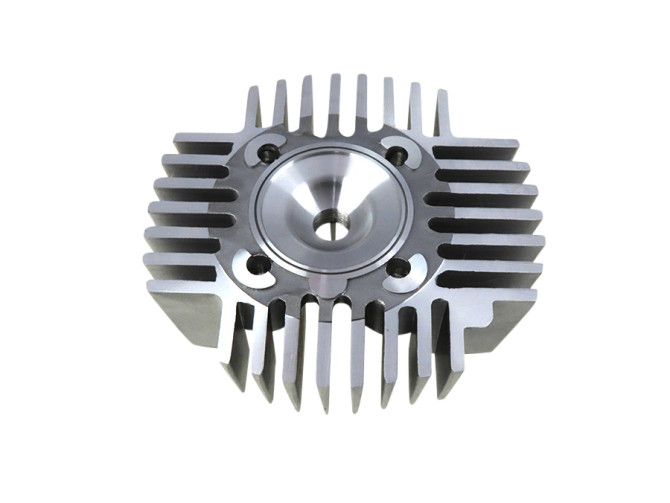

Cylinder head with high compression for 70cc / 45mm

  • Old model
  • Slot in head is not for O-ring but improved sealing of the aluminium gasket.

PHBG carburettors 17,5mm replica

  • Model as Dellorto PHBG, very good replica
  • Hand choke
  • Connection diameter of the manifold 24mm
  • Connection diameter of the air filter 32mm
  • Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
  • Carburettors are delivered with a blanc nozzle/jet
  • Carburettors should always be cleaned before installation

Note: Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!

Note: The float chamber is mounted with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!

View more Read more
Brand:PSR
Model:10100
EAN:6097344943999
Category: Engine parts
Type product: Cylinder / head
Type product: Cylinders
Cylinder / head
Cylinder displacement:70cc
Cylinder diameter:45mm
Cylinder model:Old model
Weight:2000 gram

For fast boys: Puchshop Racing. Of course, it can always get better and faster! To increase the performance of your Puchs - and of course our own Puchs - we have developed our own parts under the PSR (Puchshop Racing) brand.
