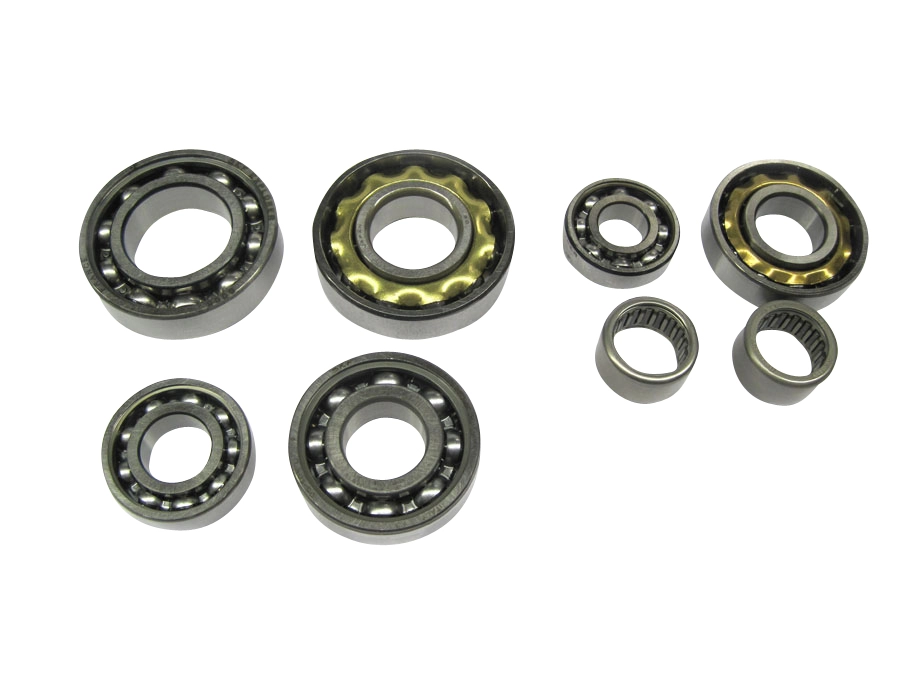

Complete ZA50 engine bearing set
Complete bearing set for Puch ZA50 engines including bearings for the gear shift system, useful during a full engine overhaul.
View ZA50 bearing setPuch ZA50 bearings and oil seals
Shop bearings, oil seals and related overhaul parts for Puch ZA50 engines. Find individual replacement bearings and complete bearing sets for maintenance, repairs and full ZA50 engine rebuilds.
The ZA50 is a two speed automatic Puch engine, so its bearing system includes components for both the crankshaft and transmission. Correct bearing condition and sealing are important for smooth engine operation and reliable automatic shifting.
Always confirm that a bearing, seal or overhaul part is intended for the ZA50 before ordering. Check bearing numbers, dimensions and installation positions rather than selecting parts by appearance alone.
Puch ZA50
€ 8,90
€ 4,90
€ 5,75
€ 18,90
€ 47,50
€ 62,90
€ 49,90
€ 7,90
€ 4,90
€ 2,50
€ 10,90
€ 2,50
€ 10,90
€ 3,50
€ 19,90
€ 7,95
Showing 1 to 16 of 16 (1 Pages)
Bearings and seals for the Puch ZA50 two speed automatic engine
The Puch ZA50 uses a two speed automatic transmission. Its bearings support the crankshaft, transmission shafts and shifting components, while oil seals help keep the crankcase and transmission areas properly separated. During a full ZA50 rebuild, inspect these wear parts carefully before reassembly.
Crankshaft bearings
Support the ZA50 crankshaft and allow it to rotate smoothly throughout the engine speed range.
Transmission bearings
Support shafts and rotating components inside the ZA50 two speed automatic transmission.
Shift mechanism bearings
Bearings used around compatible components involved in the ZA50 automatic shifting system.
Oil seals
Help control oil, transmission fluid and air around rotating shafts and engine openings.
Highlighted Puch ZA50 bearings and tools

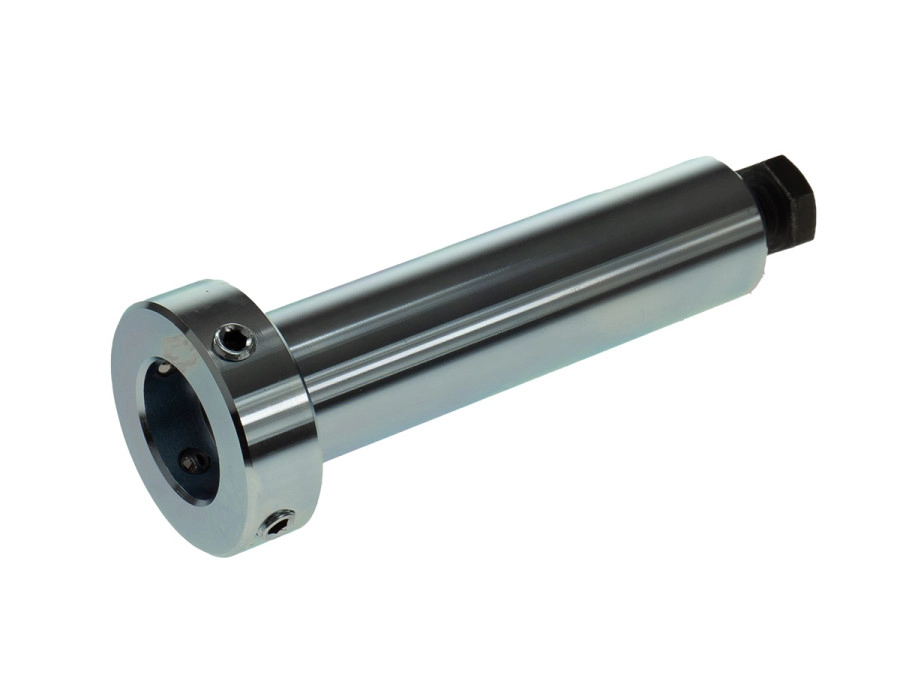

E20 bearing puller tool
Bearing removal tool for compatible Puch applications, designed to help remove suitable bearings in a controlled manner during engine repair.
View E20 bearing pullerThe Puch ZA50 two speed automatic transmission
Unlike the single speed automatic E50, the ZA50 uses an automatic two speed transmission. This means a complete engine overhaul involves bearings not only around the crankshaft but also throughout the transmission and shifting system.
Two automatic gears
The ZA50 changes between two transmission ratios automatically rather than using a manual shift system.
More transmission components
The additional gear and shifting mechanism mean there are more internal components to inspect during a rebuild than in a single speed engine.
Engine specific bearings
Choose bearings by ZA50 application, bearing number and installation position rather than assuming E50 compatibility.
Inspect the complete system
When the engine is open, check crankshaft, transmission and shift mechanism bearings before reassembly.
ZA50 and E50 bearings are not automatically interchangeable
The ZA50 and E50 belong to the same general Puch automatic engine family, but the ZA50 has a two speed transmission with additional internal components. Confirm each bearing and seal individually before using an E50 part in a ZA50 engine.
Puch ZA50 crankshaft bearings
The crankshaft bearings support the ZA50 crankshaft while the engine is running. Any roughness, excessive play or damage should be investigated during an overhaul because bearing condition directly affects crankshaft support.
Check for rough rotation
Rotate the bearing by hand and feel for rough, notchy or inconsistent movement.
Check for excessive play
Unexpected radial or axial movement can indicate bearing wear or damage.
Inspect the crankshaft
Check the crankshaft bearing surfaces for corrosion, wear or other damage before installing replacements.
Inspect the bearing seats
Make sure the bearing locations in the engine cases are clean and undamaged before assembly.
ZA50 transmission and gear shift bearings
A ZA50 bearing overhaul extends beyond the crankshaft. The two speed transmission and automatic shifting system contain additional rotating and supporting components that should be inspected whenever the engine cases are separated.
Inspect transmission shafts
Check shaft surfaces and bearing locations for wear, corrosion or damage.
Check shift system bearings
Inspect bearings associated with compatible shifting components for smooth movement and correct fit.
Keep parts organized
Record the position of bearings, spacers, washers and other transmission parts during disassembly.
Check movement before closing
Confirm that transmission shafts and related components move correctly before final engine assembly.
Puch ZA50 oil seals
Oil seals help keep the different areas of the ZA50 engine correctly separated. Crankshaft seals are particularly important on a two stroke engine because crankcase sealing affects the engine's intake and transfer process.
Check seal dimensions
Confirm inner diameter, outer diameter and width before selecting a replacement seal.
Inspect the sealing lip
A hardened, worn or damaged sealing lip can prevent the seal from working correctly.
Inspect the shaft
Grooves, corrosion or damage where the seal runs can cause leakage even after a new seal is installed.
Install in the correct direction
Fit every seal in the orientation required for its specific location inside the ZA50 engine.
A new seal cannot compensate for a damaged shaft
Always inspect the sealing surface before installing a new oil seal. A worn groove, rust or other damage where the sealing lip runs can continue to cause leakage.
Complete ZA50 bearing set or individual bearings?
The right choice depends on how far the engine is being disassembled. A targeted repair can require only one bearing, while a full ZA50 overhaul is an opportunity to inspect and replace multiple crankshaft, transmission and shift system bearings together.
Individual bearing
Useful for a targeted repair when the exact bearing and installation position are already known.
Complete ZA50 bearing set
Convenient for a full engine rebuild where several internal bearings are being renewed together.
Individual oil seals
Suitable when a specific worn or leaking seal has been identified.
Plan the complete overhaul
Check bearings, seals, gaskets, spacers and retaining parts before beginning final assembly.
Removing bearings from a Puch ZA50 engine
Correct removal methods help protect the engine cases, shafts and bearing seats. A suitable bearing puller can provide controlled removal force where the bearing and surrounding components allow it.
Use the correct puller
Make sure the puller is suitable for the size and location of the bearing being removed.
Support components correctly
Avoid loading fragile engine case areas or other components that are not designed to carry removal force.
Work gradually
Use controlled force rather than heavy impacts when removing tightly fitted bearings.
Inspect after removal
Clean and inspect the shaft, bearing seat and surrounding components before installing replacement parts.
Installing bearings in a Puch ZA50 engine
New bearings can be damaged by incorrect installation. Clean the bearing seats and apply installation force to the race that has the interference fit so the load is not transferred unnecessarily through the rolling elements.
Clean the bearing seat
Remove old oil, dirt and deposits before installing a replacement bearing.
Use the correct bearing race
Apply installation force to the race being pressed into or onto its mating surface.
Use controlled heat where appropriate
Carefully warming an aluminum engine housing can temporarily increase clearance around a bearing seat.
Check movement after assembly
Confirm that crankshaft, transmission shafts and shift components move correctly during assembly.
Do not transfer installation force through the bearing balls or rollers
Pressing or striking through the wrong bearing race can damage a new bearing before the engine is ever started. Use suitable installation tools and controlled methods.
More Puch bearings and seals
Working on another Puch engine or looking for additional bearings and oil seals? Browse the main category for individual bearings, seals, bearing sets and related overhaul components.
Not sure which bearing or seal fits your ZA50?
Confirm that you are working on a Puch ZA50 two speed automatic engine and note any identification numbers on the existing bearings. For oil seals, measure the inner diameter, outer diameter and width and record the exact installation position.
Contact Puchshop before ordering if you need help identifying the correct ZA50 bearing, oil seal, complete bearing set or bearing removal tool.
Frequently asked questions about Puch ZA50 bearings and seals
Is the Puch ZA50 a two speed automatic engine?
Yes. The ZA50 uses a two speed automatic transmission. This gives it a different internal transmission layout from the single speed automatic E50.
Are Puch ZA50 and E50 bearings the same?
Do not assume that all bearings are interchangeable. Some components may be shared, but the ZA50 has additional transmission and shifting components. Check every bearing by application, number and installation position.
What is included in a complete ZA50 bearing set?
The highlighted ZA50 bearing set includes engine bearings and bearings for the gear shift system. Check the individual product information for the exact contents of the set.
Should I replace all bearings during a complete ZA50 rebuild?
A complete rebuild is a good opportunity to inspect all accessible crankshaft, transmission and shift mechanism bearings. Replace bearings that are rough, worn, damaged or have excessive play.
Can worn ZA50 crankshaft seals cause an air leak?
Yes. The crankshaft seals form part of the crankcase sealing system on the two stroke ZA50. A worn, damaged or incorrectly installed seal can allow unwanted air into the crankcase.
Why are there more bearings in a ZA50 than in an E50?
The ZA50 uses a two speed automatic transmission with additional internal transmission and shifting components. Those components require their own support and bearing locations.
