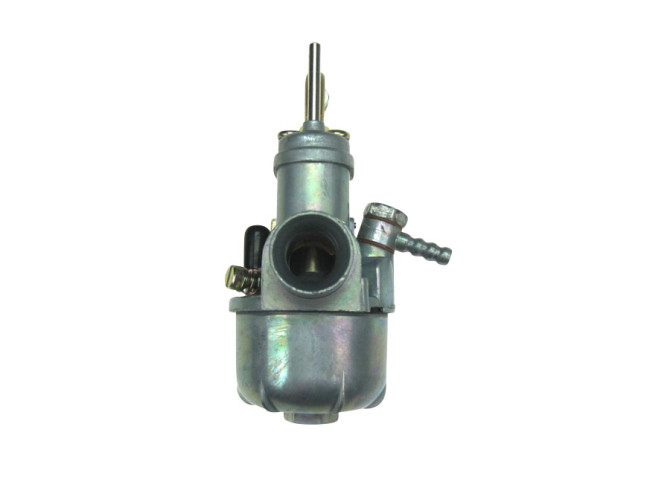

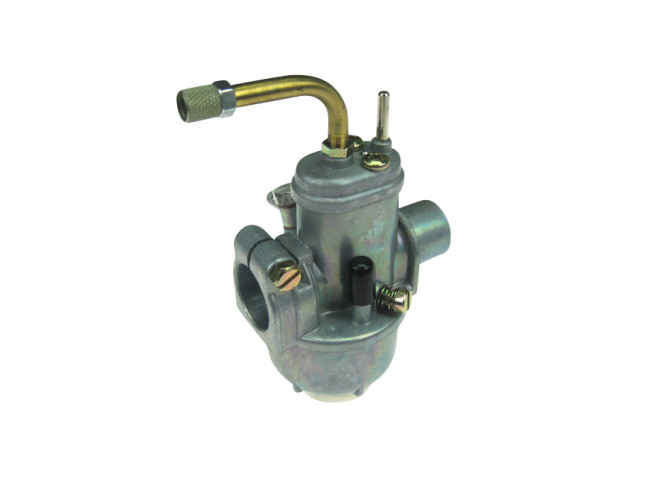

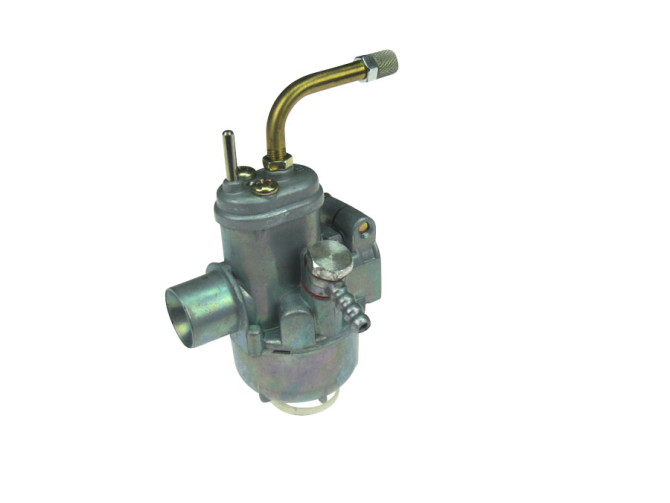

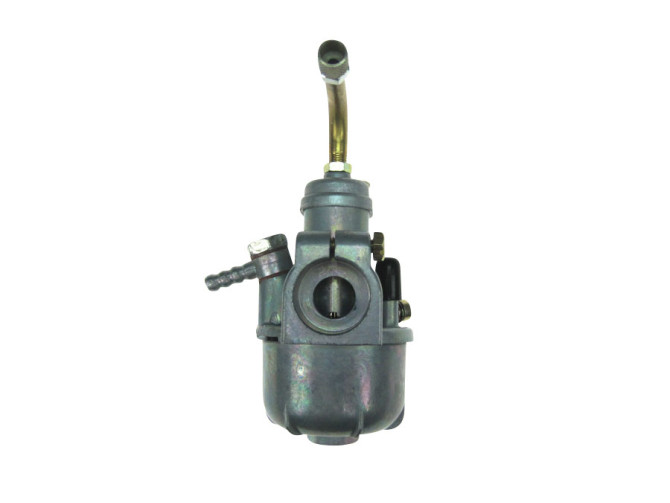

Bing 12mm carburetor replica old model

Bing 12mm carburettor replica old model

• Connection diameter of the manifold 20mm
• Connection diameter of the air filter 20mm
• Nozzles/jets suitable for this carburetor are Bing replica 4mm jets/nozzles. Or you can use the main nozzle from your own carburetor, so the nozzles of the small model Bing fits on this carburetor.
• Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.

Note:

• Carburettors should always be cleaned before installation.
• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used. It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
• Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

• Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.
