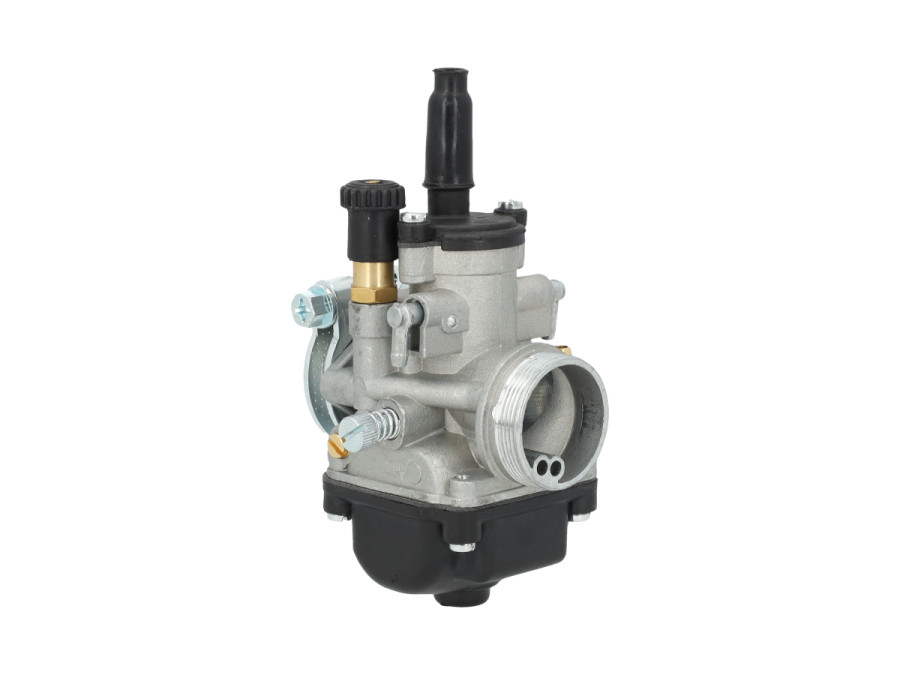

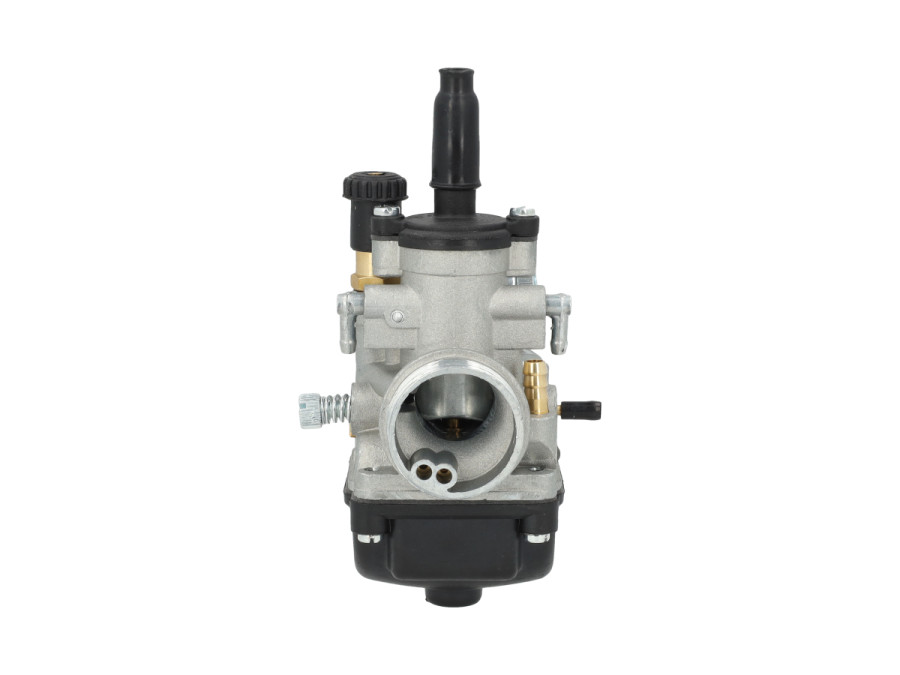

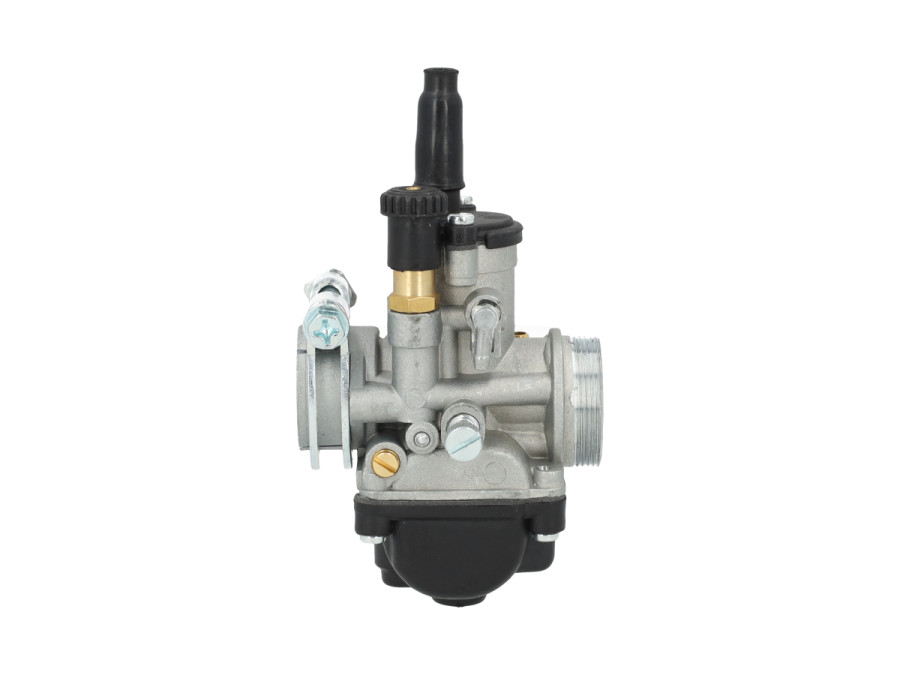

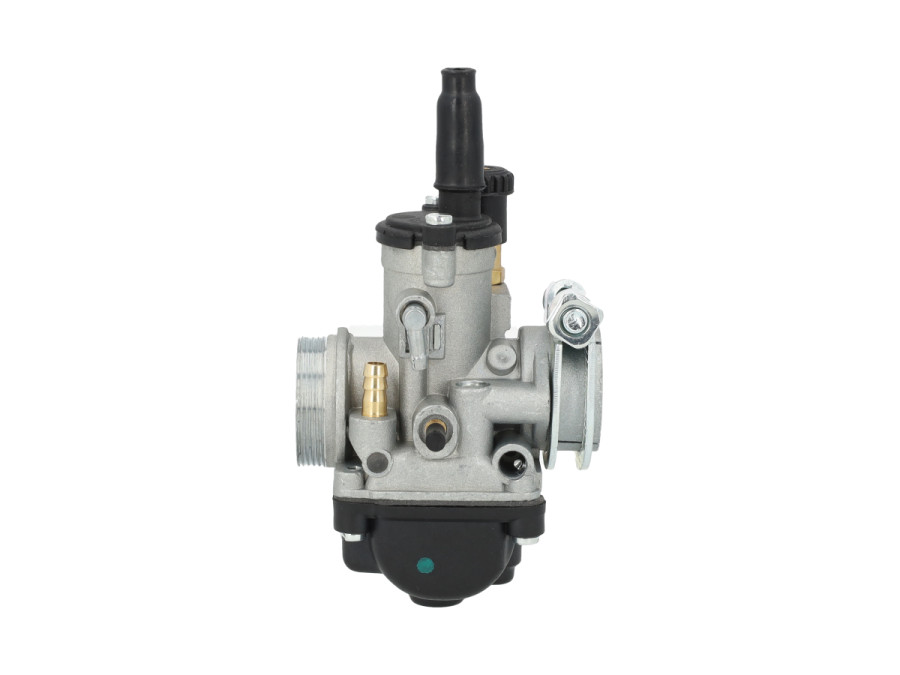

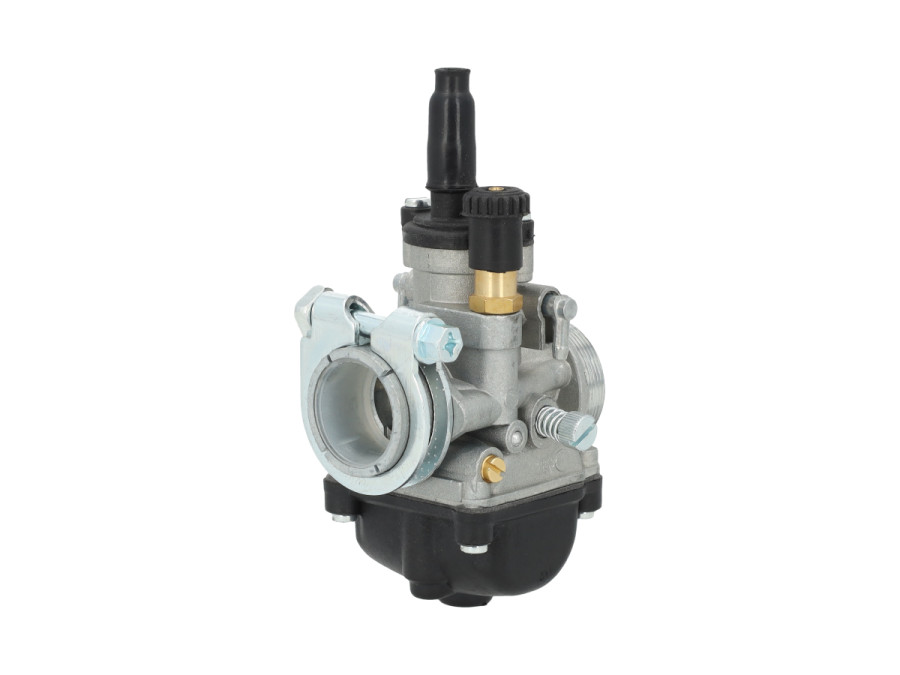

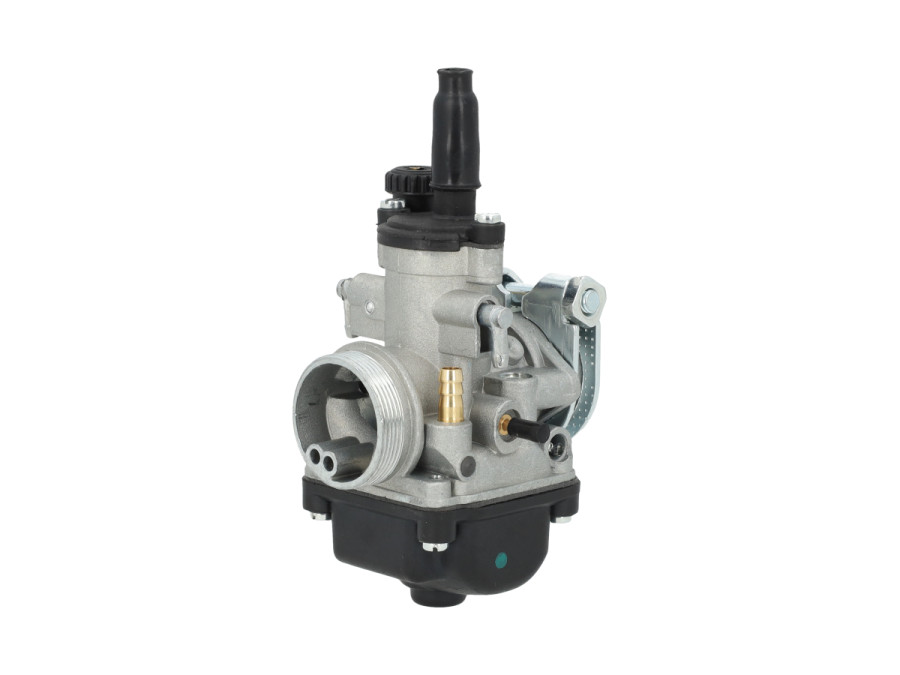

Dellorto PHBG 19.5mm carburetor replica

€ 39,95
Ohne MwSt.: € 33,02
Puchshop Sofort lieferbar Sofort lieferbar
Artikel: 20035
Puchshop price zzgl. Versandkosten Alles über Mehrwertsteuer.
Puchshop customer service

Wir sind jederzeit für dich da!

Puchshop info Schau dir unser Info Center an oder kontaktiere uns!

Beschreibung

PHBG carburettors 19,5mm.

  • Model as Dellorto PHBG, very good replica.
  • Hand choke
  • Connection diameter of the manifold 24mm
  • Connection diameter of the air filter 32mm
  • Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
  • Carburettors are delivered with a blanc nozzle/jet.
  • Carburettors should always be cleaned before installation
  • Note: do not over-tighten the carburettor clamp!

Pay attention!

  • The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
  • The jet that is mounted in the carburettor / set is blank and different for each batch.
  • (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted).
  • It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

  • Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
  • Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

  • Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.

View more Mehr sehen
Hersteller:SP
Artikel:20035
EAN:7421083756777
Kategorie: Engine parts
Producttyp: Carburetor
Producttyp: Carburetors
Carburetor / sets
Carburetor diameter:19.5mm
Mounting type:Clamp
Gewicht:500 Gramm
