Dellorto PHBG 17.5mm carburetor replica manifold powerfilter

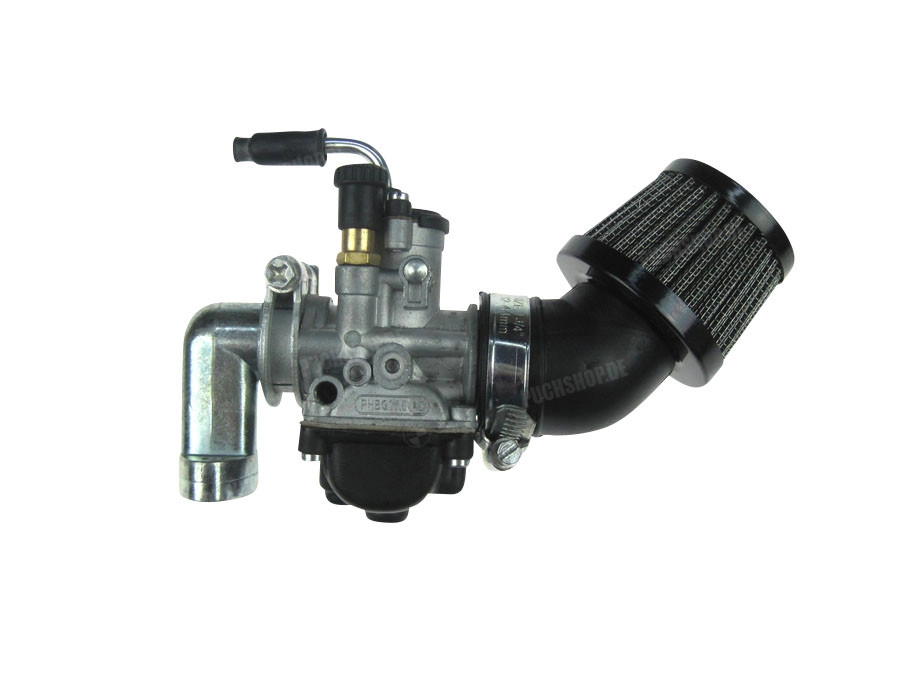

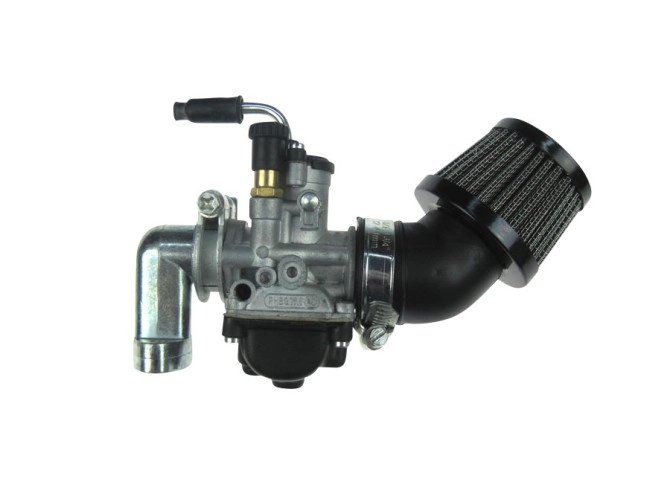

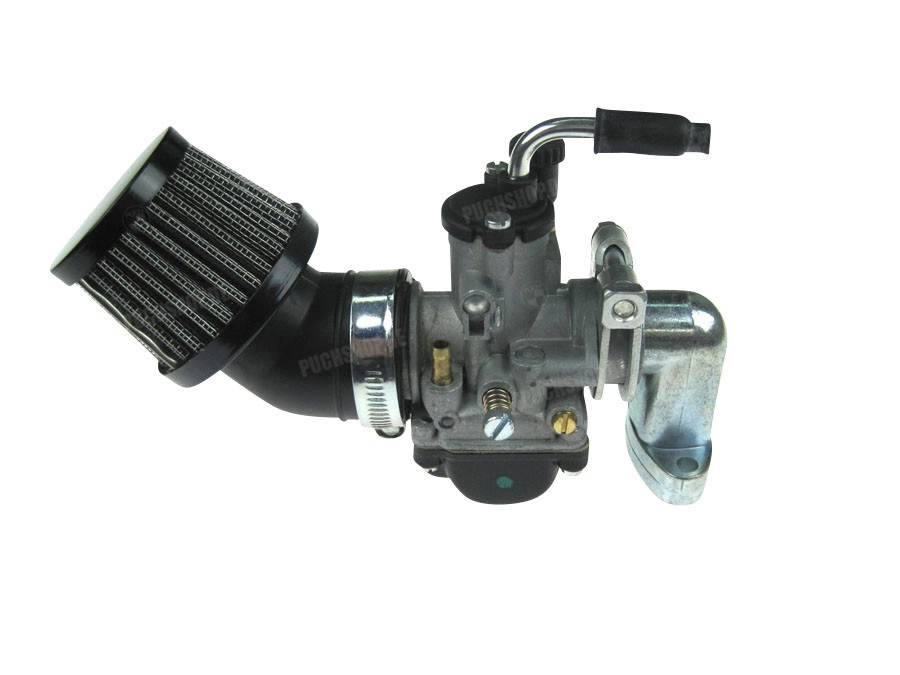

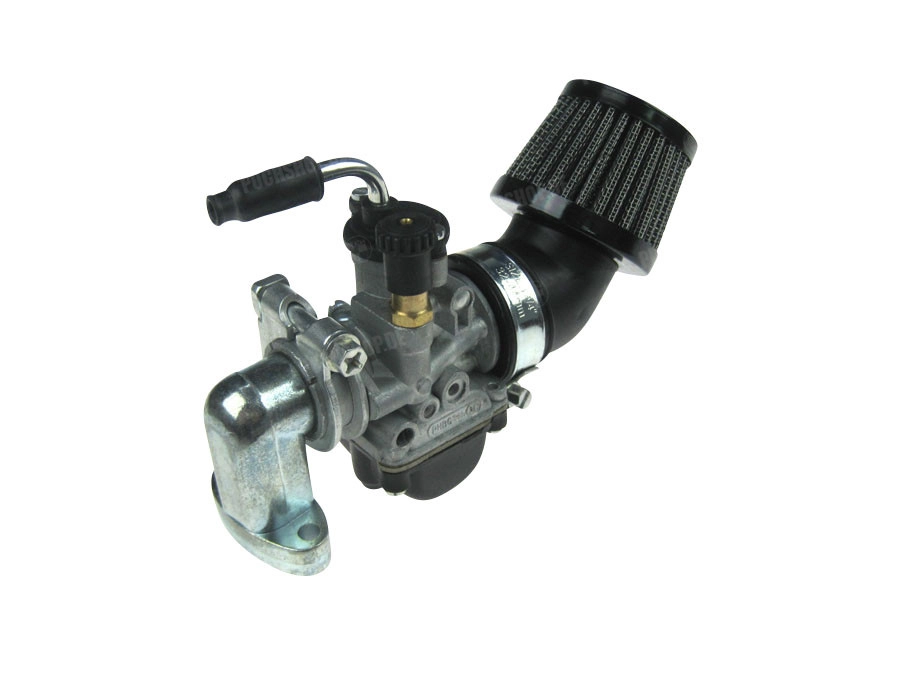

Dellorto PHBG 17.5mm carburetor replica with manifold and powerfilter

• Carburetor set for Puch Maxi / X30 with E50 engine

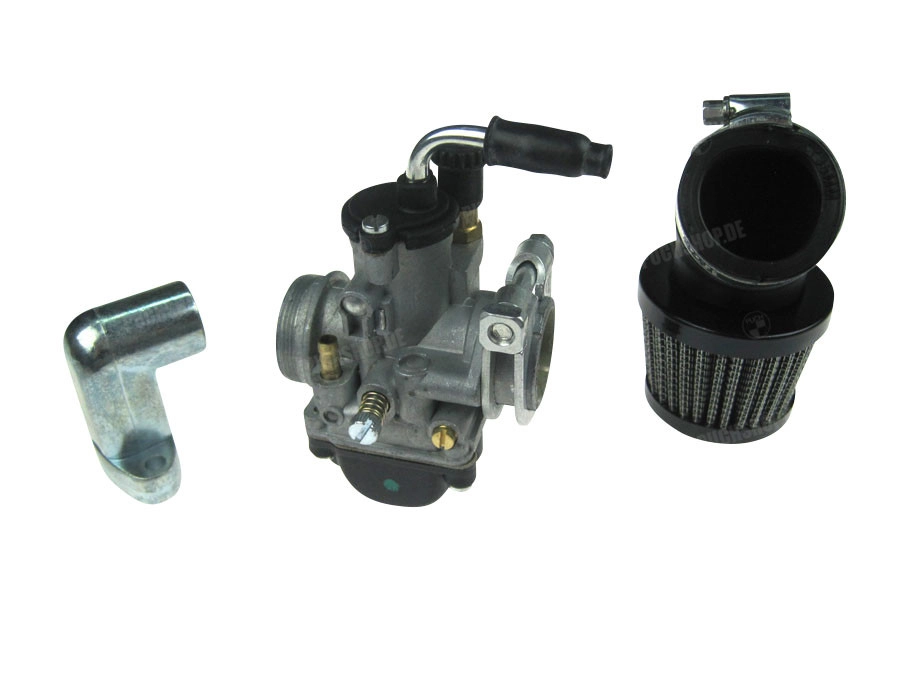

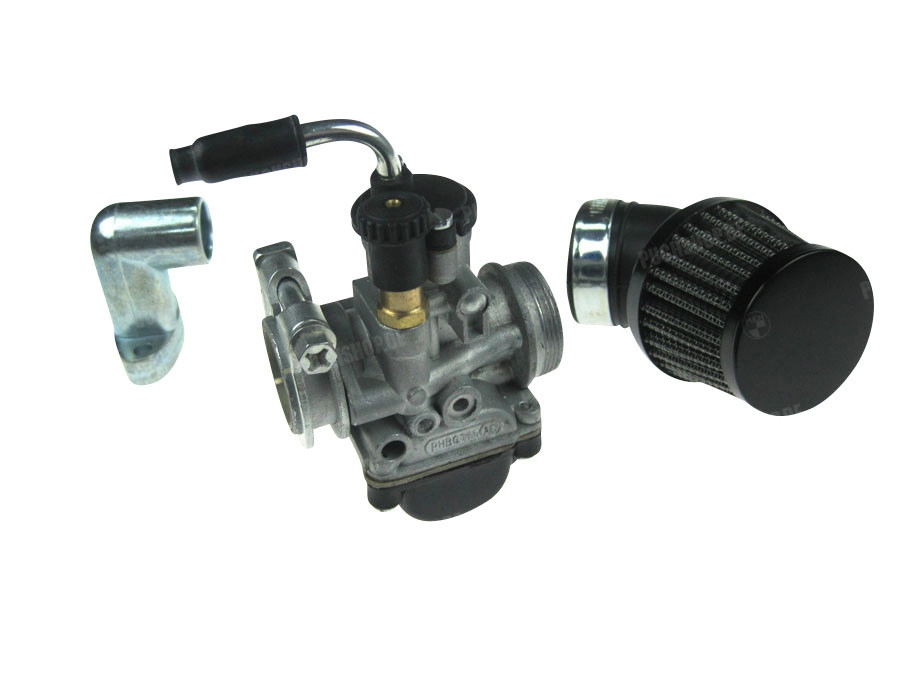

Including:

• Carburettor model PHBG 17,5mm hand choke
• Manifold Dellorto (Steel or aluminium version is supplied)
• Powerfilter

Dellorto PHBG 17.5mm carburetor information

• Model as Dellorto PHBG, very good replica
• Hand choke
• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a blanc nozzle/jet.
• Carburettors should always be cleaned before installation

Dellorto 17-20mm manifold information

• Inner diameter: 19mm
• Galvanised steel

• Centre-to-centre distance between mounting holes: 38mm

Note:

• Do not over-tighten the carburettor clamp!
• The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
• Chances are that the carburettor and the filter will not fit directly between the cylinder and the frame. By filing the little holes in the manifold, it can be modified in such a way that the carburettor and filter will fit, even with frame brackets attached.
