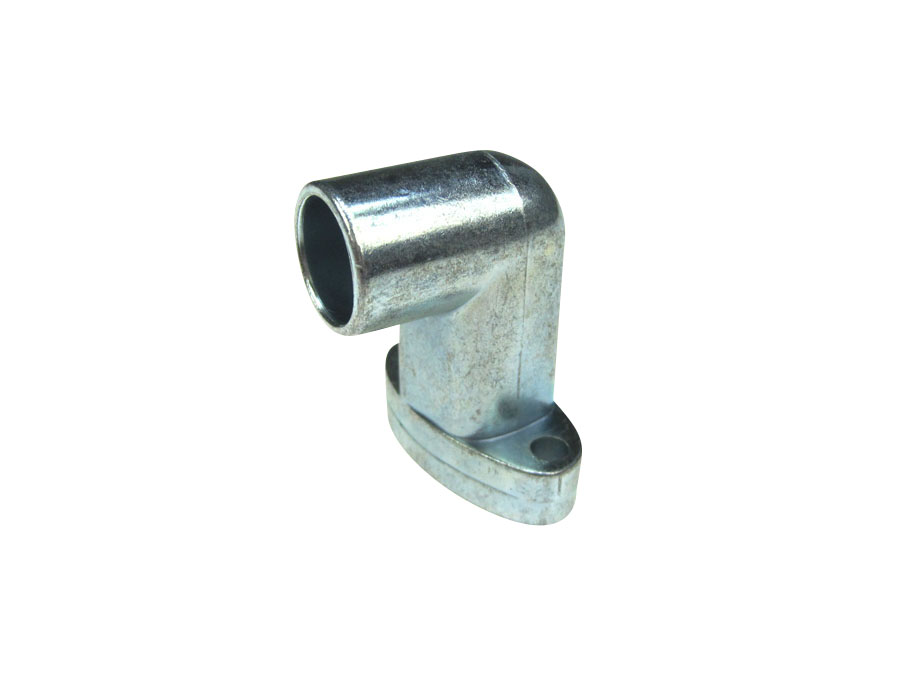

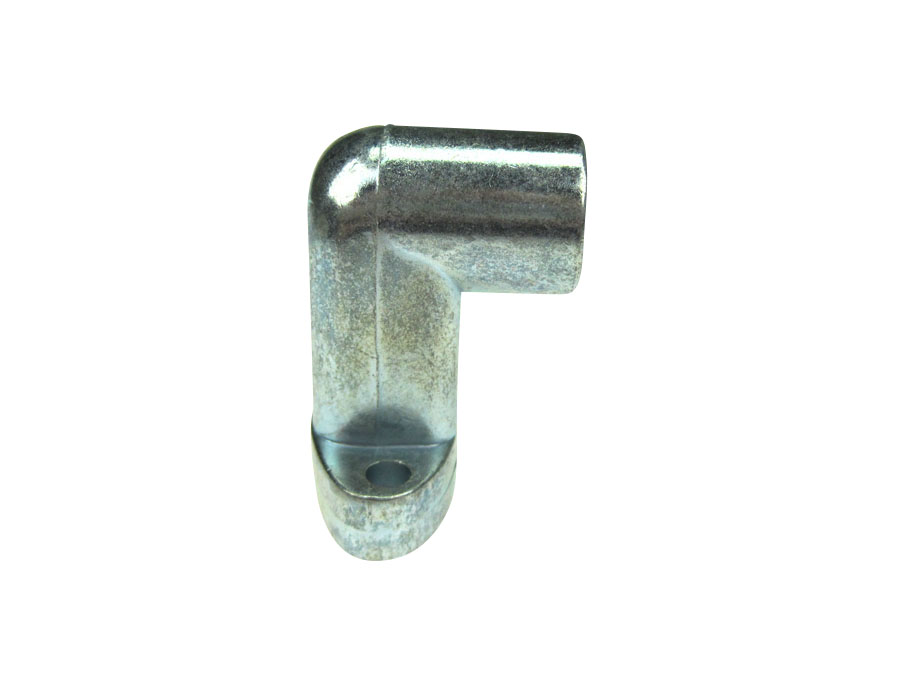

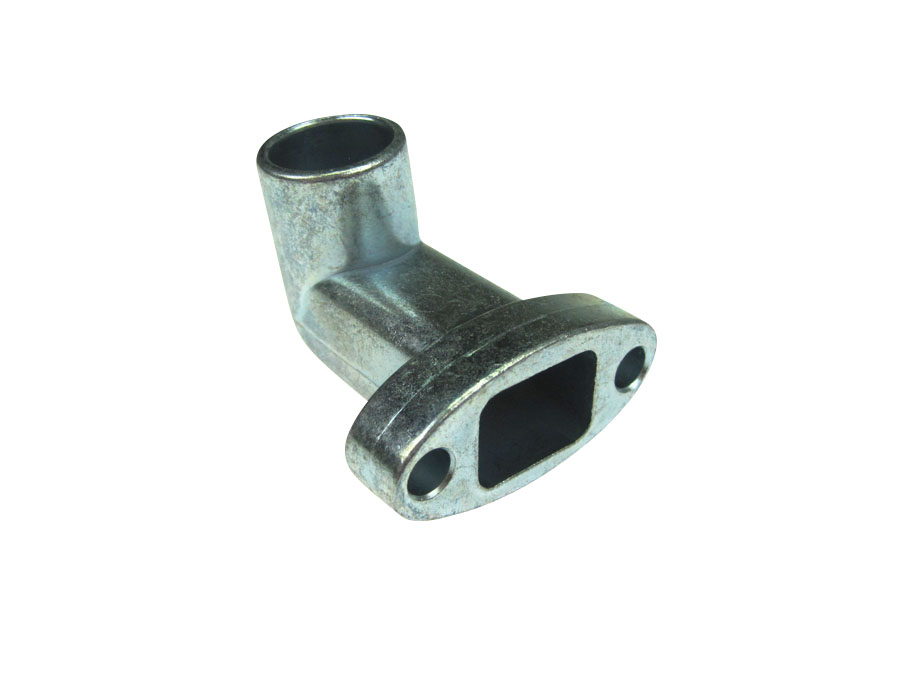

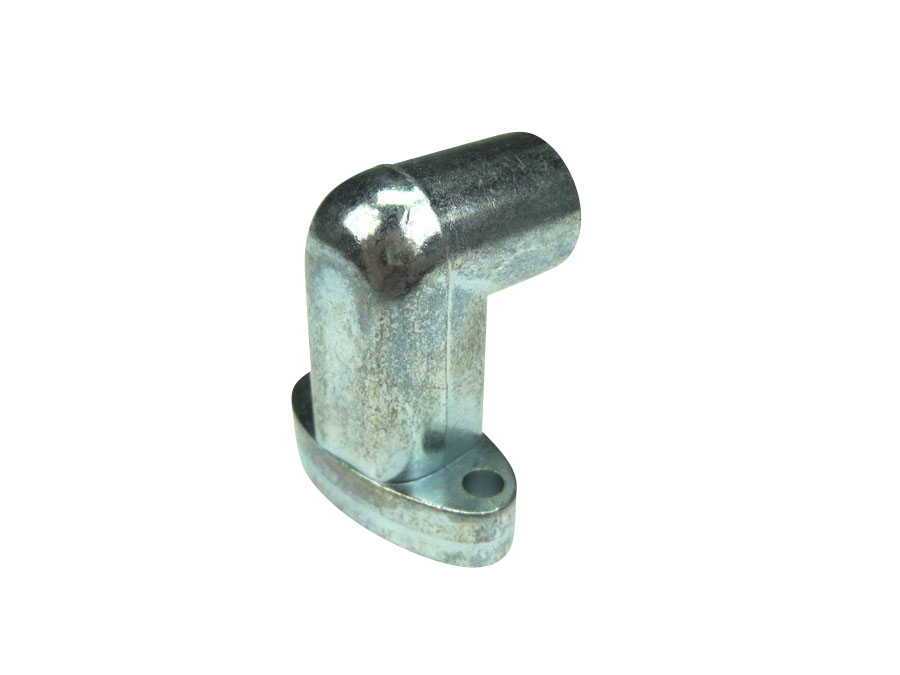

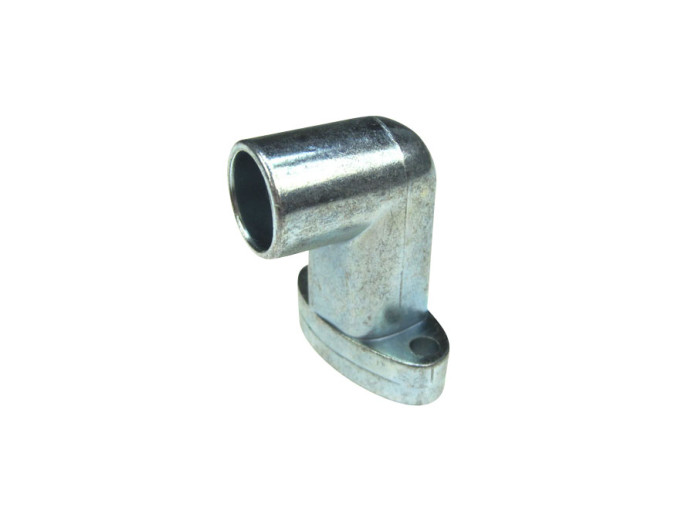

Manifold Dellorto PHBG carburetor 19mm aluminium

Dellorto 17-20mm manifold

• Inner diameter: 19mm
• Puch Maxi / X30 with E50 engine
• Aluminium
• Centre-to-centre distance between mounting holes: 38mm

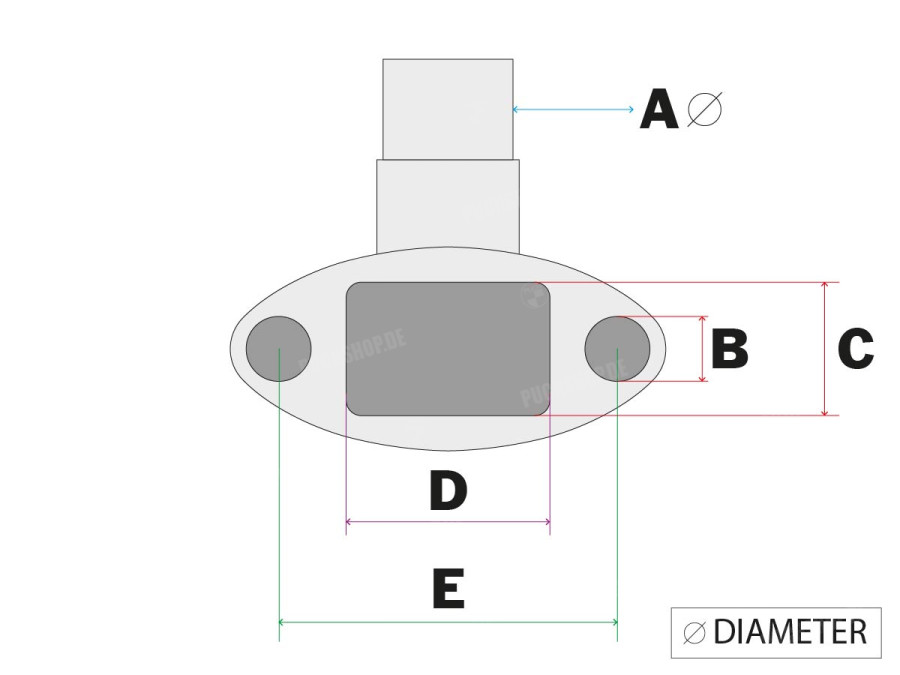

Dimensions:

• A: 24mm
• B: 6mm
• C: 15mm
• D: 21mm
• E: 38mm
• F: 57mm
• G: 30mm

Note:

• Chances are that the carburettor and the filter will not fit directly between the cylinder and the frame. By filing the little holes in the manifold, it can be modified in such a way that the carburettor and filter will fit, even with frame brackets attached.
