Dellorto PHBG 21mm carburetor replica
- € 37,95
- Ex Tax: € 31,36
The displayed price is without shipping costs Read more about the European VAT rules-
Directly available
- Model: 20036
Description

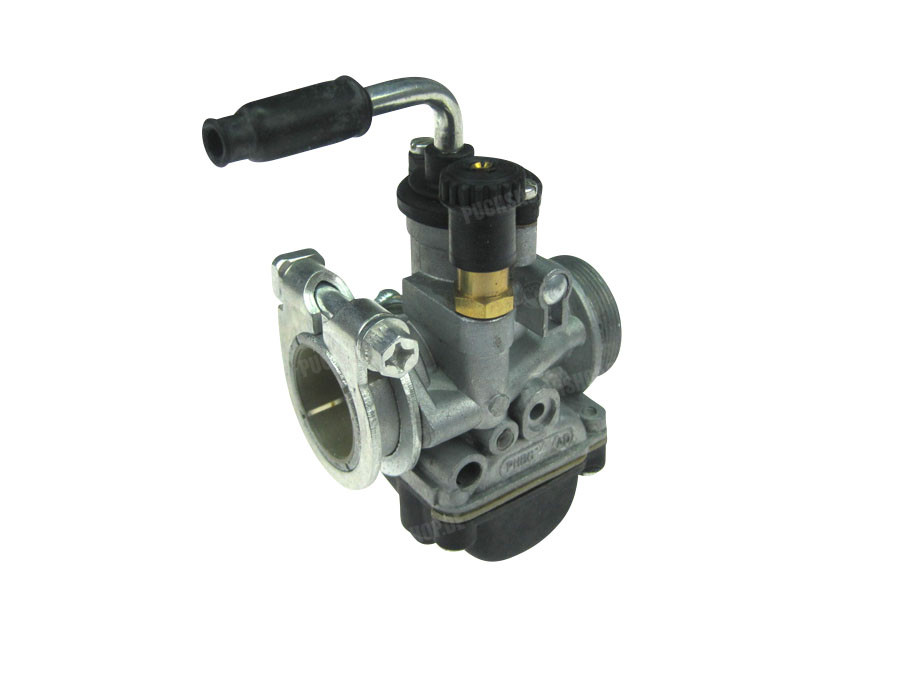

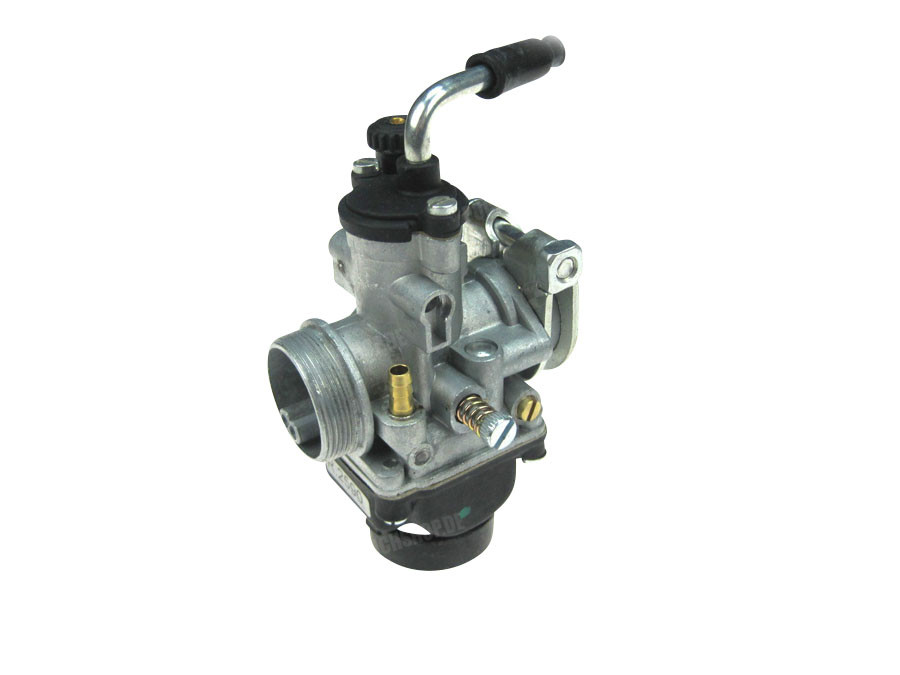

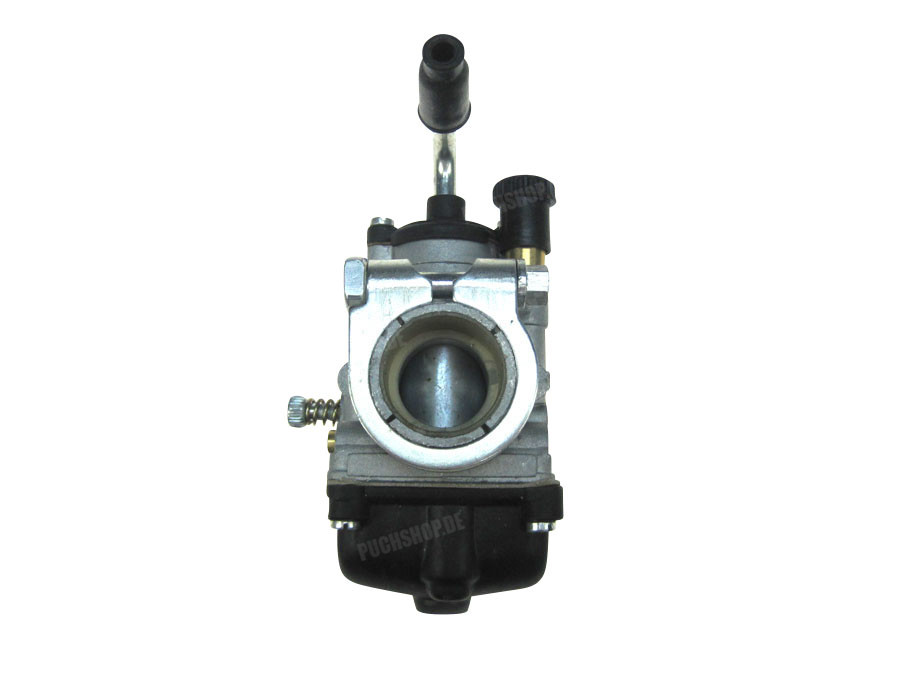

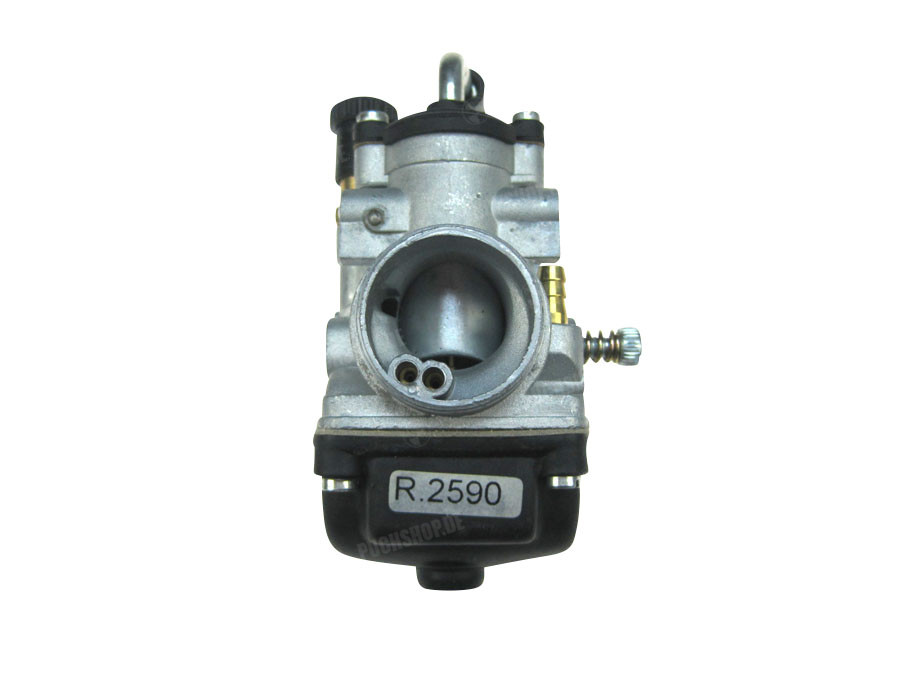

PHBG carburetor 21mm.
- Model as Dellorto PHBG, very good replica.
- Hand choke
- Connection diameter of the manifold 24mm
- Connection diameter of the air filter 32mm
- Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
- Carburettors are delivered with a blanc nozzle/jet.
- Carburettors should always be cleaned before installation.
- Note: do not over-tighten the carburettor clamp!
Pay attention!
The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
The jet that is
mounted in the carburettor / set is blank and different for each batch.
(The
manufacturer does this because they cannot know on which engine / setup this
carburettor will be mounted).
It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
With a matching manifold applicable to various Puch models:
- Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
- Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.
With a matching manifold also universally usable for:
- Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.
Do you have a question? Check out our Info center and maybe you will find the answer
Are you unable to find the answer? Contact us:
E-mail
WhatsApp
Are you unable to find the answer? Contact us:
E-mail
WhatsApp
Product specifications
| Model: | 20036 |
| EAN: | 7421083756760 |
| Carburetor / sets | |
| Carburetor diameter | 21mm |
| Mounting type | Clamp |
| Weight: | 500 gram |
