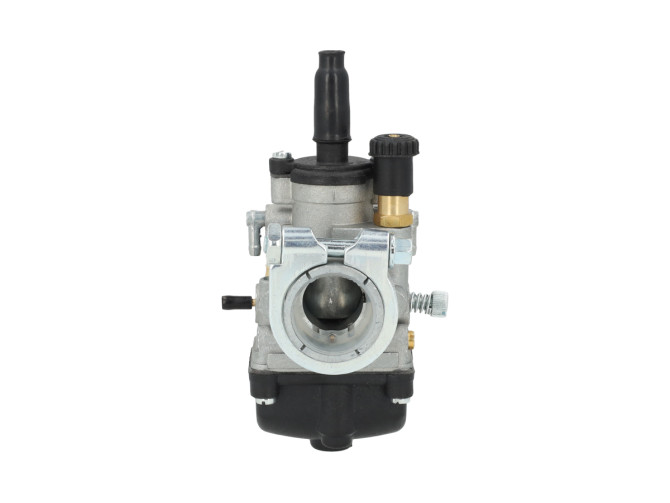

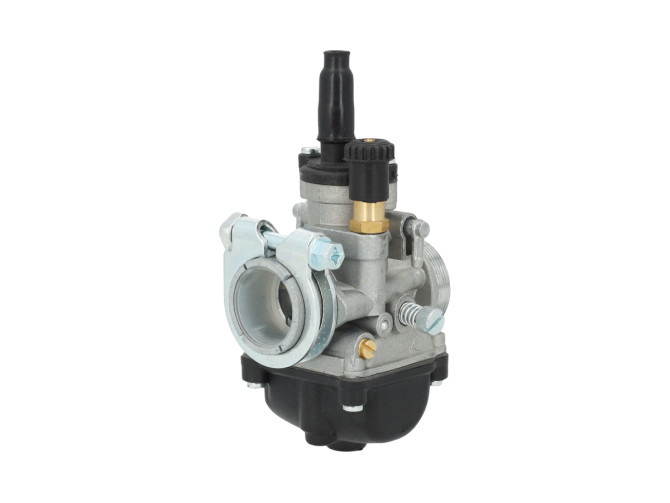

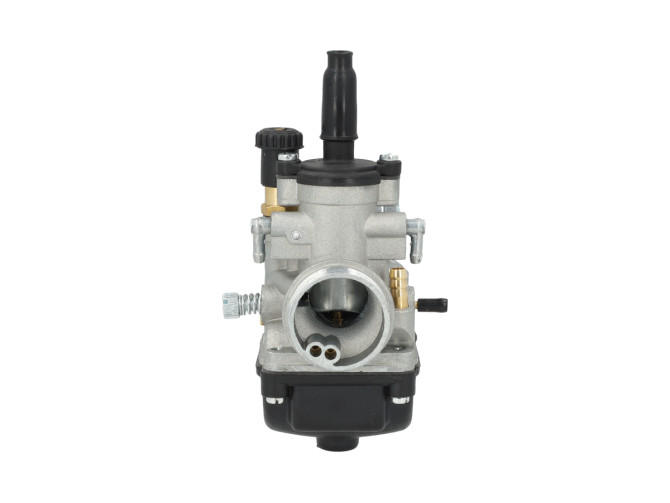

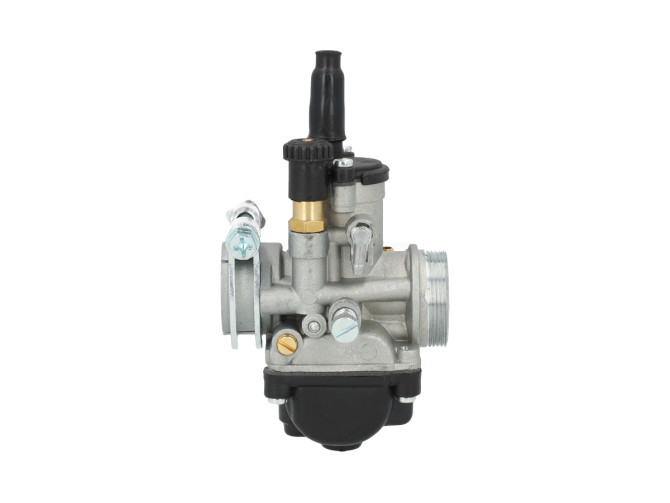

Dellorto PHBG carburetor 19.5mm replica
Status: In stock
PHBG carburettors 19,5mm.
- Model as Dellorto PHBG, very good replica.
- Hand choke
- Connection diameter of the manifold 24mm
- Connection diameter of the air filter 32mm
- Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
- Carburettors are delivered with a blanc nozzle/jet.
- Carburettors should always be cleaned before installation.
The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
