Ignition inner rotor HPI 068 Puch universal - 1 curve - with tachometer exit

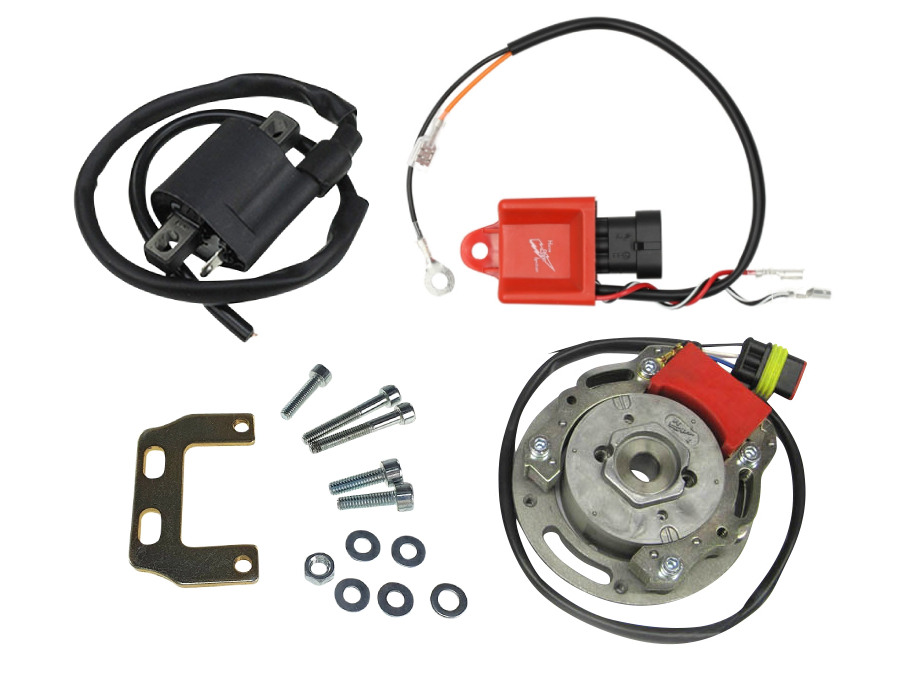

HPI 068 analog inner rotor ignition with 1 curve and tachometer connection

The HPI 068 inner rotor ignition gives you a much quicker throttle response and faster acceleration thanks to its small rotor, while always providing a strong and reliable spark. This version has one ignition curve, a tachometer output, and works on both left- and right-hand rotating engines

• Better acceleration and faster throttle response
• Always a good spark
• Version with 1 curve
• With tacho exit
• To be used with left and right turning engines
• This ignition does not contain a light coil, optional, order a HPI light coil (max 10W output!)
• HPI number: 068K012, with parts: 068CO68A, R068V186, 068S190R, 068V184 and 068R034

Tip:

• Order an inner rotor puller as well (see related products)
• Order an stator mounting set as well (see related products)
• If your engine needs a heavier flywheel, you can add an inertia disc to the 068 ignition (see related products)

Rotor afmeting

• A  16.25mm

• C  5.7°
• F  11.42mm

Universal for various mopeds:

• Puch Maxi / X30 / Macho
• Puch MV / VS / MS / DS / Monza
• Tomos A3 / A35 / A52 / A55
• Kreidler Florett / RS50 / RMS50
• Hercules / Sachs
• Zündapp KS50
