Amal / Arreche 17mm carburetor

€ 80,12

Ex Tax: € 80,12

Directly available

Model: 20189

20189 20189 20189 Amal

https://www.puchshop.de/en-gb/amal-cp-17mm-carburettor.html 2025-12-10

Without shipping costs. VAT info.

Do you need some help or advice?

Check out our info center or contact us!

Description

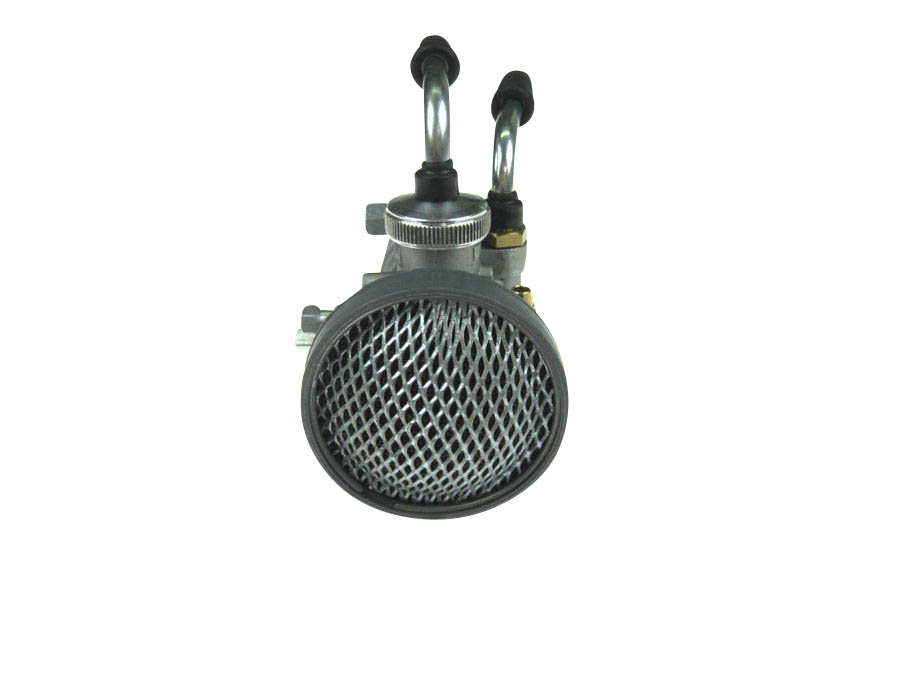

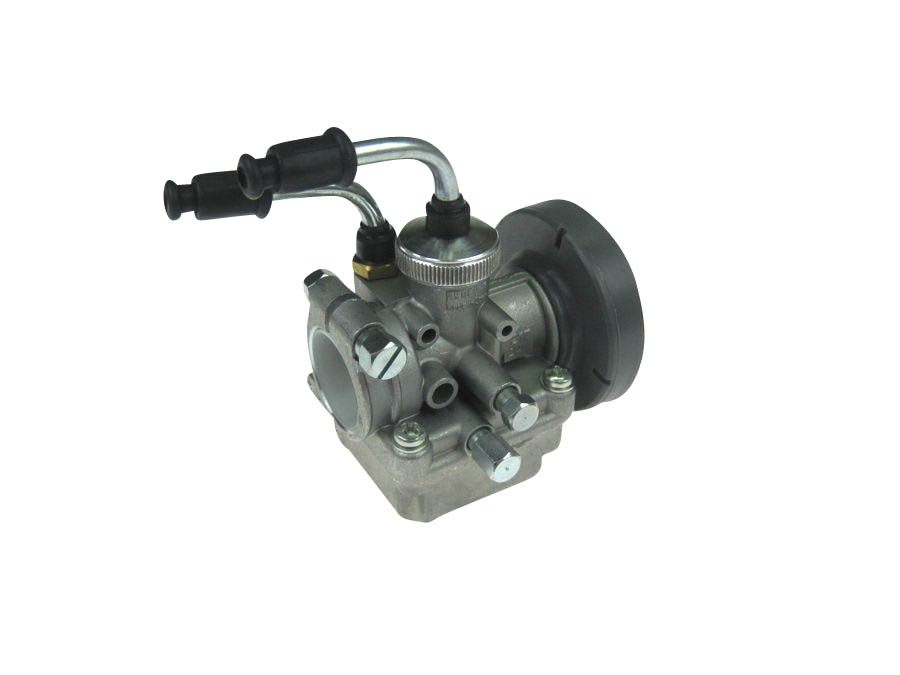

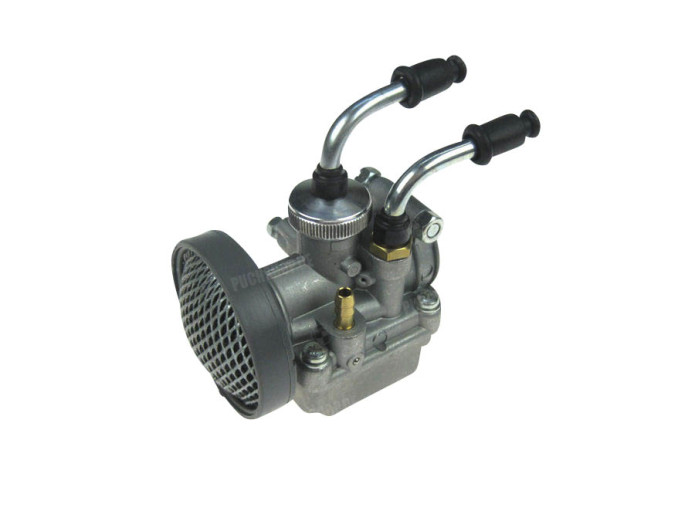

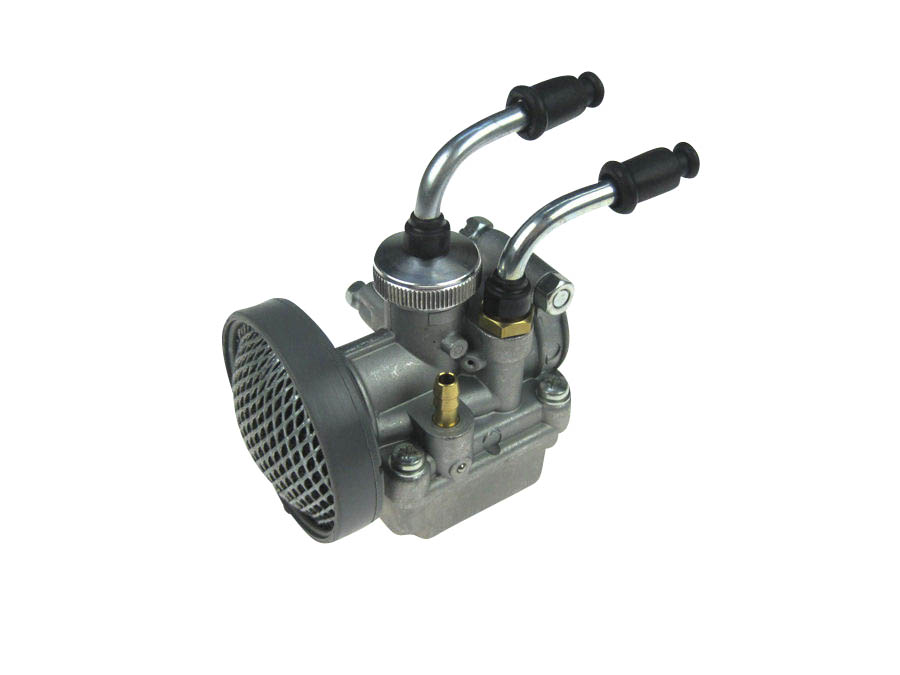

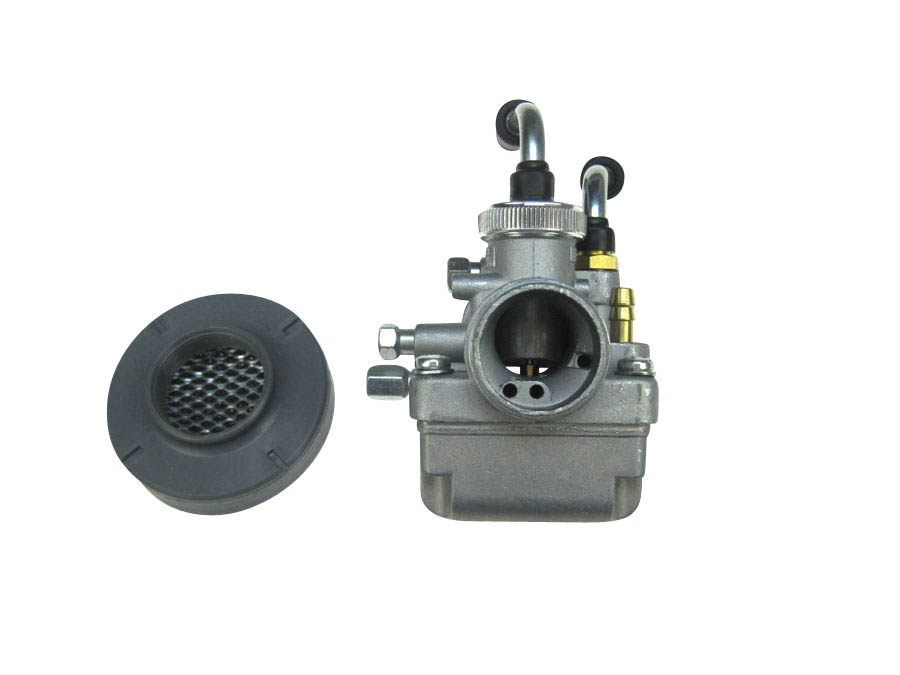

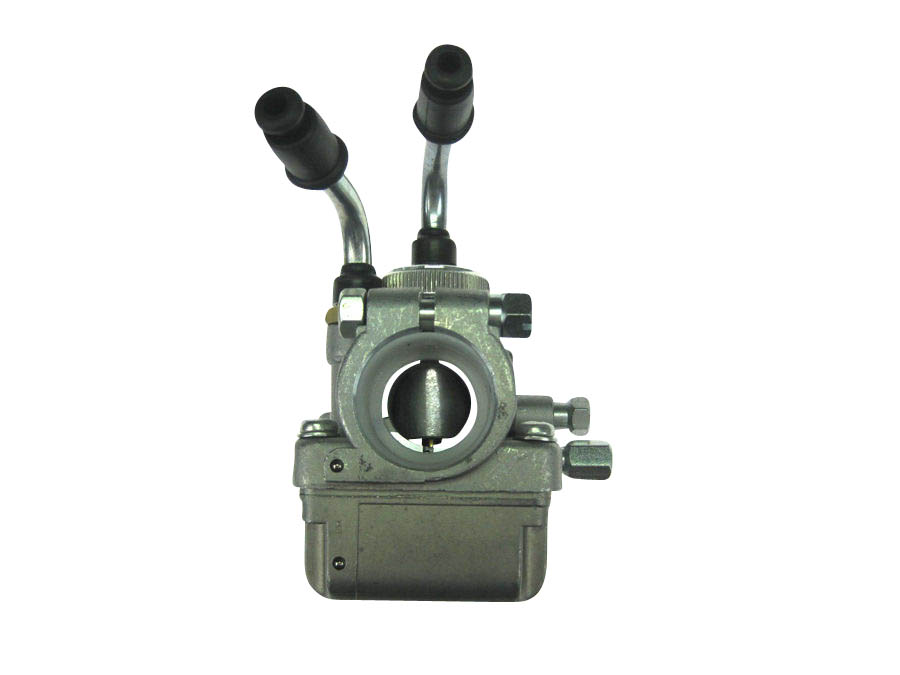

Amal / Arreche 217/24 - 17mm carburettor

Connection diameter of the manifold 24mm
Connection diameter of the air filter 27mm
Nozzles/jets suitable for this carburettor are Amal hexanogal
Carburettor comes with a 60 nozzle/jet
Carburettor should always be cleaned before installation.

With a matching manifold applicable to various Puch models:

Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.

Brand:	Amal
Model:	20189
MPN:	2014
Category:	Engine parts
Type product:	Carburetor
Type product:	Carburetors
Carburetor / sets
Carburetor diameter:	17mm
Mounting type:	Clamp
Weight:	430 gram

AMAL is a British carburettor trademark. Amal was the supplier of carburettors to many marques within the British motorcycle industry including the largest of British manufacturers, such as BSA and AMC, and to producers of small industrial engines. The main carburettor types commonly associated with Amal are slide carburettors for motorcycles. These were historically distinguishable as two types: the Monobloc with integral, offset float chamber and Concentric, a later development with repositioned float chamber directly under the body and air-slide. The latter is commonly used om mopeds such as our beloved Puch!
