Piston 47mm 74cc Puch Gilardoni *High End* forged engine reed inlet (46.95mm) Wössner by MBR

MBR *High End* Forged piston size 46.95 mm for engine reed inlet

In cooperation with the company Wössner a high performance piston for the Italkit was developed!

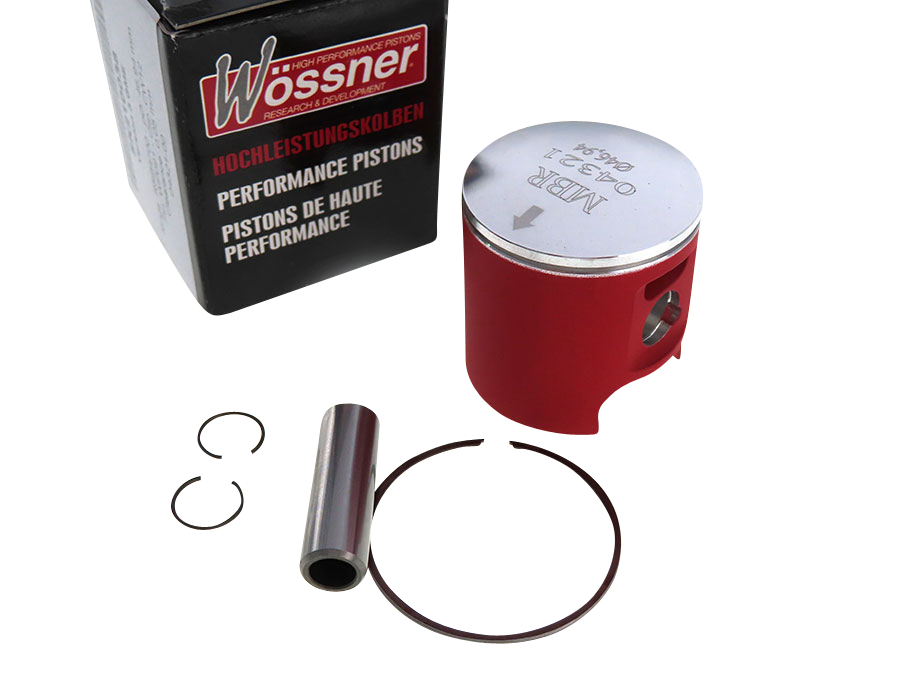

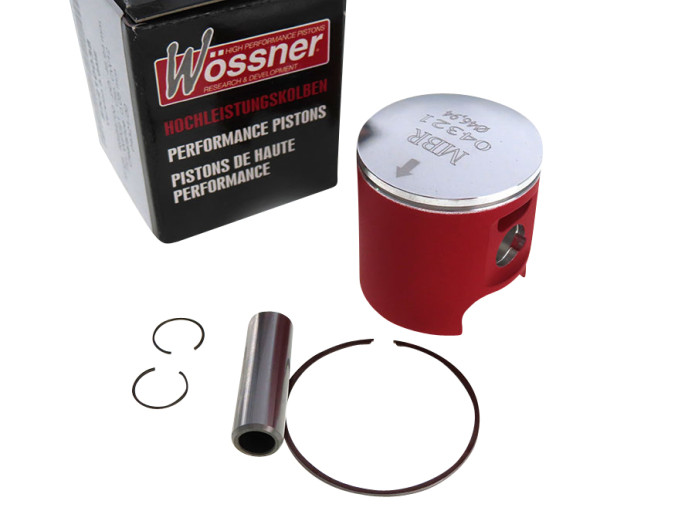

Kit consisting of:

• piston
• 12mm piston pin
• 2 clips
• 1 piston ring

Design is optimal for:

• Gilardoni Italkit 47mm
• Engine reed valve inlet!
• Bigger carburettors (19-32mm)
• High rev (smaller mass / 1-ring only)
• PROX piston pin needle bearing 12x15x16

Recommended size: (coating corresponds to +0.01 to +0.02 mm)

• Italkit cylinder A (47.00): 46.94 mm
• Italkit cylinder B (47.01): 46.95 mm
• Italkit cylinder C (47.02): 46.96 mm
• For extreme conditions (e.g. ASPEN): 46.93 mm

Dimensions:

• A: 2mm
• B: 22mm
• C: 24mm
• D: 12mm
