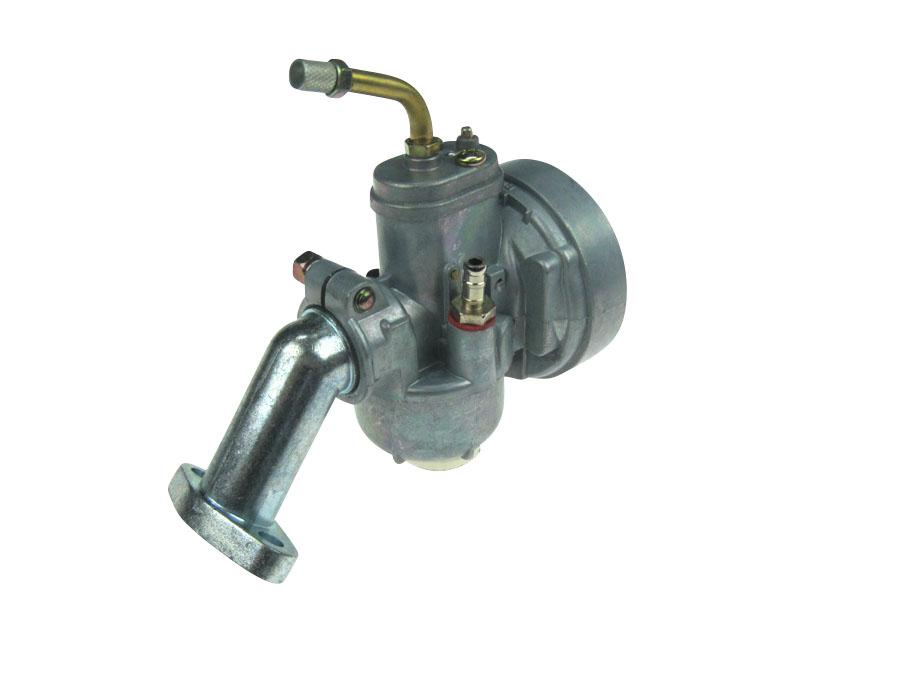

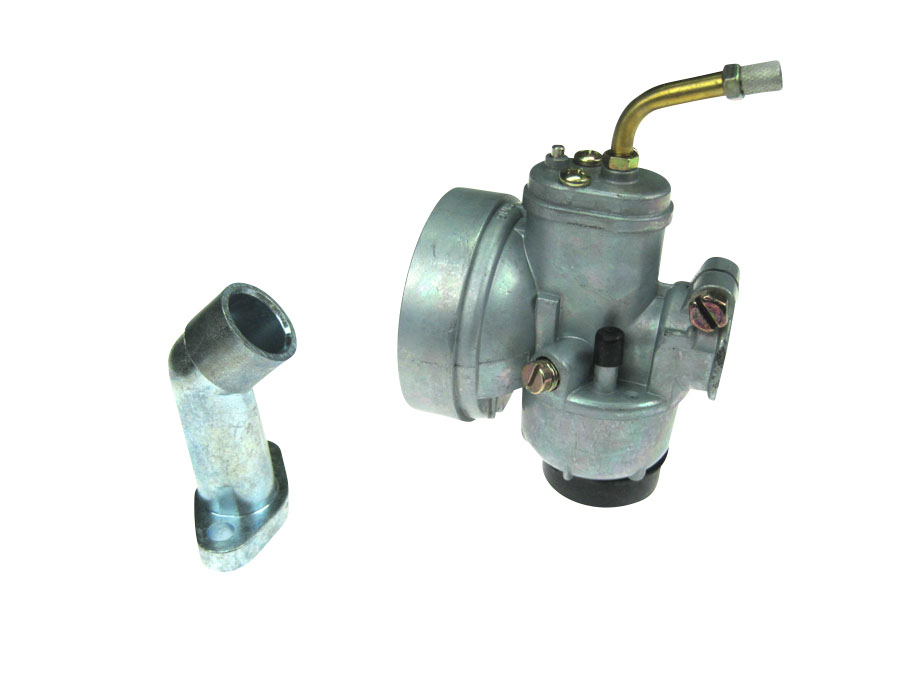

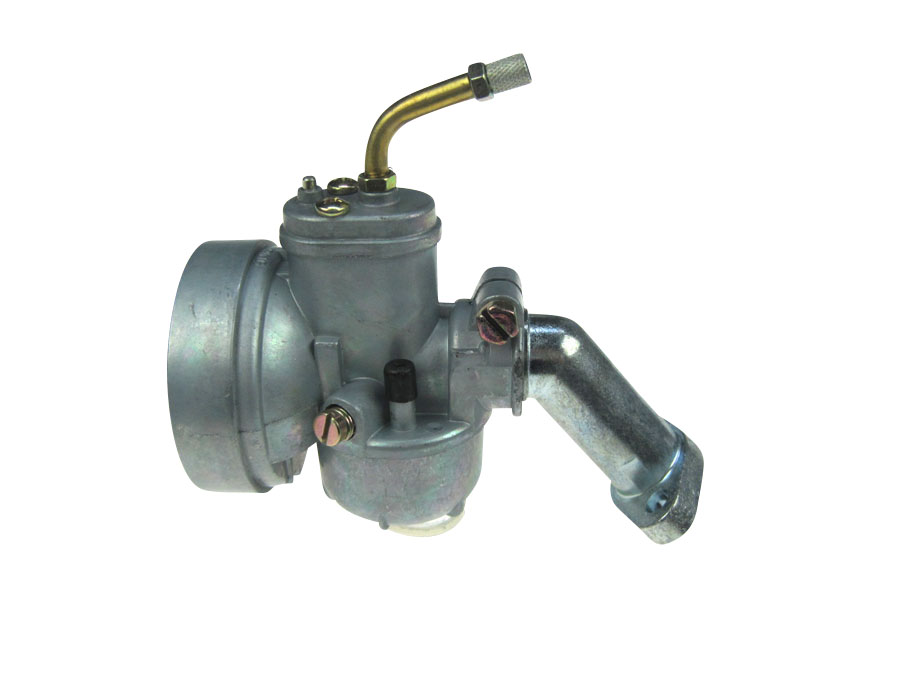

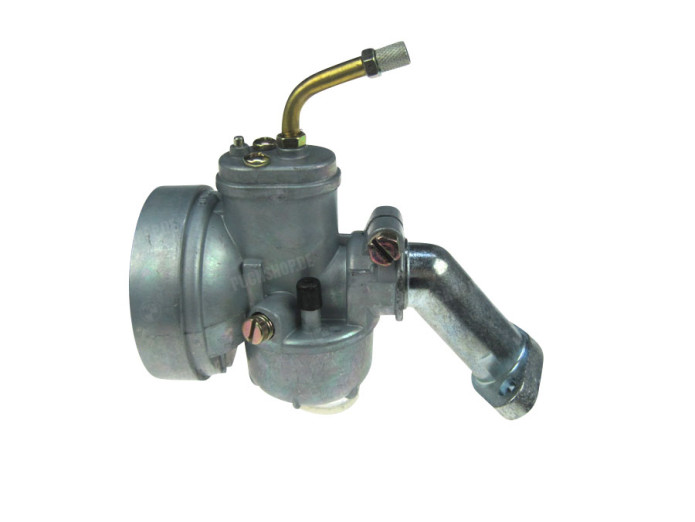

Bing SRC 17mm carburetor Puch Monza replica with manifold set

Bing 17mm carburetor replica Puch Monza with manifold

Including:

• Carburetor model Bing 17mm
• Manifold

Information

• Connection diameter of the manifold 23mm
• Connection diameter of the air filter 60mm
• Nozzles/jets suitable for this carburettor are Bing 4mm jets/nozzles
• Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
• Carburettors should always be cleaned before installation.
• Doesn't fit on Puch Maxi!!
• Centre-to-centre distance between mounting holes: 32mm

Note

• So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.

• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
