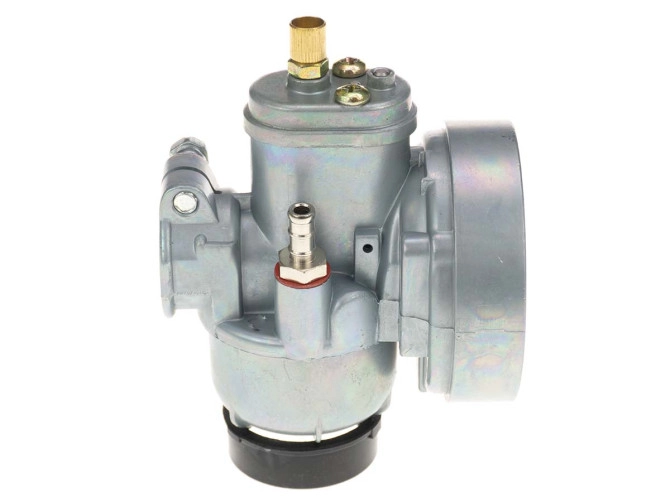

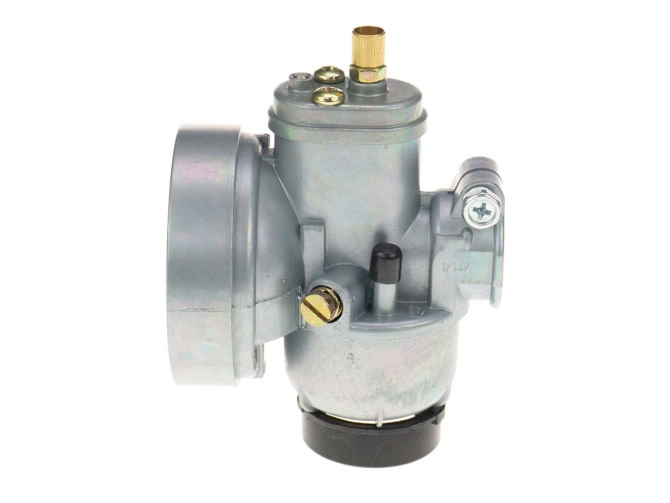

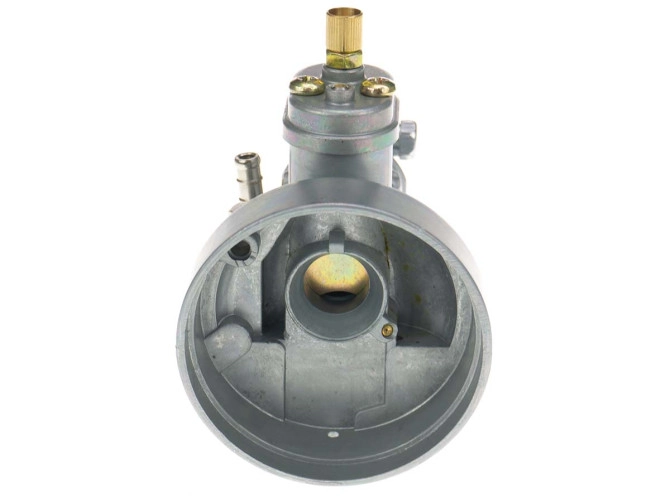

Bing 14mm carburetor replica Puch Monza / M50 / Gran Prix / DS

Bing 14mm carburettor replica.

• Connection diameter of the manifold 23mm
• Outer connection diameter of the air filter: 64mm
• Innerdiameter for air filter: 60mm
• Nozzles/jets suitable for this carburettor are Bing 4mm jets/nozzles
• Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
• Carburettors should always be cleaned before installation.

The jet that is mounted in the carburettor / set is blank and different for each batch.

(The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted).

So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.

It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
• Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

• Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.
