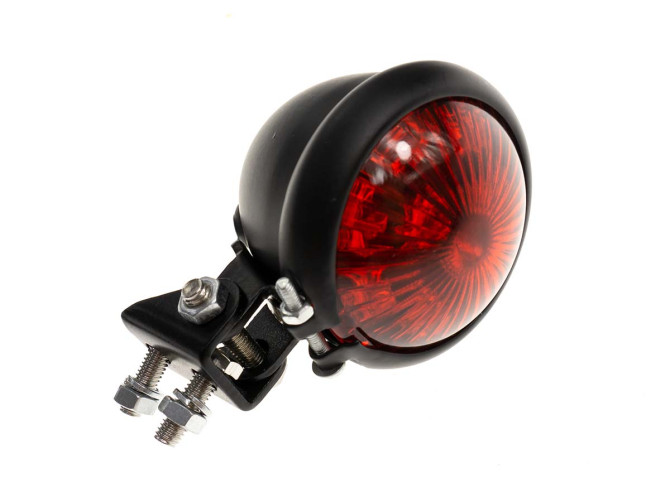

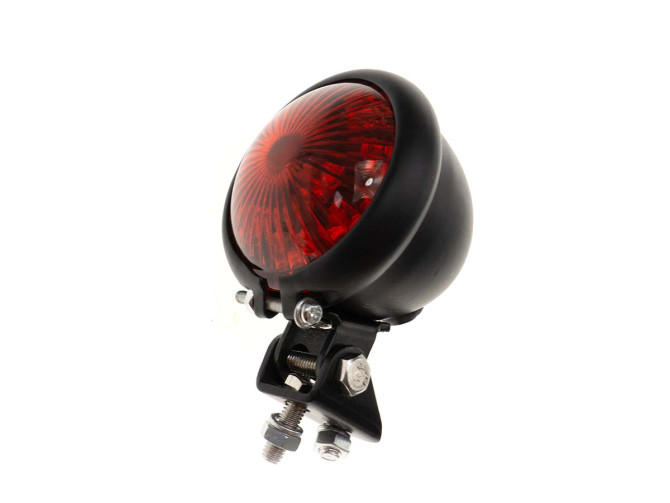

Taillight Puch universal 12V LED small black round

Universal LED custom tail light for mounting on the mudguard or other locations.

• Universal
• The housing and the bracket of the rear light are painted black.
• The lamp holder can be swivelled vertically.
• For mounting, there are two M4 screws on the bracket, which are 14mm apart.

Note: Do you have a moped with alternating current (AC)? Always install a rectifier to convert AC to DC (direct current), or connect a battery. If you don’t do this, the LED lamp can burn out quickly.

Specifications

• Ø outside: 58 mm
• Total length: 56 mm
• Voltage: 12 volt
• Power: 0.3/1.6W
• Approval mark: E4

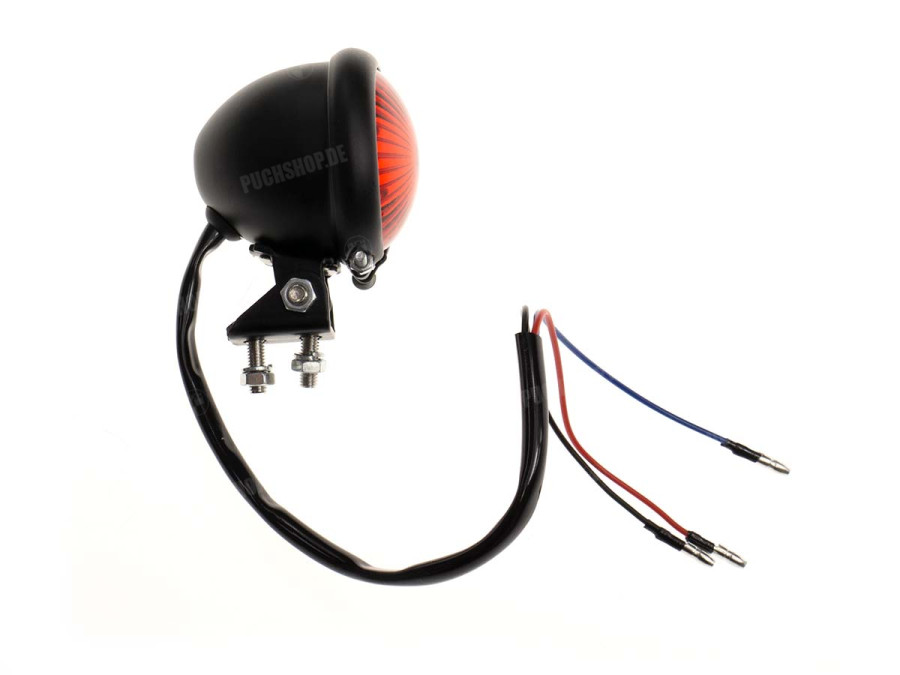

Wiring

• Red: Brake light
• Blue: Licht
• Black: Ground
