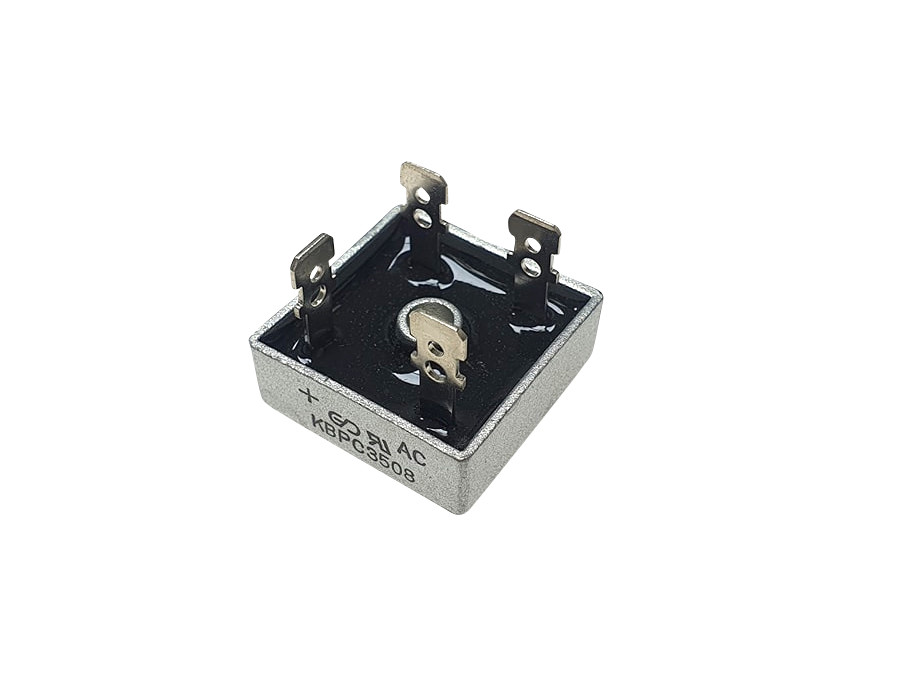

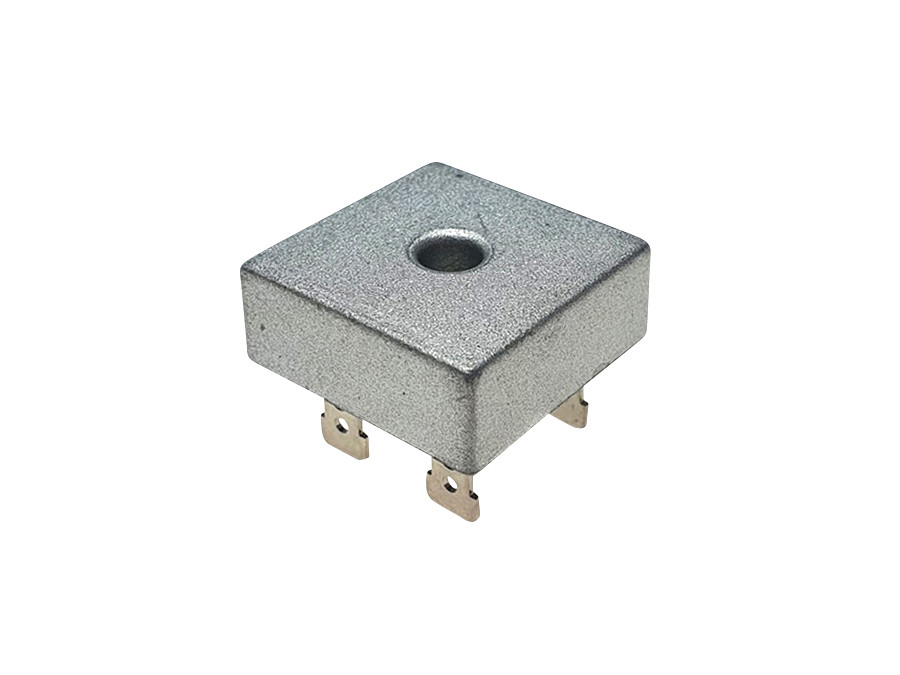

Rectifier universal (AC > DC) LED on Puch KBPC3508

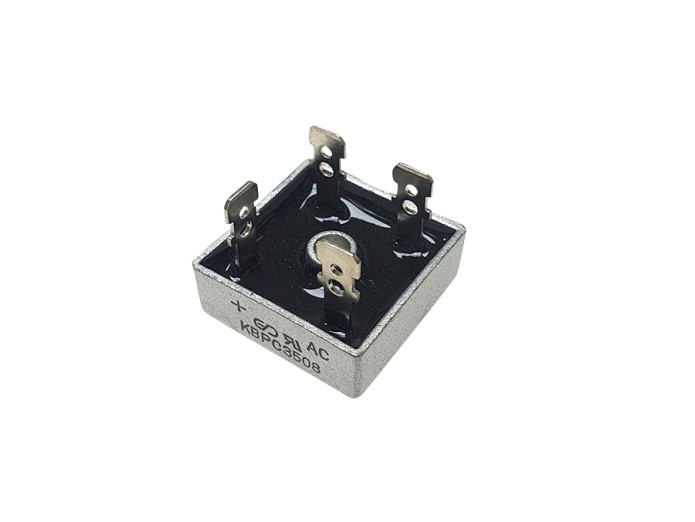

Rectifier universal (AC > DC) LED on Puch KBPC3508

• Use this rectifier when using LED bulbs

• Universal rectifier to convert alternating current (AC) into direct current (DC).
• Type KBPC3508
• Ifsm peak current): 400A
• Vf (forward voltage): 1.1V max.
• Vrrm (reverse voltage): 800V max.
• Ir (reverse current): 10µA
• Io (rectified current): 35A max.

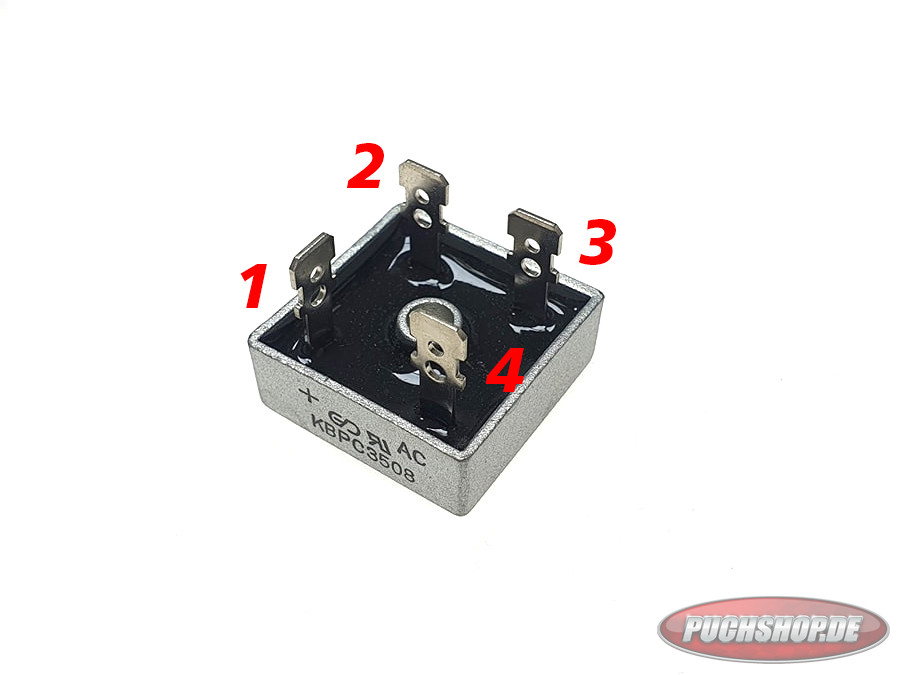

How to connect:

1. Power supply towards wiring of lights/horn/battery (DC voltage)
2. Power supply from ignition/voltage regulator (AC voltage)
3. Ground wire ( this is fitted to the minus of the lights/battery or horn)
4. Ground wire (to the frame)
