Flywheel cover pull starter Puch Maxi E50 HPI 068 / 210 ignition PSR

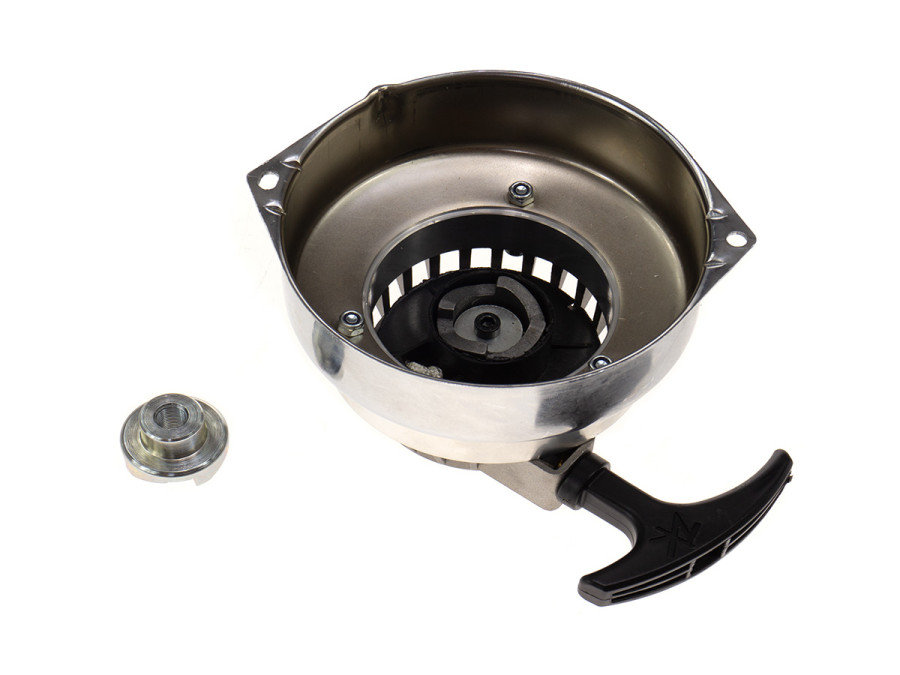

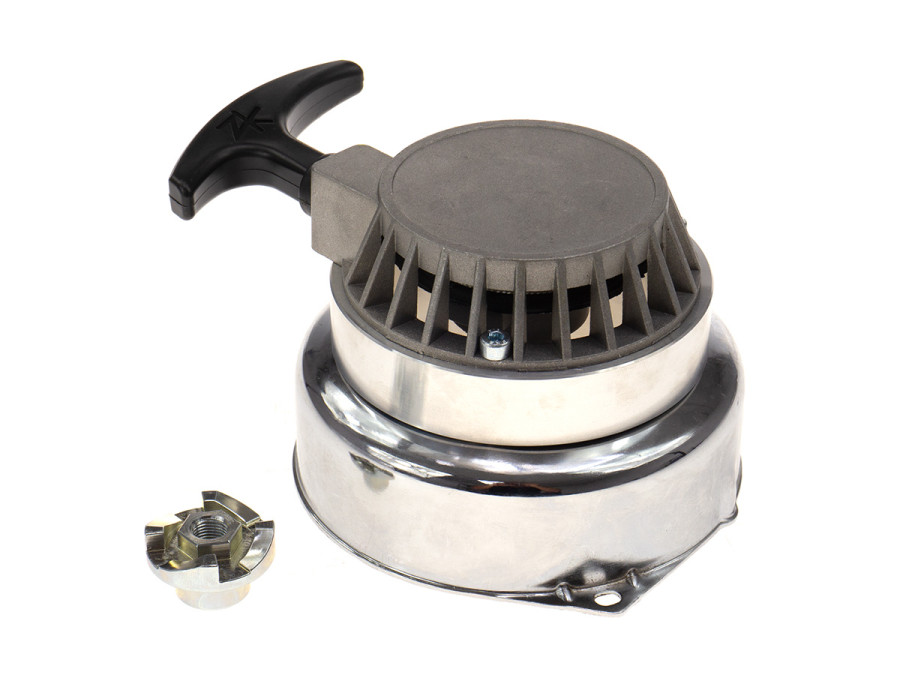

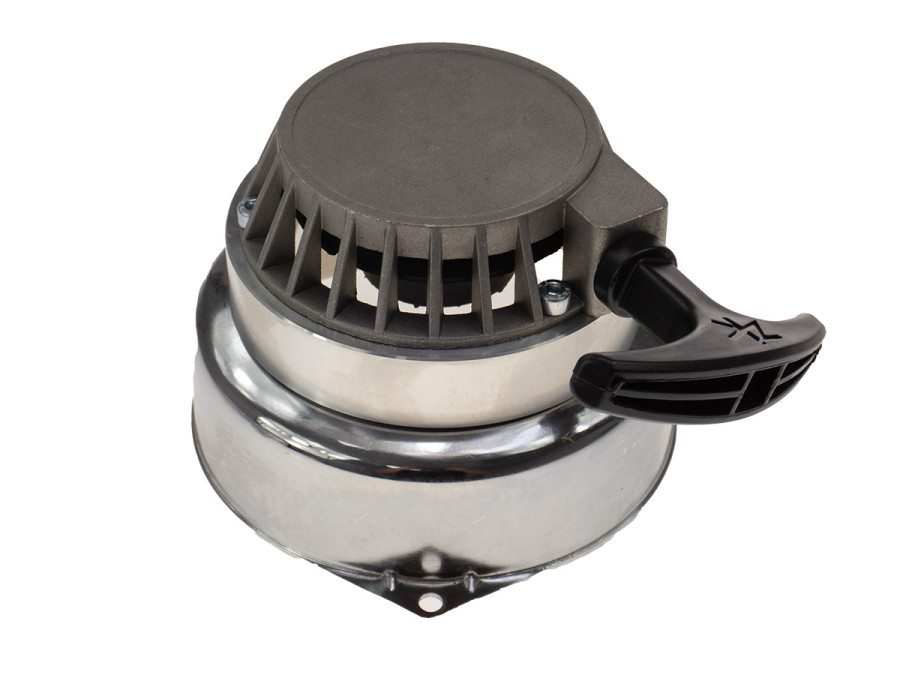

Pull starter for Puch Maxi E50 engine PSR with HPI ignition

• Ready-to-install pull starter for clockwise rotating Puch E50 engines on your Puch Maxi S / N or Puch Supermaxi LG1 moped.

• Good quality, can be used without problems with all cylinders from 50cc till 70cc!
• For HPI 068 / 210 (2-Ten) rotor ignition
• Also for Bosch / Ducati / Iskra ignition
• Note: pull starter cover can be supplied black or grey (no choice here)


Mounting:

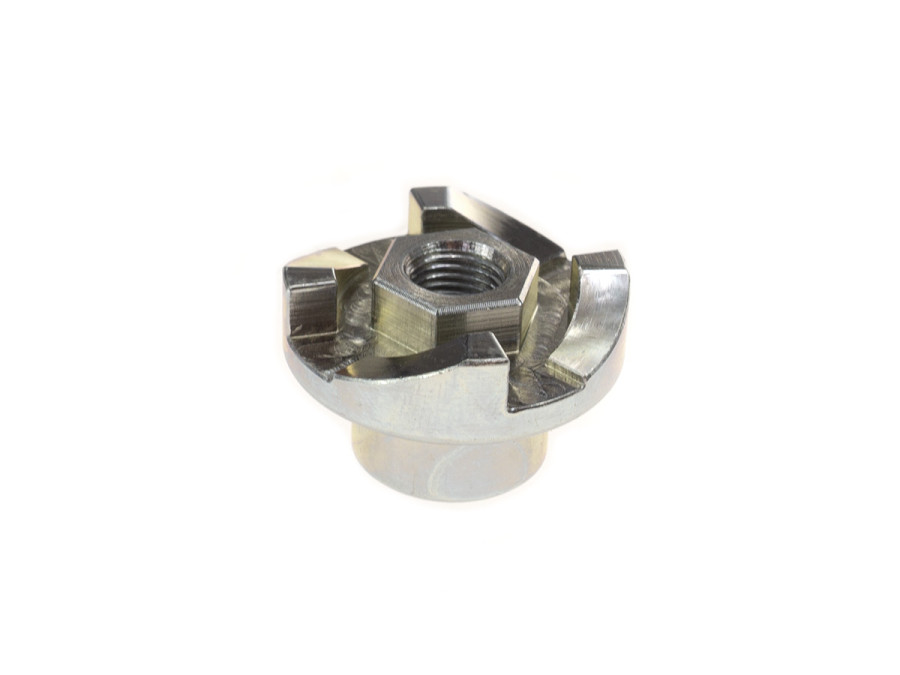

• Starter pinion: clean the flywheel, remove the original flywheel nut. Then screw the carriage for the pull starter onto the crankshaft. Tip: mount the carrier with loctite.

• Pull starter: Place the starter housing in the correct position and tap lightly with a plastic hammer until the pull starter fits perfectly. It can then be screwed into place.

Application:

• Before starting, pull the cable slowly a few times so that the engine spins empty (must be done before each start attempt).

• Pull out the pull-start handle until it is fully engaged and you encounter resistance. Then pull through in one go.
• Tip: Wear gloves! Hold the handle firmly.

Tipp:

• The pedal system can no longer be operated because the pedal arms would touch the housing of the pullstarter. Therefore, footrests, a longer pedal axle or a pedal axle extension must be fitted.
