Cylinder 70cc NM PSR 6-port 17.5mm PHBG exhaust powerfilter

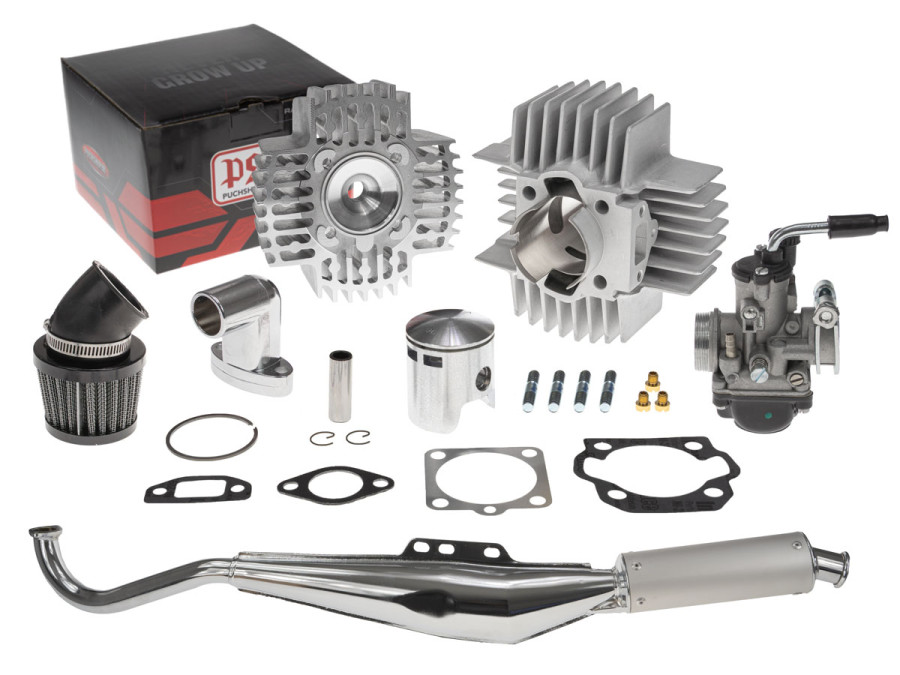

PSR 70cc cylinder set complete new model + exhaust!

Set contains:

• PSR cylinder 70cc 45mm new model

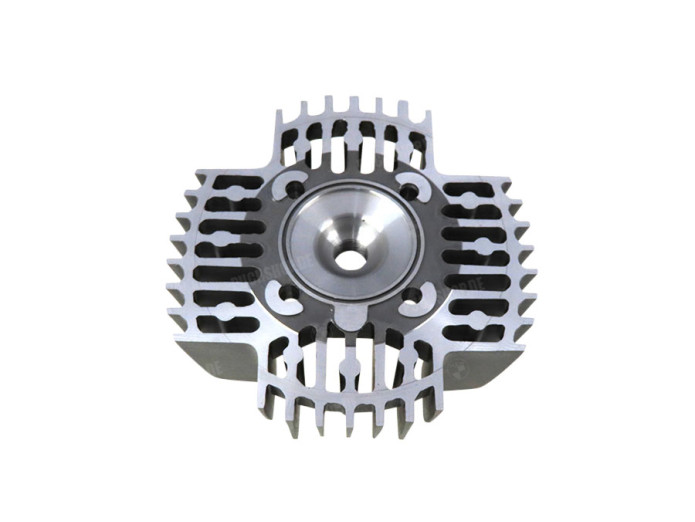

• 70cc high pressure cylinder head

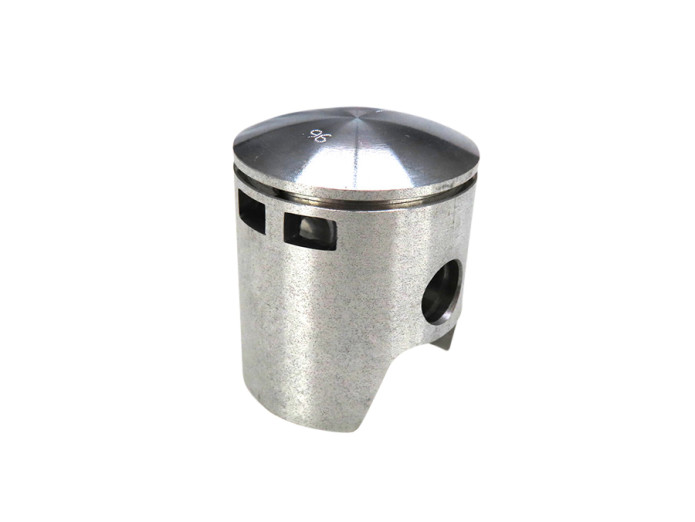

• Piston (piston pin 12mm)
• Gaskets set
• 17,5mm Dellorto replica carburetor (very high quality!)
• 16-21mm manifold
• Airfilter 45° black

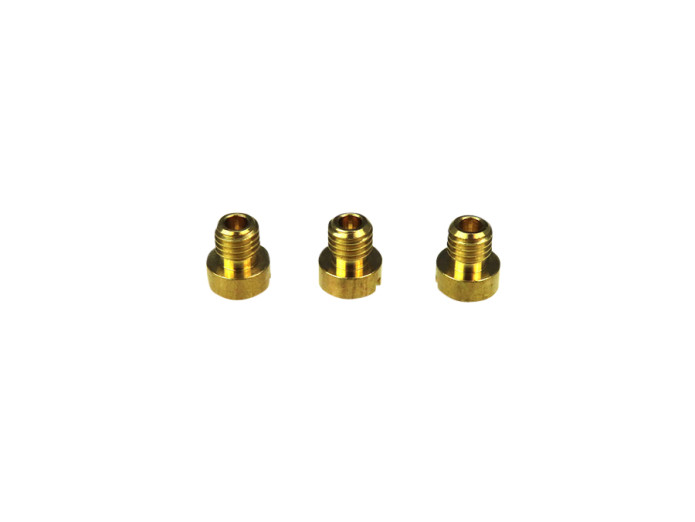

• 3 Dellorto replica jets for perfect adjustment. (76-78-80)

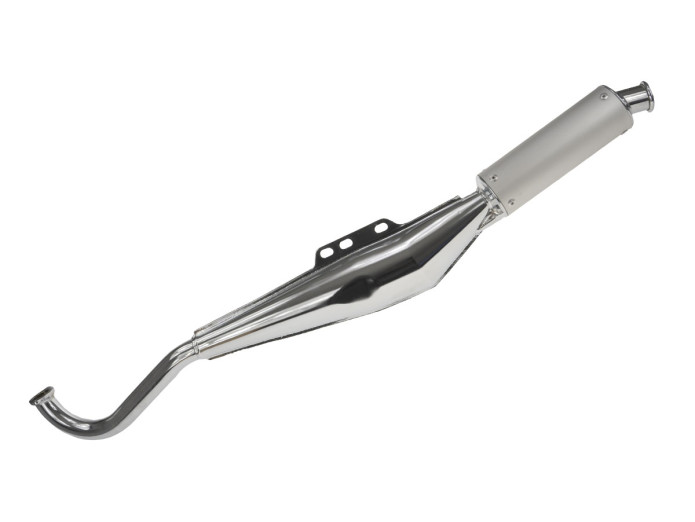

• Set comes with the Exhaust Puch Maxi / E50 28mm Bullet chrome

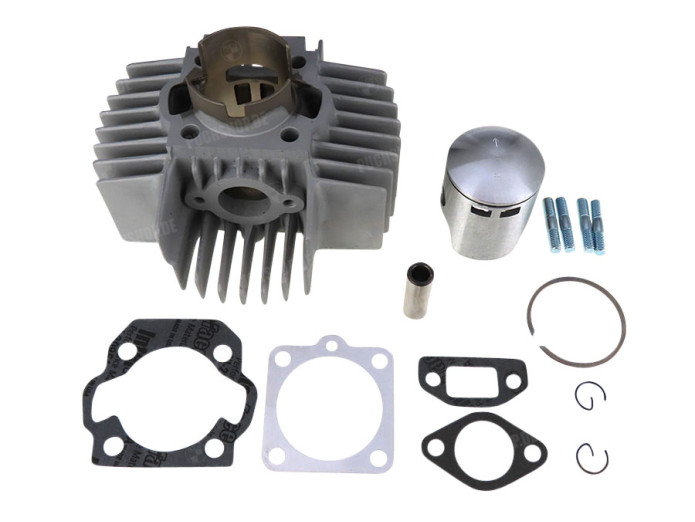

PSR 70cc cylinder (45mm) information

These cylinders from the brand PSR are high quality cylinders specially developed for Puchshop. PSR cylinders are known for their high quality and long life. The set comes standard with gaskets, piston, piston pin and piston rings.

• Aluminium with Nicasil wall
• Fast 6 port cylinder
• Piston (piston pin 12mm) and gaskets set included
• New model
• Cylindersleeve outer diameter: 48mm

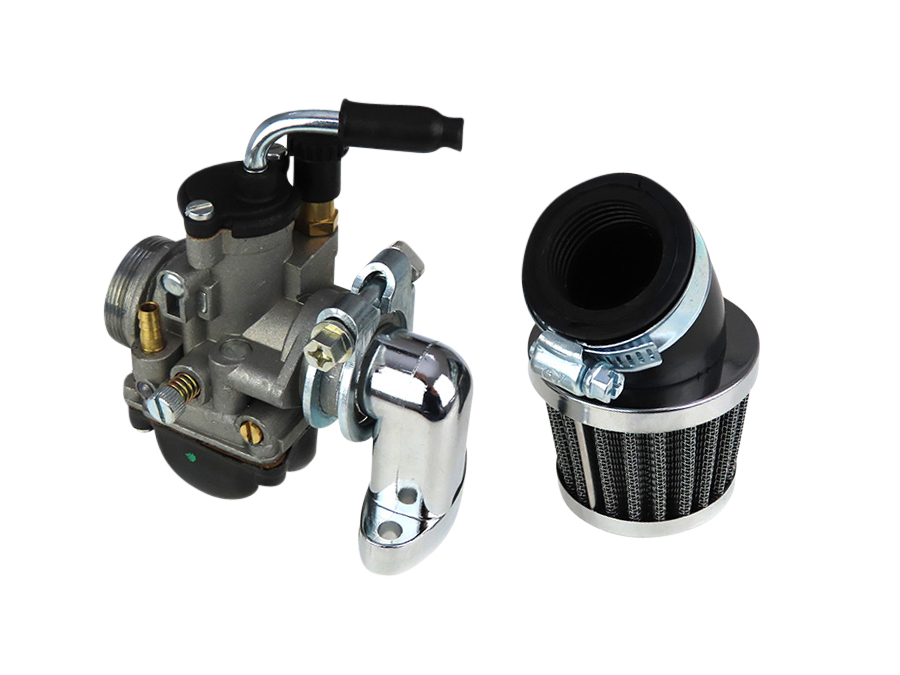

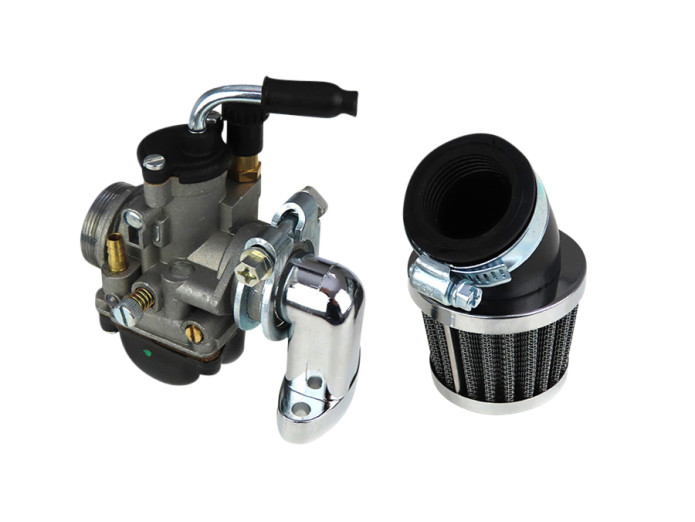

PHBG carburettors 17,5mm replica information

• Model as Dellorto PHBG, very good replica.
• Hand choke
• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a blanc nozzle/jet.
• Carburettors should always be cleaned before installation

Note:

• The float chamber of the carburettor is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.
• Chances are that the carburettor and the filter will not fit directly between the cylinder and the frame. By filing the little holes in the manifold, it can be modified in such a way that the carburettor and filter will fit, even with frame brackets attached.
