Cylinder 70cc NM PSR 6-port set + 17.5mm PHBG Puch Maxi, X30

Cylinder 70cc NM PSR 6-port set + 17.5mm PHBG Puch Maxi, X30 And other models

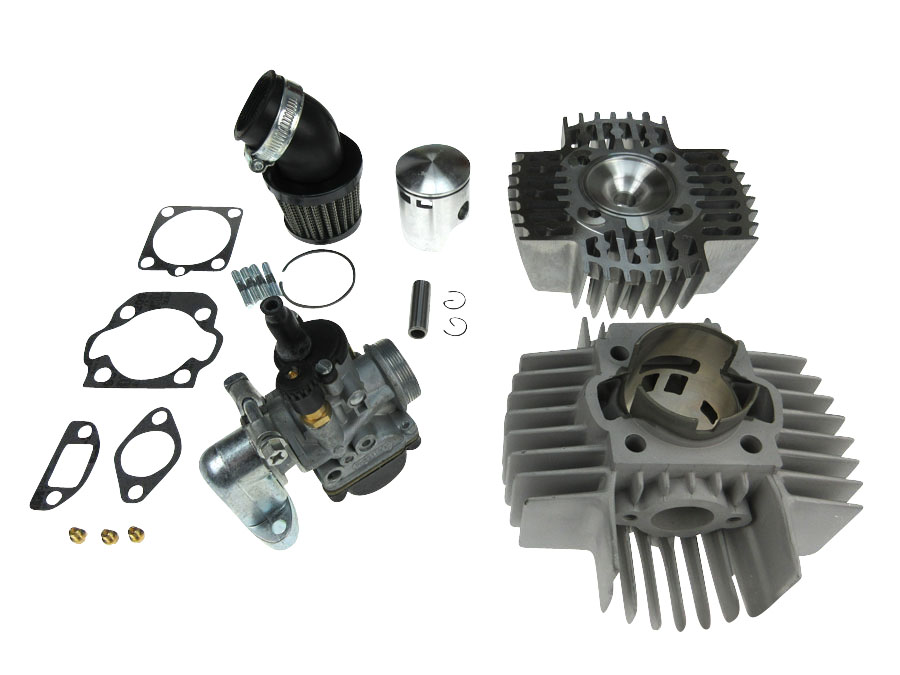

Top offer! PSR cylinder kit 70cc / 45mm Finally a cylinder kit that is almost plug and play! A datasheet with all information needed for installation and tuning is included!

• PSR 70cc cylinder

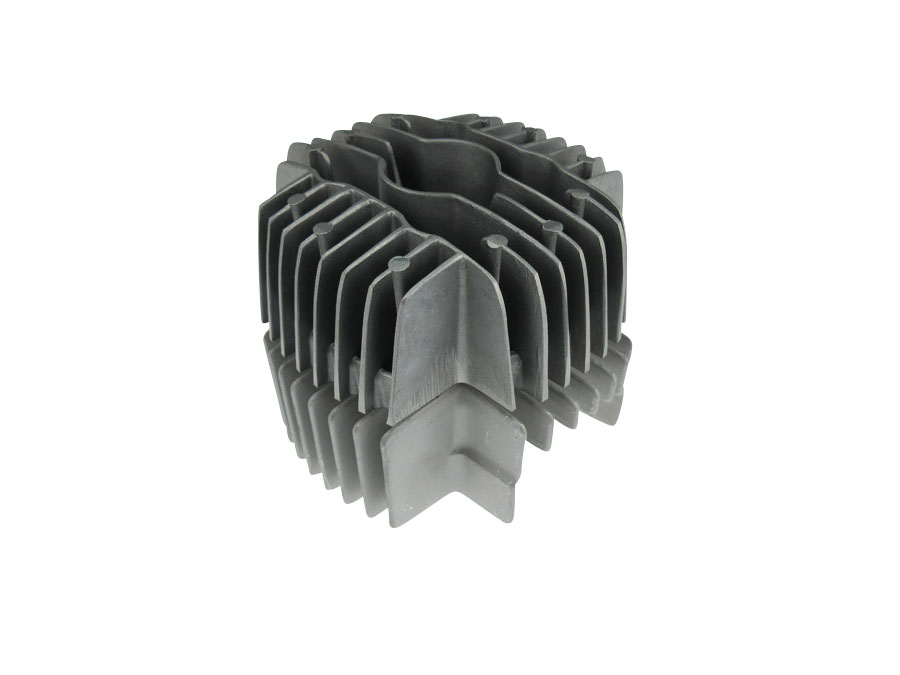

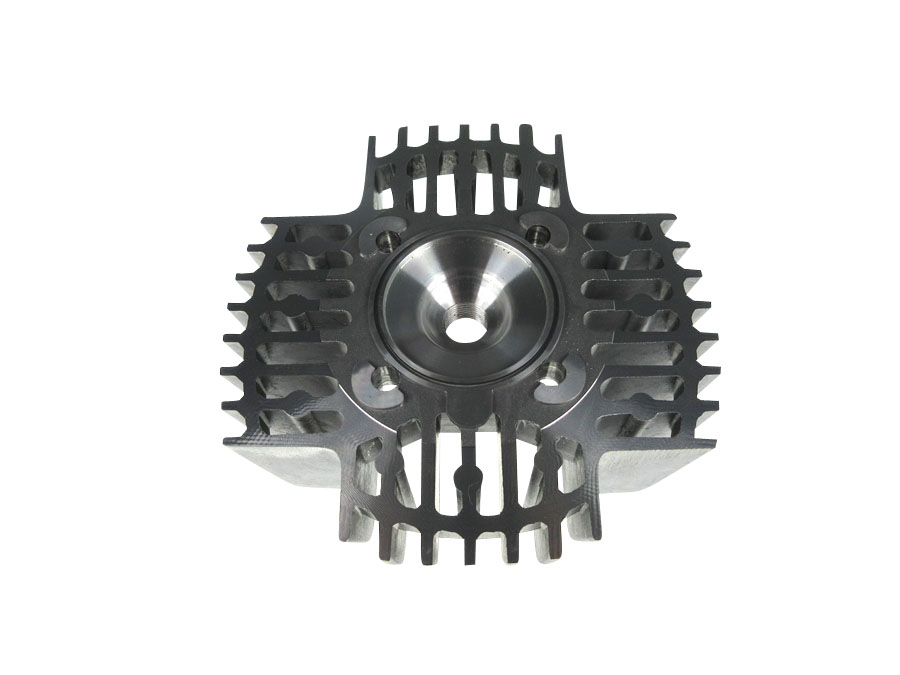

• 70cc high pressure cylinder head

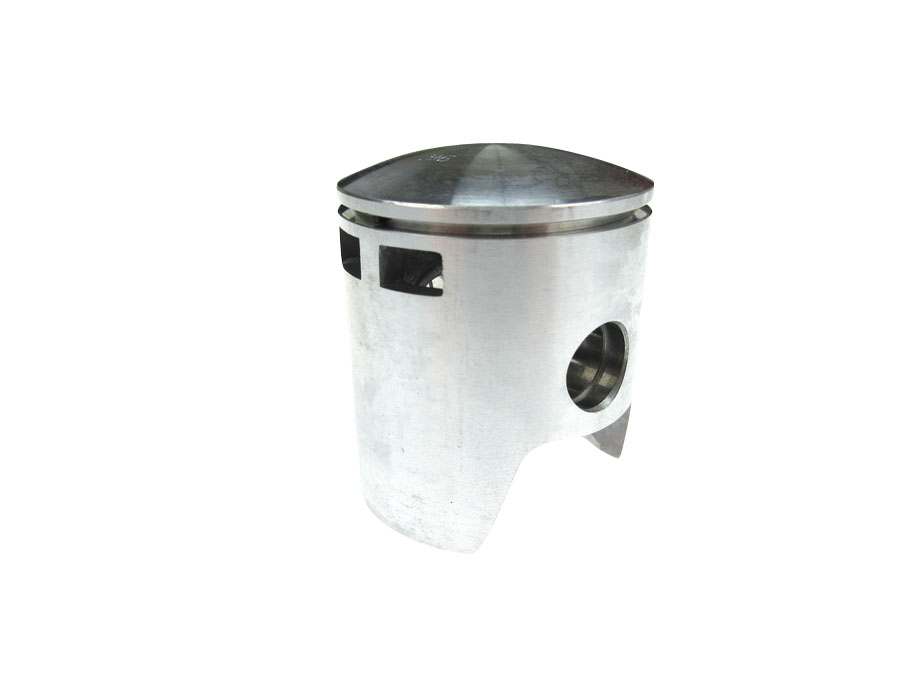

• Piston complete (piston pin 12mm)
• Gaskets set
• 17,5mm Dellorto imitation-carburetor (very high quality!)
• 16-21mm manifold
• Airfilter 45° black
• 3 Dellorto replica jets for perfect adjustment. (76-78-80)

Tip: This set is tested by us with a RS Cigar exhaust(speed) And this set is tested by us with a Jamarcol exhaust (torque) Our advise is to use a gear ratio of 15-45 or 16-45. The NGK B9HS spark plug fits the best with this set!

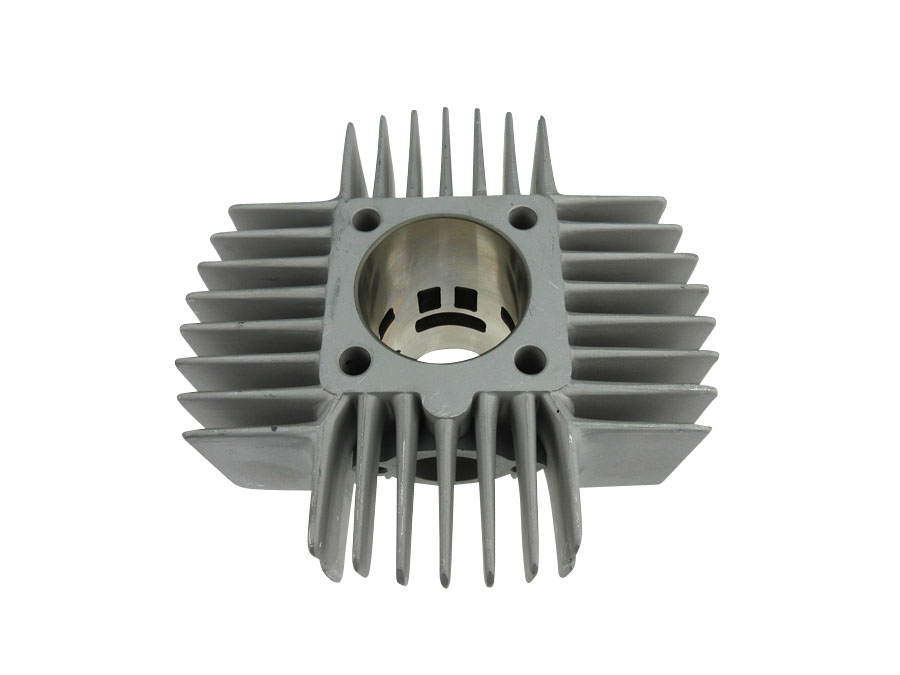

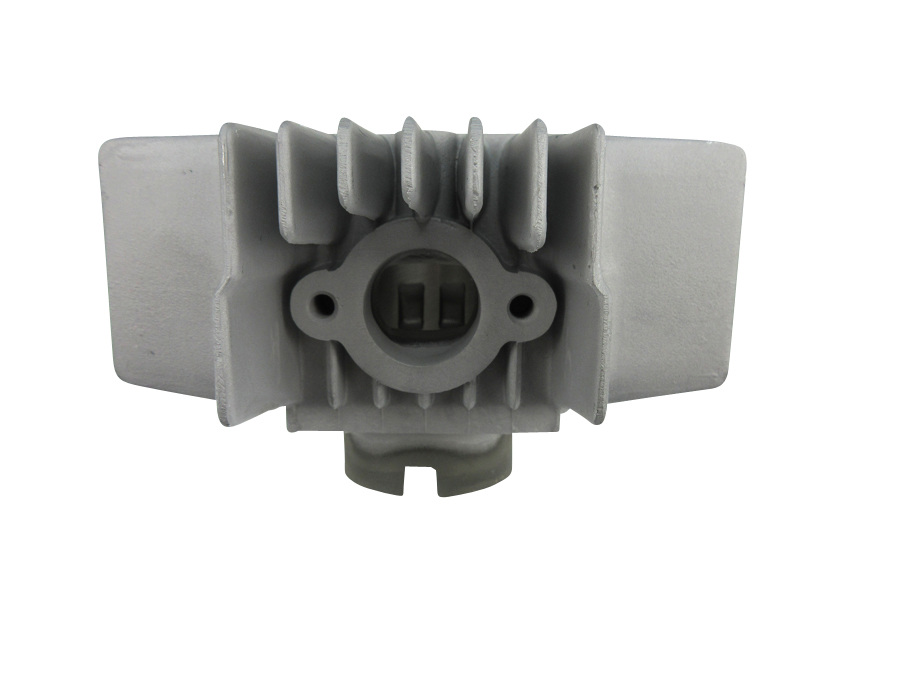

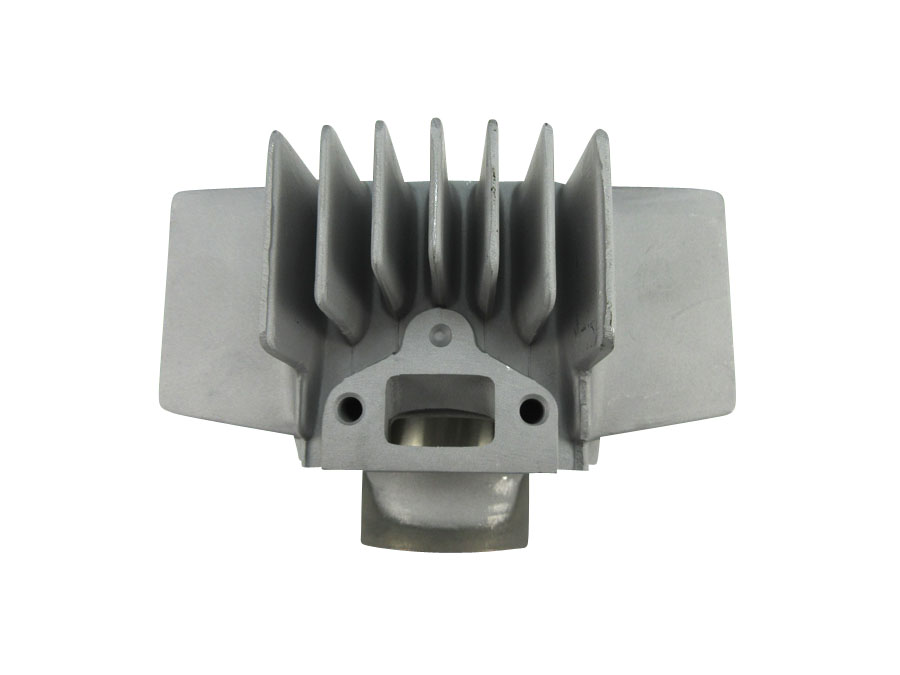

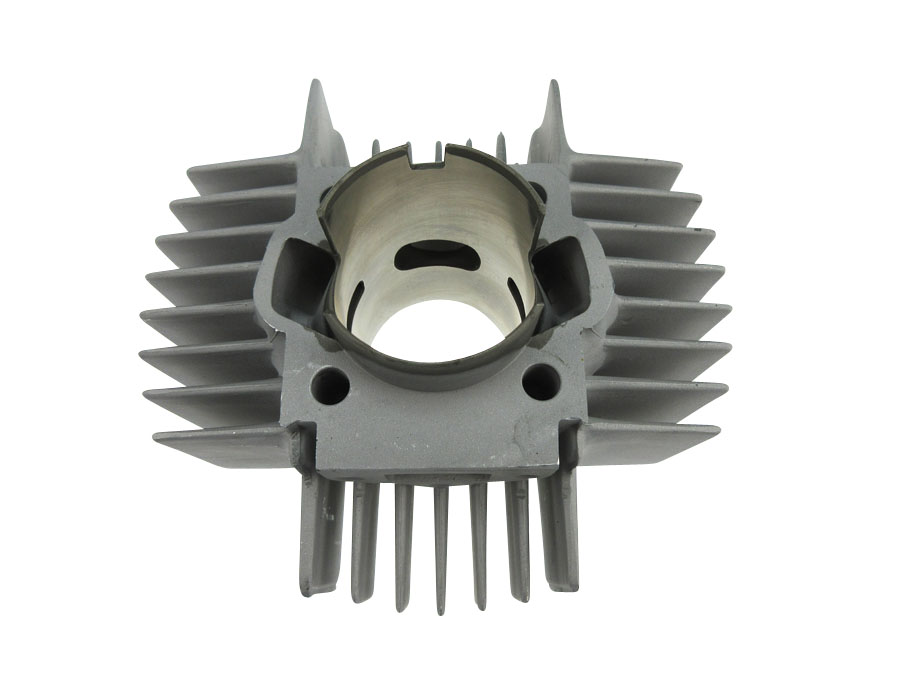

PSR 70cc cylinder (45mm) information

These cylinders from the brand PSR are high quality cylinders specially developed for Puchshop. PSR cylinders are known for their high quality and long life.

The set comes standard with gaskets, piston, piston pin and piston rings.

• Aluminium with Nicasil wall

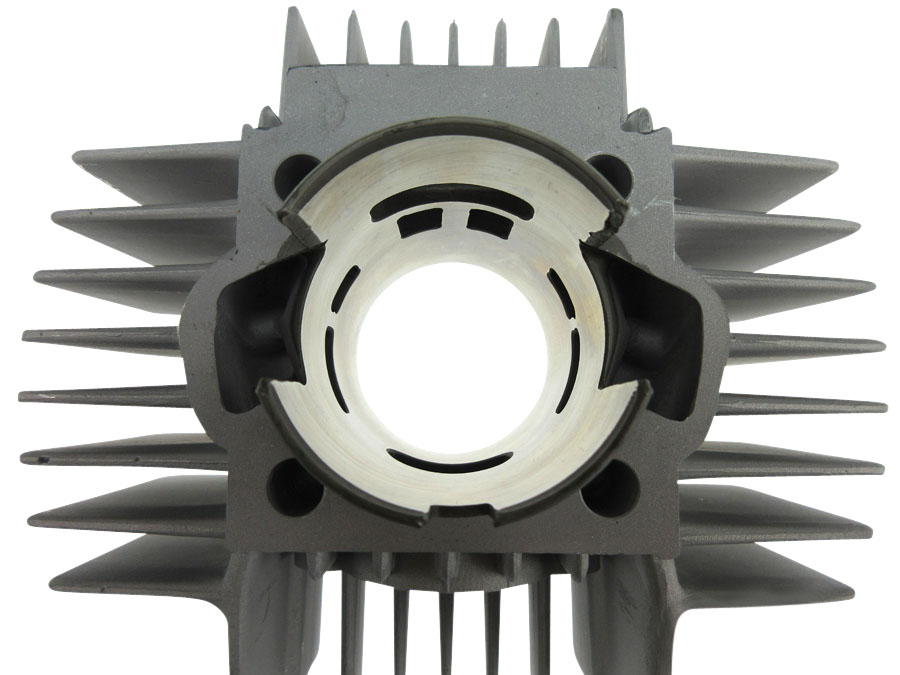

• Fast 6 port cylinder
• Piston (piston pin 12mm) and gaskets set included
• New model
• Cylindersleeve outer diameter: 48mm

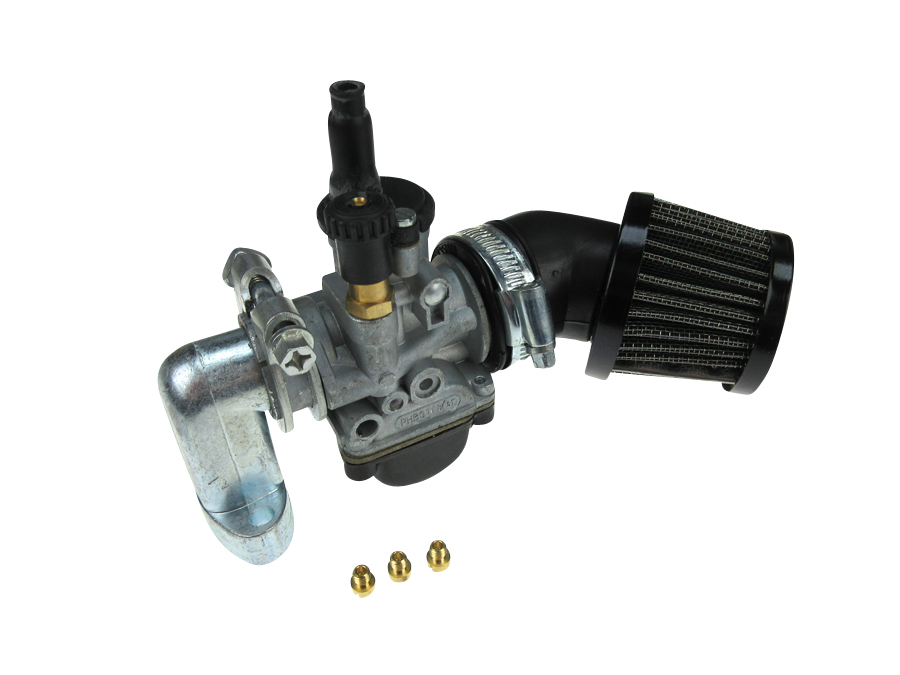

PHBG carburettors 17,5mm replica information

• Model as Dellorto PHBG, very good replica.
• Hand choke
• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a blanc nozzle/jet.
• Carburettors should always be cleaned before installation

Note:

• The float box of the carburettor is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.
• Chances are that the carburettor and the filter will not fit directly between the cylinder and the frame. By filing the little holes in the manifold, it can be modified in such a way that the carburettor and filter will fit, even with frame brackets attached.
