Reed valve Athena AJH / DMP 70cc + Dellorto PHBG sideways 21mm manifold

Manifold Athena AJH / DMP reedvalve Dellorto

Fits Puch Maxi Athena AJH and DMP BIG reed valve cylinder with an Dellorto PHBG model carburetor

• For Athena AJH and DMP 70cc reed valve cylinder
• Connection of the manifold is 24mm
• Inner diameter is 21mm

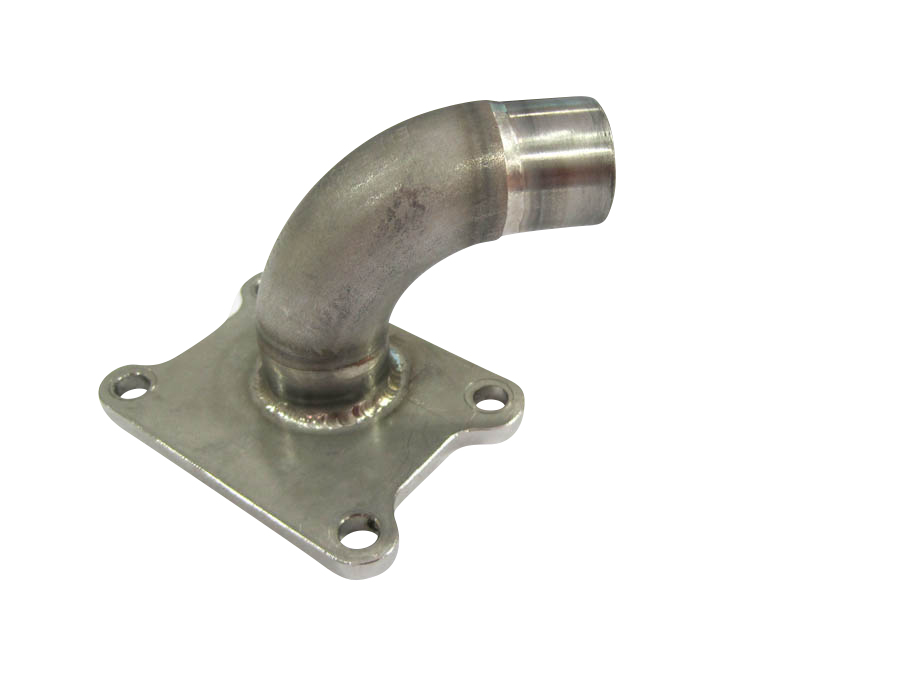

• Comes out sideways, see picture 4

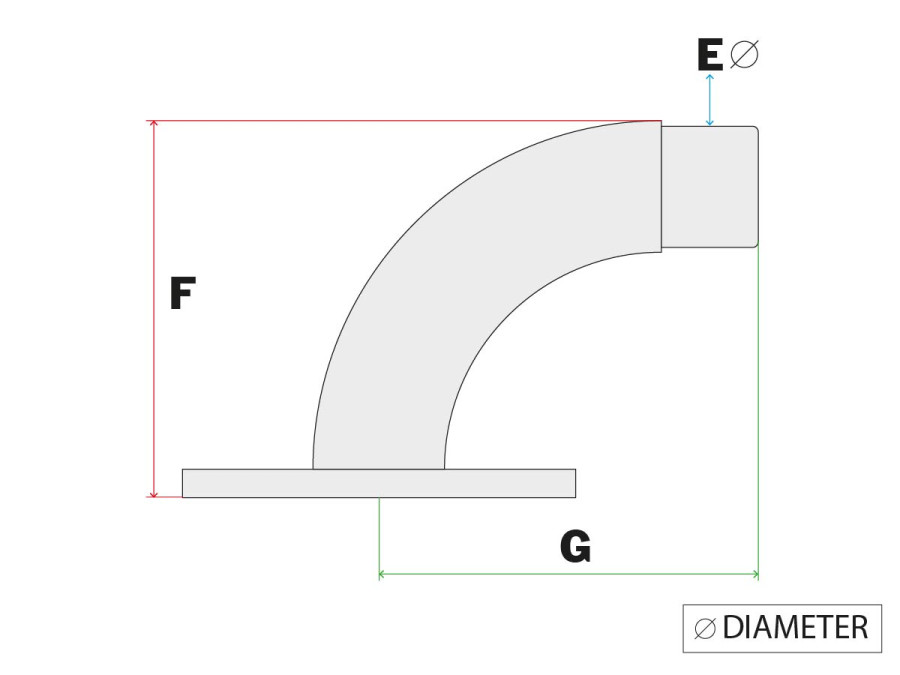

Dimensions:

• A: 6mm
• B: 40mm
• C: 21mm
• D: 60mm
• E: 24mm
• F: 60mm
• G: 55mm
