Cylinder 70cc OM Athena AJH reed valve Puch Maxi, X30

€ 161,16

Ex Tax: € 161,16

A few left in stock

Model: 10013

10013 10013 10013 Athena

https://www.puchshop.de/en-gb/athena-ajh-70cc-45mm.html 2026-06-15

Also check other variant of: 70cc old model Athena AJH reed valve cylinder

Without shipping costs. VAT info.

Robert
Puch fanatic

Questions or advice needed?
Check our info center or get in touch!

Description

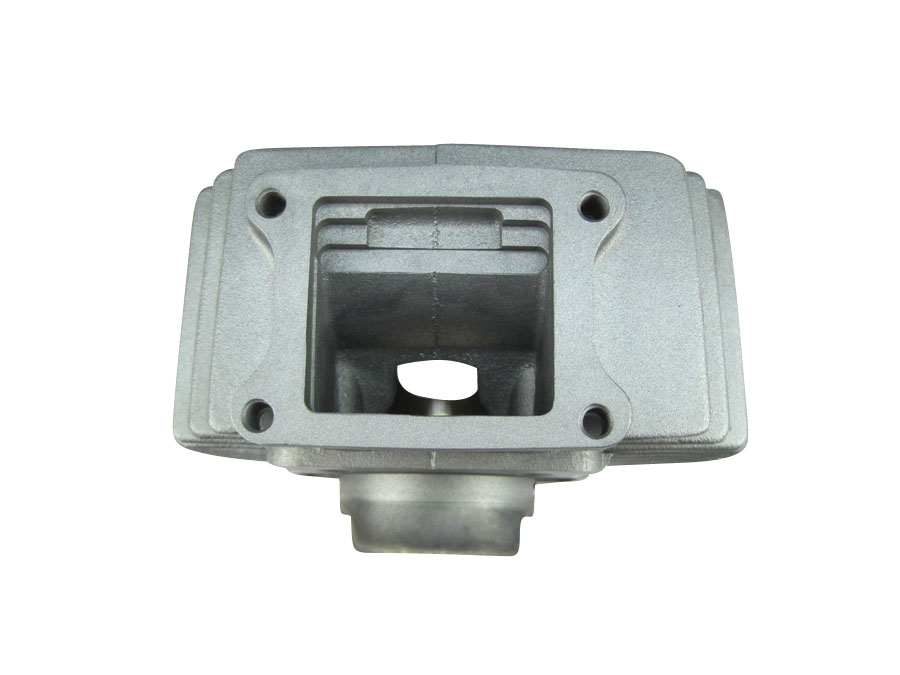

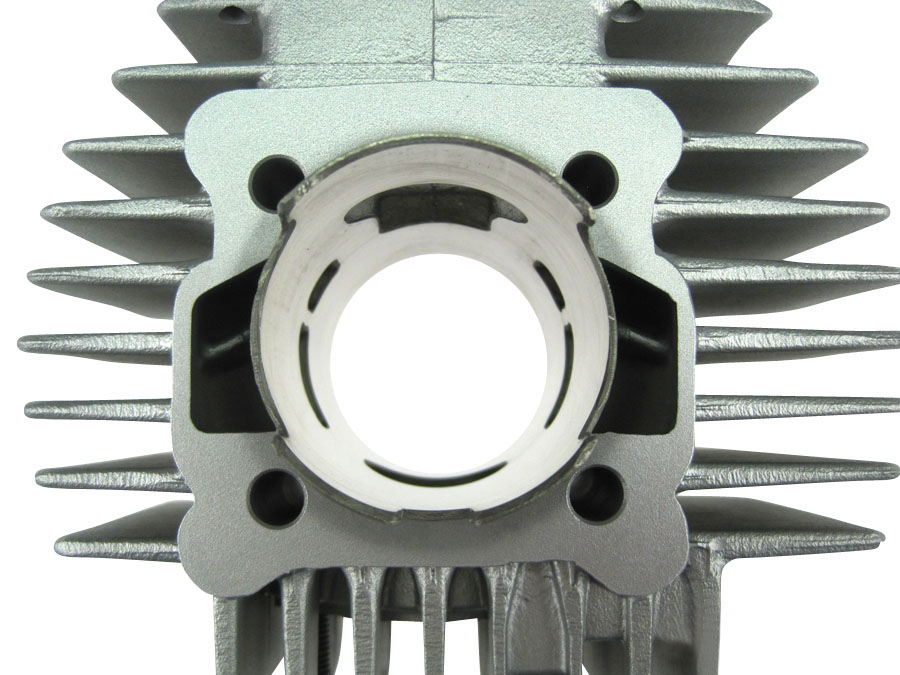

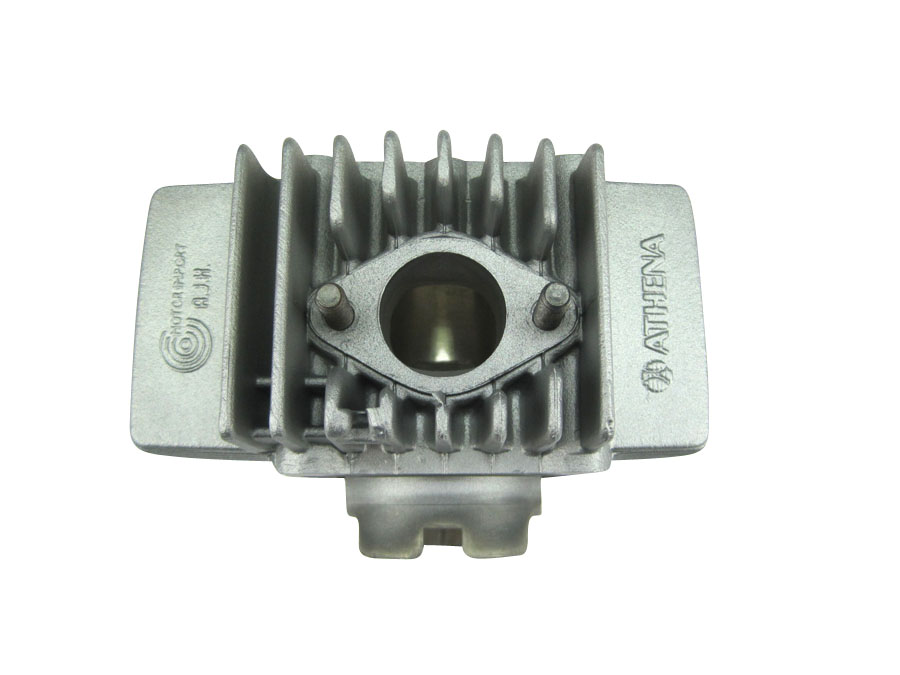

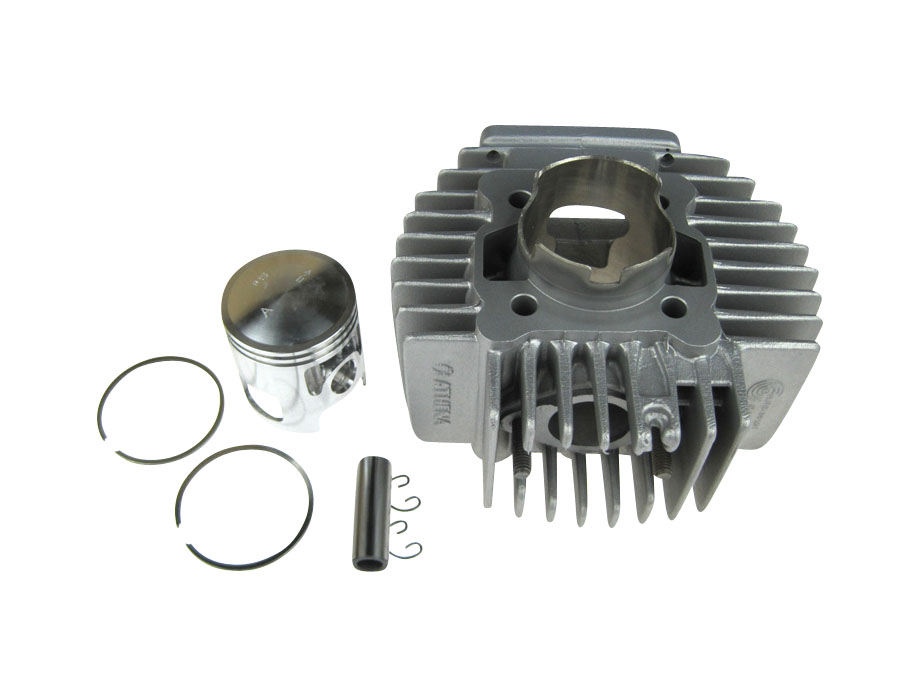

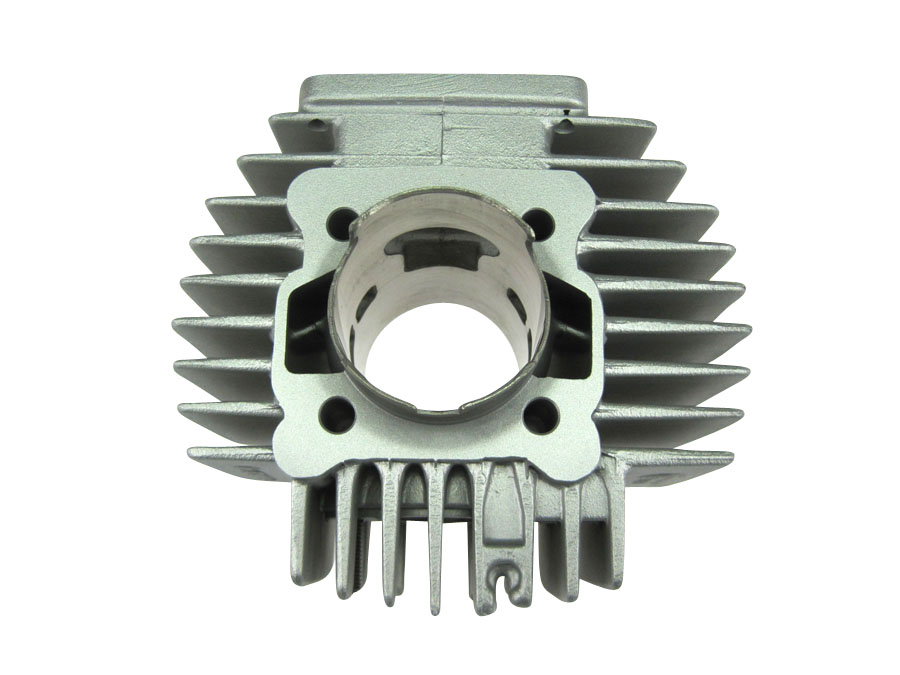

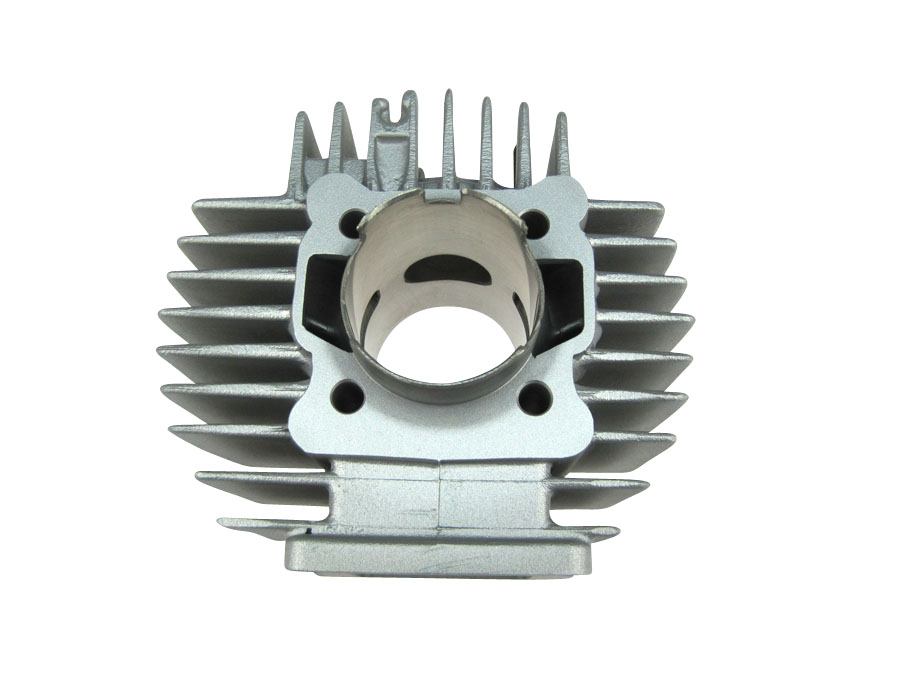

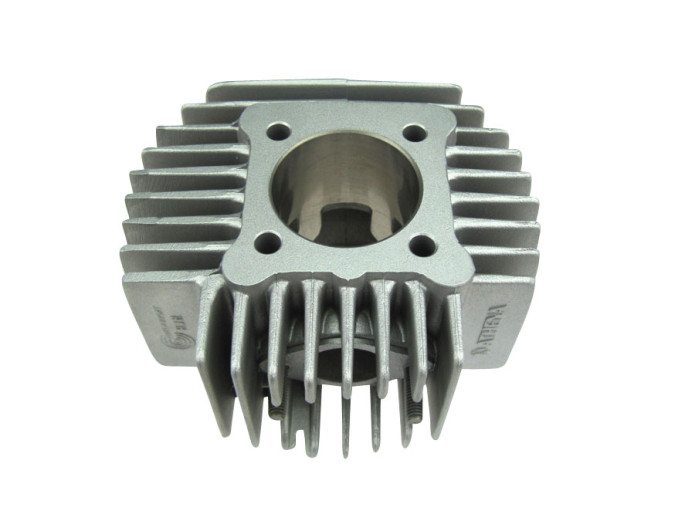

Athena AJH kit 70cc cylinder (45mm)

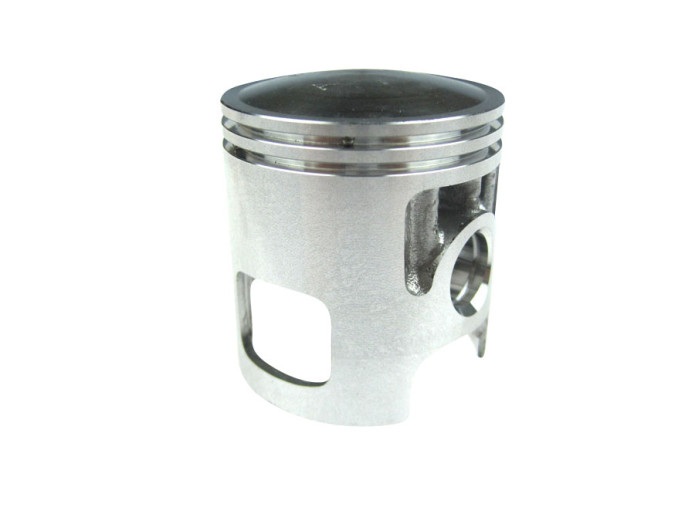

Piston, piston pen 12mm and circlips.
Very fast cylinderkit of very high quality.
This is one of the fastest cylinders for Puch!
Our advise is to order carbon oder carbonit Reed valve sheets, because steel sheets can break!
Without gaskets (see related products)
Cylindersleeve outer diameter: 48mm

Before mounting

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Brand:	Athena
Model:	10013
EAN:	6095821353347
MPN:	74
Category:	Engine parts
Type product:	Cylinder / head
Type product:	Cylinders
Cylinder / head
Cylinder displacement:	70cc
Cylinder diameter:	45mm
Cylinder model:	Old model
Weight:	1200 gram

Founded in 1973 as a small artisan company in Italy, Athena is today an international company that manufactures and distributes products all over the world. Athena started in the sector of industrial gaskets and over the years has developed into the brand of choice for parts for motorbikes, cars and boats, including racing parts. We know Athena mainly in Puchland for their high-quality cylinders and cylinder kits. Would you like to tune or upgrade your Puch Maxi with a 50cc to 70cc cylinder? Piston-controlled intake or by using a reedvalve, Athena has it. Also air filters to tune your Puch Maxi or other mopeds are in stock from Athena.
