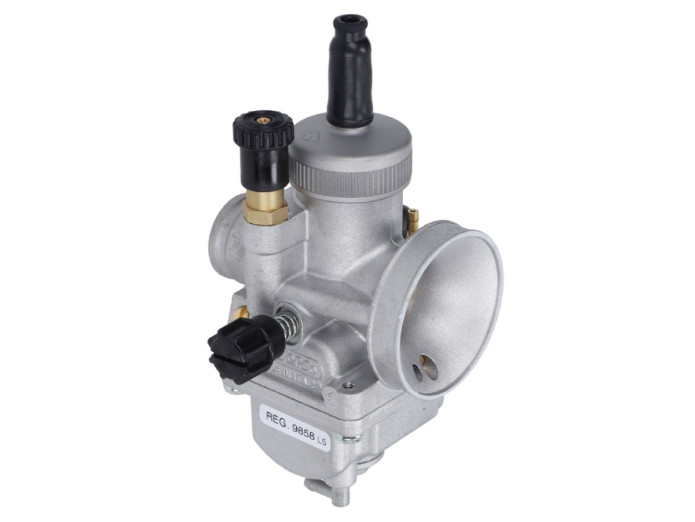

Dellorto PHDG 24mm carburetor manual choke spigot original

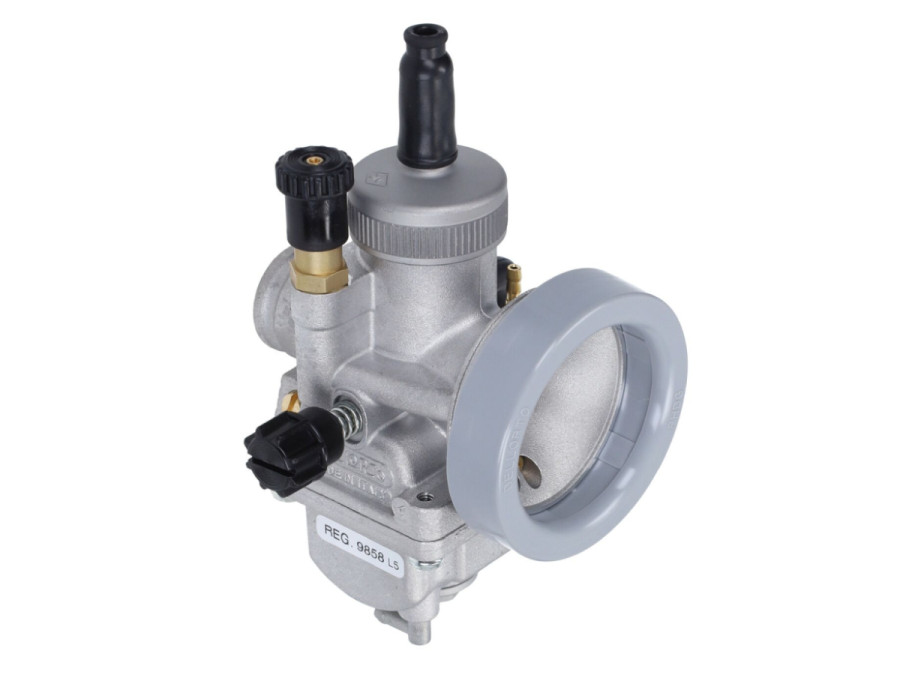

Original Dellorto PHDG 24 mm Carburettor

A new Dellorto carburettor, introduced by Dellorto as a high-quality, lightweight carburettor for racing and tuning purposes. These new Dellorto PHDG carburettors are made from a special aluminum alloy, making the carburettor very light. Additionally, the throttle slide has a special surface treatment, making it highly wear-resistant.

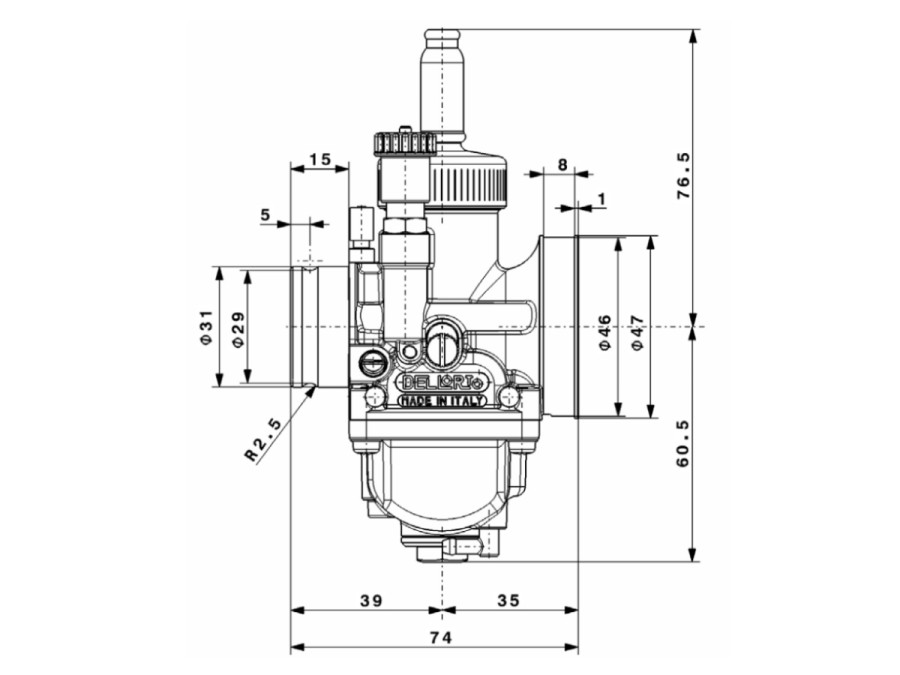

• Intake manifold connection diameter: 31mm

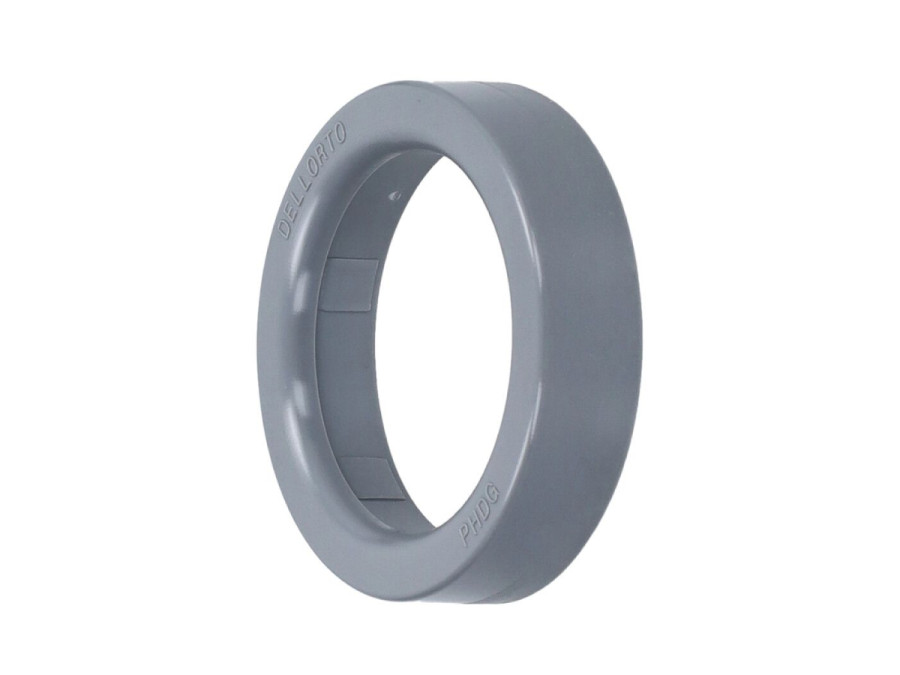

• Air filter connection diameter: 45 mm with reducer to 60 mm
• Compatible jets for this carburettor: Dellorto 5 mm jets
• Carburettors must always be cleaned before installation
• Cable choke operation
• Spigot version
• Dellorto 9851

Standard jets:

• 40 Slide
• W7 Needle
• 112 Main Jet
• 262AU Atomizer
• 55 Idle Jet
• 60 Choke Jet
• 9450.1 Float – 4.0 g

With matching intake manifold, suitable for various Puch models:

• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM Hobby with E50 / Z50 / ZA50
• Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50

With a suitable intake manifold, also universally compatible with:

• Kreidler Florett / RMC / RM / Zündapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35
