Cylinder 74cc Parmakit + head set Puch Monza Cobra Maxi X30

Parmakit 74cc (47mm) Aluminium, Nicasil wall

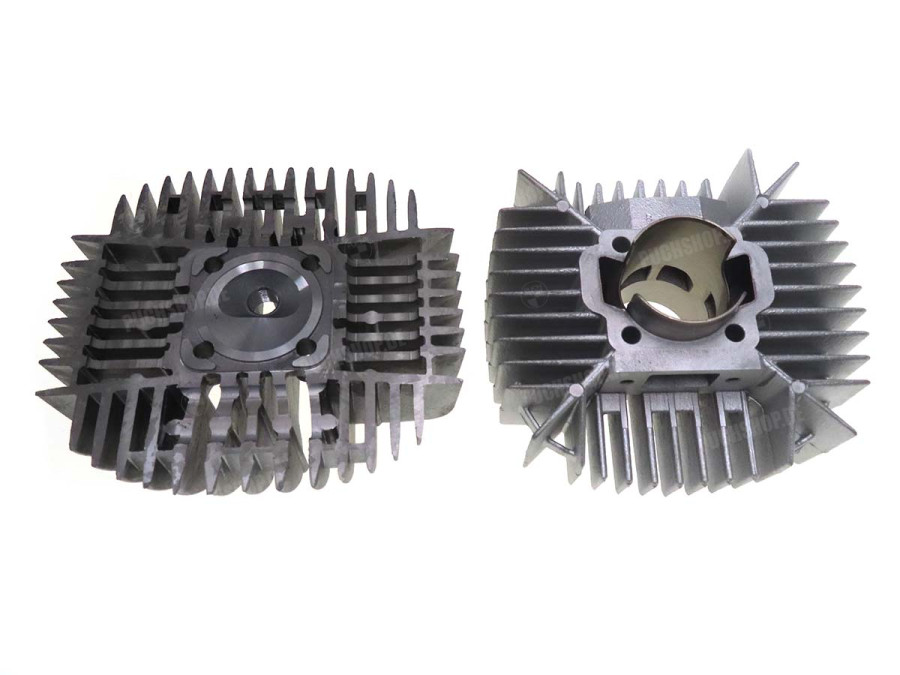

This cylinder of the Italian top brand Parmakit delivers the highest performance and is absolutely one of the fastest cylinders for sale for Puch! Parmakit has equipped this cylinder with a double exhaust port, so the exhaust gases can leave the cylinder faster and a higher RPM can be achieved. Also the cylinder head is well taken care of, an extra small combustion chamber gives a higher compression and the larger cooling fins give a better cooling. The set comes standard with gaskets, matching cylinder head, piston, piston pin and piston rings.

• Head, piston and gaskets set included.
• Butterfly valve exhaust port!
• Engine Case has to be milled!
• Also for Monza/Cobra and so on.
• Cylindersleeve outter diameter: 51mm

Before mounting

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

• The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 28mm
• F: 42mm
• G: M6
• H: 41mm
• I: 30mm
• J: 30mm
• K: 18mm

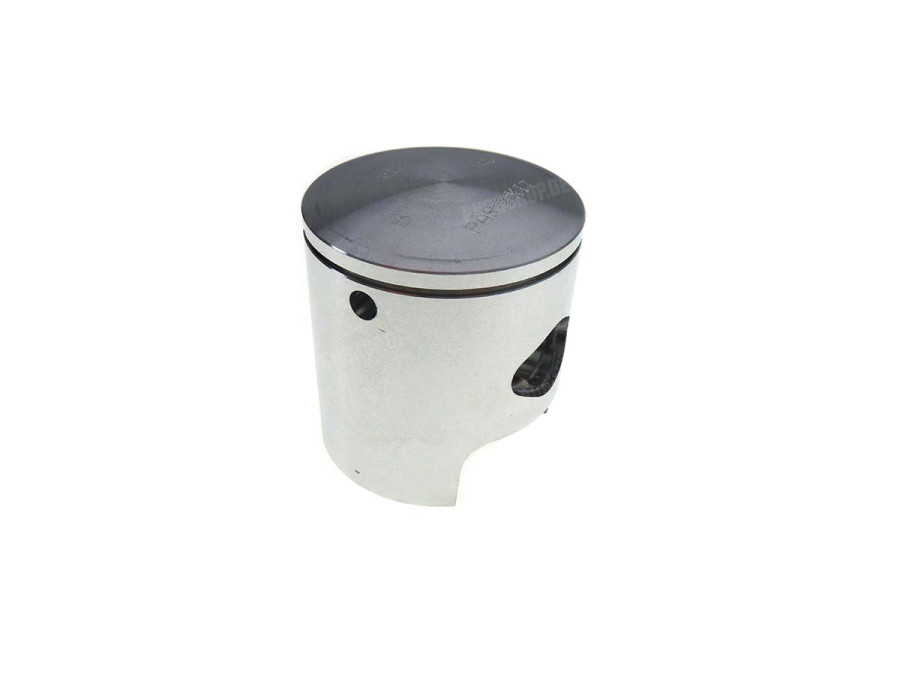

Measurements piston

• A: 4mm
• B: 22mm
• C: 27mm
• D: 12mm
