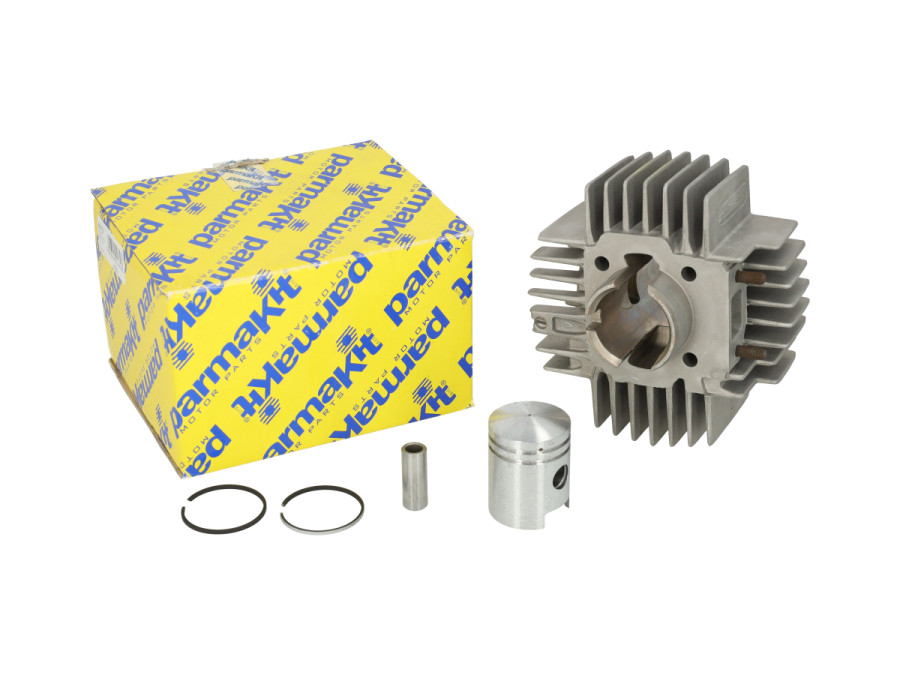

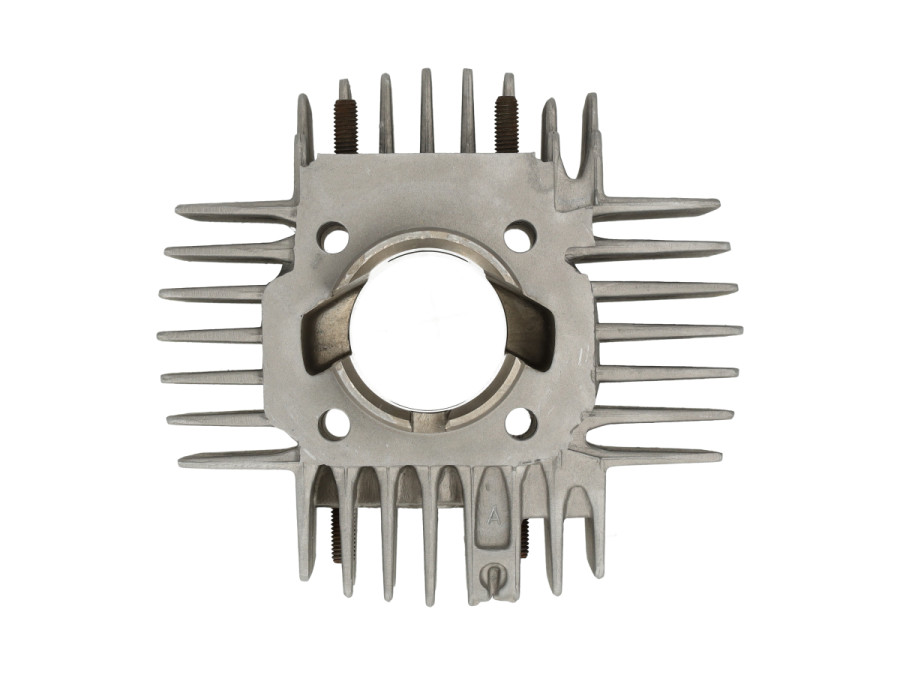

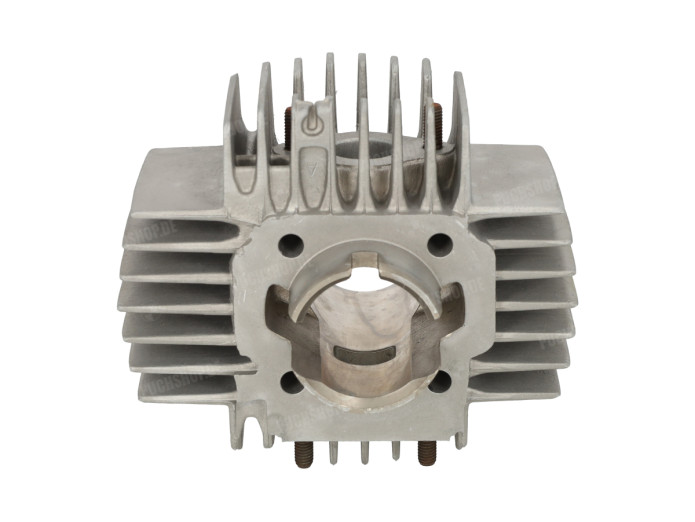

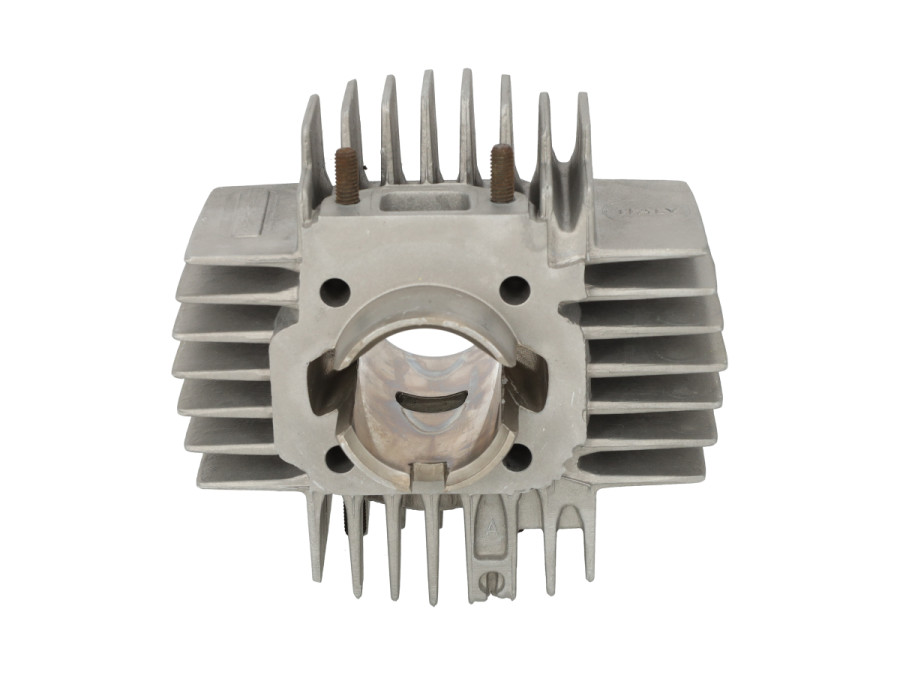

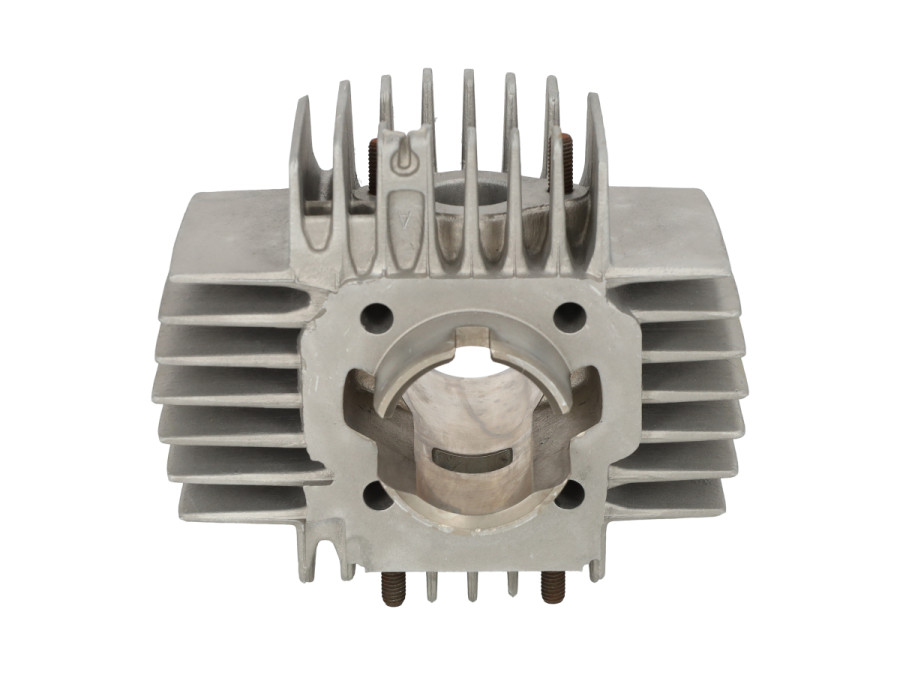

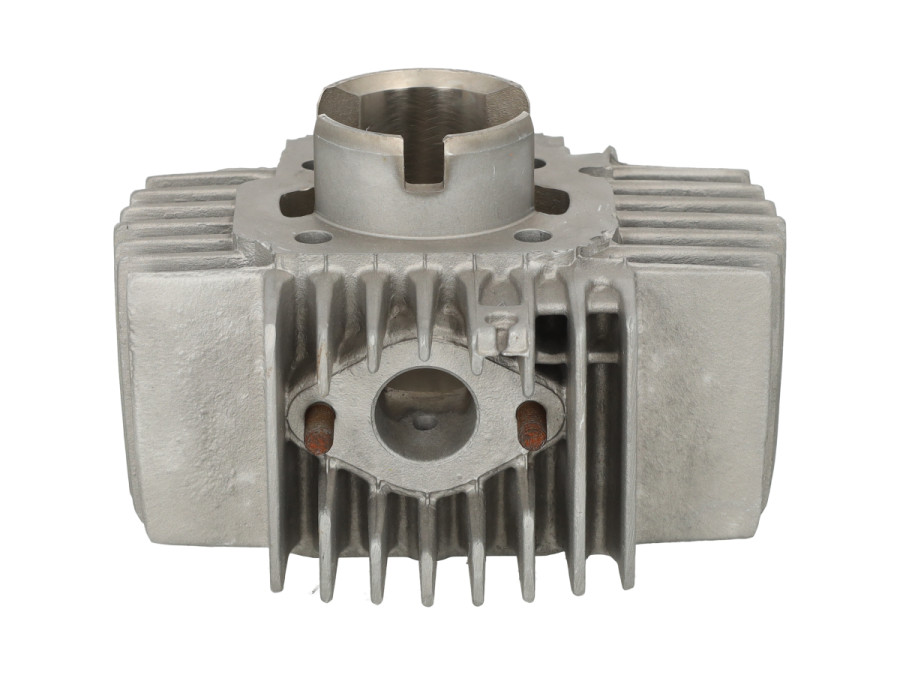

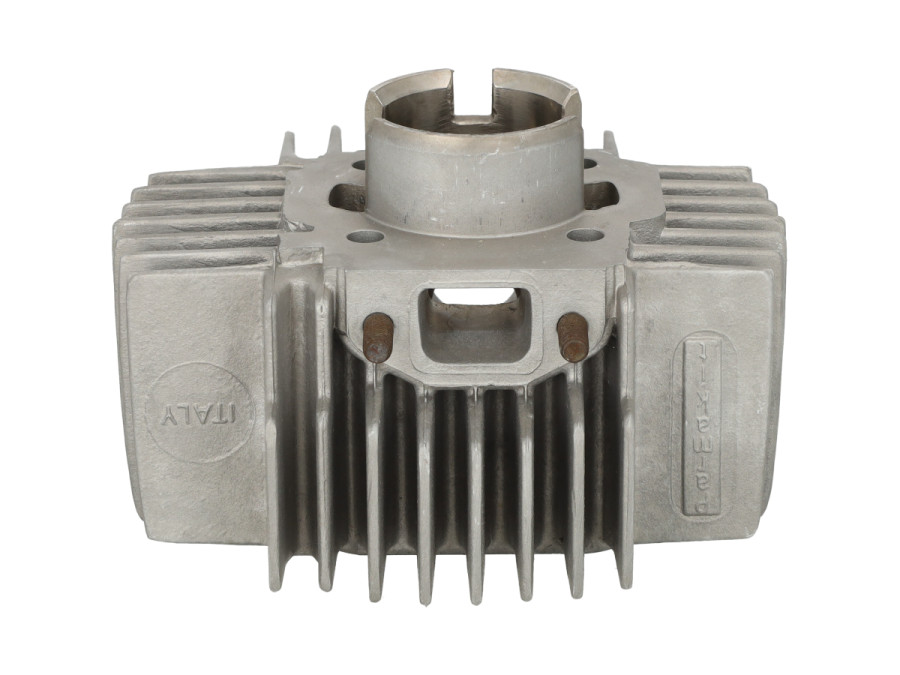

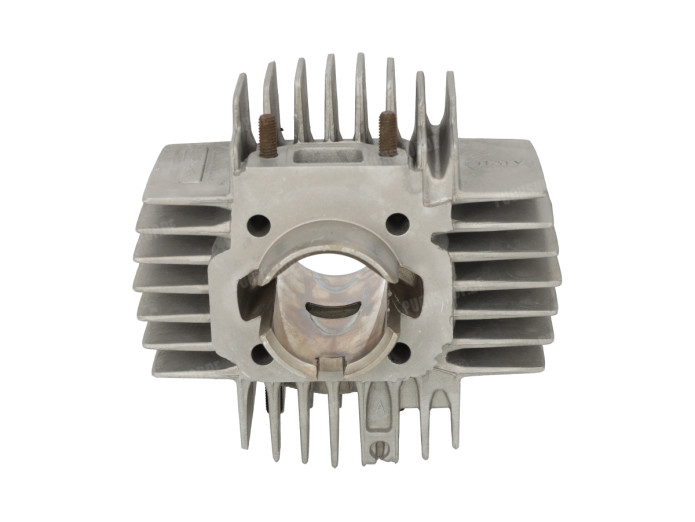

Cylinder 50cc OM Parmakit 40 km/h Puch Maxi, X30 other models

Parmakit 50cc cylinder (38mm) Aluminium OM, nicasil wall

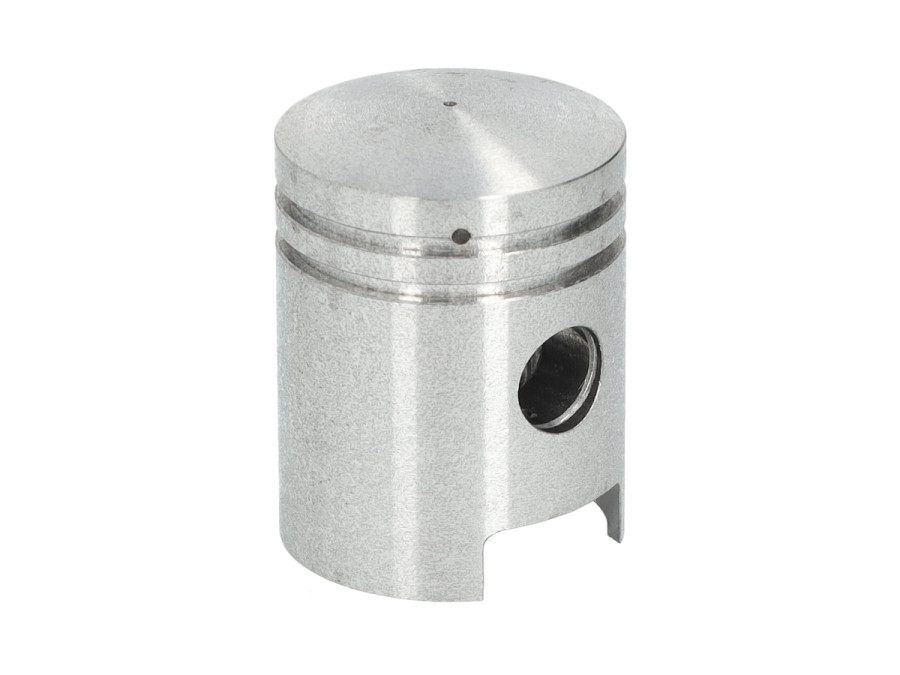

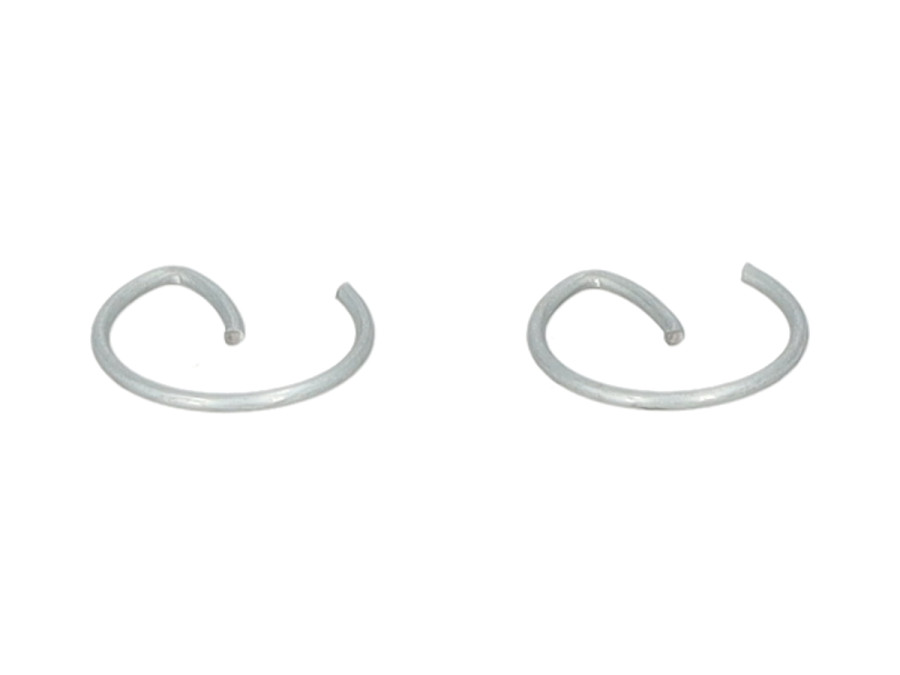

• Includes piston (piston pin 12mm)
• This is the 40 km/h version! (replacement cylinder)
• This is a copy of the original old model cylinder with open flush ports
• Top quality from Parmakit
• Very good all-round cylinder
• The set is delivered without a gasket set.
• Cylinder base outer diameter: 48 mm

Before mounting

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

• The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 20mm
• F: 42mm
• G: M6
• H: 38mm
• I: 24mm
• J: 20mm
• K: 14mm

Measurements piston

• A: 4mm
• B: 22mm
• C: 27mm
• D: 12mm
