Cylinder 50cc NM Airsal 40 km/h Puch Maxi, X30 and other models complete set

Set

€ 192,81

-10%

€ 173,55

Ex Tax: € 173,55

Directly available

Model: 10065SET

10065SET 10065SET 10065SET Airsal

https://www.puchshop.de/en-gb/cylinder-50cc-nm-airsal-40-km-h-complete-set-puch-maxi-x30-and-other-models.html 2026-05-01

Without shipping costs. VAT info.

Do you need some help or advice?

Check out our info center or contact us!

Description

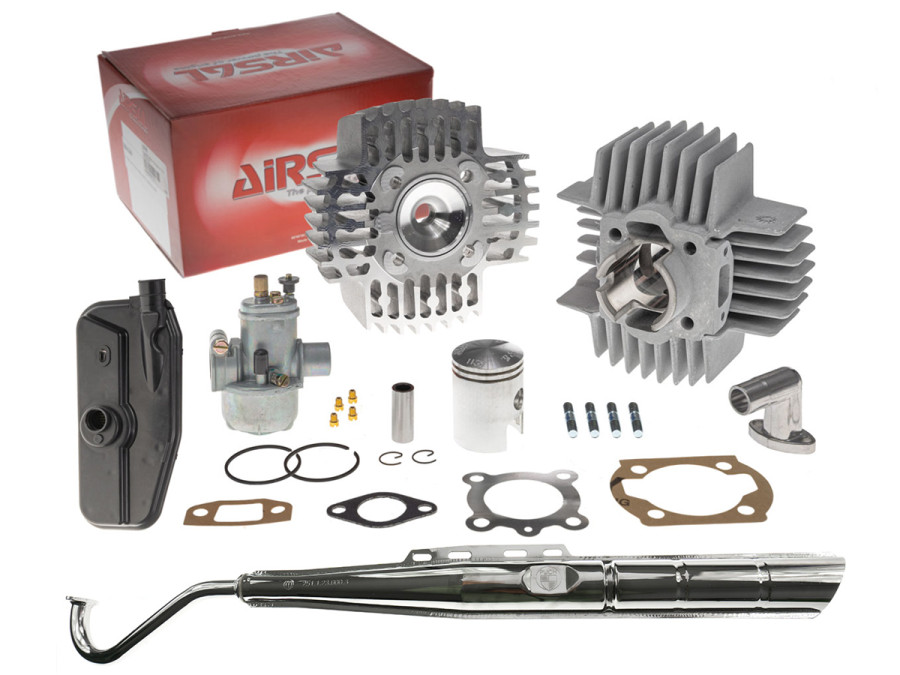

Airsal 40 km/h new model cylinder set complete with 22mm original look exhaust with logo!

Set contains:

Airsal 40 km/h 50cc 38mm cylinder
High pressure head old model
Bing 15mm replica (3.5mm jet)
15mm manifold
Airbox stock as original
Exhaust Puch Maxi / E50 22mm Jamarcol original-look with Puch logo
3.5mm jets 62-64-66-68

Specifications cylinder

Aluminium NM with nicasil wall.
Piston (piston pin 12mm) and gasket sets included.
This is the 40 Km/h version! (replacement cylinder)
Nice allround cyilinder.
Cylindersleeve outer diameter: 48mm

Bing 15mm carburetor replica

Connection diameter of the manifold 20mm
Connection diameter of the air filter 20mm
Nozzles/jets suitable for this carburettor are Bing 3.5mm jets/nozzles
Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
Carburettors should always be cleaned before installation.

Before mounting

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Note:

Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!
So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.
The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

Brand:	Airsal
Model:	10065SET
EAN:	8434829001719
MPN:	02031238
Category:	Engine parts
Type product:	Cylinder / head
Type product:	Cylinders
Cylinder / head
Cylinder displacement:	50cc
Cylinder diameter:	38mm
Cylinder model:	New model
Weight:	1100 gram

Spain-based Airsal officially started producing for the international moped market in 1986. With years of experience and their own R&D department, they have optimised the production of cylinders and accessories, such as pistons and cylinder heads. Production optimisation has ensured a high-quality product and a very competitive price. Consider tuning your Puch Moped with aluminium cylinders for optimal cooling available at Puchshop.de in 50cc, 60cc, 65cc and 70cc. Tuning your moped even more extreme? If you are going to work on the crankcases, you can opt for 74cc Airsal with 8 ports! Complete Cylinder sets are also for sale at Puchshop with cylinder head and carburettor. Click here for the entire Airsal range.
