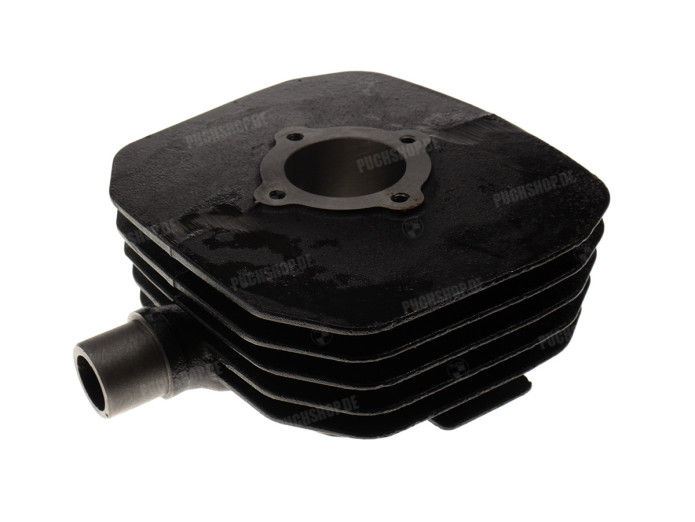

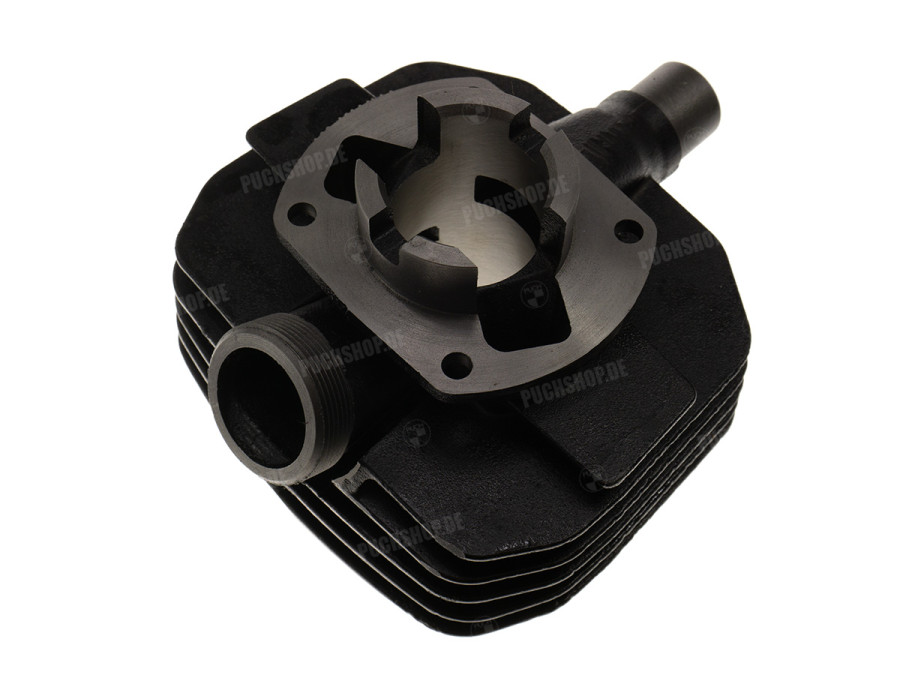

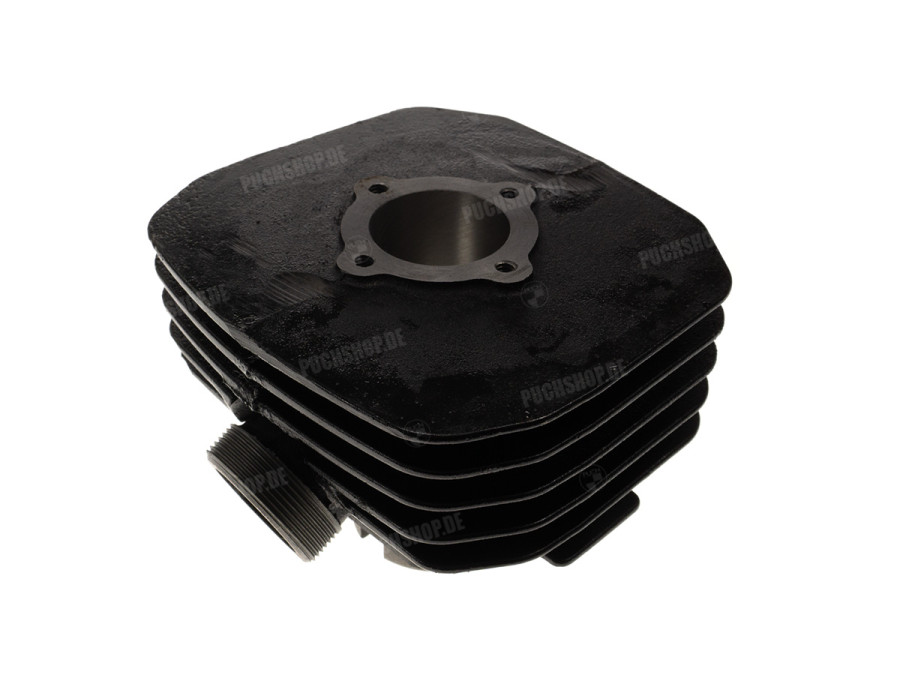

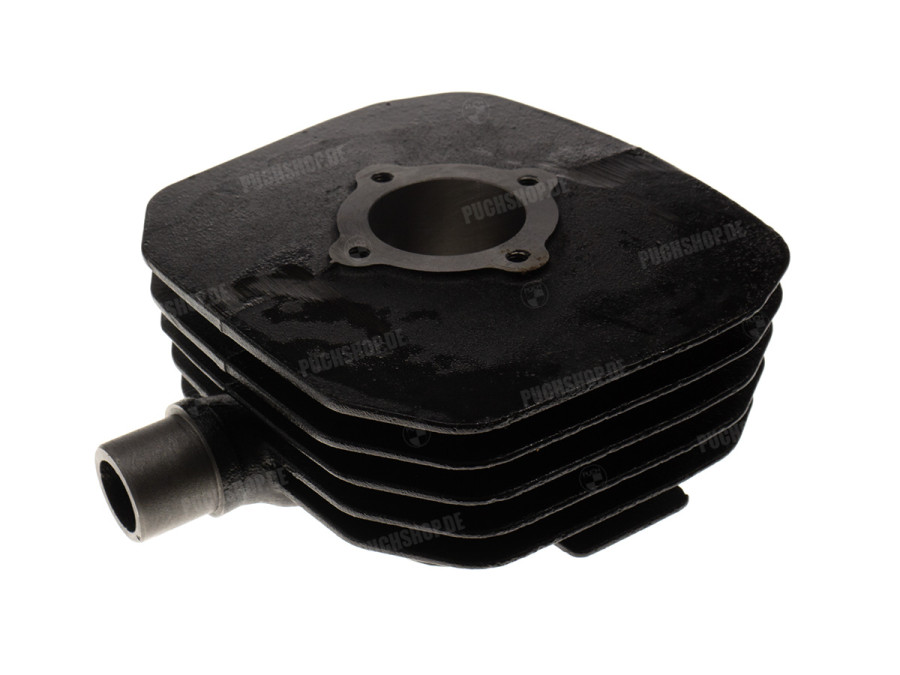

Cylinder 50cc 38mm Sachs 501 50/4 50s / Hercules Supra pin 14

Cylinder 50cc 38mm Sachs/Hercules

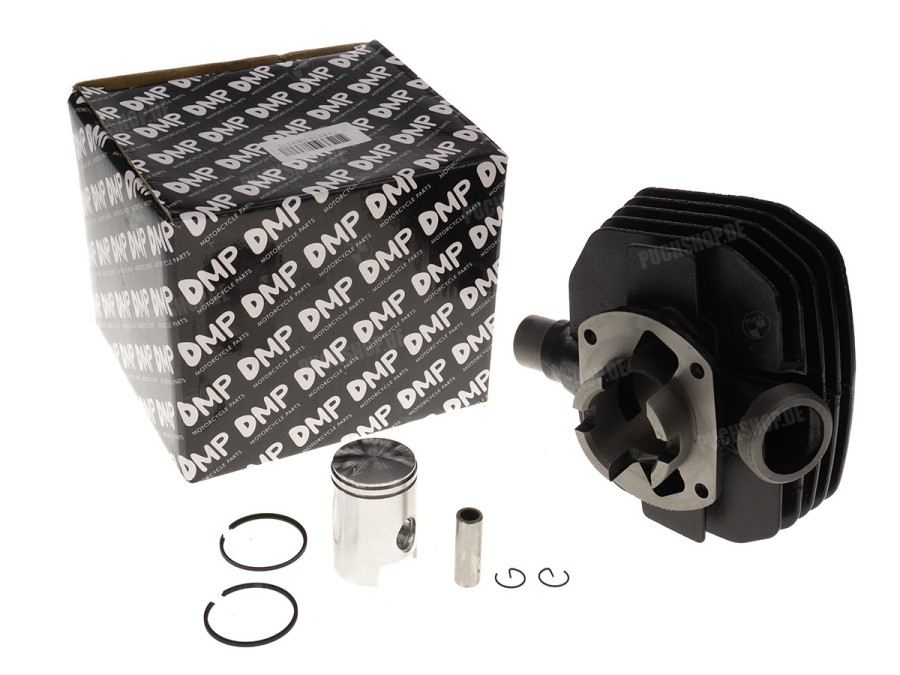

• Complete with piston, piston pin, piston pin clips and piston rings

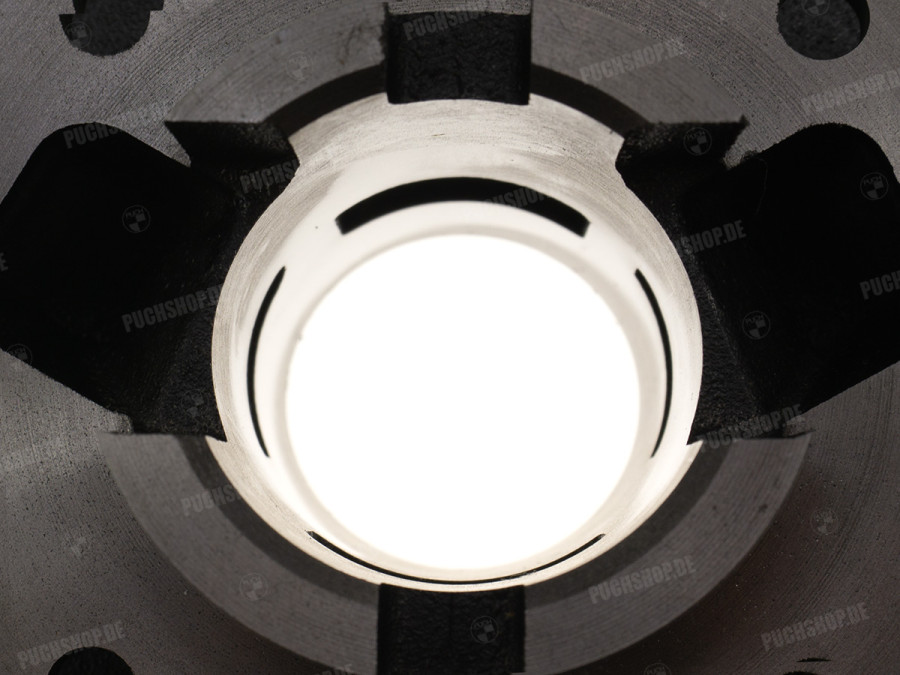

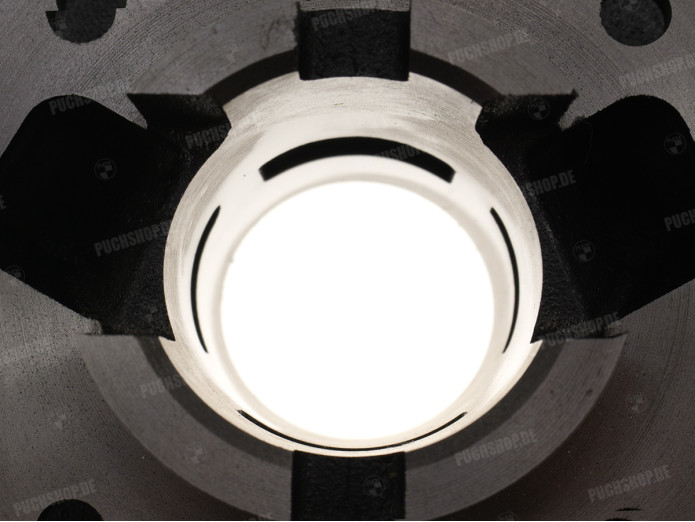

• Piston pin 14mm. Bore: 38mm
• Inlet inner diameter approx. 18mm
• Inlet outer diameter approx. 24.7mm
• Thread size exhaust port: 40x1.5mm
• Hole pattern cylinder stud: 56 x 56 mm

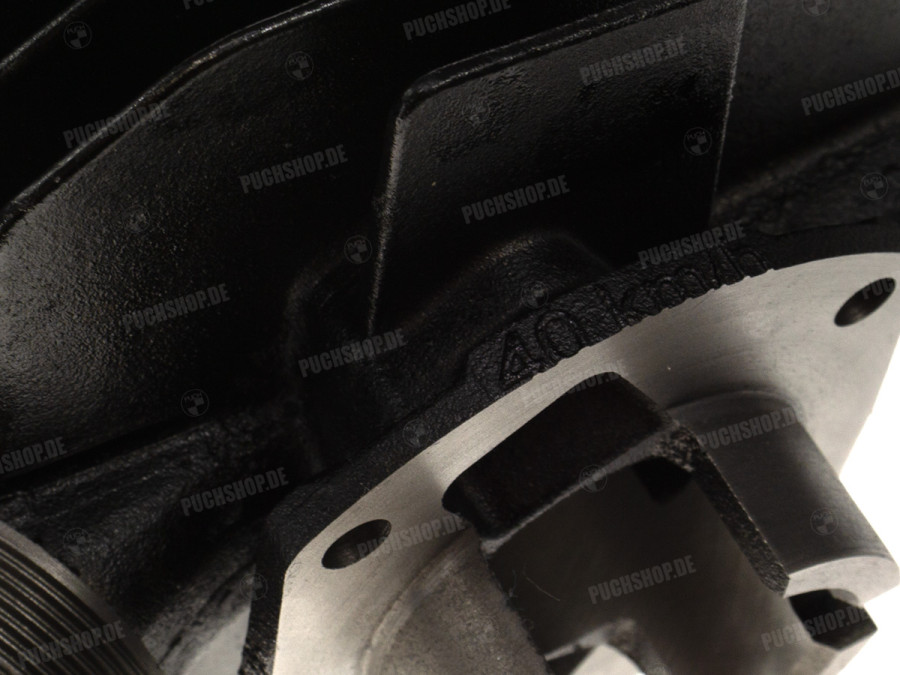

• With 40 KM/H imprint!

Suitable for, among others:

• Hercules Supra
• Sachs 501 50/4 50s

We always advise to check and clean the cylinder thoroughly before installation and to finish the ports in the cylinder slightly with a 1000 sandpaper so that the edges are no longer so sharp due to honing of the cylinder, this to significantly extend the life of the cylinder/piston.
