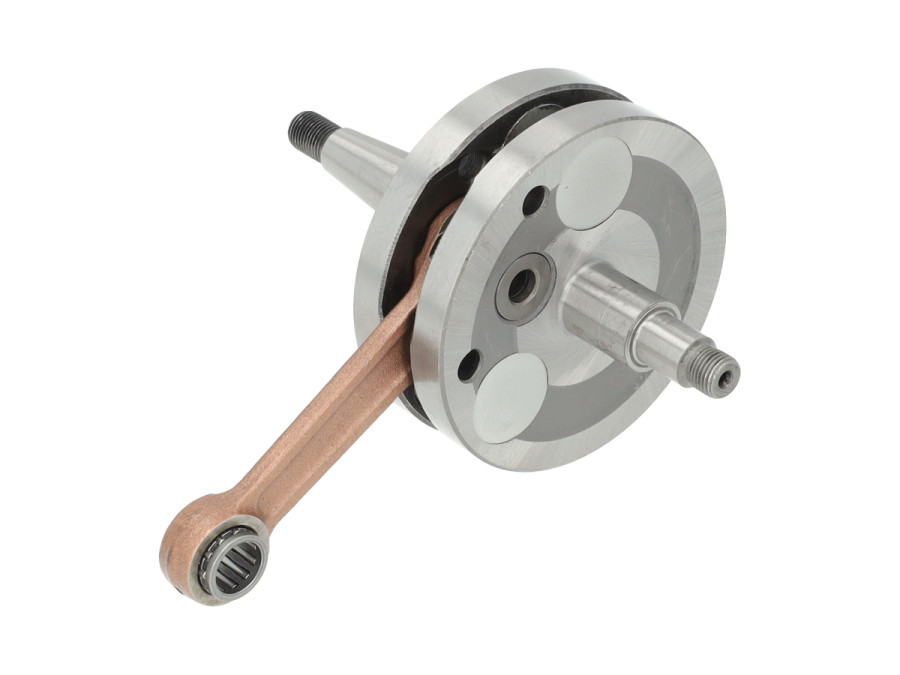

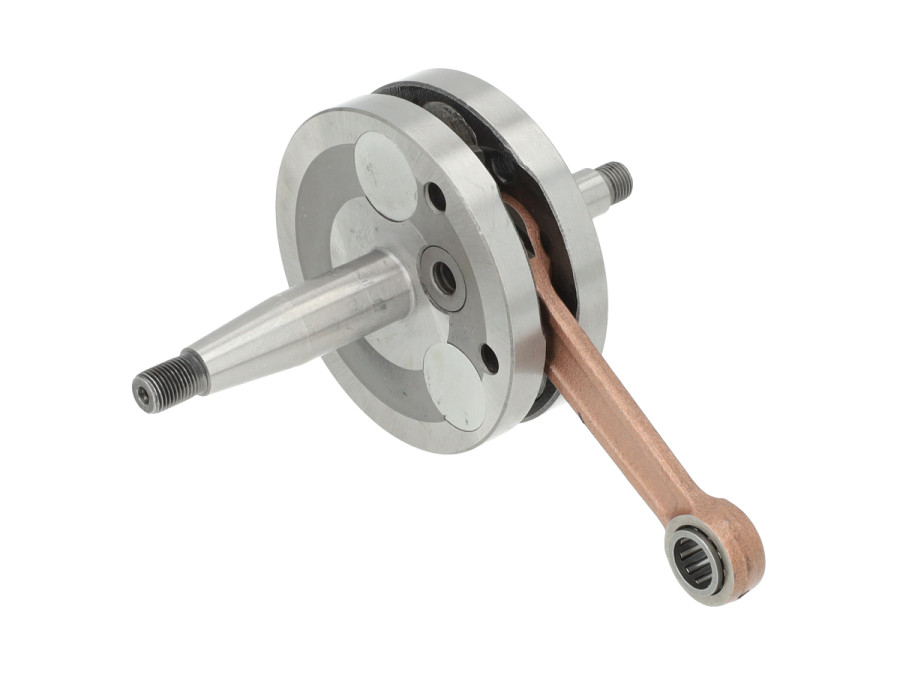

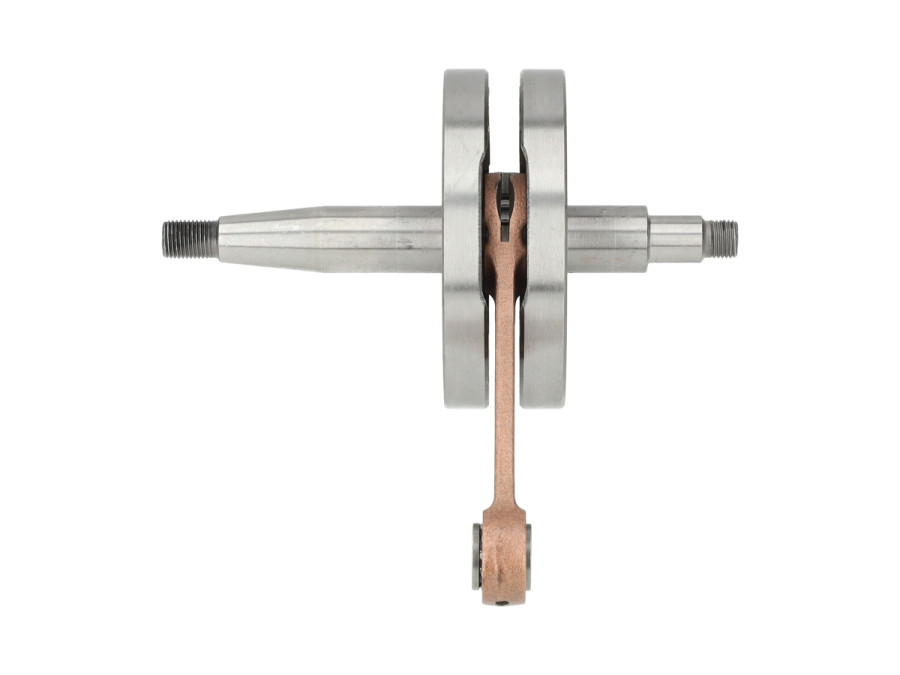

Crankshaft Sachs 50/3 and 50/4 full round race

Race crankshaft for Sachs 50/3 and 50/4 mopeds (do not confuse with Sach 503 and 504)

The racing crankshaft is designed for high loads and has a maximum pre-compression through the padded holes.

Dimensions:

• Total length of the shaft on the ignition side: 69.5mm
• Diameter on the side of the ignition: 17mm
• Total length of the shaft on the clutchg side: 42.8mm
• Diameter shaft directly next to crankshaft cheek clutch side: 17mm
• Diameter shaft 2nd part attachment clutch: 12mm
• Thread on both sides: M10x1mm
• The needle bearing is included (for 12mm piston pin)
