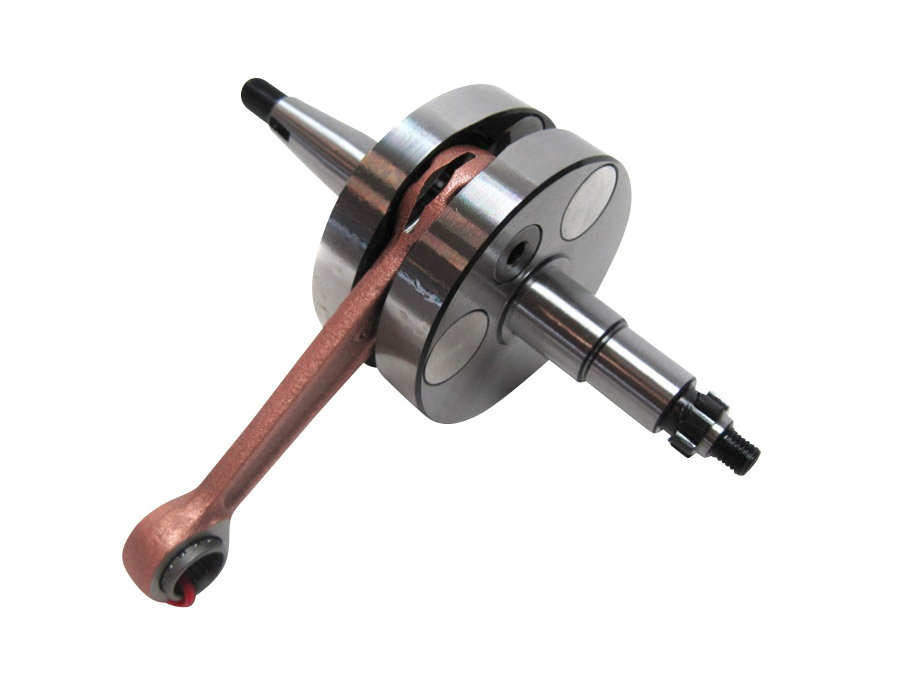

Crankshaft Puch MV VS 2 spd manual pedal shift CM full round

CM crankshaft full round.

• Puch MV / Velux X30 and Co. engines (2 speed manual and pedal shift).
• Order with the right clutch nut M8x1
• 14mm big end
• 12mm piston pin
• Stroke 43mm

Dimensions:

• A: 14mm / 10⌀
• B: 53mm / 17⌀
• C: 34mm
• D: -
• E: 20mm / 17⌀
• F: 30mm / 15⌀
• G: 8mm / 10⌀
• H: 70mm
• I:  5mm
• J: 15mm
• K: 90mm
• L: 14mm

For bearings, seals, etc. see related products at the bottom of this page.
