Bing 15mm carburetor replica 3.5mm jet powerfilter Puch Maxi

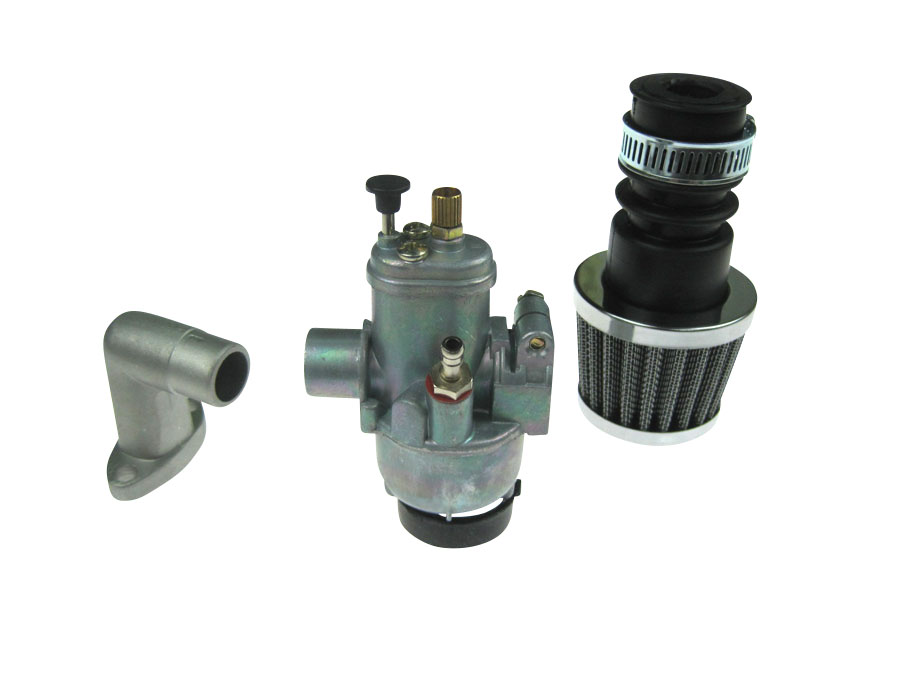

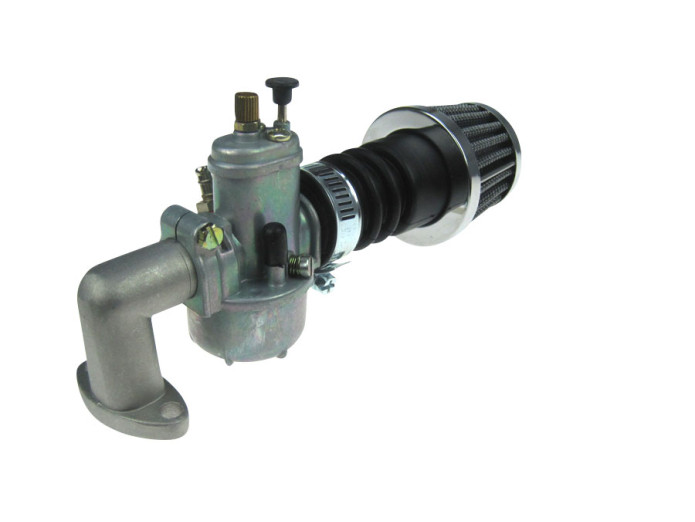

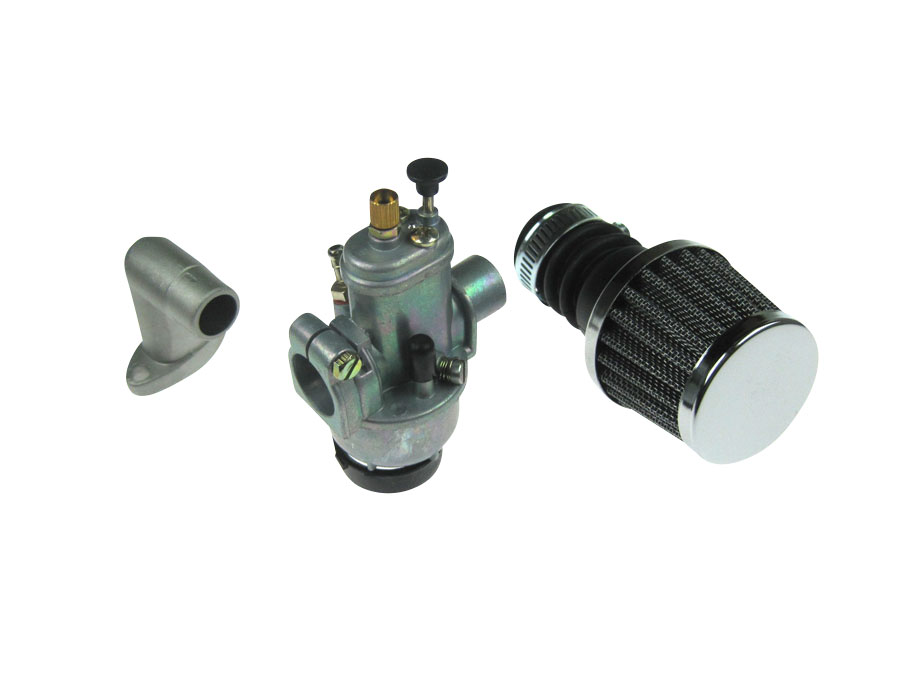

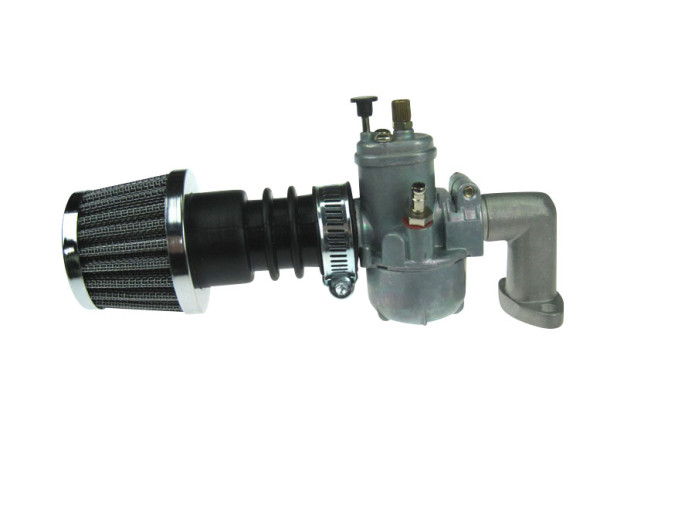

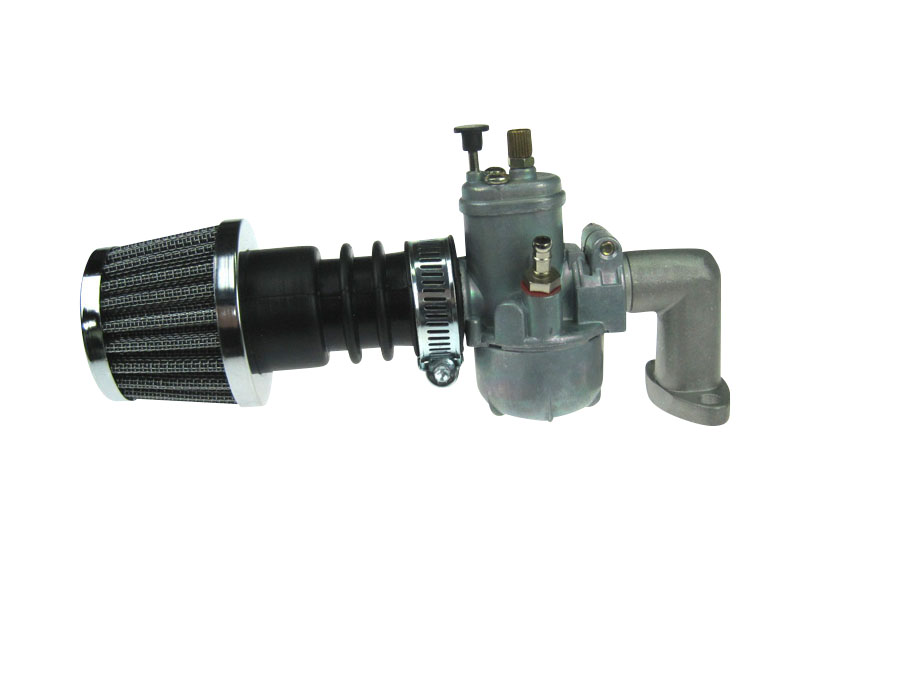

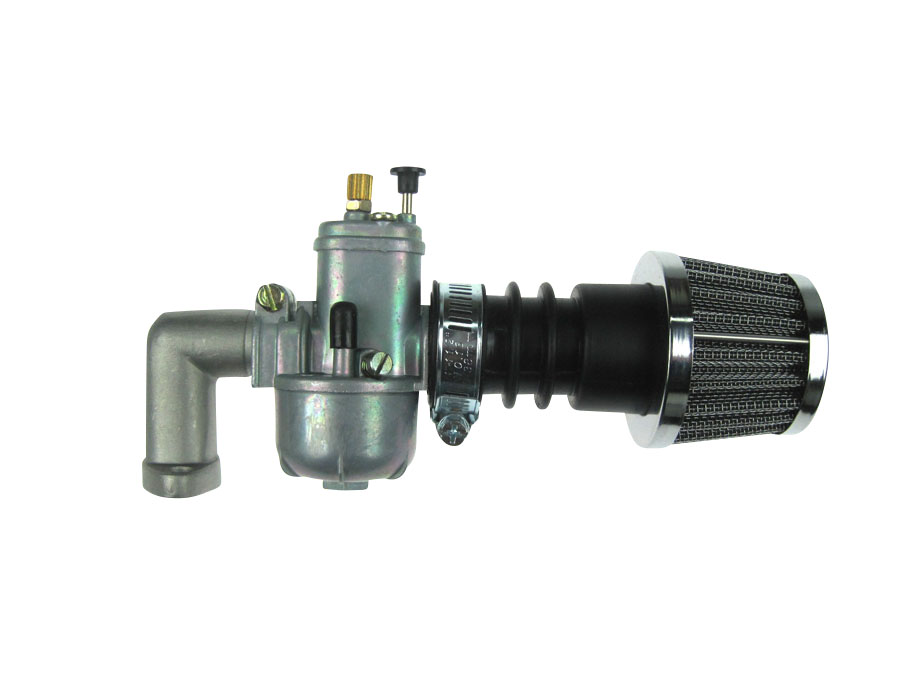

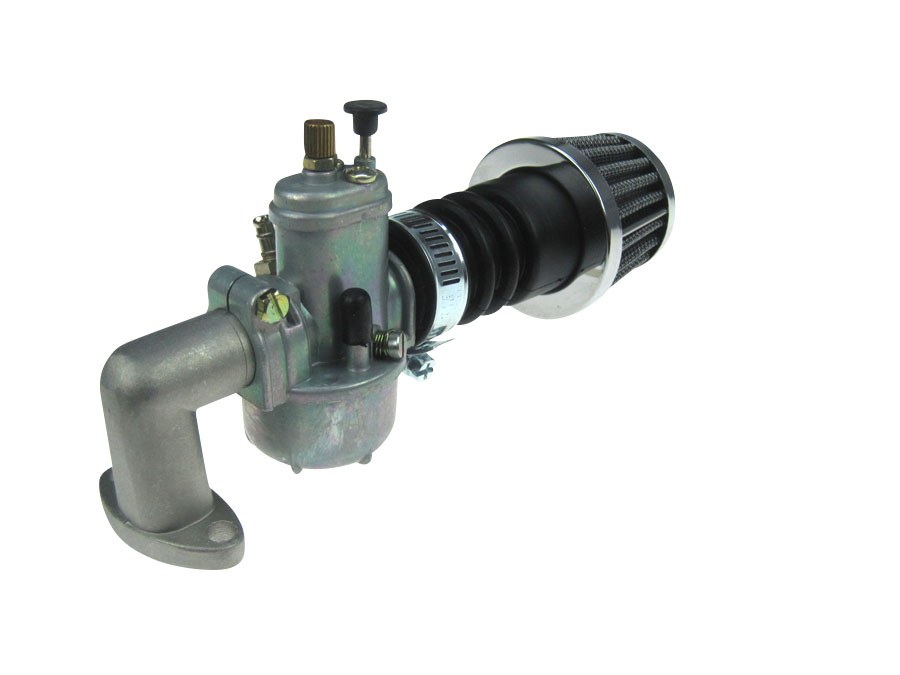

Bing 15mm carburetor Puch Maxi replica set with powerfilter

Including:

• 15mm manifold

• Powerfilter
• Carburetor Bing replica 15mm (3.5mm)


Bing 15mm carburetor replica

• Connection diameter of the manifold 20mm
• Connection diameter of the air filter 20mm
• Nozzles/jets suitable for this carburettor are Bing 3.5mm jets/nozzles
• Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
• Carburettors should always be cleaned before installation

Bing 12-15mm manifold

• Connection diameter 20mm.
• Puch Maxi / E50
• Centre-to-centre distance between mounting holes: 38mm

Air filter 20mm Bing 12-15mm powerfilter chrome

• Connection: 20mm

• Diameter filter 60mm
• Length without rubber 47mm
• Length with rubber 110mm

Tip: When fitting this carburetor to a Puch, we recommend using a cable elbow adjusting screw. The connection on top of the carburetor is 7mm, while the connection on the elbow is 6mm. This allows you to use a common 6mm throttle cable adjuster. First install the elbow on the carburetor, then fit the cable adjuster onto the elbow. This ensures that the throttle cable is routed neatly without any sharp bends.

Note:

• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!
• So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.
• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
