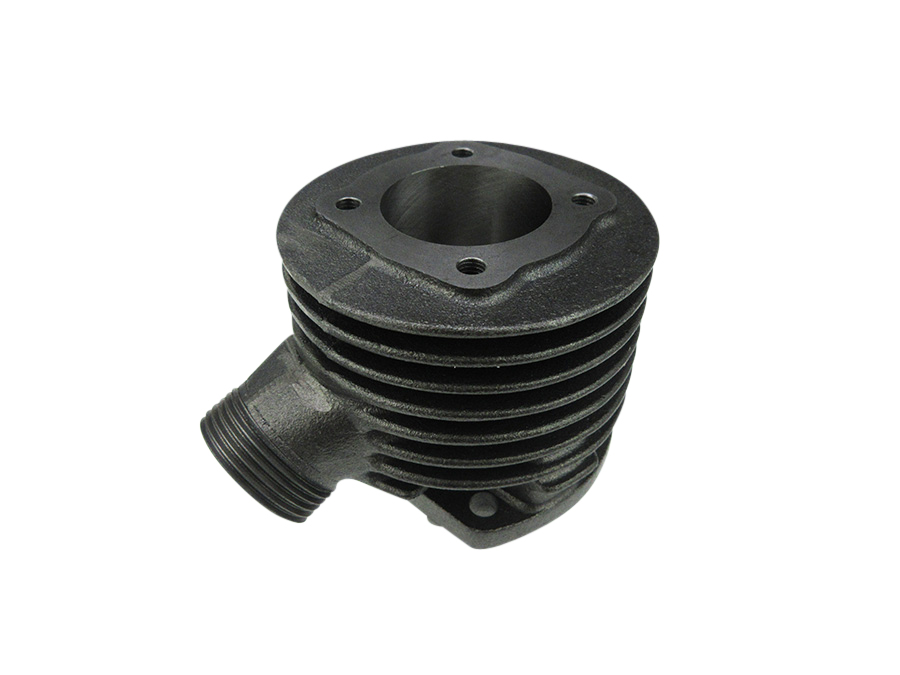

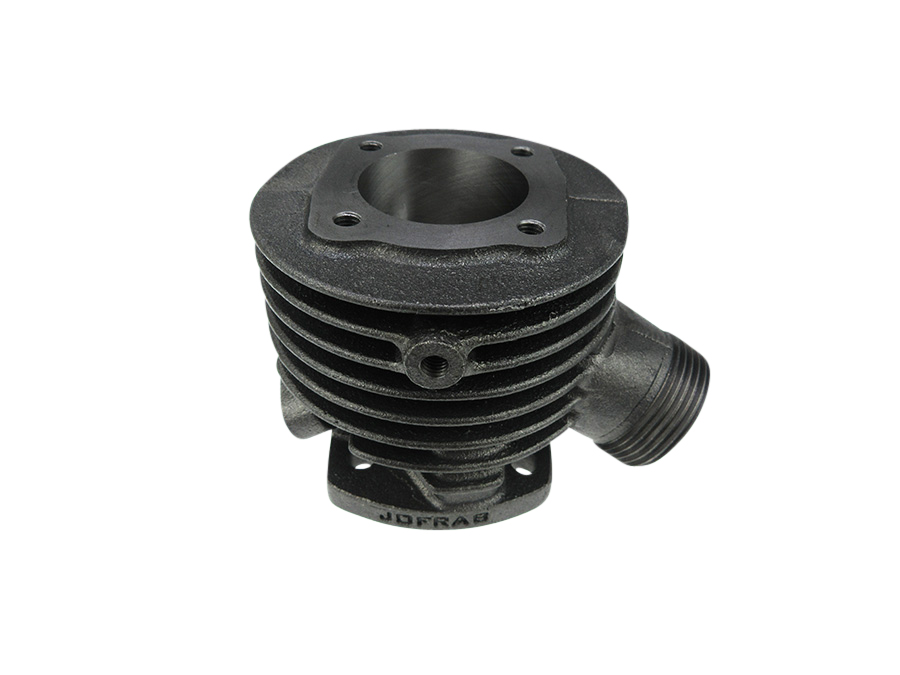

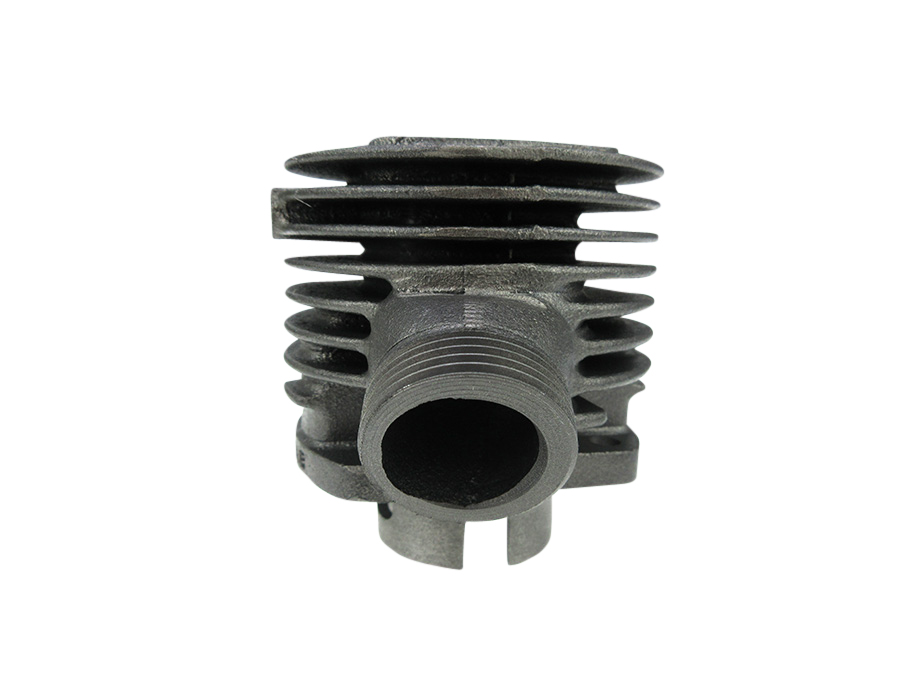

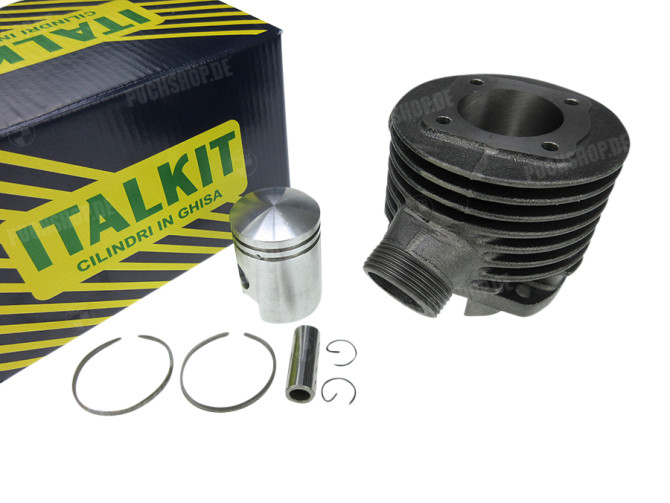

Cylinder 50cc 38mm Sachs 50/3 Italkit (forced induction)

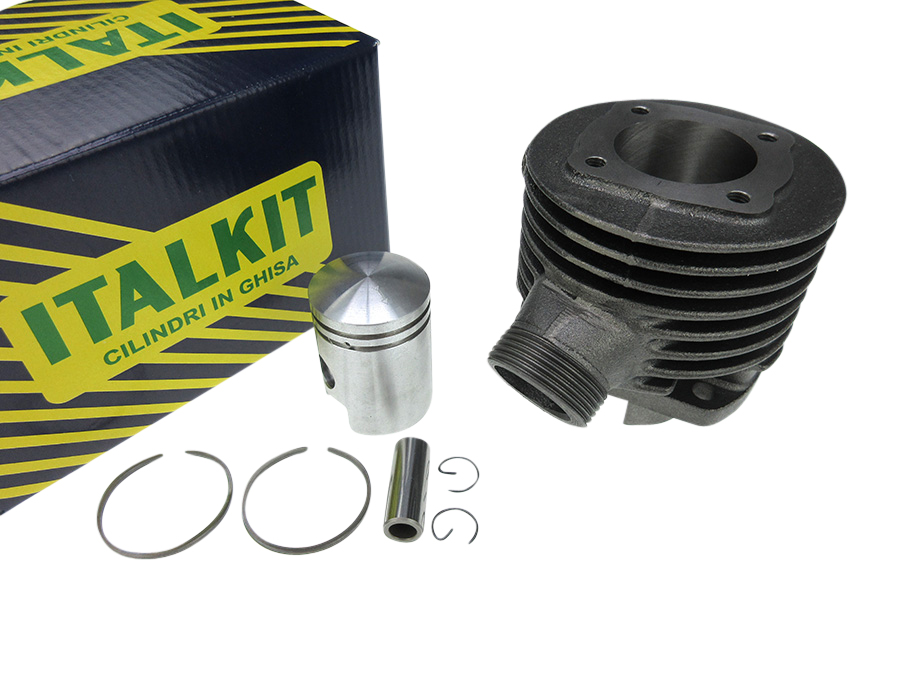

Cylinder 50cc 38mm Sachs 50/3 Italkit

• Cylinder suitable for Sachs 3-speed engines
• For blower cooled engines

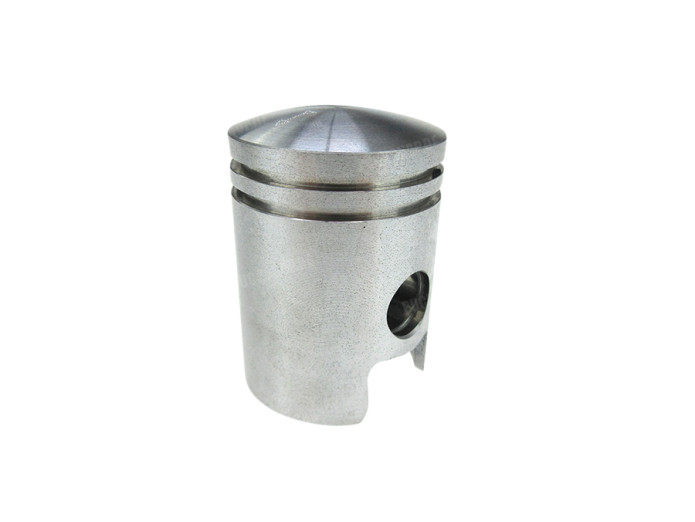

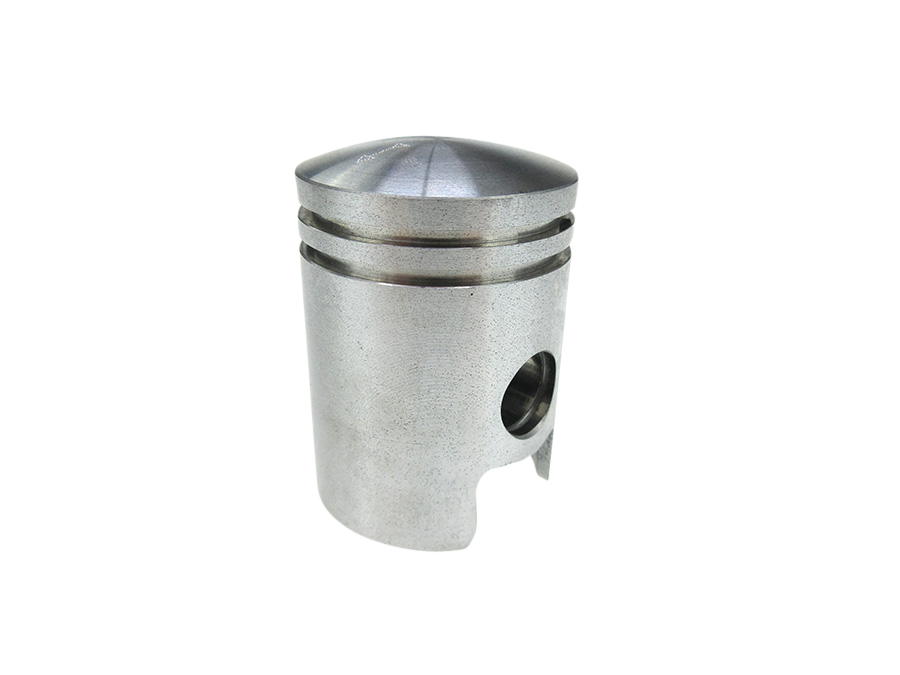

• Incl. Piston pin 12mm
• Outer diameter cooling fins: 84 mm

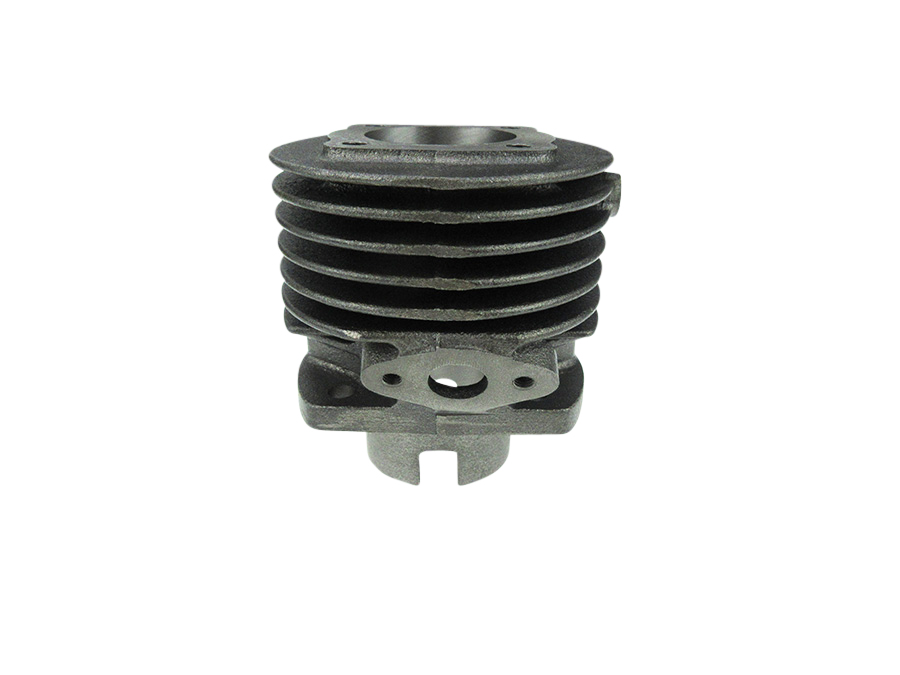

• Hole spacing inlet: 32 mm

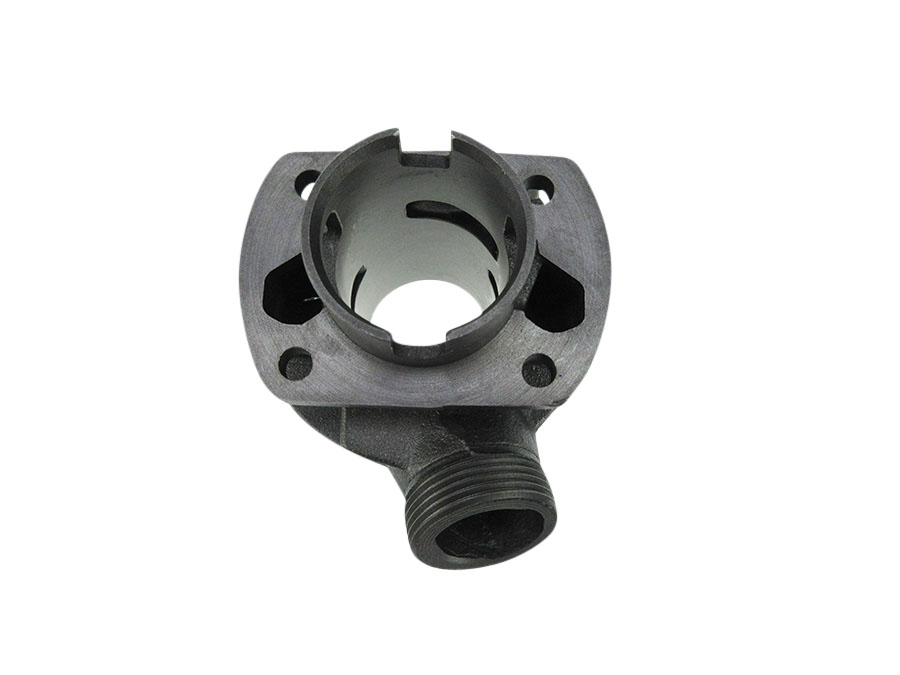

• Hole pattern cylinder stud: 40 x 50 mm
• For 28 mm exhaust manifold and one M35 x 2 mm exhaust nut.

In order to mount this cylinder on a Sachs 50/2 engine, various adaptation work is required.

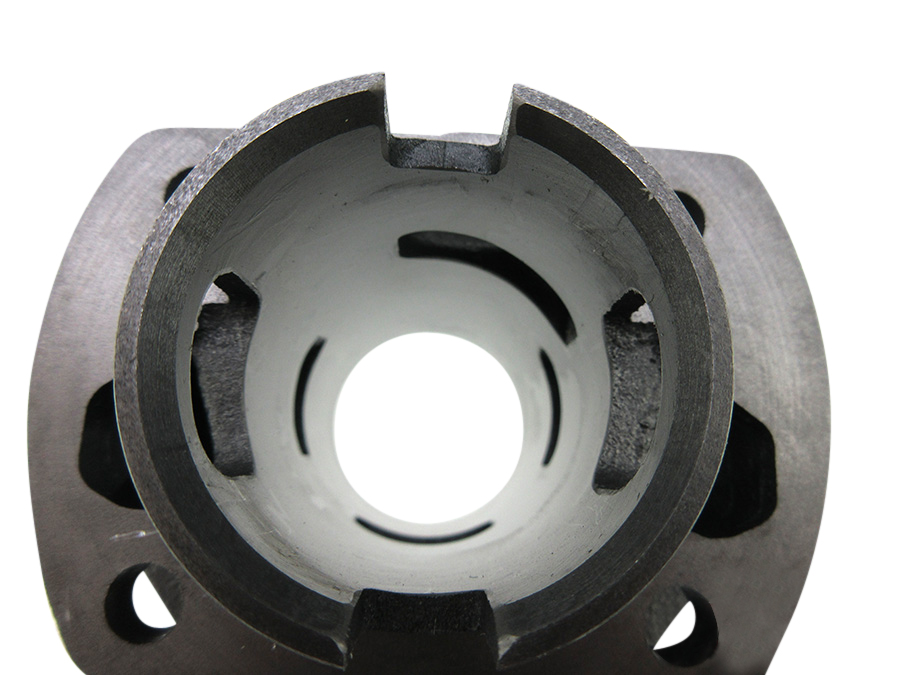

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.
