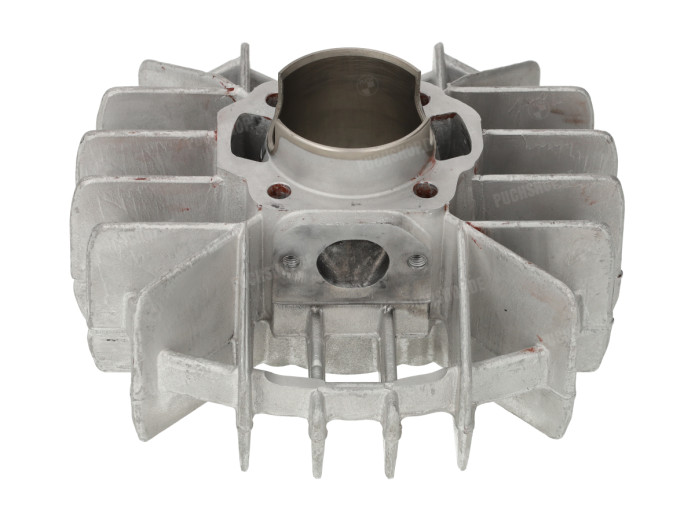

2nd chance cylinder 74cc Airsal / Eurokit fast 8P + cylinder head Puch Maxi / E50 / Z50 / ZA50

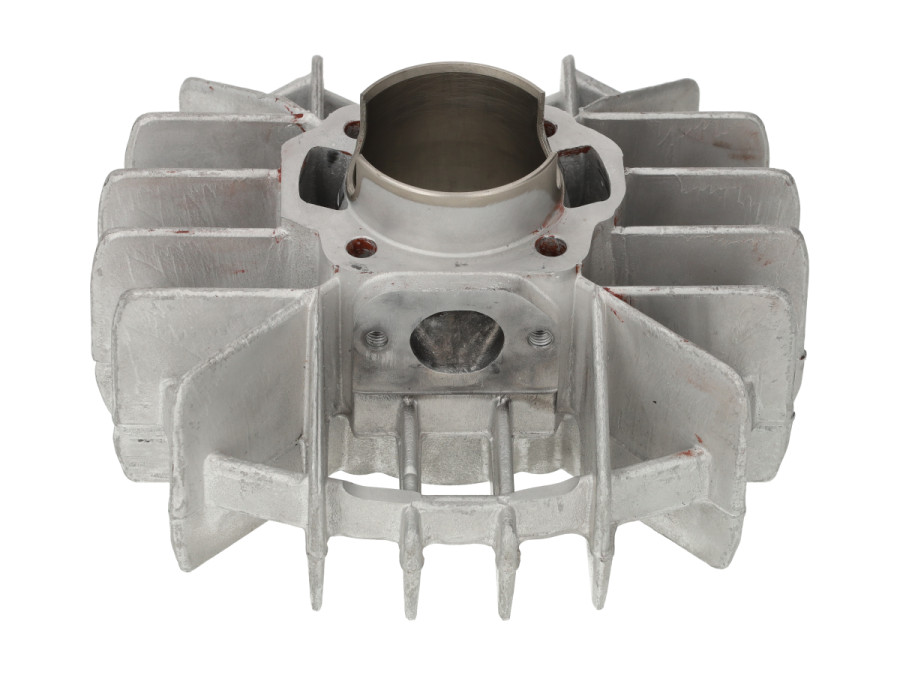

Airsal / Eurokit 74cc cylinder (47mm) Aluminium, Nicasilcoated

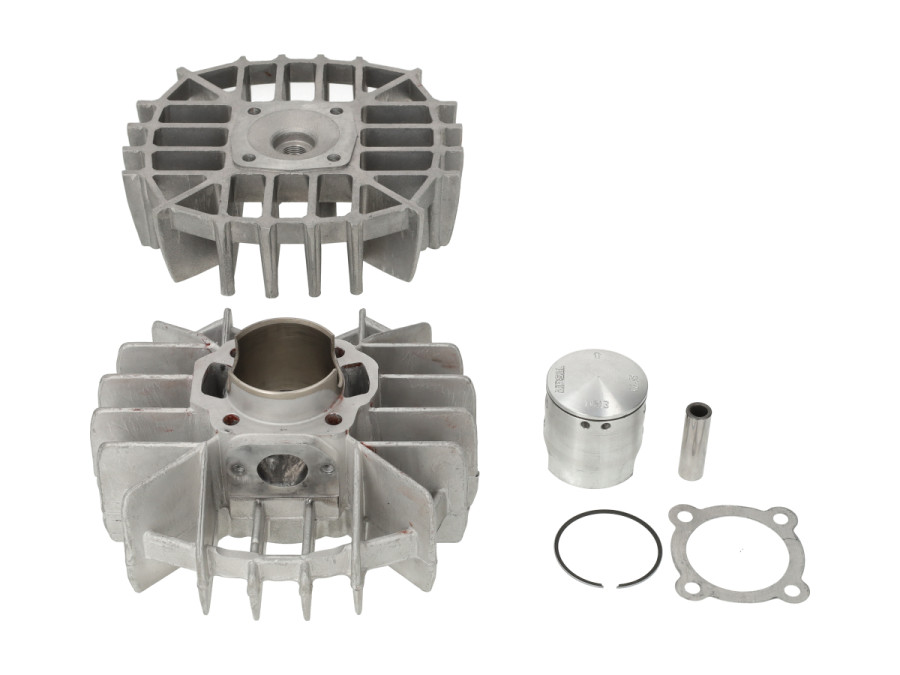

• Inclusive head, piston (piston pin 12mm)
• Puch Maxi S / N / K / X30
• E50 / Z50 / ZA50 engine
• The original packaging is damaged
• The cylinder has some marks but is unused
• Note: Second chance products cannot be returned

Exclusively at Puchshop, the insanely powerful king of the piston port cylinders is now locked, stocked and ready to tear up the streets once again!

• Airsal adapted the piston, flattened the exhaust flange and the inlet studs are at the same measurements as regular Puch cylinders.
• The only thing that’s left for you to do is match your engine cases to fit a 51mm cylinder sleeve.
• Use minimal a 19mm carb. Inlet is 20mm.
• Note: The head gasket diameter is 46mm. This does not affect the performance!

Tip: We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Dimensions cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 26mm
• F: 44mm
• G: M6
• H: 38mm
• I: 22mm
• J: 22mm
• K: 22mm

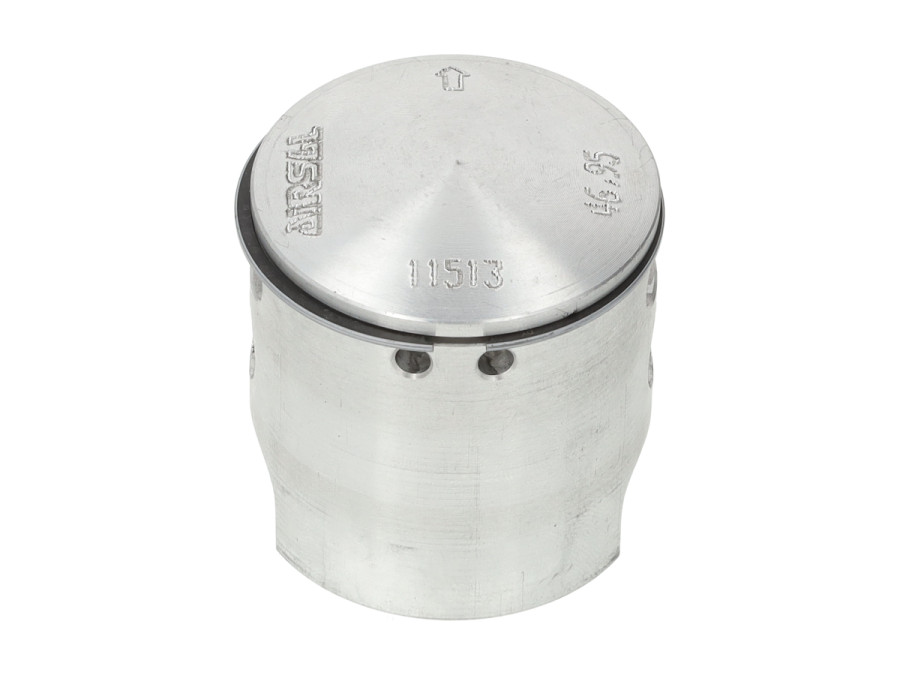

Dimensions piston

• A: 4mm
• B: 23mm
• C: 26mm
• D: 12mm
