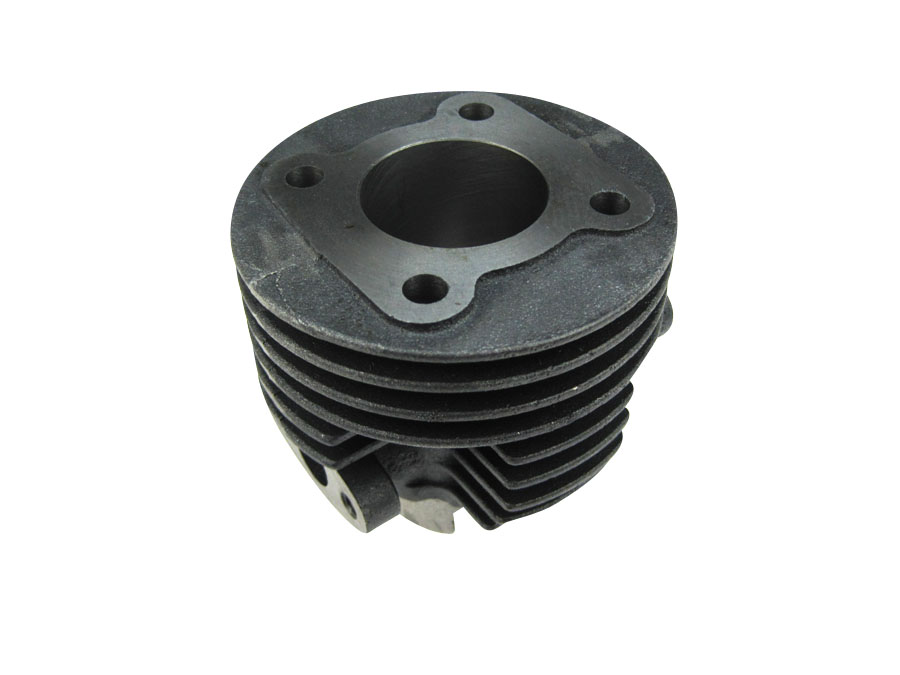

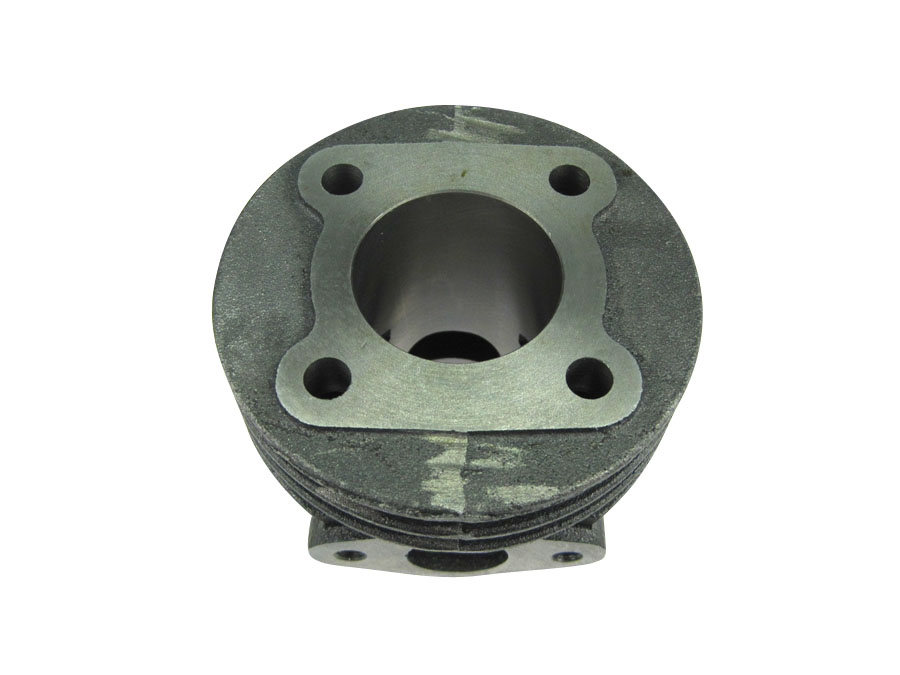

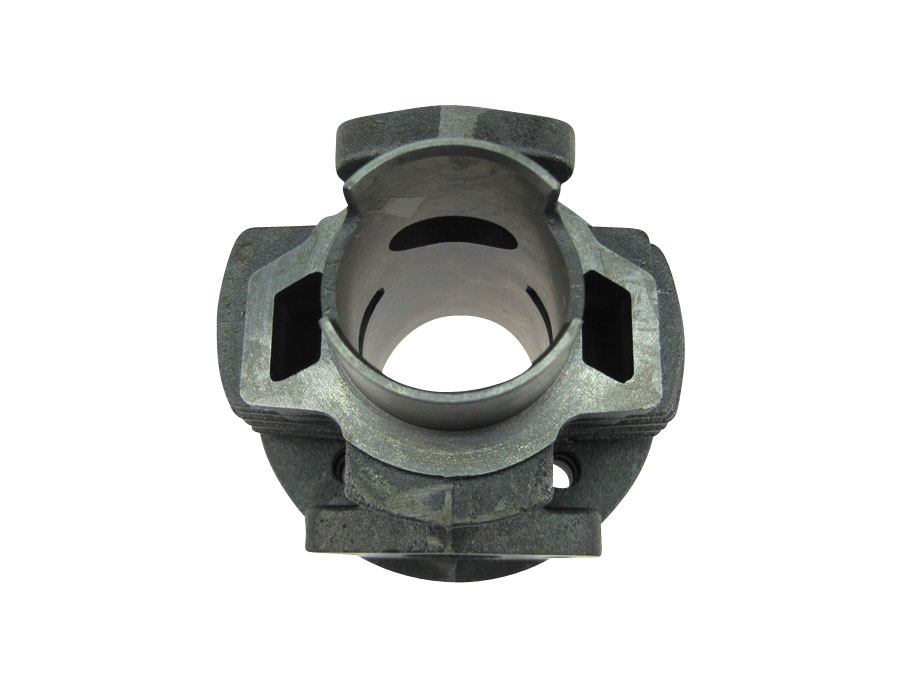

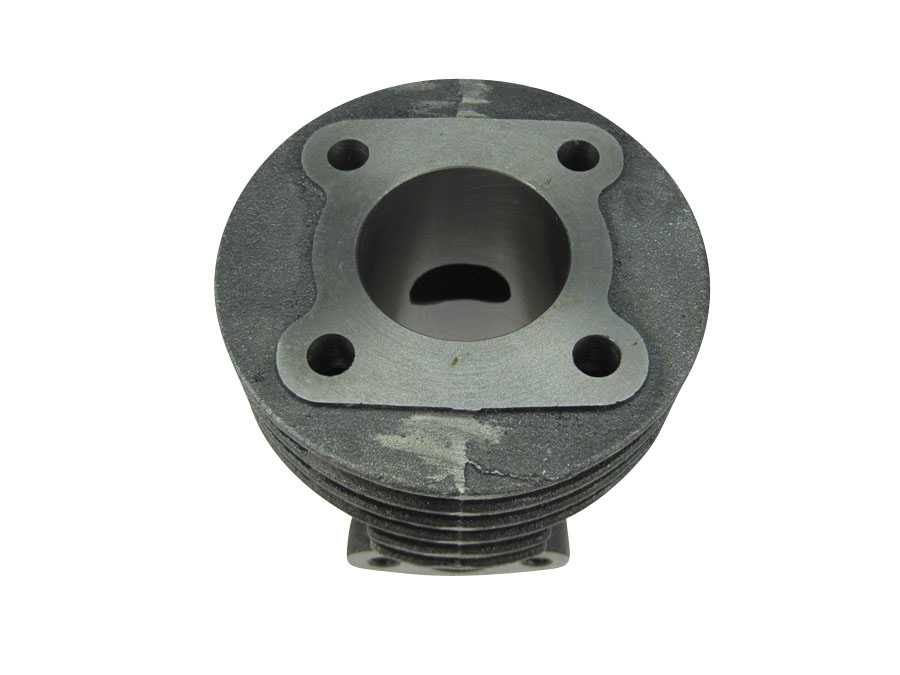

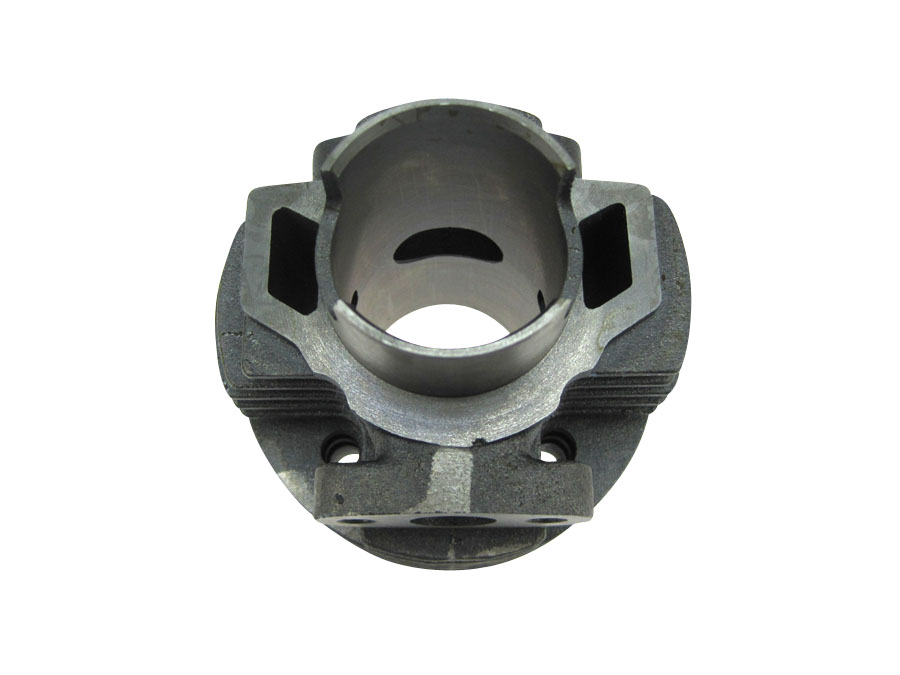

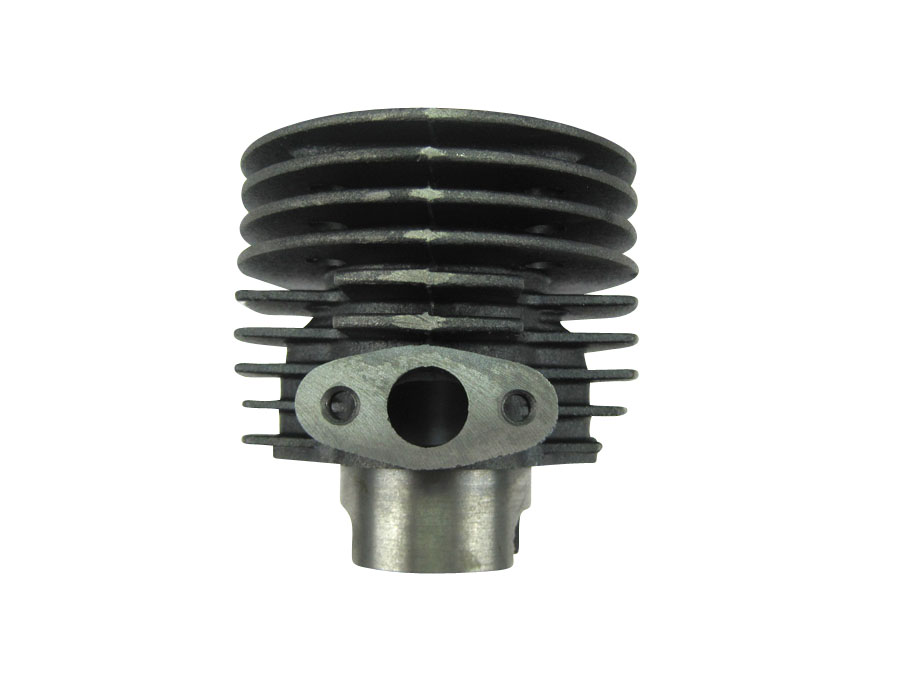

Cylinder 50cc pin 10 Puch MV / VS / DS / MS / X30 NG2AH / Velux NTS

Cyilinder 38mm Puch MV / VS / DS / Velux

• Pistonpin 10!
• Cast iron 38mm/50cc.

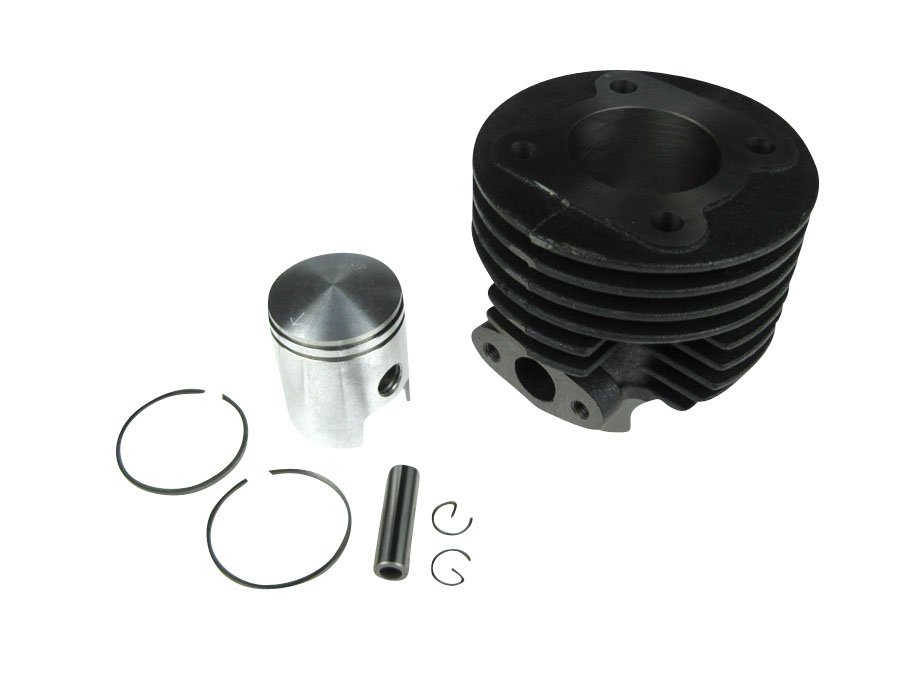

• Complete with piston (10mm pen).
• Without gaskets.

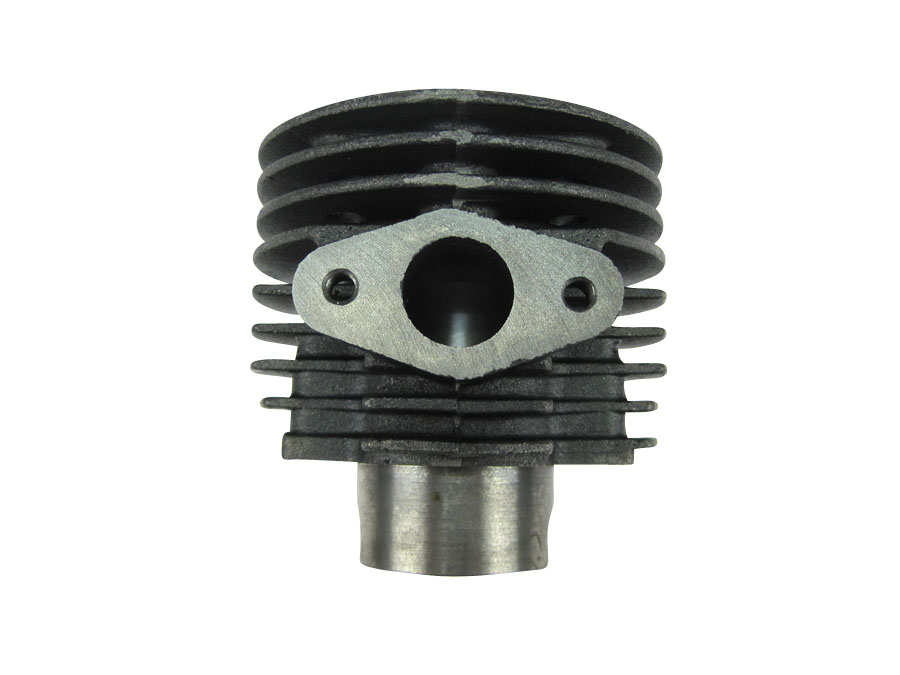

• 14mm Inlet
• Also for Puch X30 NG2AH

Note: When using this cylinder on a Puch Velux, the small opening next to the spool port in the engine block must be closed. This can be done, for example, with kneadable metal.

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 19mm
• F: 42mm
• G: M6
• H: 32mm
• I: 14mm
• J: 14mm
• K: 14mm

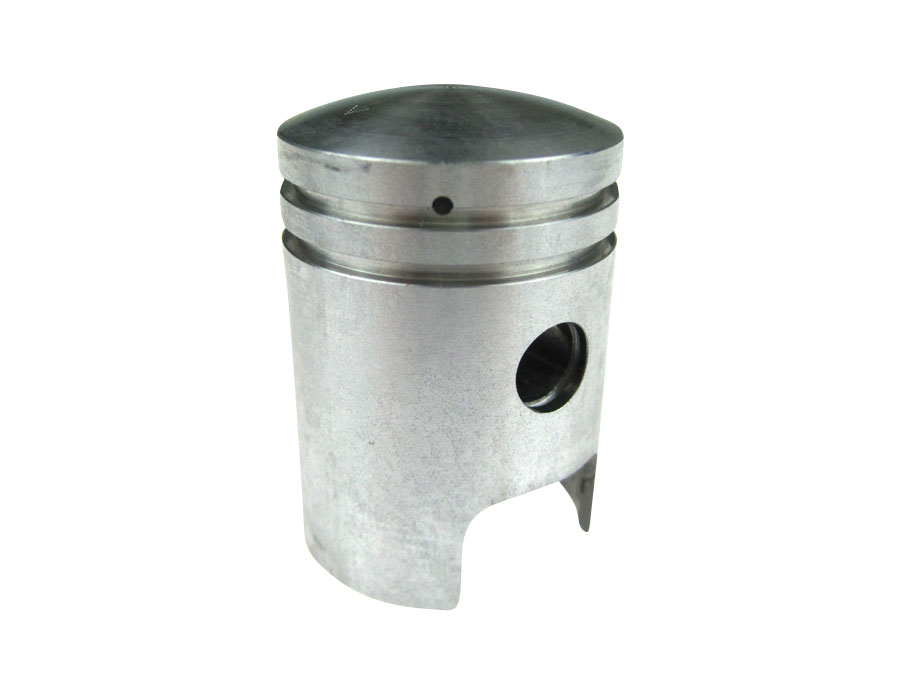

Measurements piston

• A: 4mm
• B: 22mm
• C: 24mm
• D: 10mm
