Cylinder 70cc OM Airsal kit + Bing 15mm Puch Maxi, X30

€ 145,90
€ 131,30
Ex Tax: € 108,51
Puchshop Directly available Directly available
Model: 10120
Puchshop price Without shipping costs. VAT info.
Puchshop customer service

Do you need some help or advice?

Puchshop info Check out our info center or contact us!

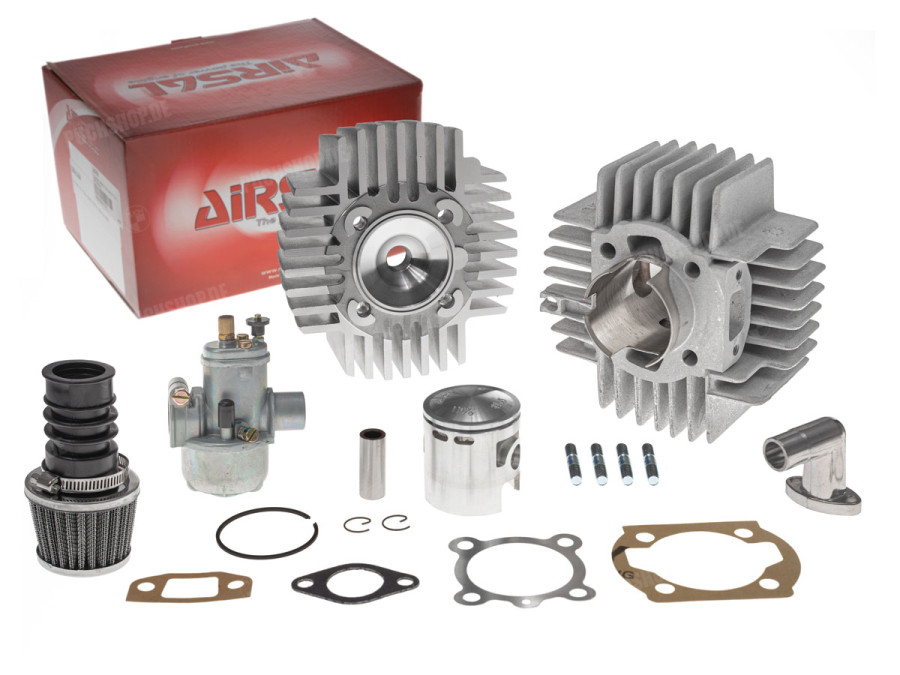

Complete Airsal kit 70cc cylinder set old model (45mm)

  • Cylinder
  • Piston (piston pin 12mm)
  • Head
  • Manifold
  • 15mm Bing replica carburetor (3.5mm jets)
  • Powerfilter
  • All gaskets included.
  • Complete as pictured.

For this setup you need Bing 3.5mm jets between +/- 68 and 74

Airsal 70cc cylinder (45mm) information

  • Piston (piston pin 12mm) and gasket sets included.
  • Nice allround cyilinder.
  • Model with the "small" cooling fins.
  • For Puch Maxi / X30 and E50 / Z50 / ZA50 engines
  • Cylindersleeve outer diameter: 48mm

Bing 15mm carburetor replica

  • Connection diameter of the manifold 20mm
  • Connection diameter of the air filter 20mm
  • Nozzles/jets suitable for this carburettor are Bing 3.5mm jets/nozzles
  • Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
  • Carburettors should always be cleaned before installation

Before mounting / note:

  • We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.
  • Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!
  • So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.
  • The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
View more Read more
Category: Engine parts
Type product: Cylinder / head
Type product: Cylinders
Cylinder / head
Cylinder displacement:70cc
Cylinder diameter:45mm
Cylinder model:Old model
Weight:2400 gram

Spain-based Airsal officially started producing for the international moped market in 1986. With years of experience and their own R&D department, they have optimised the production of cylinders and accessories, such as pistons and cylinder heads. Production optimisation has ensured a high-quality product and a very competitive price. Consider tuning your Puch Moped with aluminium cylinders for optimal cooling available at Puchshop.de in 50cc, 60cc, 65cc and 70cc. Tuning your moped even more extreme? If you are going to work on the crankcases, you can opt for 74cc Airsal with 8 ports! Complete Cylinder sets are also for sale at Puchshop with cylinder head and carburettor. Click here for the entire Airsal range.
