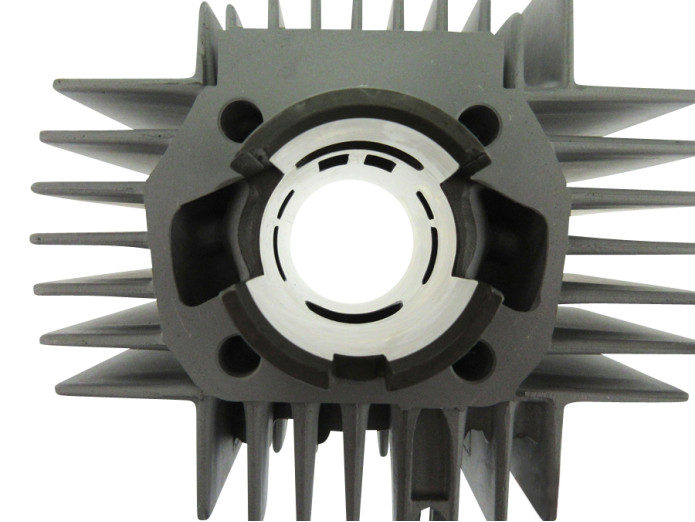

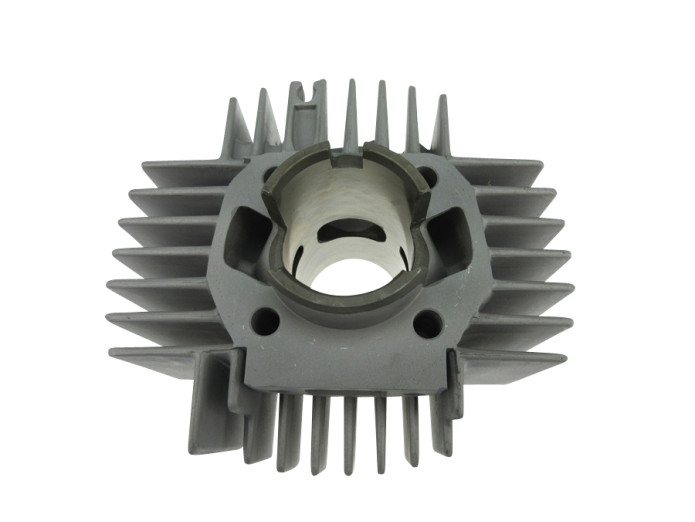

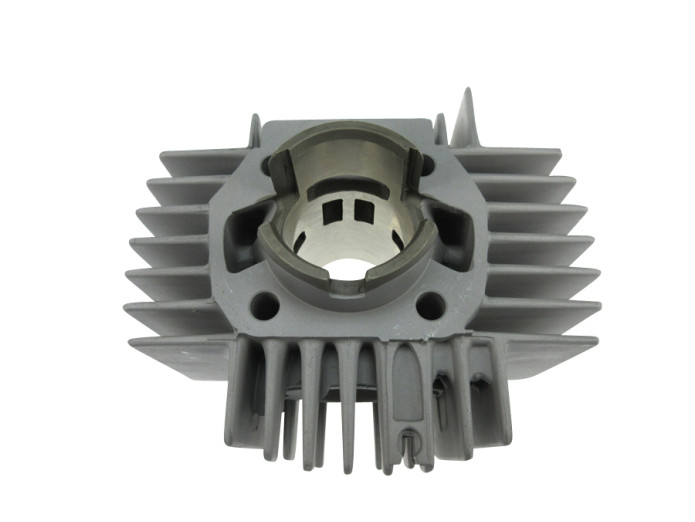

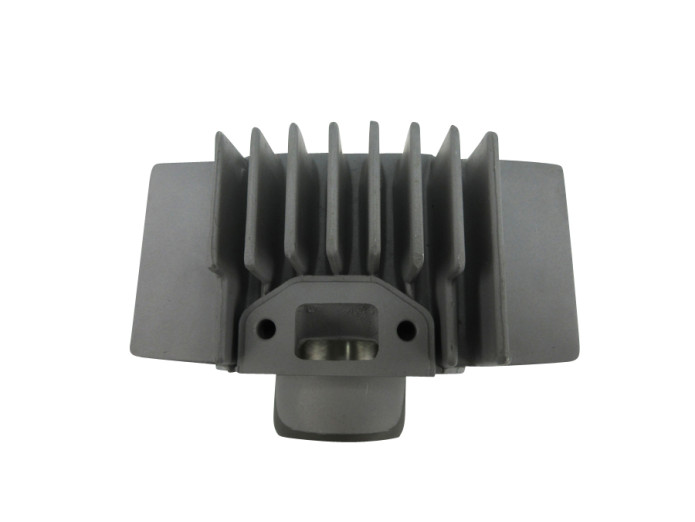

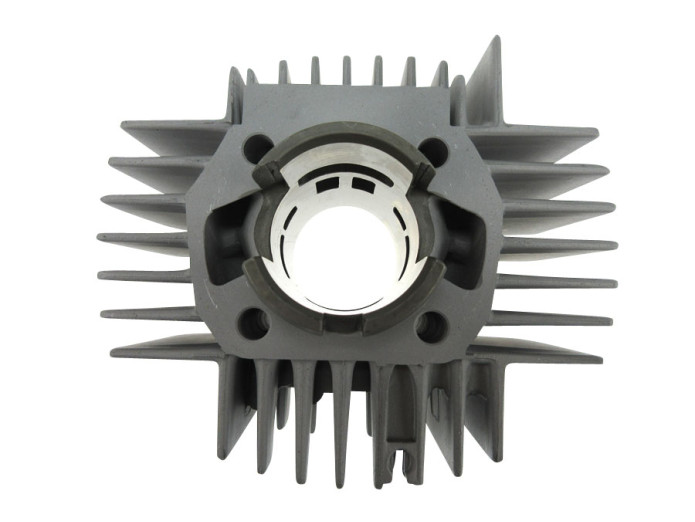

Cylinder 50cc OM PSR 6-port Puch Maxi, X30 and other models

Cylinder 50cc OM PSR 6-port Puch Maxi, X30 and other models

These cylinders from the brand PSR are high quality cylinders specially developed for Puchshop. PSR cylinders are known for their high quality and long life.  This cylinder is equipped with 6 inlet ports, so the petrol can enter the cylinder faster and more power can be made.

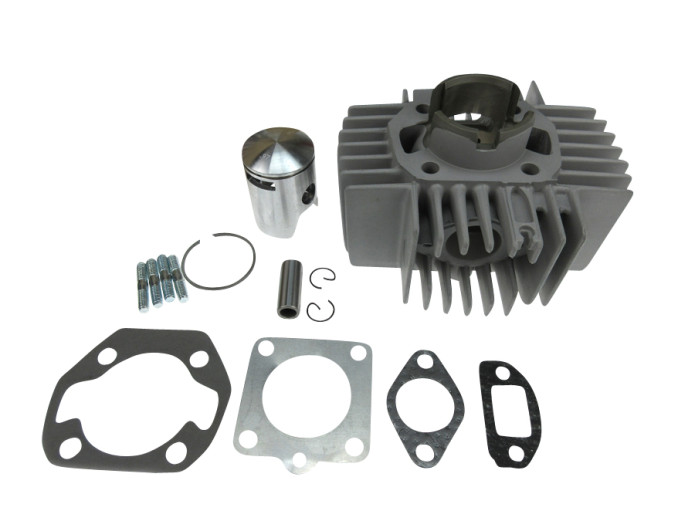

The set comes standard with gaskets, piston, piston pin and piston rings.

• Aluminium with Nicasil wall
• 50cc
• Fast 6 port cylinder
• Piston (piston pin 12mm) and gaskets set included
• Old model
• Cylindersleeve outer diameter: 48mm

Before mounting

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

• The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 24mm
• F: 42mm
• G: M6
• H: 38mm
• I: 23mm
• J: 23mm
• K: 15mm

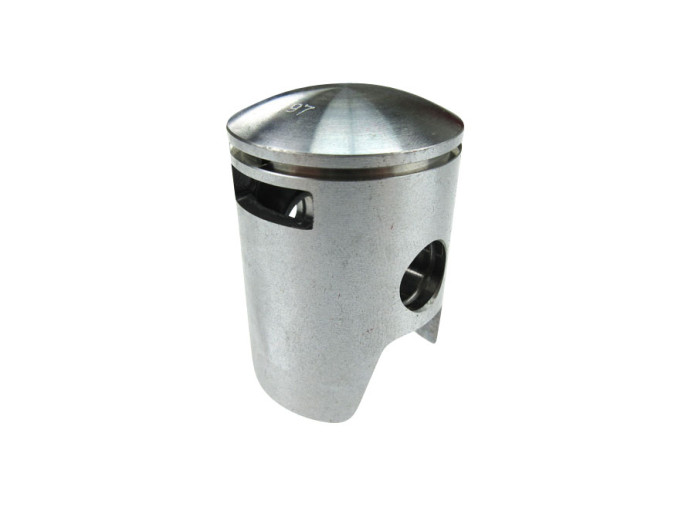

Measurements piston

• A: 5mm
• B: 22mm
• C: 27mm
• D: 12mm
