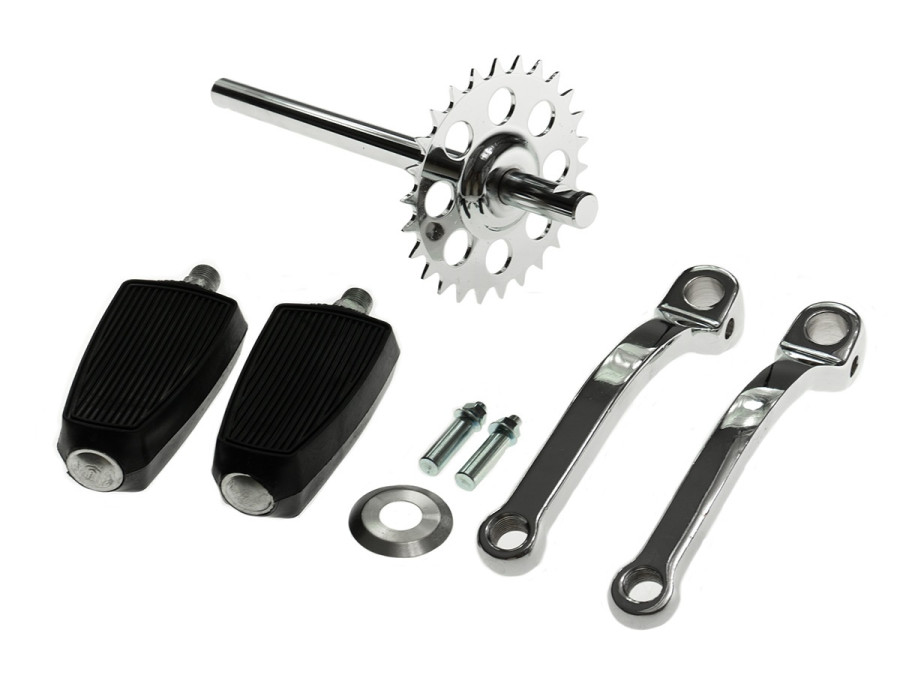

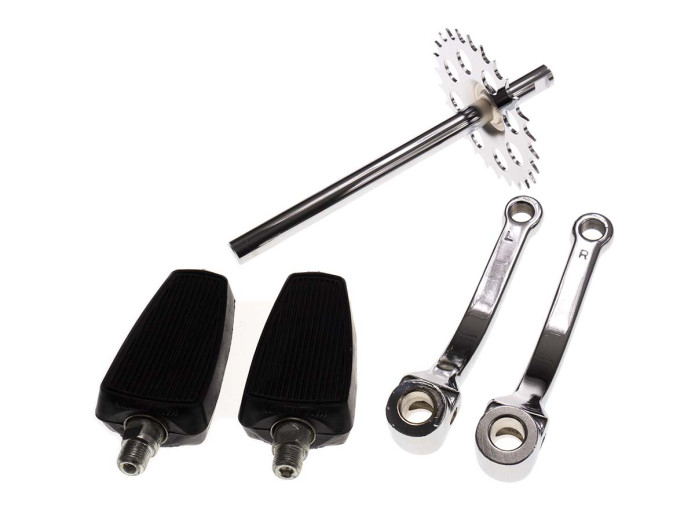

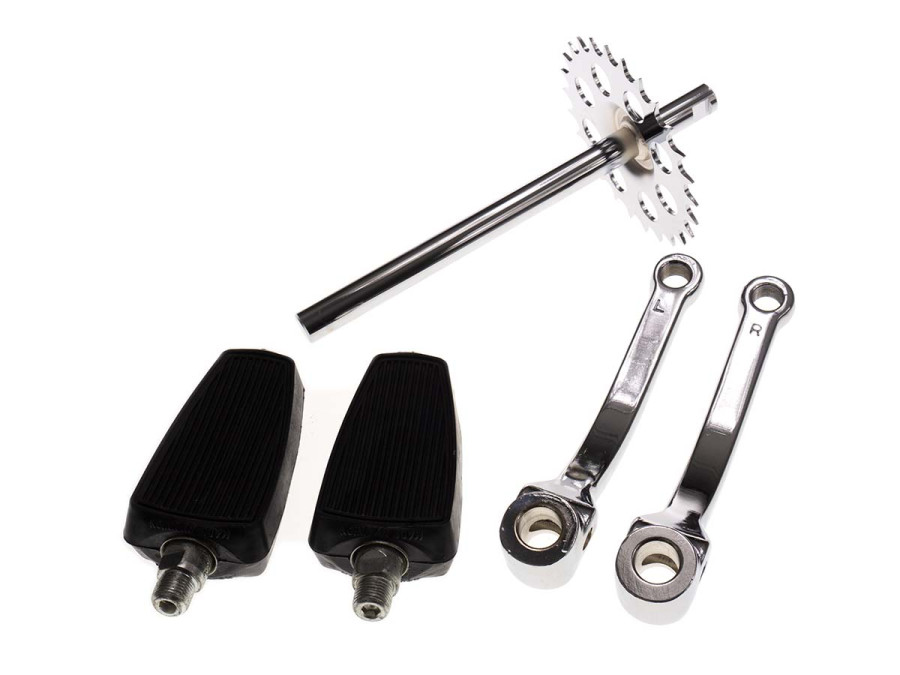

Pedal crank shaft Puch Maxi 230mm 26 tooth with cranks and pedals (longer)

Pedal crank shaft Puch Maxi set with cranks and pedals, extra long!

• Axle thickness 16mm

• Overall width 230mm
• Long side 185mm
• Short side 40mm
• 26 tooth
• Very nice quality!


So this pedal shaft is 20 mm longer than original. This means that the crank is further out on the exhaust side. This allows more space between the exhaust and the crank. Make sure you order the right plastic bushings to fill out the pedal crank on your moped!

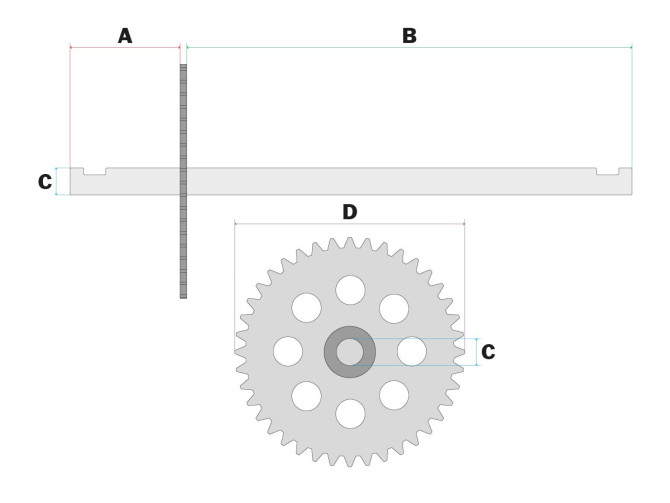

Dimensions:

• A: 42mm
• B: 183mm
• C: 16mm
• D: 113mm
