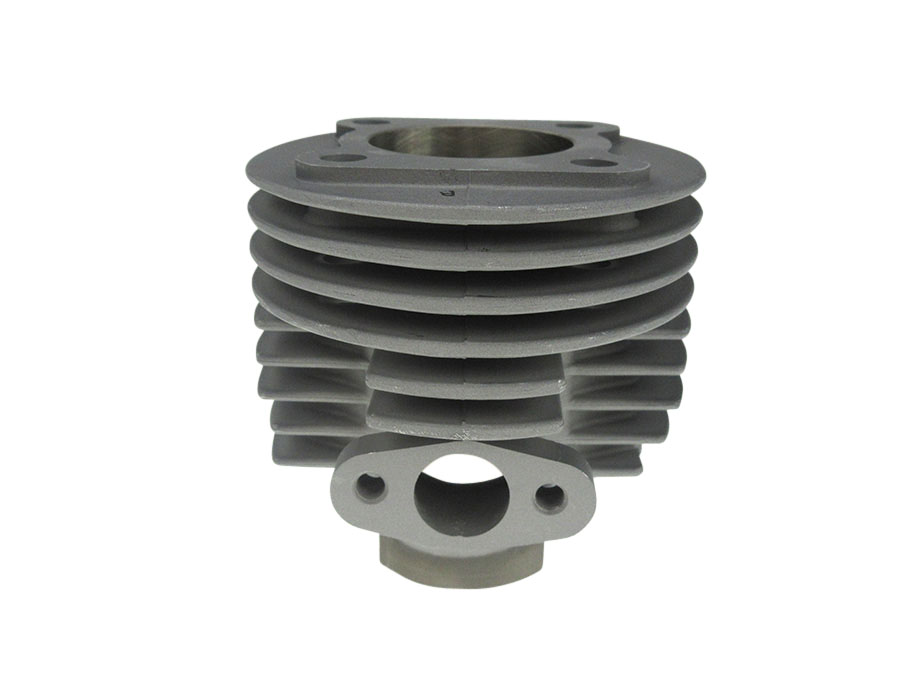

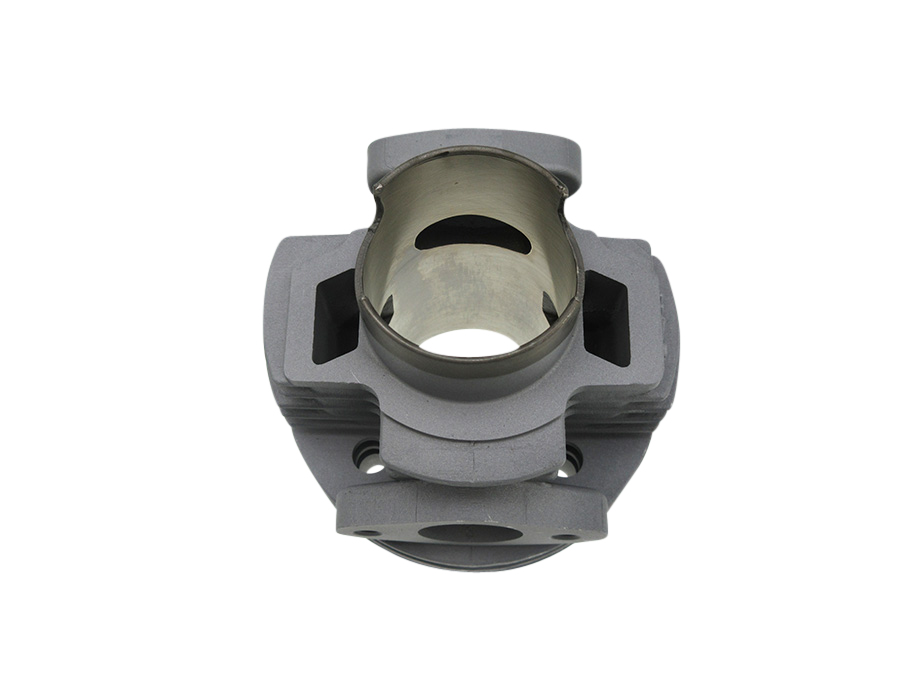

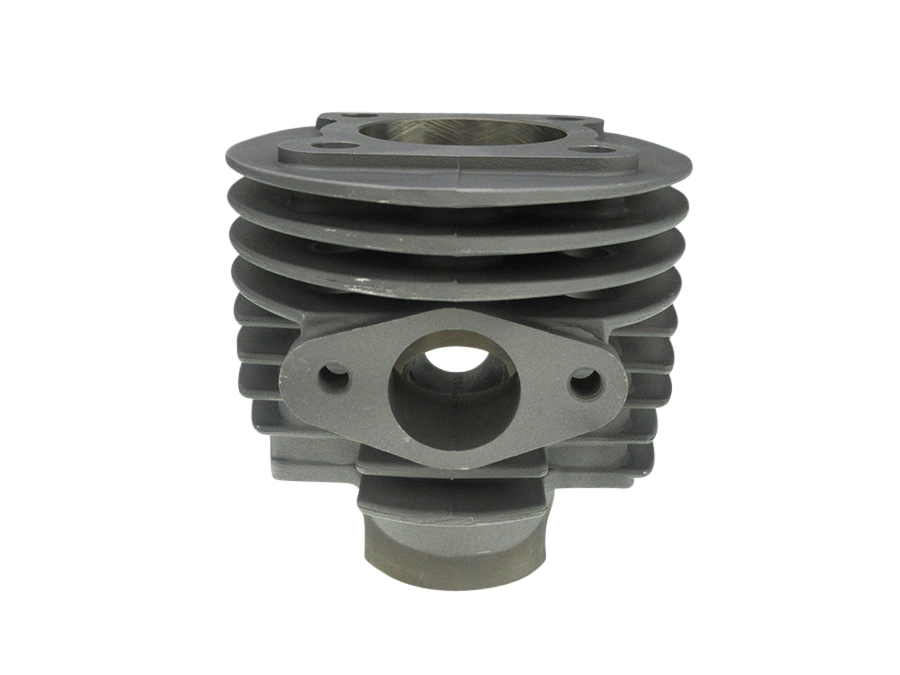

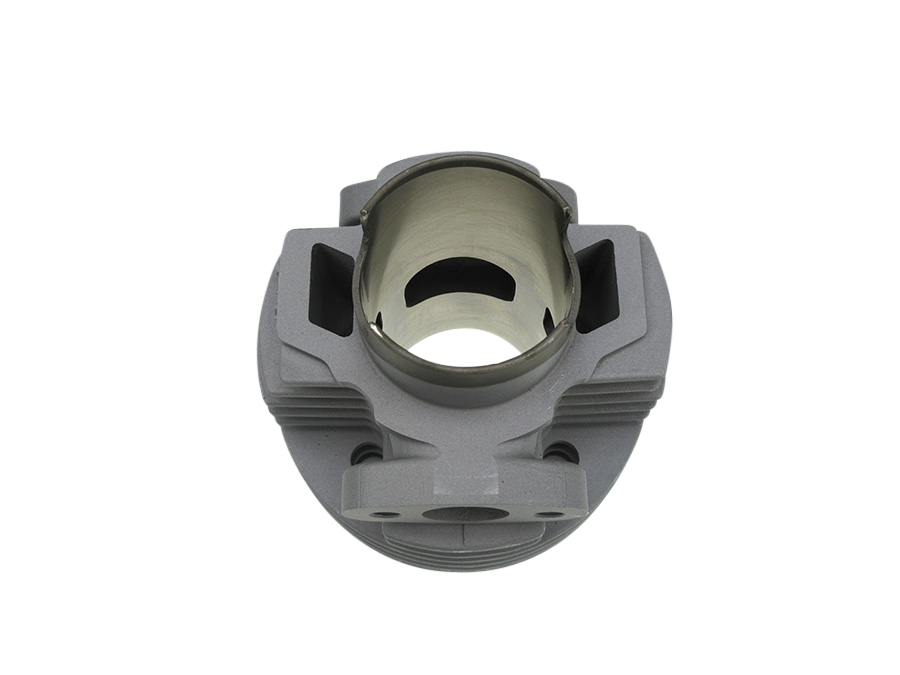

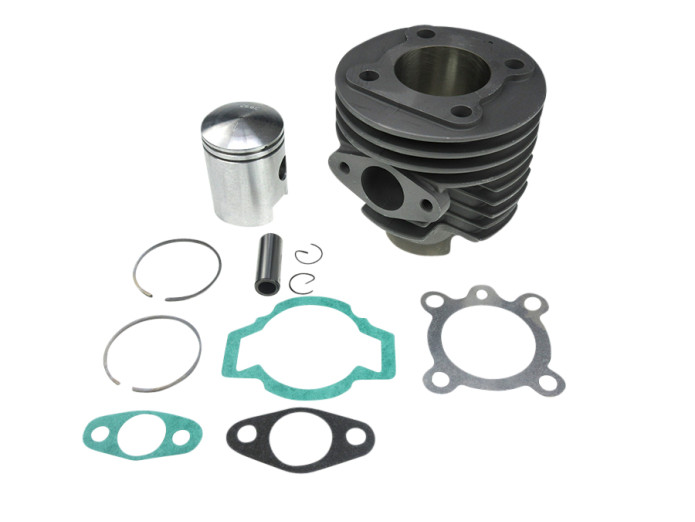

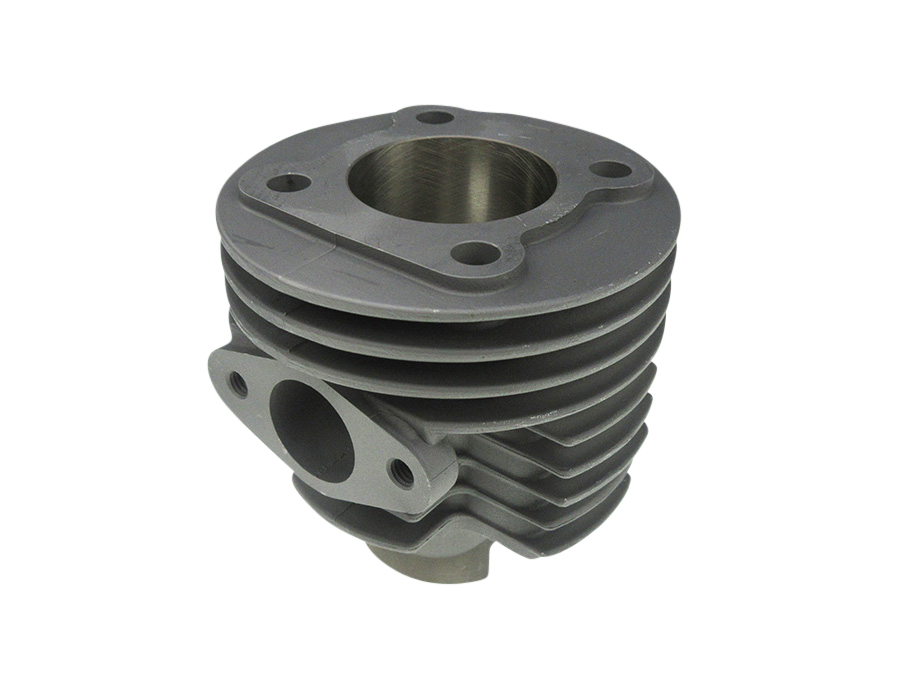

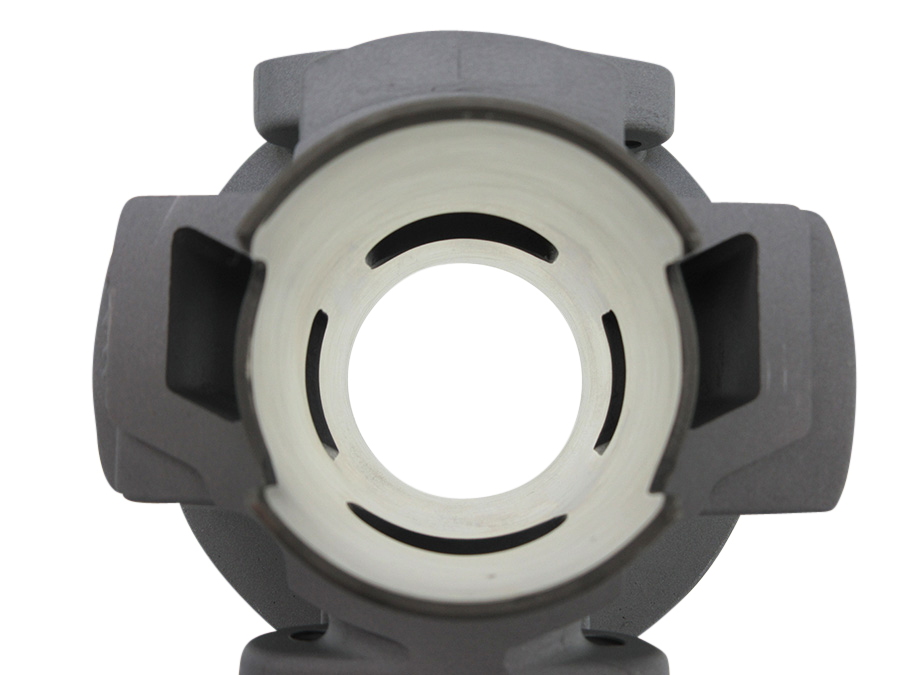

Cylinder 60cc pin 12 Puch MV VS DS MS X30 NG2AH aluminium NC

Cylinder 60cc pin 12 Puch MV / VS / DS / MS / X30 NG2AH / Velux aluminium NC

• Suitable for Puch MV / VS / DS / MS / R50 / Velux
• Aluminium 40mm / 60cc
• Better port timing, works best with NC cylinderhead 10136
• Piston with 2 block piston rings

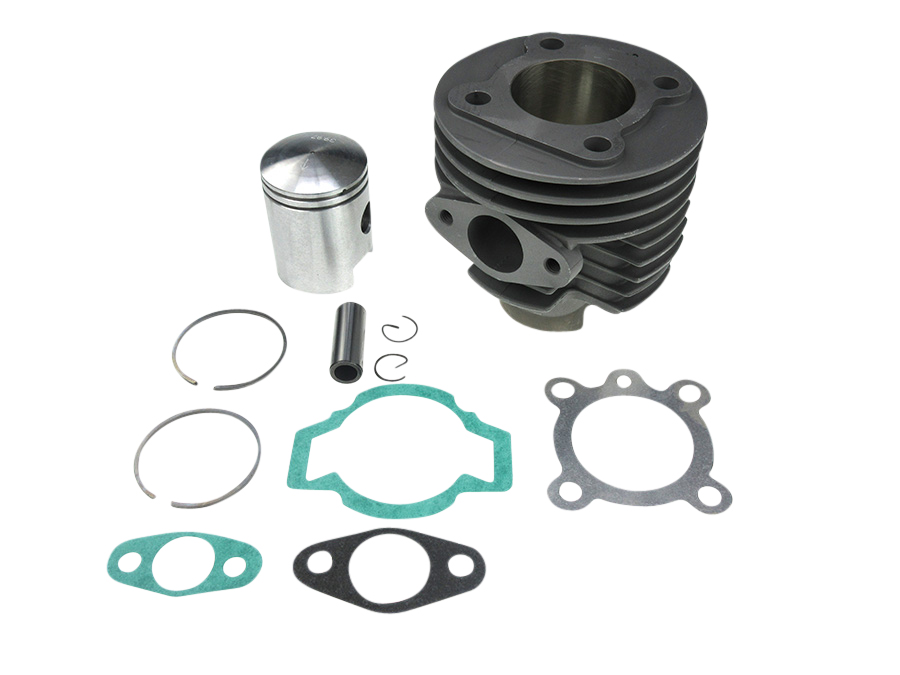

• Complete with piston (12mm pin)
• With gaskets
• Also for Puch X30 NG2AH
• 17mm inlet, 22mm exhaustdiameter

Note: When using this cylinder on a Puch Velux, the small opening next to the spool port in the engine block must be closed. This can be done, for example, with kneadable metal.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 22mm
• F: 42mm
• G: M6
• H: 32mm
• I: 17mm
• J: 17mm
• K: -

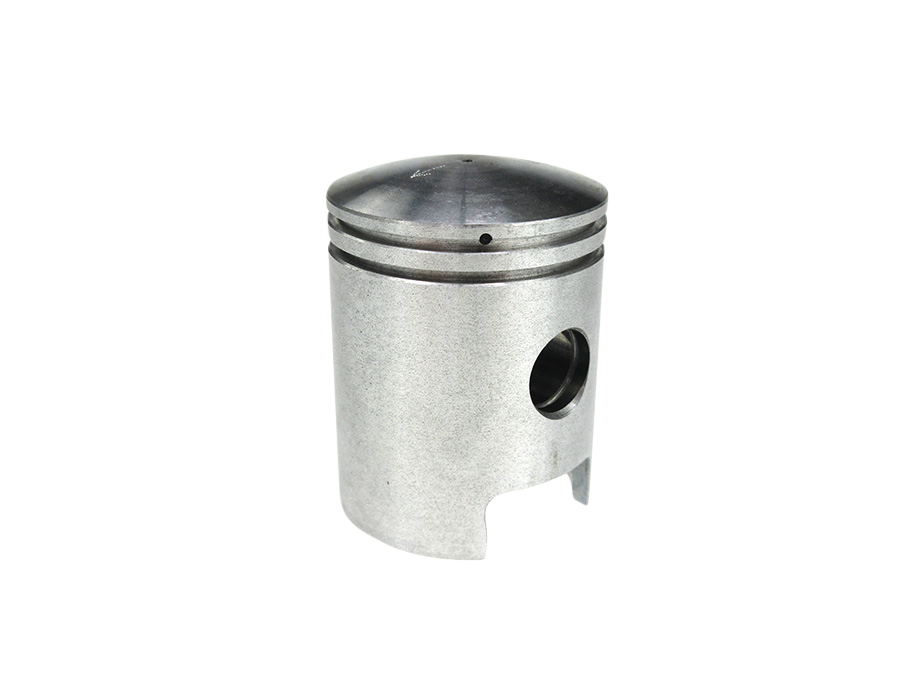

Measurements piston

• A: 4mm
• B: 25mm
• C: 24mm
• D: 12mm
