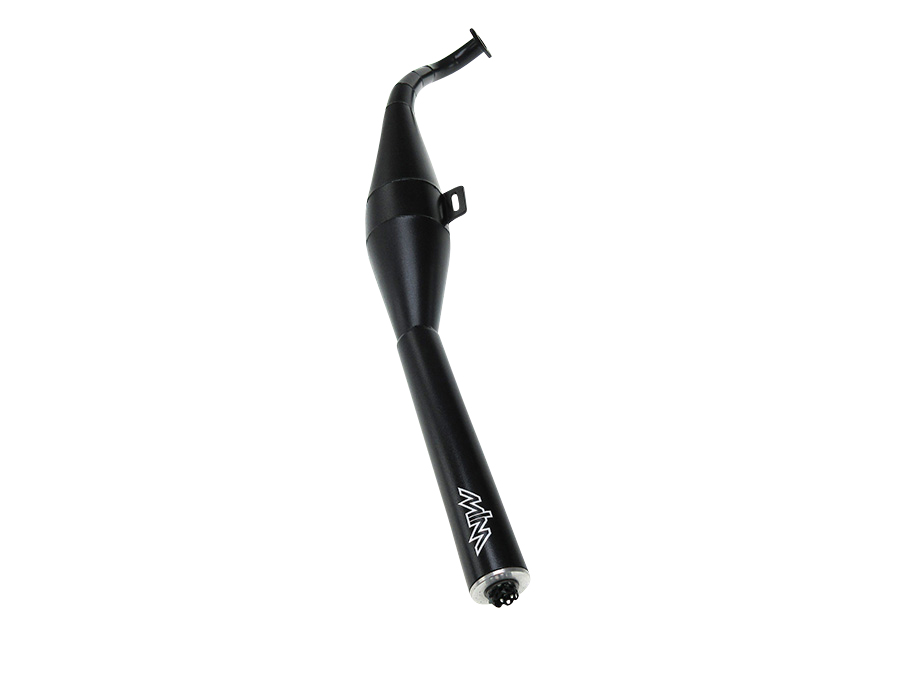

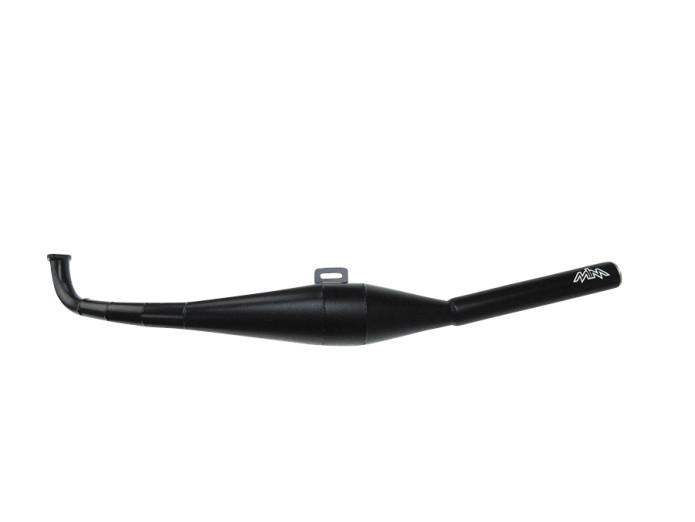

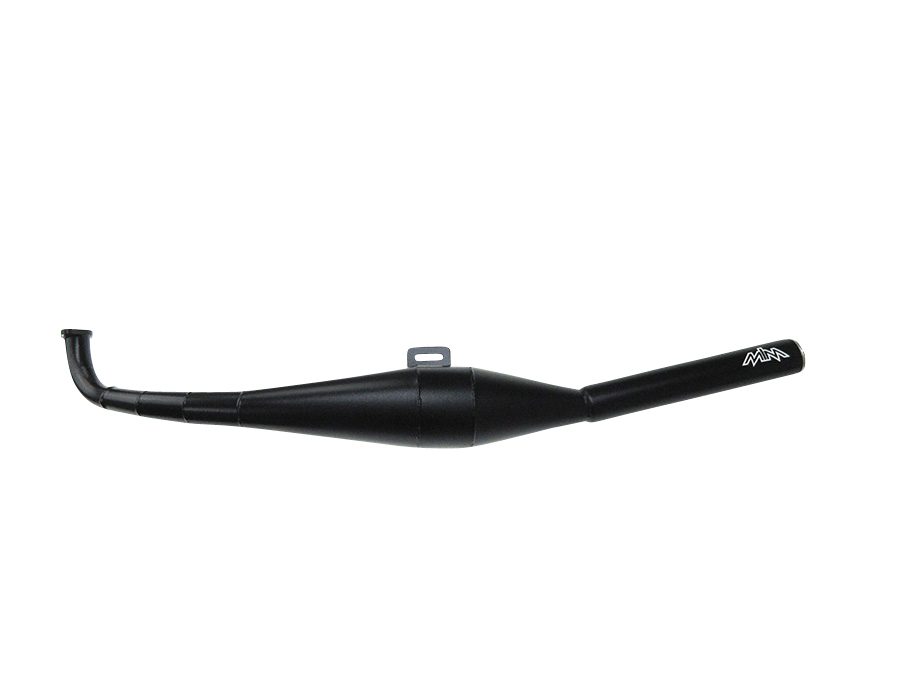

Exhaust Puch Maxi / E50 28mm MLM Paragon (74cc with angled exhaust port)

MLM puch PARAGON pipe - angled

• The Paragon pipe for angled Puch cylinders like Gilardoni, Metrakit, angled Eurokit, stock Magnum and more...
• New technology and innovation has been unleashed in this interesting design. shorter and with different cone lengths / diameters than the bk100 and cali, this pipe is about 34.5" long, 3.5" in its largest diameter, and has multiple graduated cones that become larger at the header leading up to the chamber. another option and style brought to you by the USA company MLM.

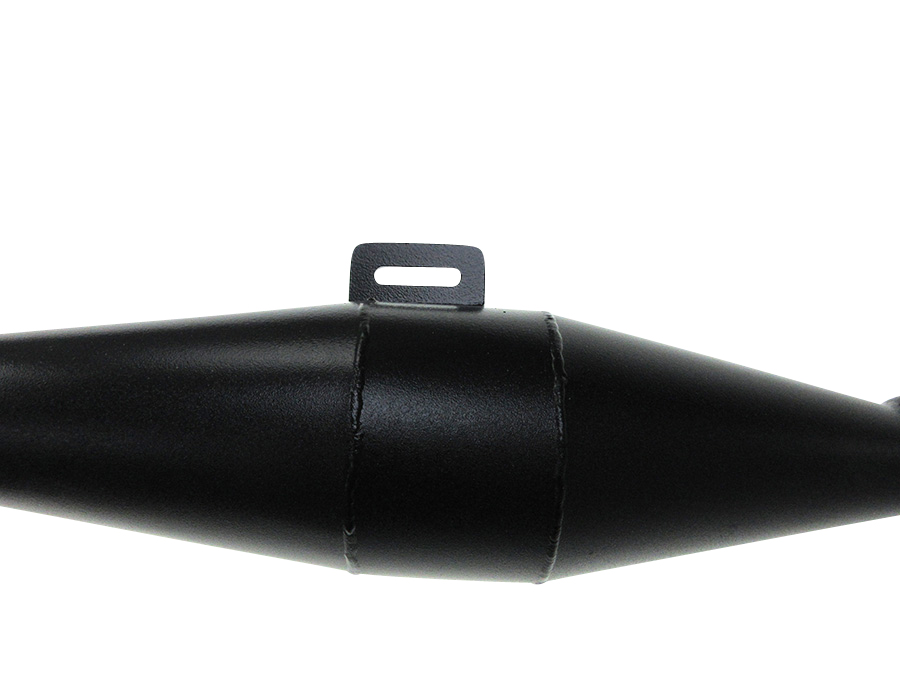

Measurements exhaust (picture 7)

• A: 880mm length
• B: 80mm length
• C: 800mm length
• D: 28mm outer diameter
• E: 25mm inner diameter

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no warranty on discoloration or solving of the paint on the exhaust manifold!
