Manifold Dellorto PHBG 24mm Puch Maxi E50 straight plastic blue Wirth It

Manifold Dellorto PHBG 24mm Puch Maxi E50 straight plastic blue Wirth It

• A-quality intake manifold from the USA by Wirth IT LLC
• For Puch Maxi E50 with Dellorto PHBG carburetor (or other with 24mm connection)
• Straight model
• Colour: Blue transparent
• Connection diameter 24mm.

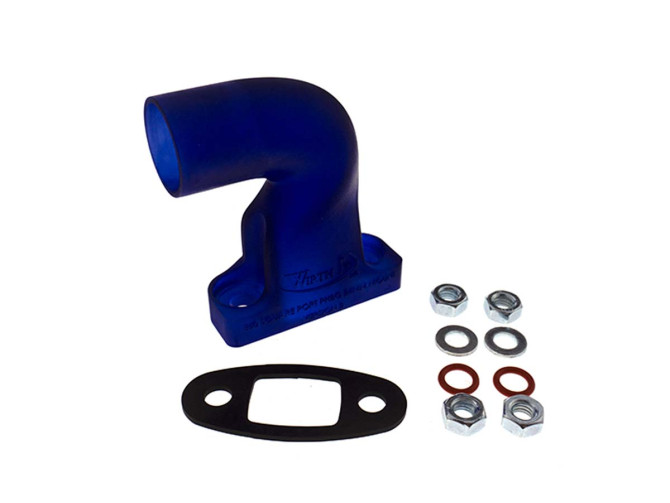

• Complete with gasket, o-rings, nuts and washers
• 3D printed from high quality heat resistant plastic
• Maximum temperature: 232 °C / 450 Fahrenheit
• Also available in white transparent, red transparent or black (see related products)
• Centre-to-centre distance between mounting holes: 38mm

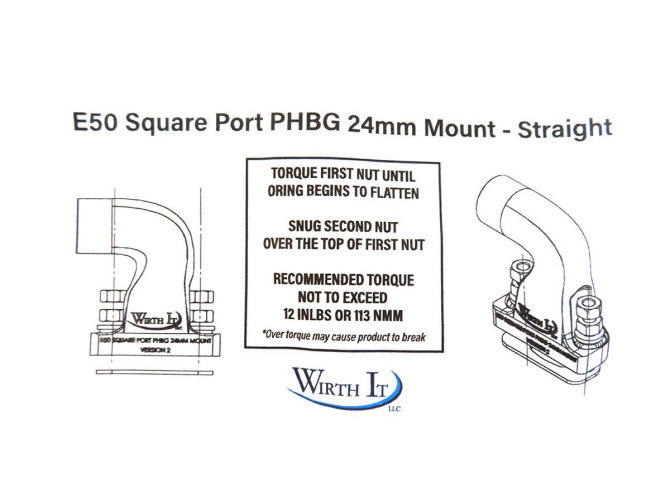

Dimensions:

• A: 24mm
• B: 6mm
• C: 17mm
• D: 22mm
• E: 38mm
• F: 68mm
• G: 35mm
