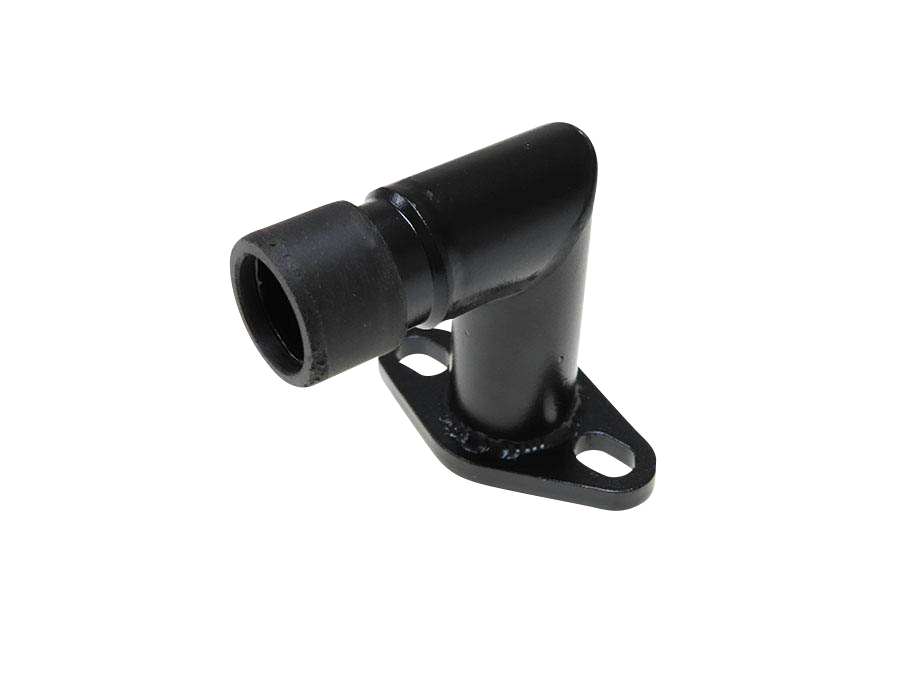

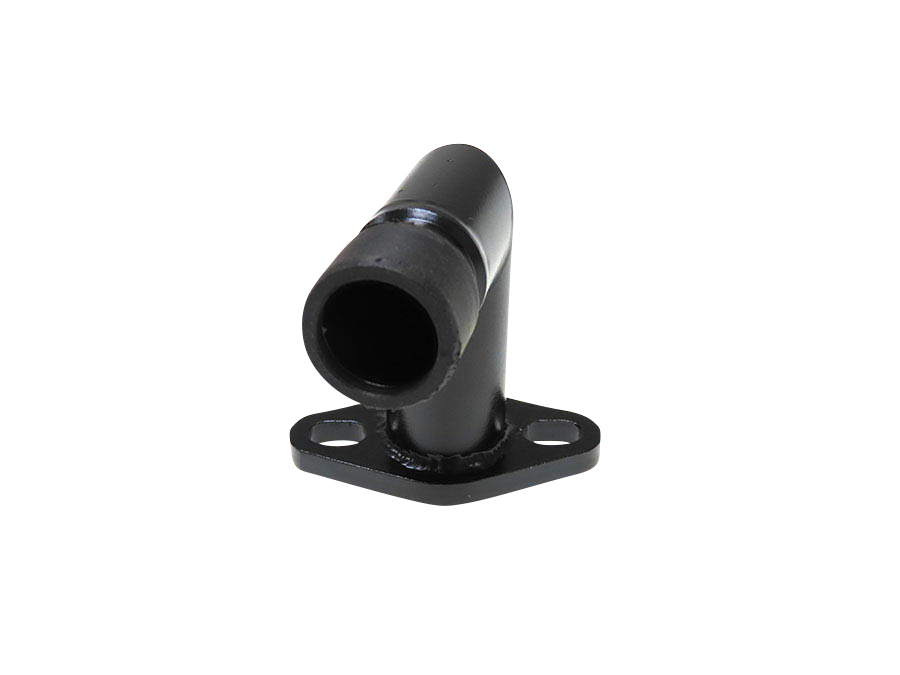

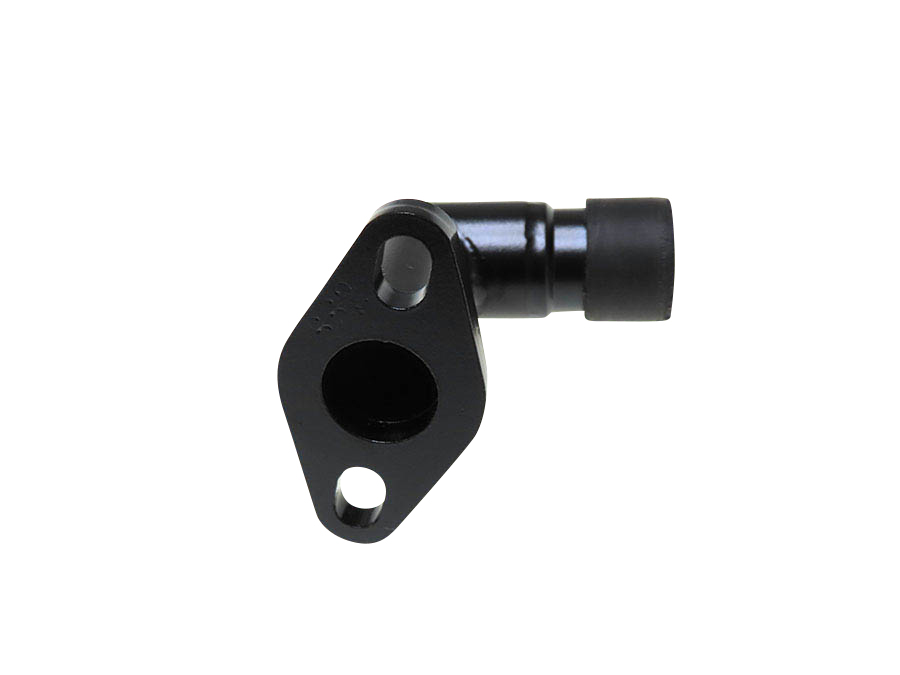

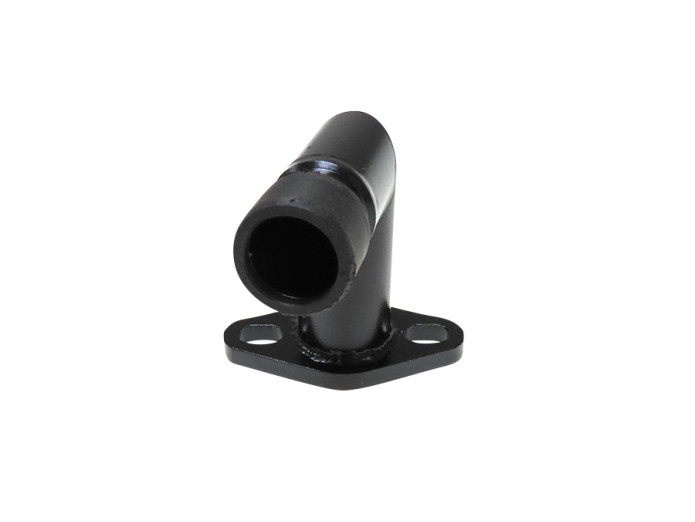

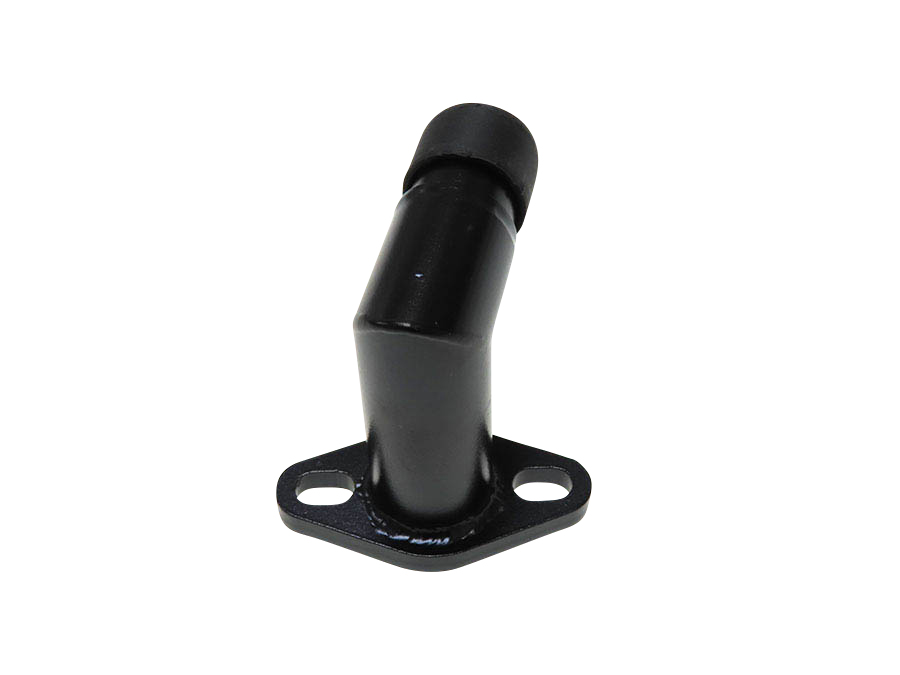

Manifold Bing 15mm Puch Maxi E50 MLM 90 degrees

Bing 12-15mm manifold

• Connection diameter 20mm.
• MLM
• 90 degree angle. Everything still fits under the side covers.

• A plastic ring with an outside diameter of 19.85 mm has been placed at the connection to the carburetor for an optimal seal
• Centre-to-centre distance between mounting holes: 38mm

Dimensions:

• A: 20mm
• B: 6mm
• C: 15mm
• D: 35mm
• E: -
• F: 50mm
• G: 30mm
