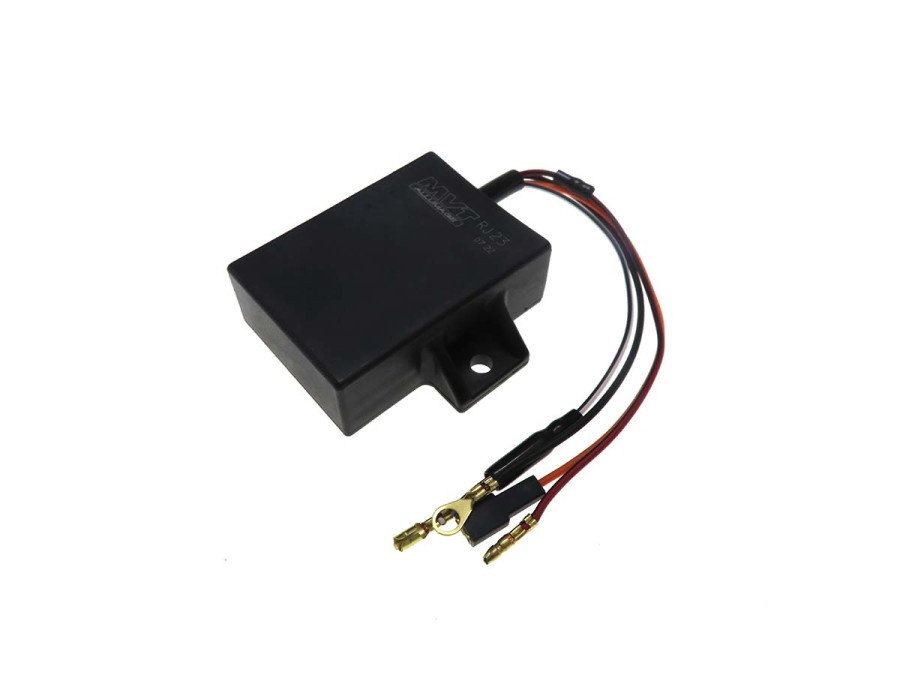

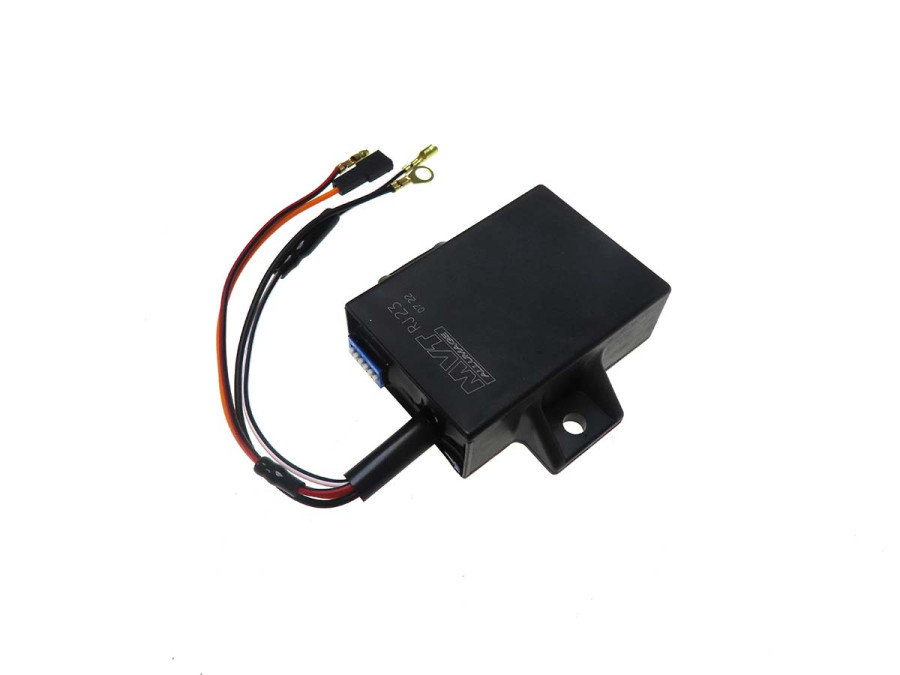

Ignition inner rotor MVT eprom for MVT Premium Digital Direct

Eprom for premium MVT and direct digital ignition

• Set the ignition at 2.9 mm before top dead center, remove the analog diagram and replace it with the Eprom.
• The eprom has 4 pre-programmed curves of which you can separately adjust the ignition timing to optimize your setup.

Why an MVT eprom?

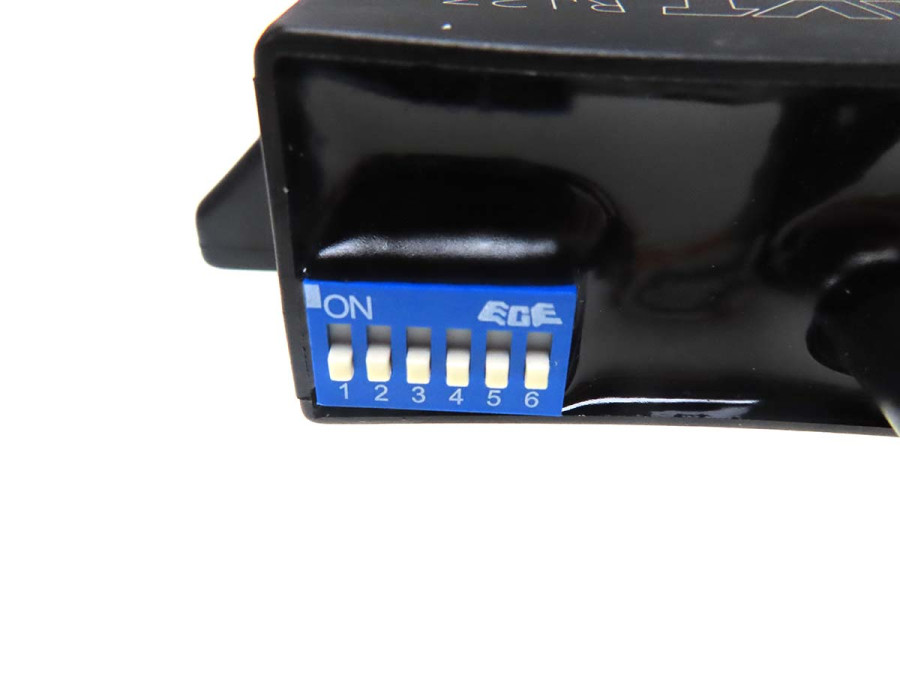

• To allow you to optimize the maximum performance of your engine by setting the ideal digital advance with the micro selector switches on the top of the unit

Advice: Only use this if you are known with adjustable Eproms for Ignitions, Instructions for use are included in the delivery

Attention: An inner rotor ignition can generate more heat during operation than an original contact points or CDI ignition. We therefore recommend providing the ignition cover with sufficient ventilation openings to ensure that heat can dissipate properly. Insufficient ventilation may lead to overheating, which can negatively affect the performance and service life of the ignition or cause damage. Always make sure that the ignition has sufficient clearance and is installed correctly.
