Headset tube bearing conversion set with tapered bearings 28mm EBR front struts

EBR Headset bearing conversion set with tapered bearings for 28mm EBR front struts

• Complete set to convert a Puch Maxi S / N / K to tapered head bearings
• Headset with custom headset pin of 25 millimetres
• Only suitable for 28 millimetre front legs!

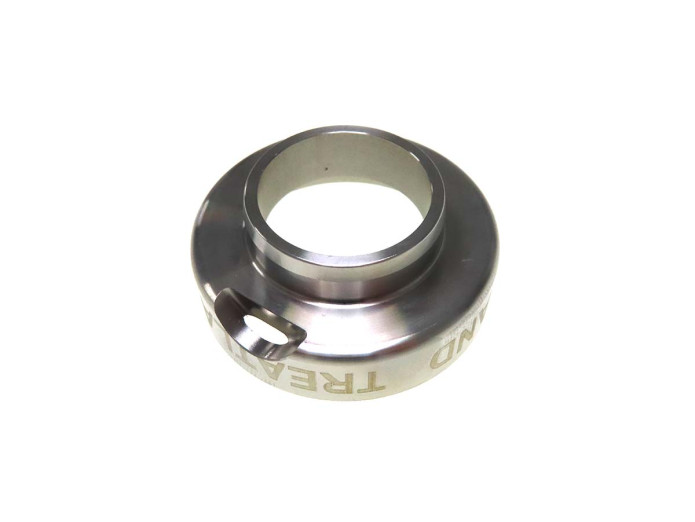

• The lower steering head cup has a notch for the steering lock

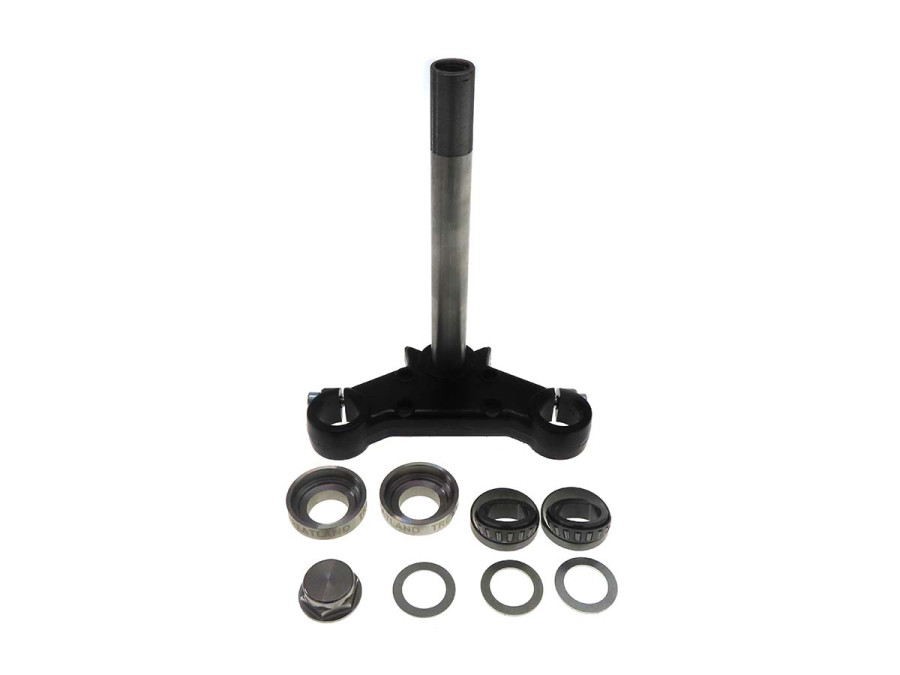

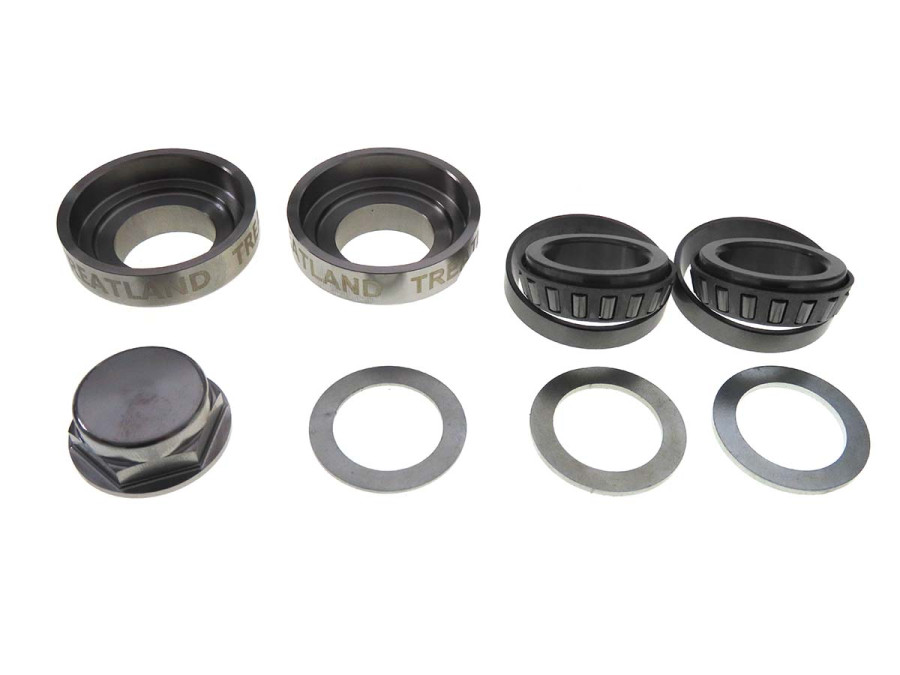

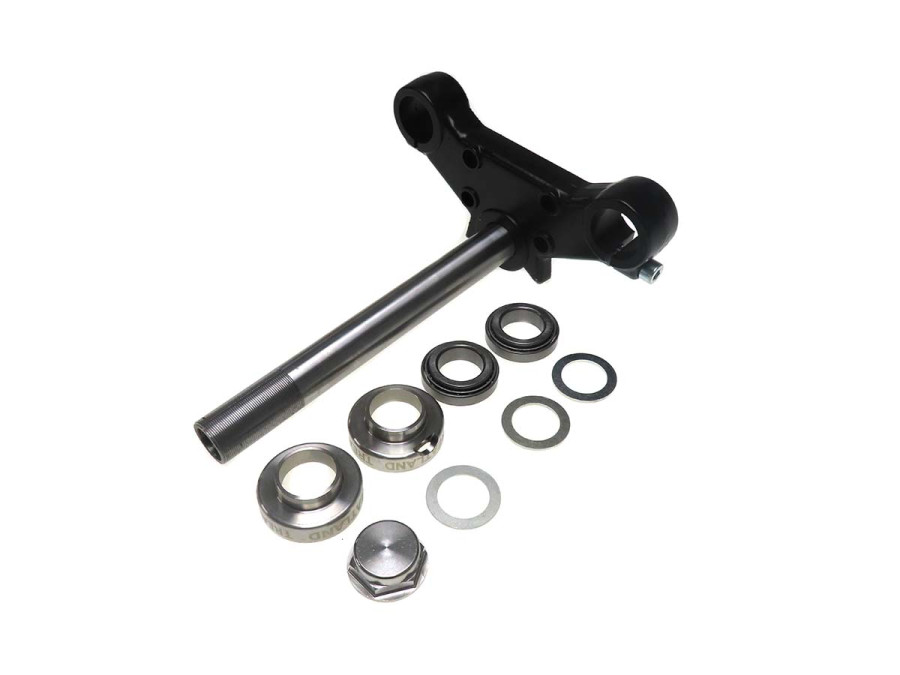

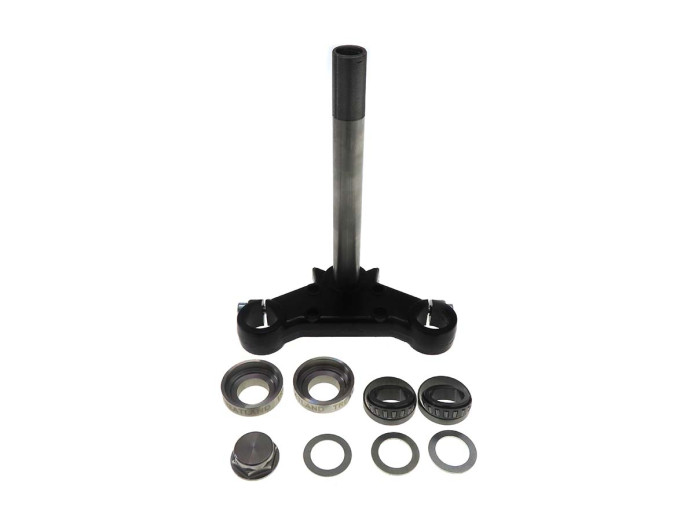

Set includes:

• EBR aluminium triple tree with 25 millimetre headset pin

• Upper and lower steering head cups
• Conical headset bearings
• Stainless steel steering head nut 25 millimetres
• 3 headset adjusting rings to fill any space under the nut

Dimensions:

• Diameter headset pin : 25mm
• Handlebar tube length : 214mm
• Length screw thread : 50mm
• Front tube diameter : 28mm
• Heart to heart distance front legs : 150mm
