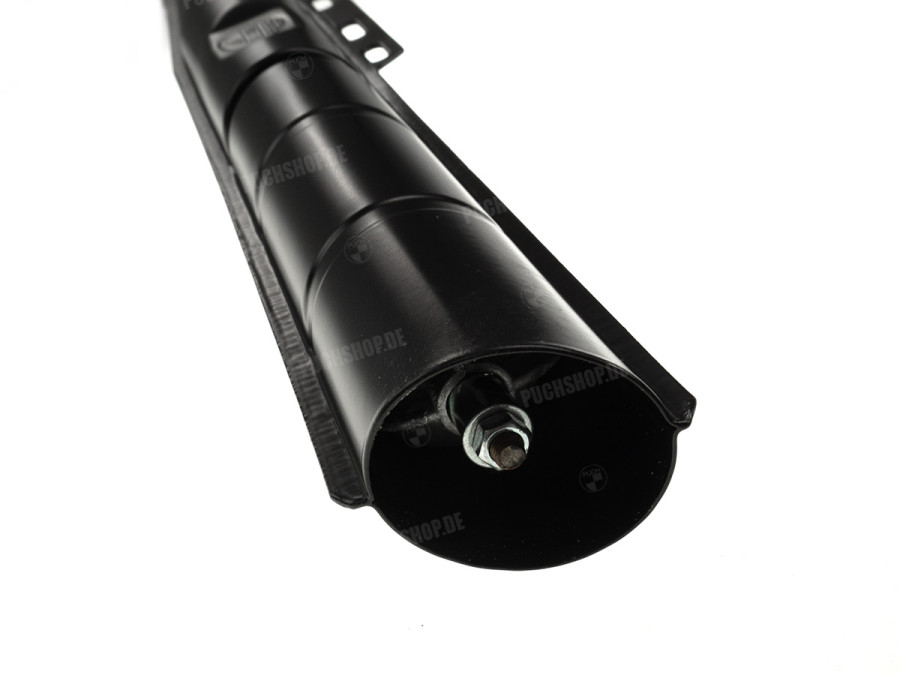

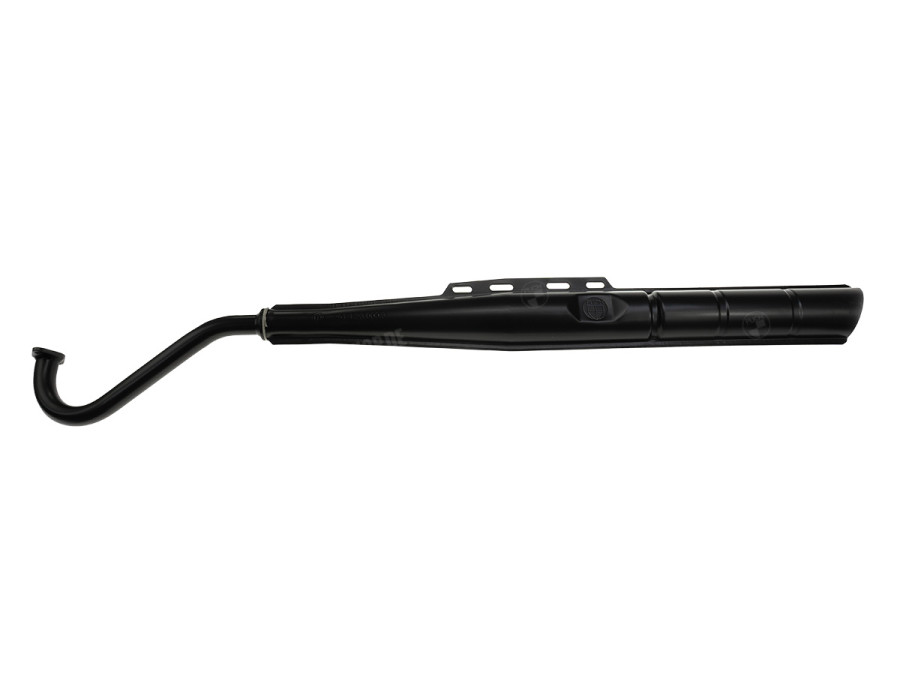

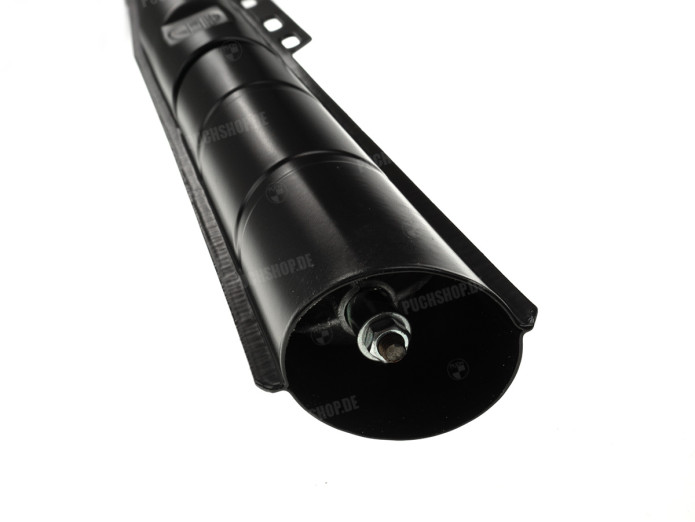

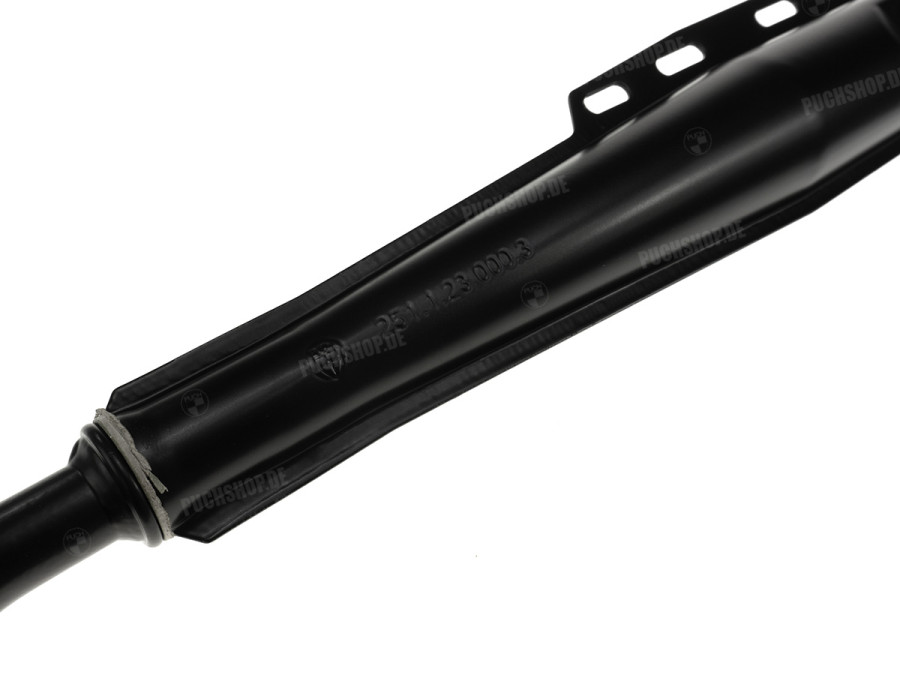

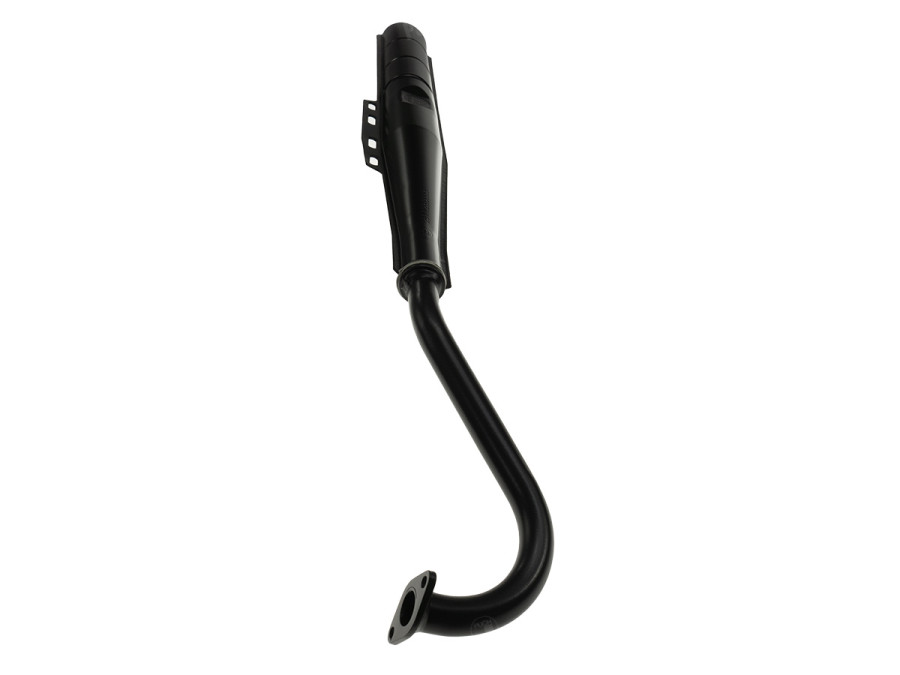

Exhaust Puch Maxi / E50 22mm Jamarcol original model with Puch Logo 2-pieces black

Exhaust as original 22mm with separate exhaust manifold black

• Original for 40 km/h version

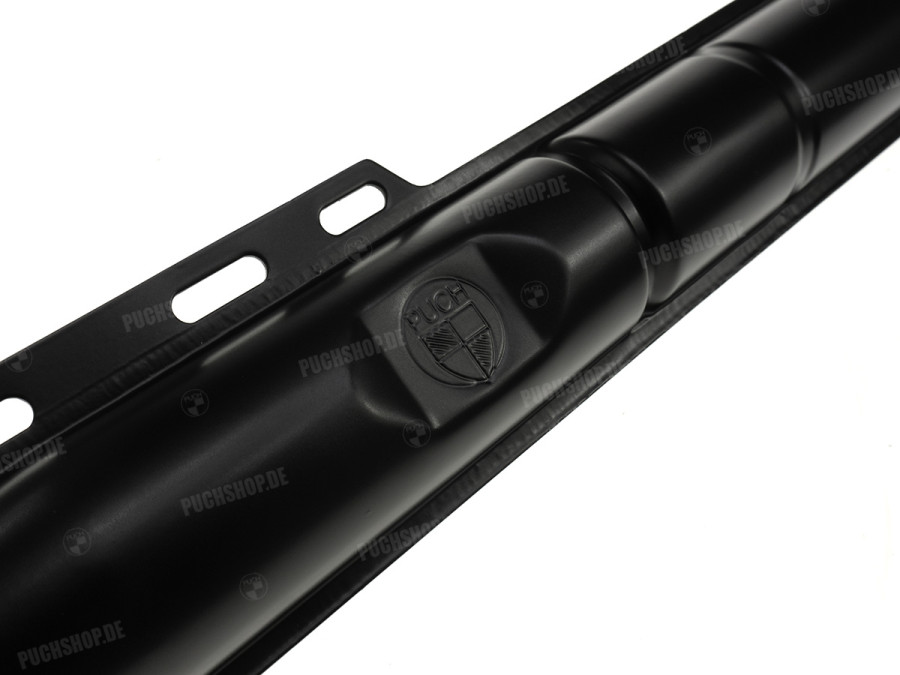

• With Puch logo

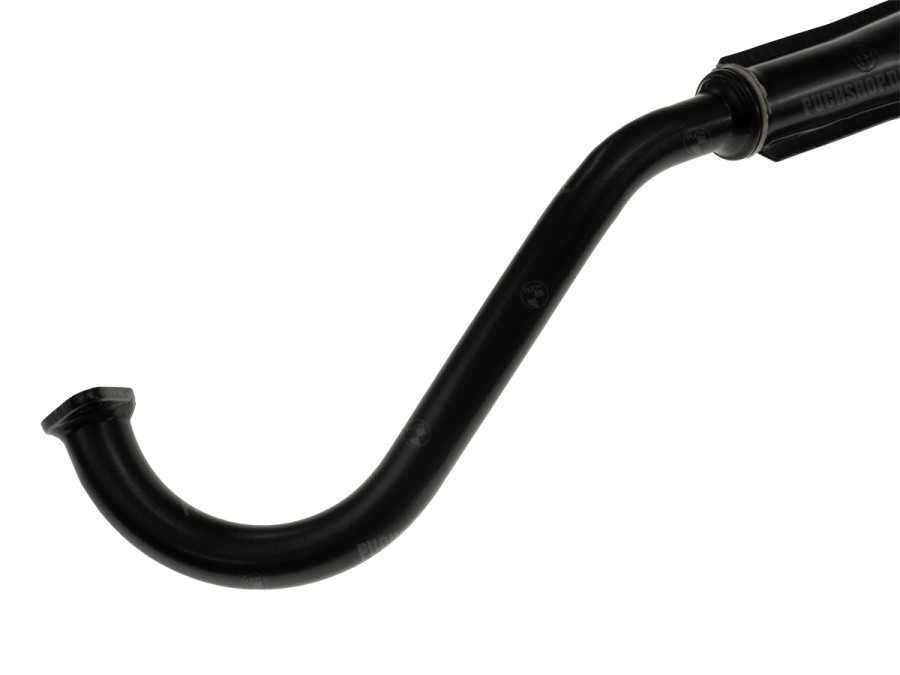

• With separate exhaust manifold as original

• 22mm outer diameter

Note: Always check that the M7 nut at the back of the silencer is tightened properly.

Dimensions:

• A: 260mm
• B: 660mm
• C: 24mm
• D: 28mm
• E: 7mm

Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!
