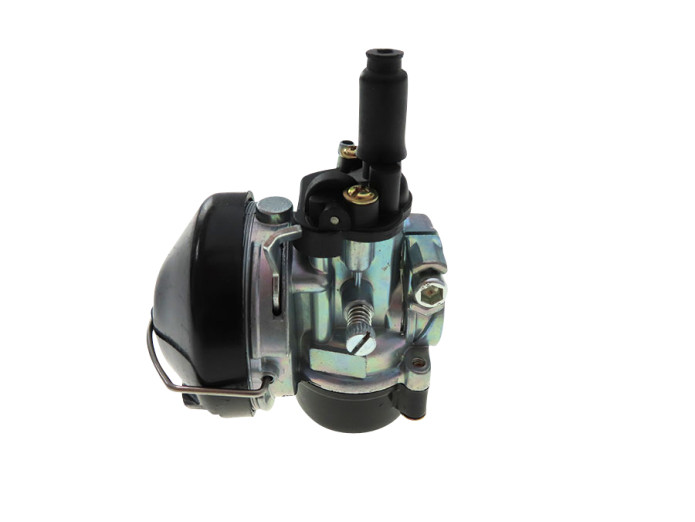

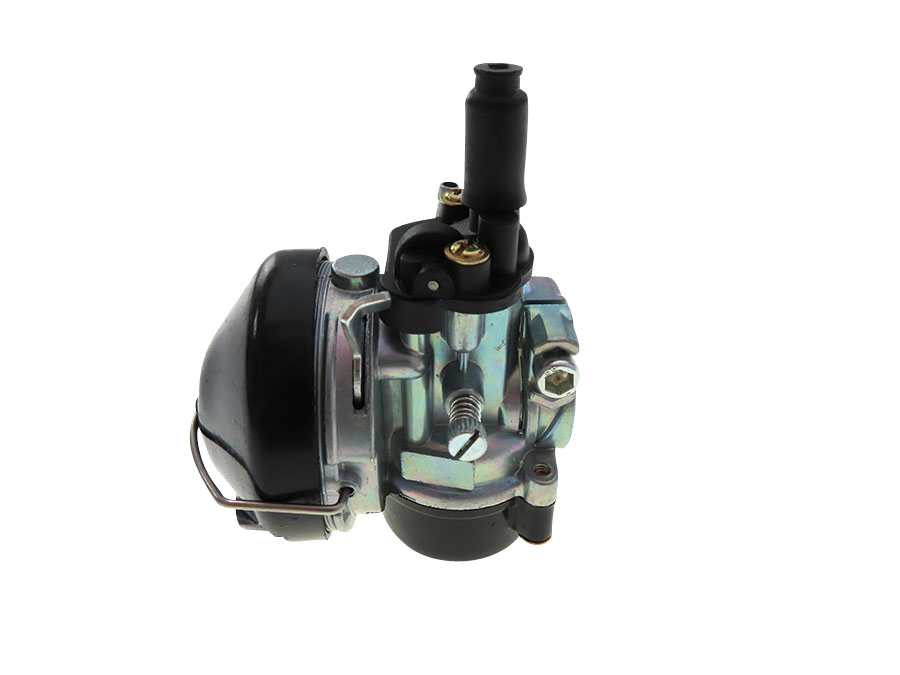

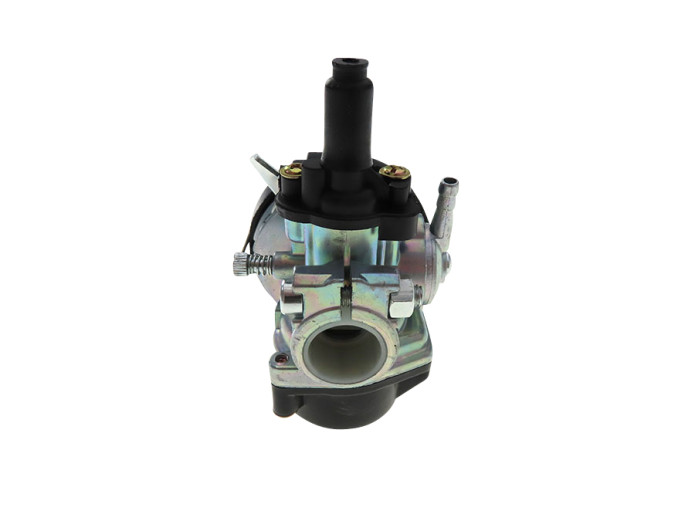

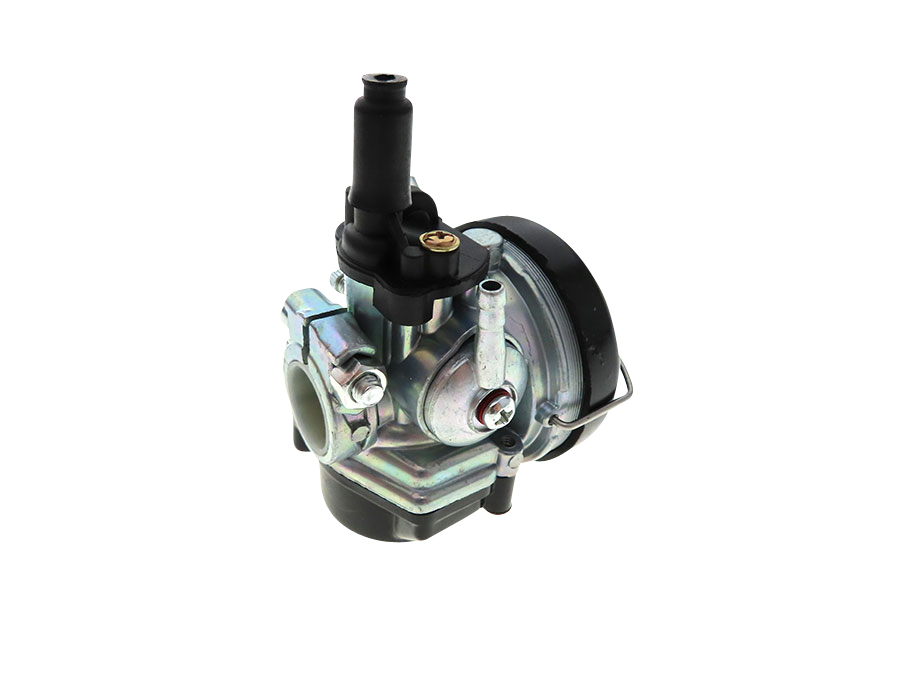

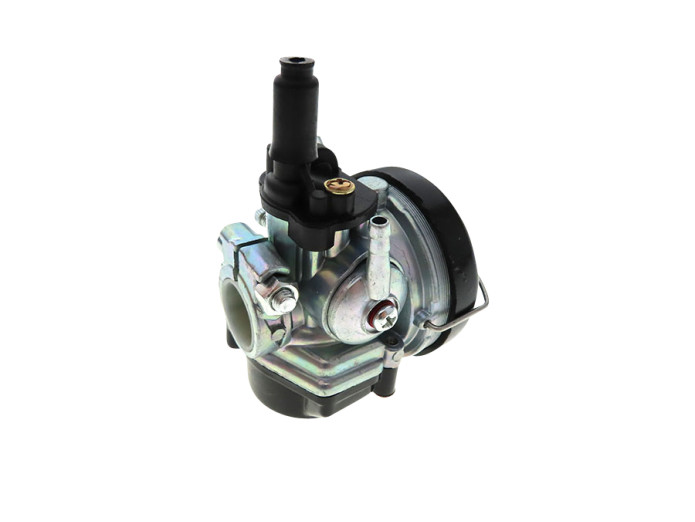

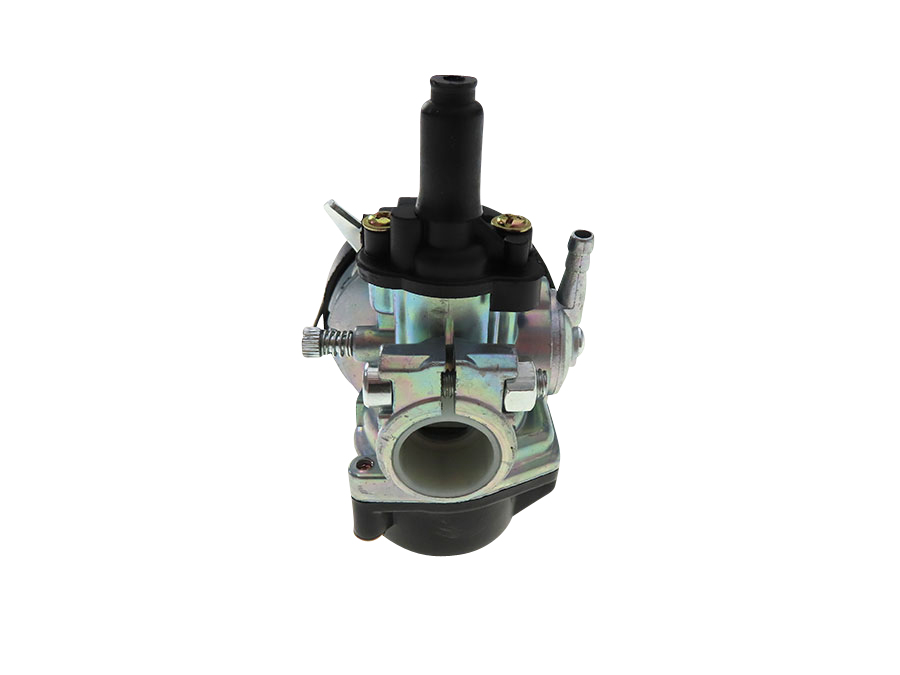

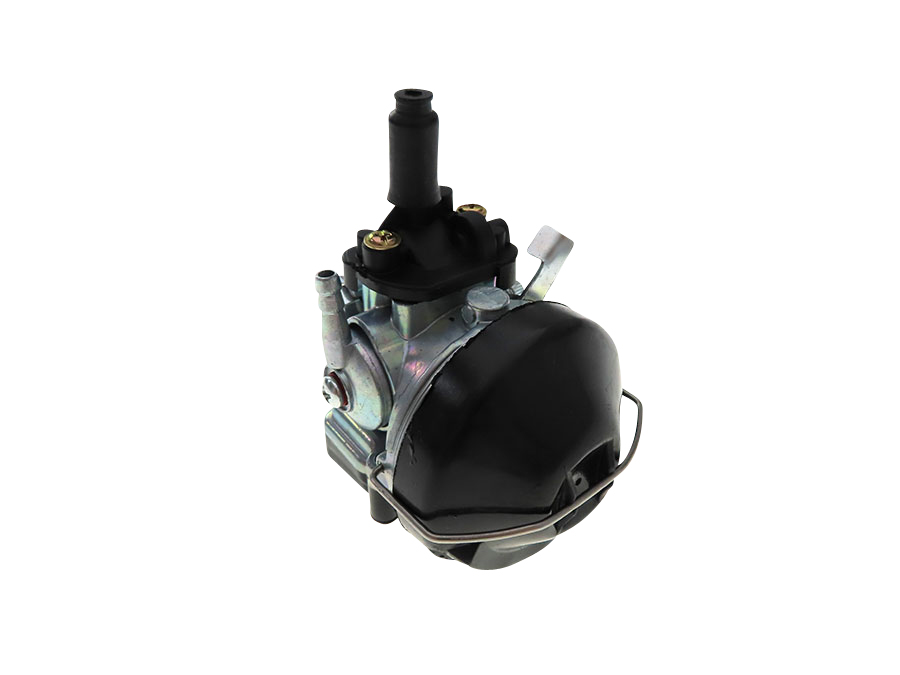

Dellorto SHA 15/15 carburetor replica

Dellorto replica carburetor SHA 15.

• Manifold connection 21>19mm (for 18mm, please order the 21>18mm bush)
• Filter included.
• Nozzles are Dellorto 5mm.
• Airfilter connection 56mm

Note:

• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!

• Due to casting tollerances the flow diameter may be +/- 14mm! Our advise is always to choose for a original Dellorto SHA as those sizes are proven.
•  The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
• Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

• Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.
