Dellorto PHBG 19mm carburetor replica Black Racing

€ 48,90
Ex Tax: € 40,41

The displayed price is without shipping costs
Read more about the European VAT rules

Directly available
Model: 20151

Quantity:

Worldwide shipping! Return in 14 days Afterpay is possible Customer review 4.84 / 5.00

Description

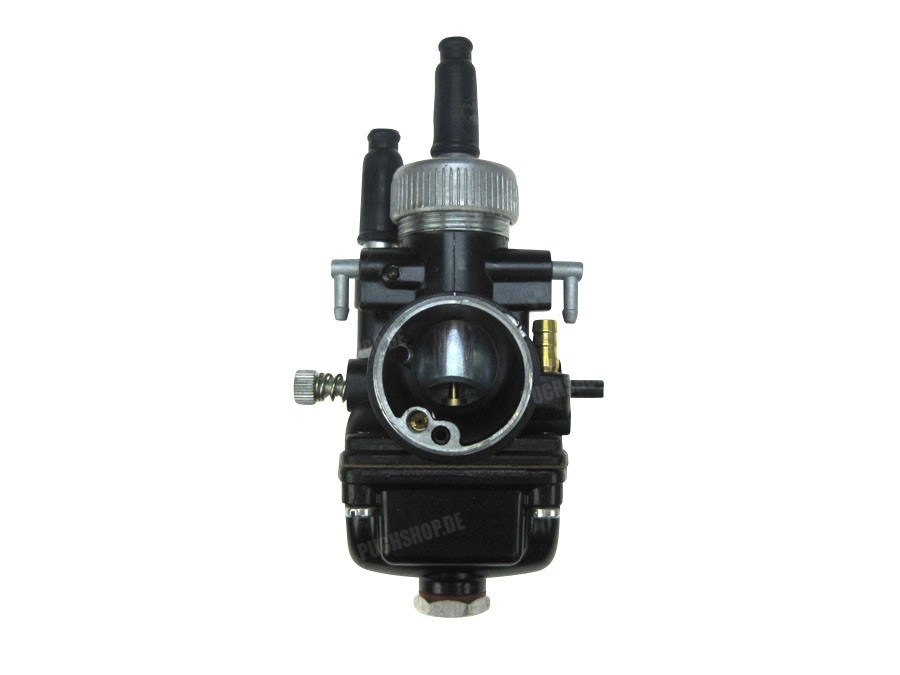

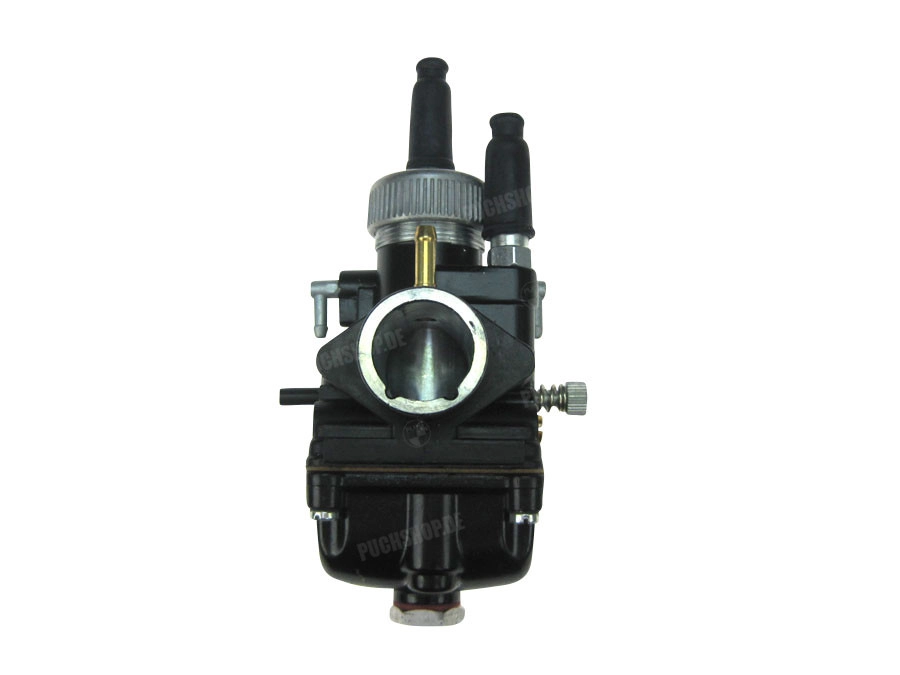

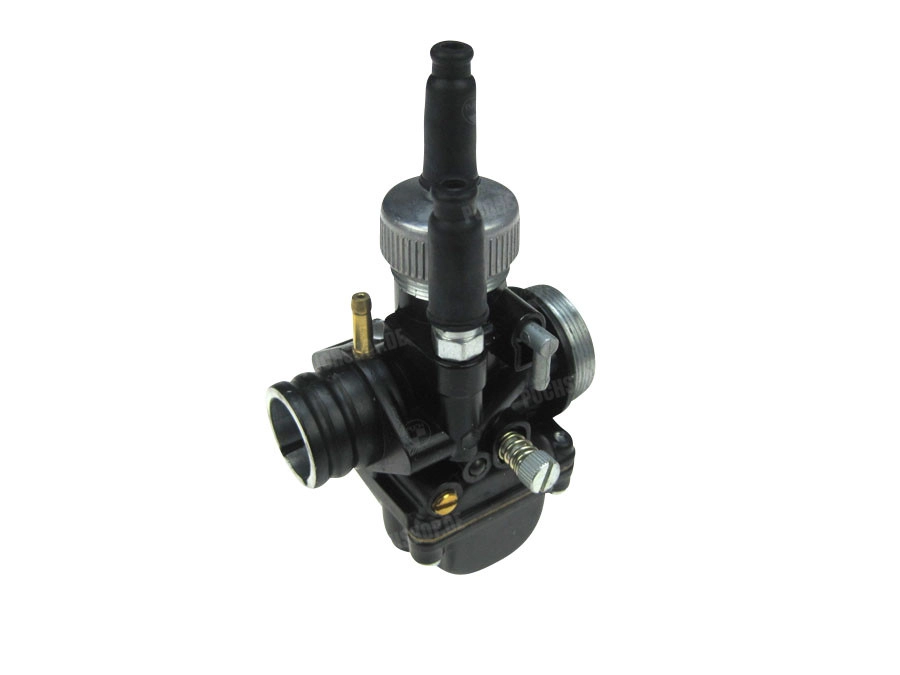

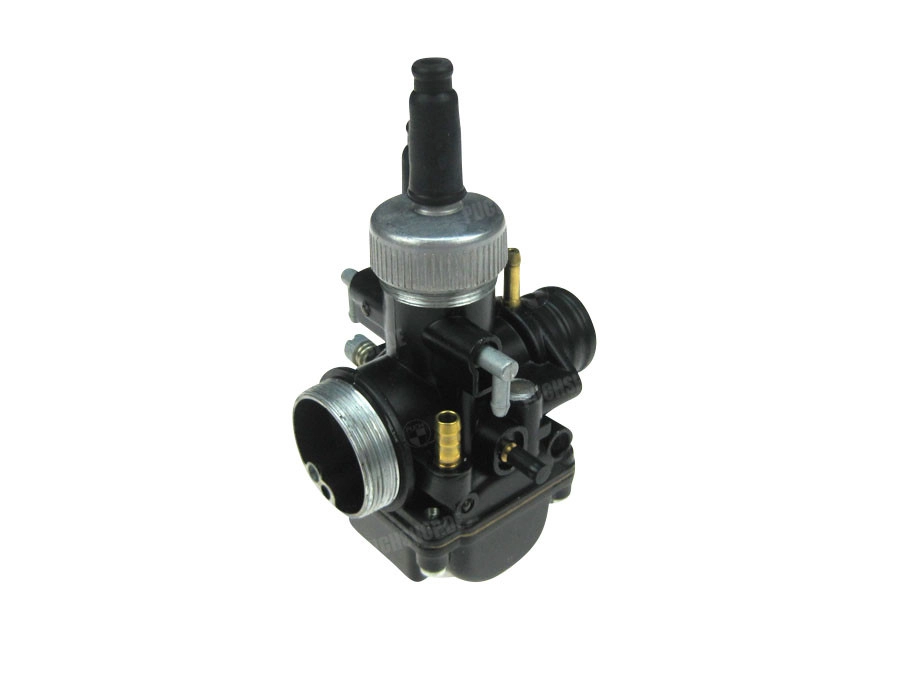

Replica Dellorto PHBG Black racing 19mm carburettor.

Connection diameter of the manifold 24mm
Connection diameter of the air filter 32mm
Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
Carburettors are delivered with a blanc nozzle/jet.
Carburettors should always be cleaned before installation.
Cable choke control.

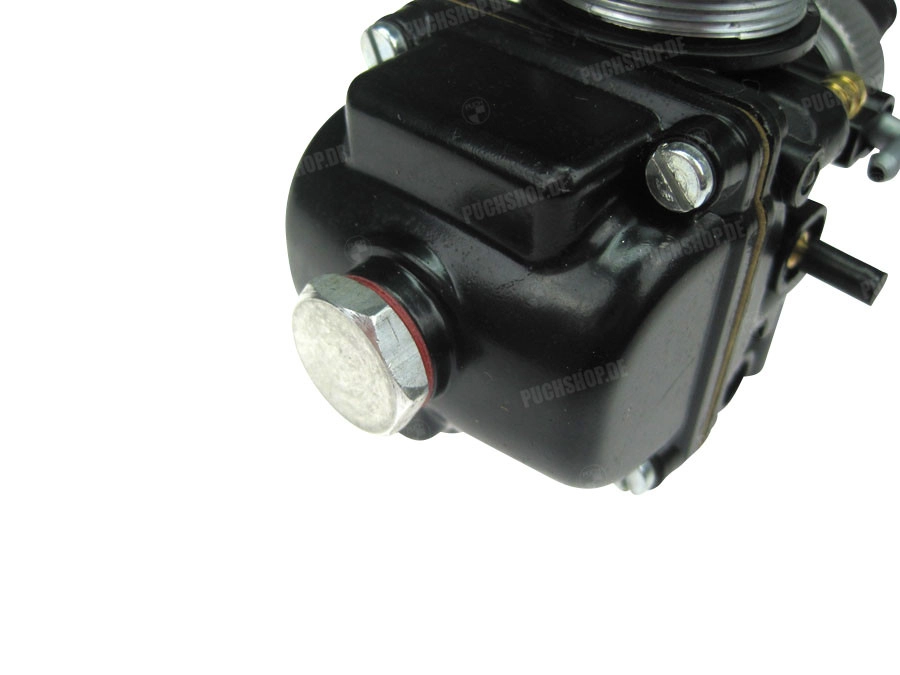

Insertion carburettor 24mm connection. Fast nozzle exchange by the drain bolt on the float chamber.

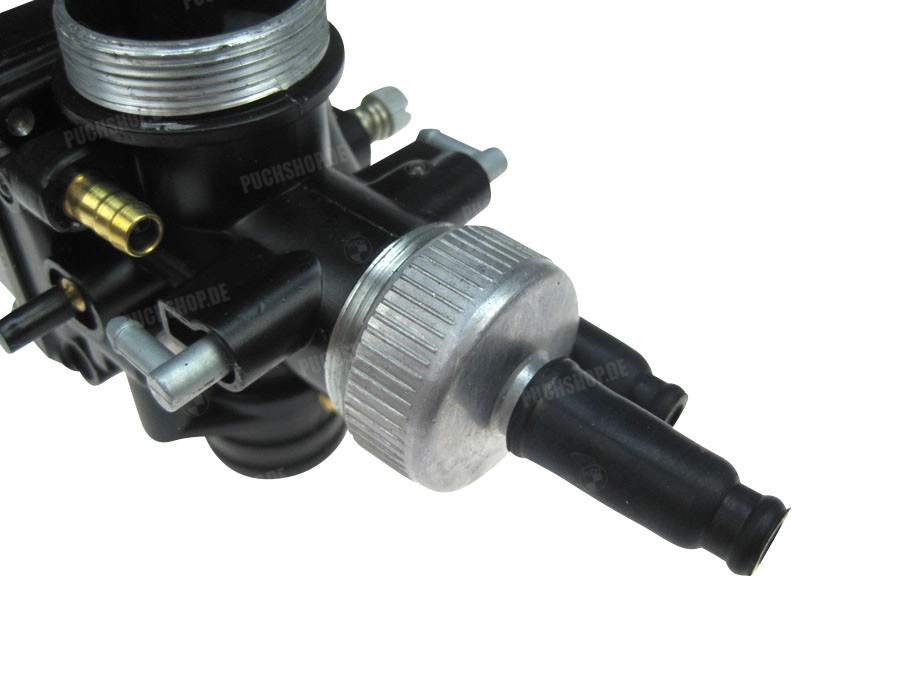

Throttle drum cover is also screwable.
Rubber for connection is availble at the section replacement parts.

caution!

the float bowl is fixed with 4 bolts, 3 long ones and 1 short one. Always make sure you replace the short bolt on the corner of the air set screw! If you screw a longer bolt in here, it will hit the air set screw and block it.

The jet that is mounted in the carburettor / set is blank and different for each batch.

(The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted).

It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.

Description

Replica Dellorto PHBG Black racing 19mm carburettor.

Connection diameter of the manifold 24mm
Connection diameter of the air filter 32mm
Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
Carburettors are delivered with a blanc nozzle/jet.
Carburettors should always be cleaned before installation.
Cable choke control.
Insertion carburettor 24mm connection. Fast nozzle exchange by the drain bolt on the float chamber.
Throttle drum cover is also screwable.
Rubber for connection is availble at the section replacement parts.

caution!

The jet that is mounted in the carburettor / set is blank and different for each batch.

(The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted).

It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Puch models:

Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.

Product specifications

Model:	20151
Carburetor / sets
Carburetor diameter	19mm
Mounting type	Spigot

Info center

Differences in a Dellorto PHBG carburetor

Reviews
