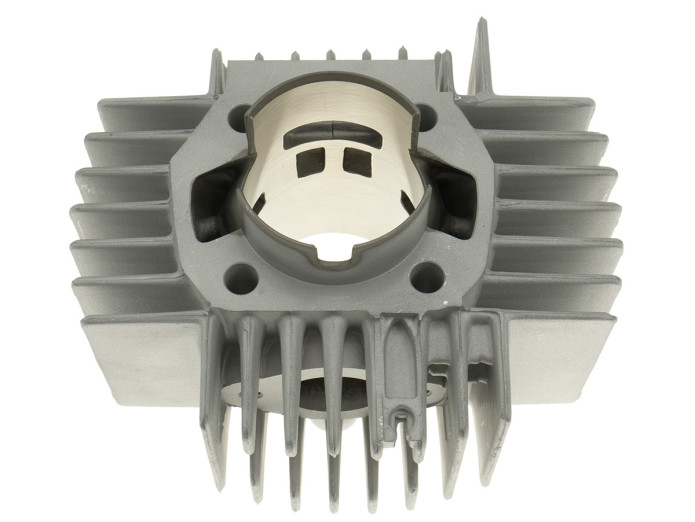

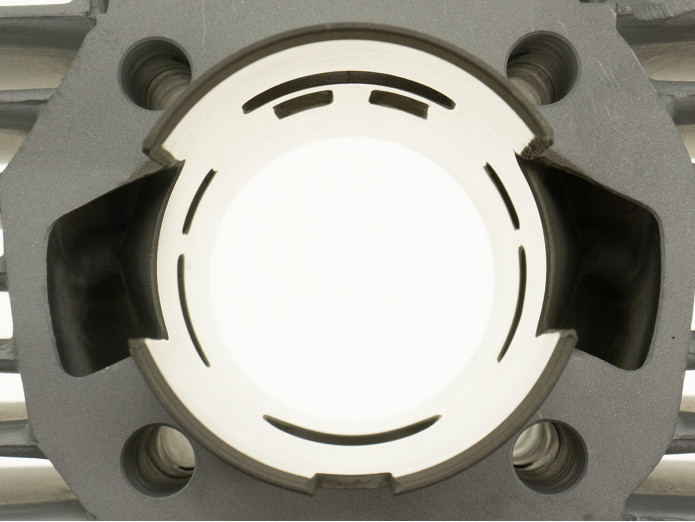

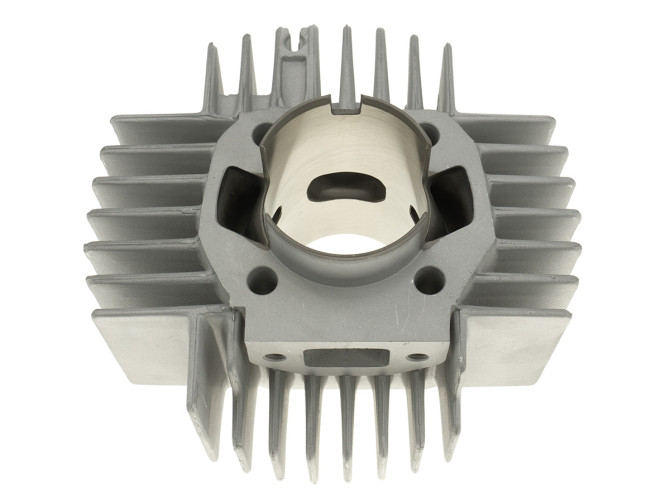

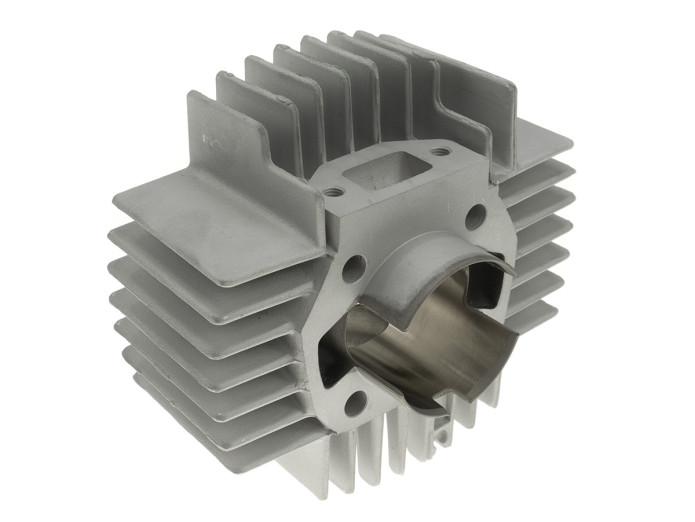

Cylinder 70cc NM Power1 6-port Puch Maxi OM, X30, other models

Power One cylinder 70cc (45mm) OM Aluminium, Nicasil wall.

• Piston (piston pin 12mm) and gaskets set included.
• Very fast 6 port cylinder.
• Cylindersleeve outer diameter: 48mm

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 24mm
• F: 42mm
• G: M6
• H: 38mm
• I: 23mm
• J: 23mm
• K: 15mm

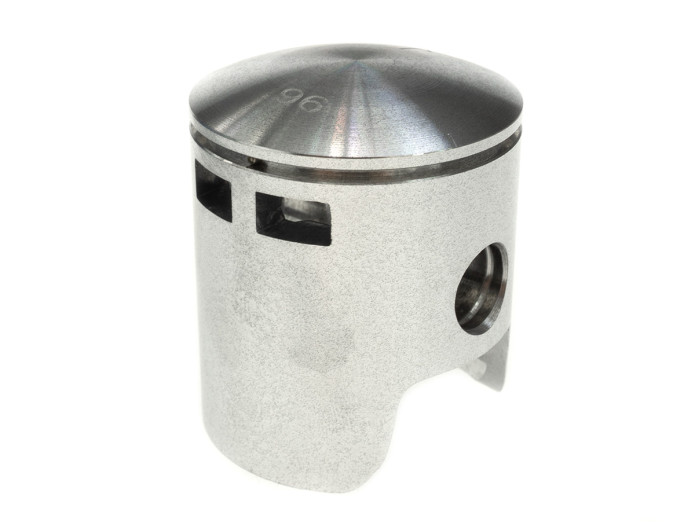

Measurements piston

• A: 5mm
• B: 22mm
• C: 27mm
• D: 12mm
