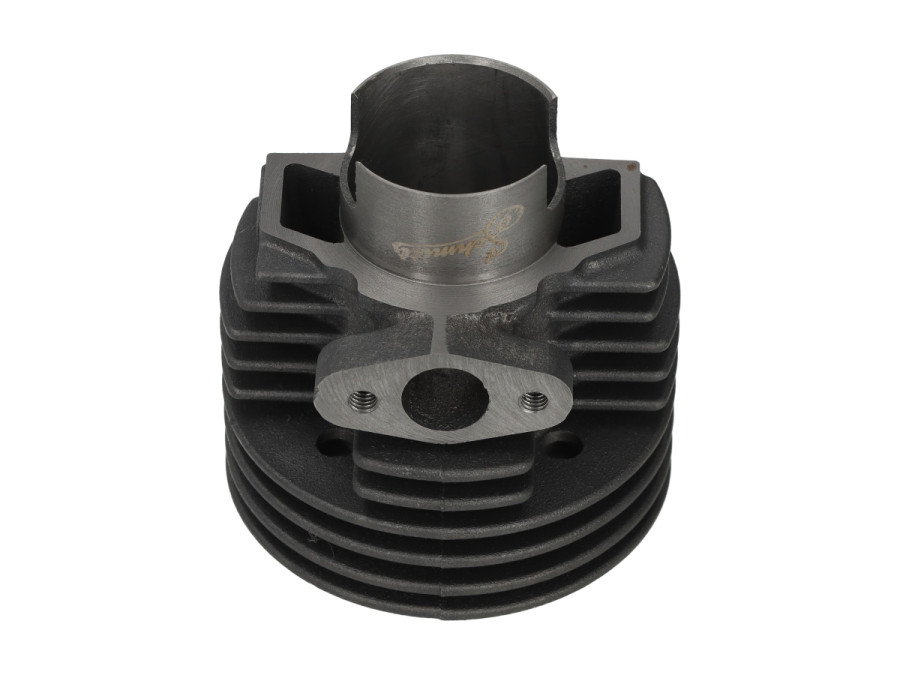

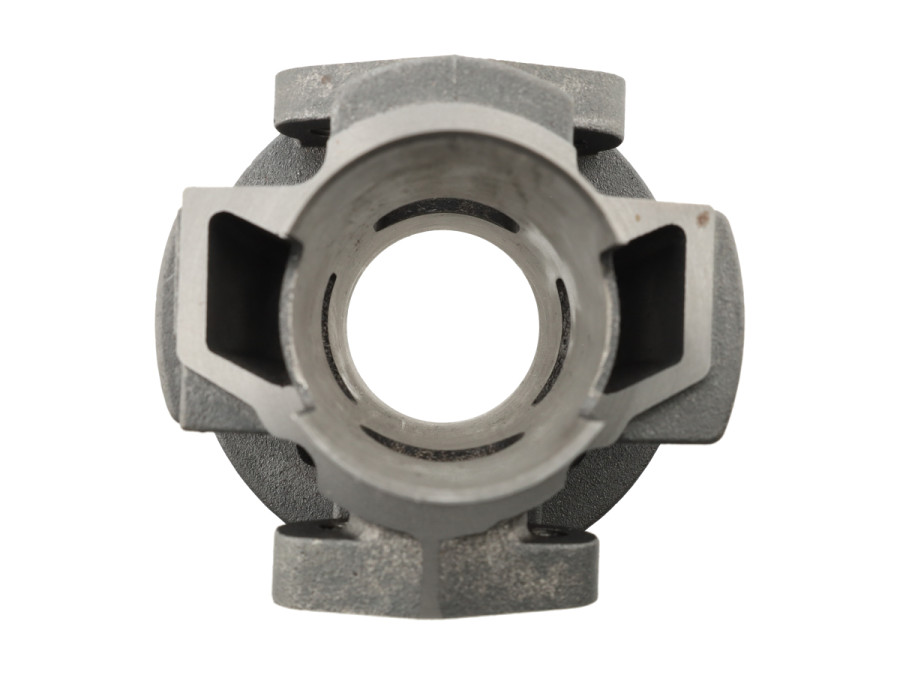

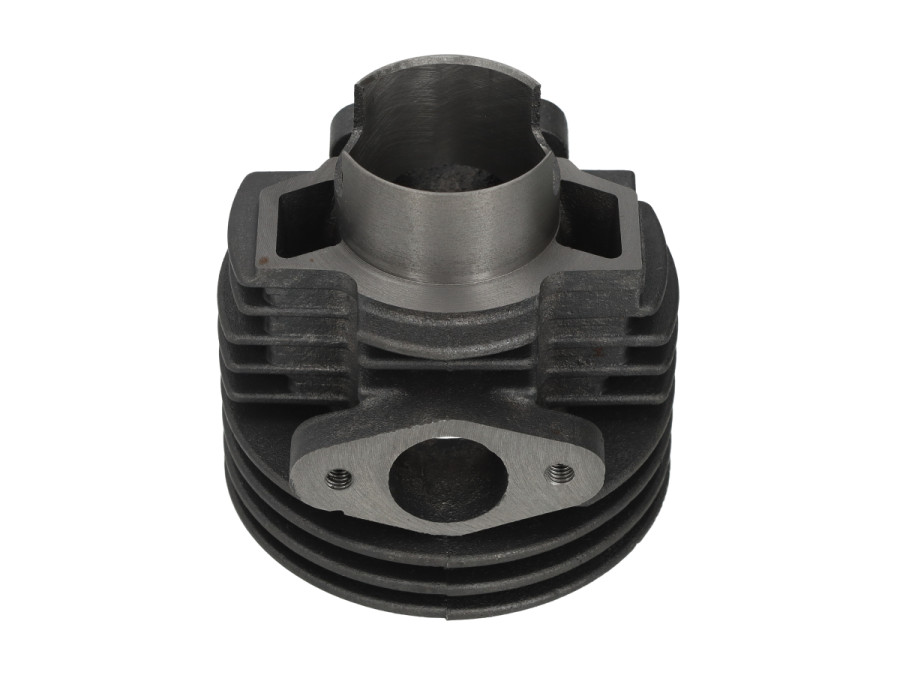

Cylinder 60cc pin 12 Puch MV / VS / DS / MS / X30 NG2AH / Velux Schmitt

Cylinder 40mm Puch pin 12 MV / VS / DS / MS / Velux.

• Cast iron 40mm / 60cc
• This cylinder has improved port timings
• Piston with 2x block piston ring 40x2.0mm

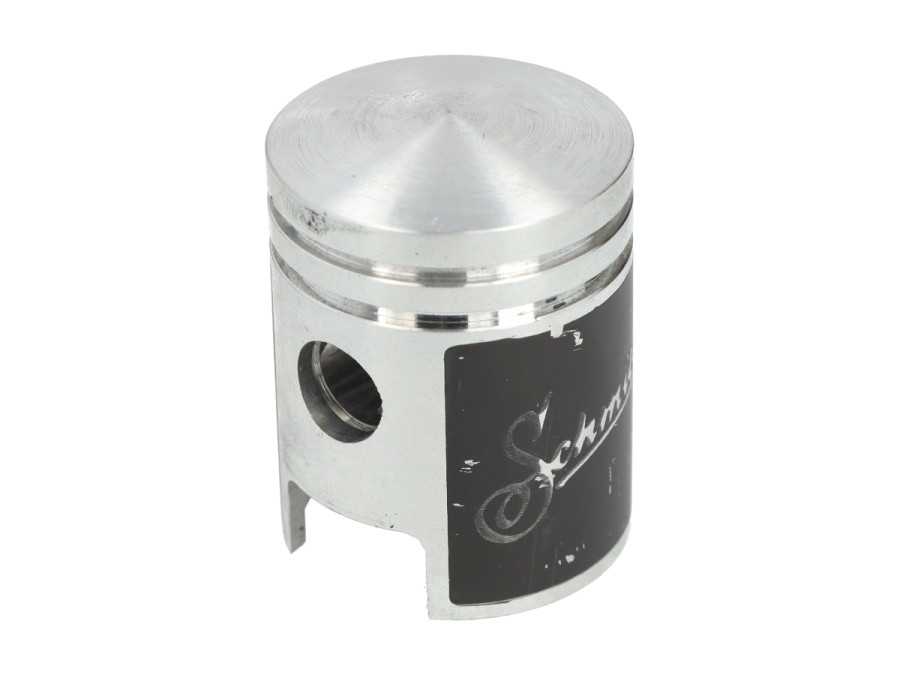

• Complete with piston (12mm pin)
• Gasket set is included
• Also for Puch X30 NG2AH
• Intake 16mm, exhaust 22mm
• Schmitt Tuning

Note:

• When using this cylinder on a Puch Velux, the small opening next to the spool port in the engine block must be closed. This can be done, for example, with kneadable metal.

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 8mm
• B: 44mm
• C: M6
• D: 67mm
• E: 22mm
• F: 42mm
• G: M6
• H: 32mm
• I: 16mm
• J: 16mm
• K: 16mm

Measurements piston

• A: 4mm
• B: 23mm
• C: 26mm
• D: 12mm
