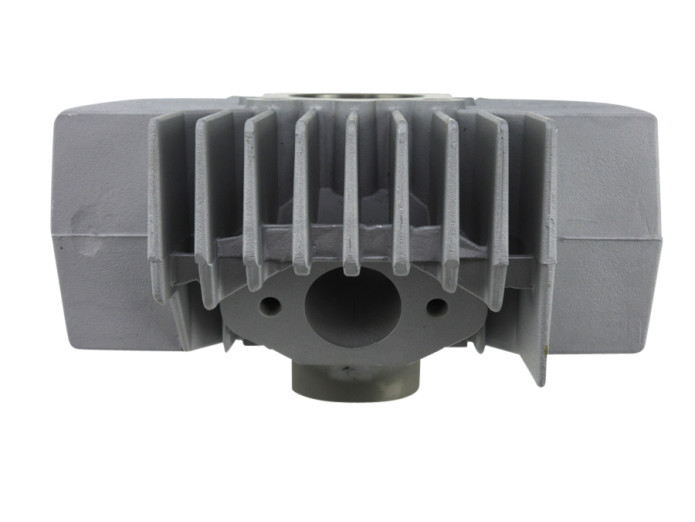

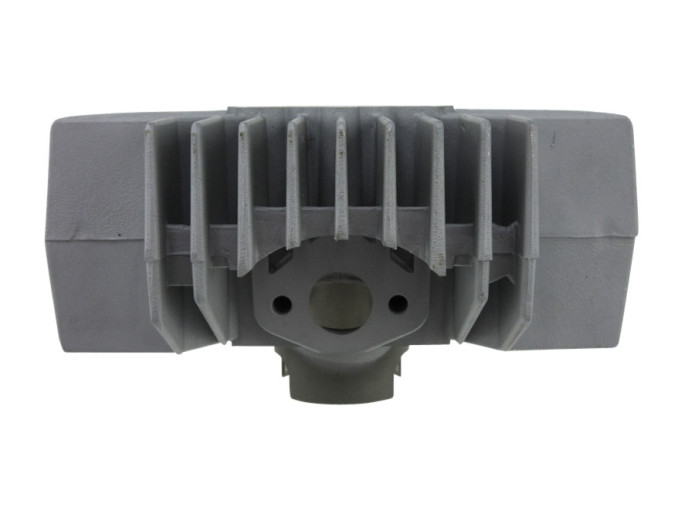

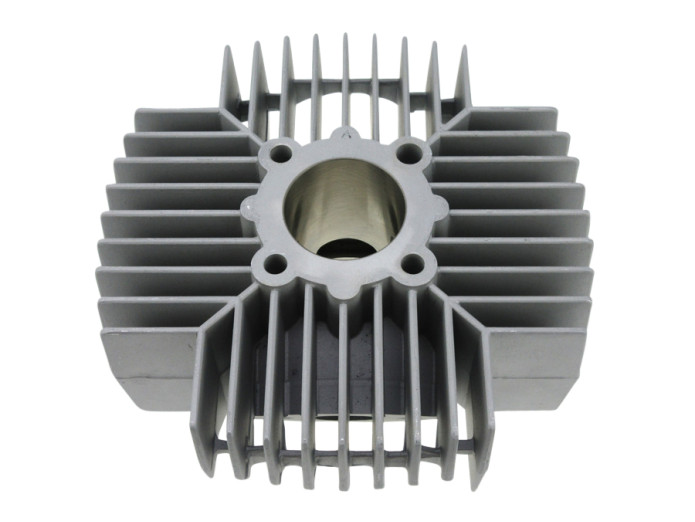

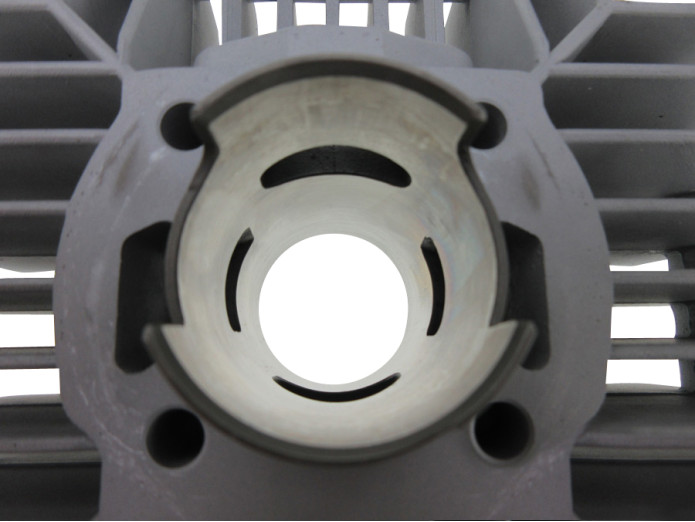

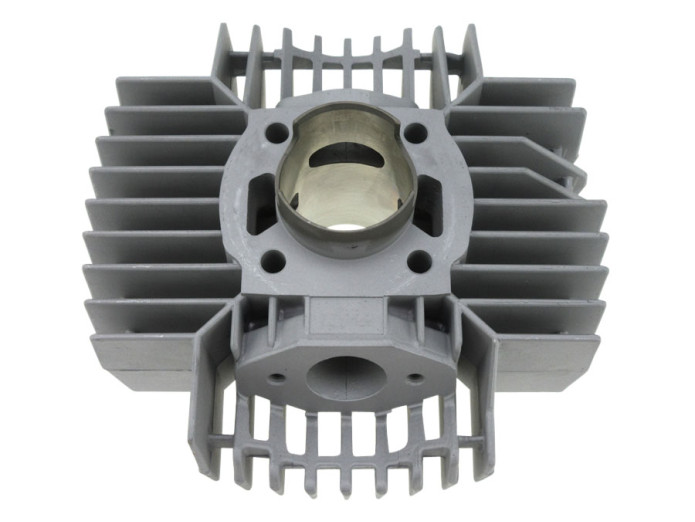

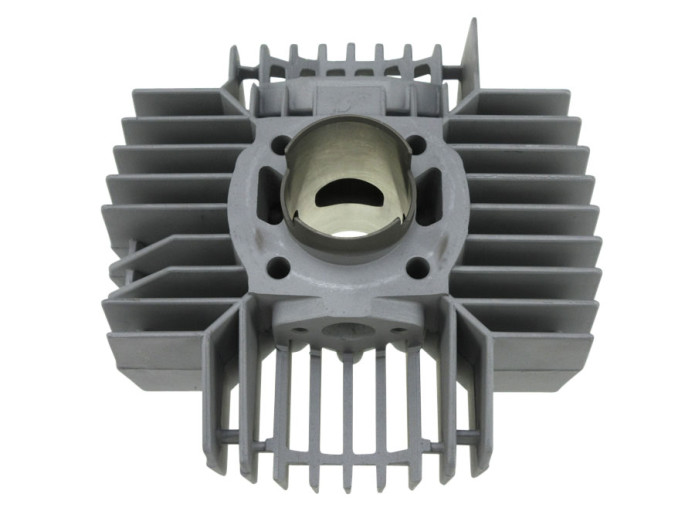

Cylinder 60cc Puch Monza / X50 / Magnum X aluminium NC

Cylinder 60cc Puch Monza / X50 / Magnum X aluminium

• 40mm / 60cc
• Complete with piston (12mm pin)
• With gaskets
• aluminium nicasil
• Complete as picture
• Cylindersleeve outer diameter: 43mm
• Angled exhaust port

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 24mm
• F: 42mm
• G: M6
• H: 32mm
• I: 17mm
• J: 17mm
• K: 17mm

Measurements piston

• A: 4mm
• B: 25mm
• C: 24mm
• D: 12mm
