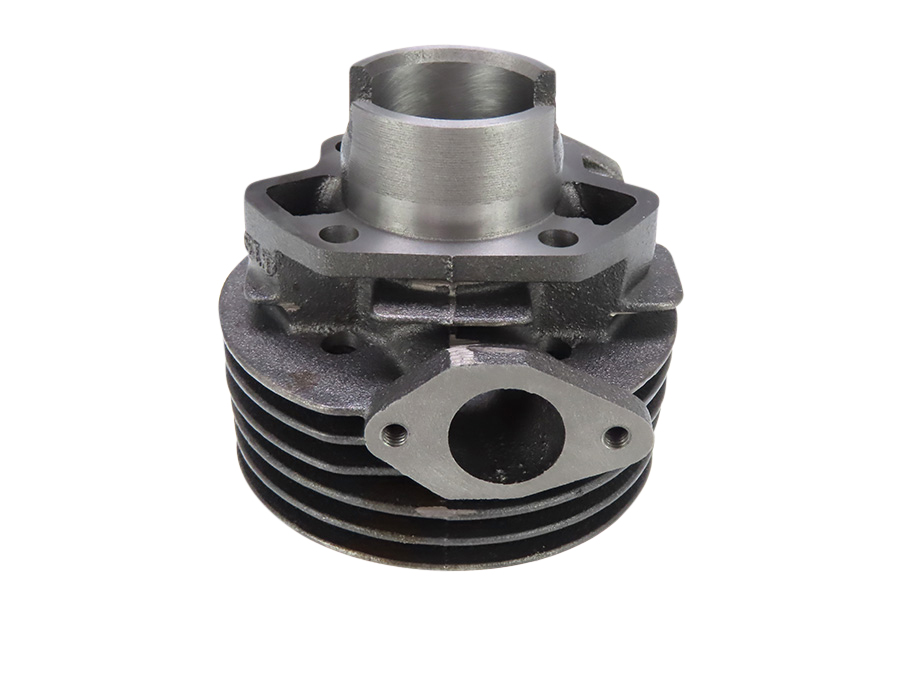

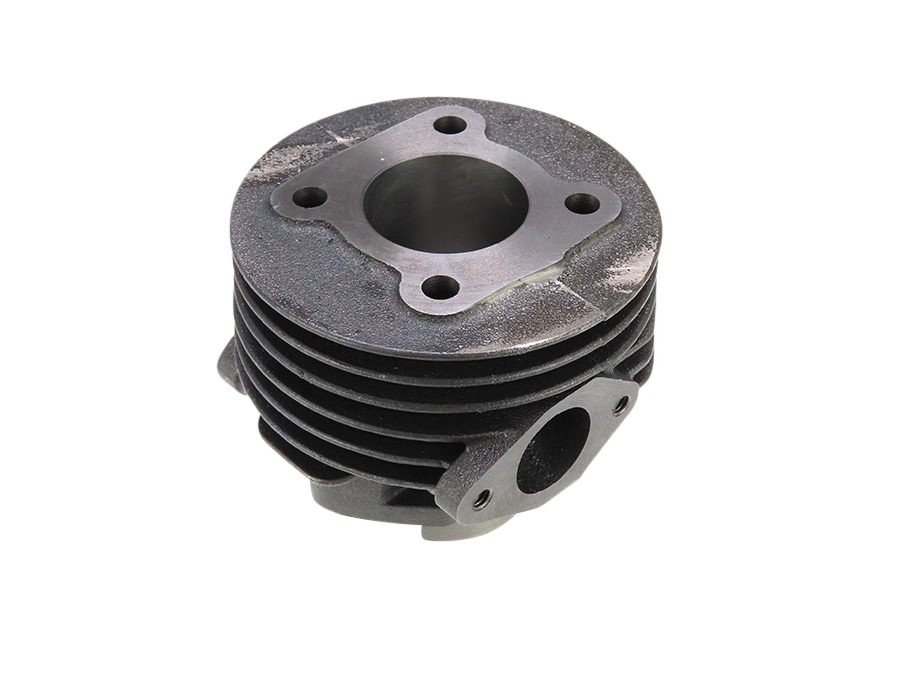

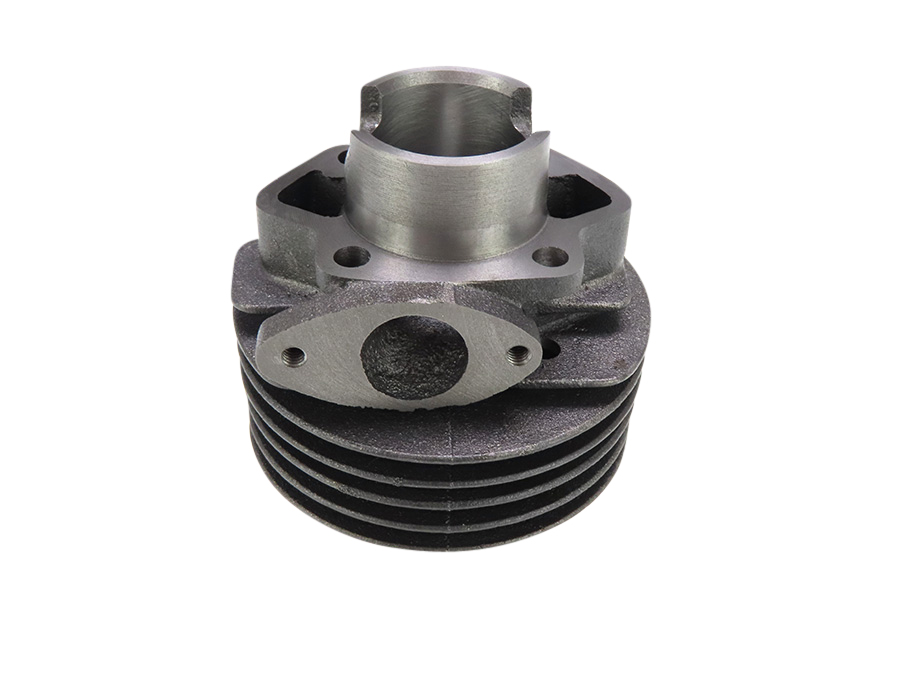

Cylinder 50cc pin 12 for Puch R-engine

Cylinder

• 50cc(38mm)
• Pin 12
• For Puch models with R-engine

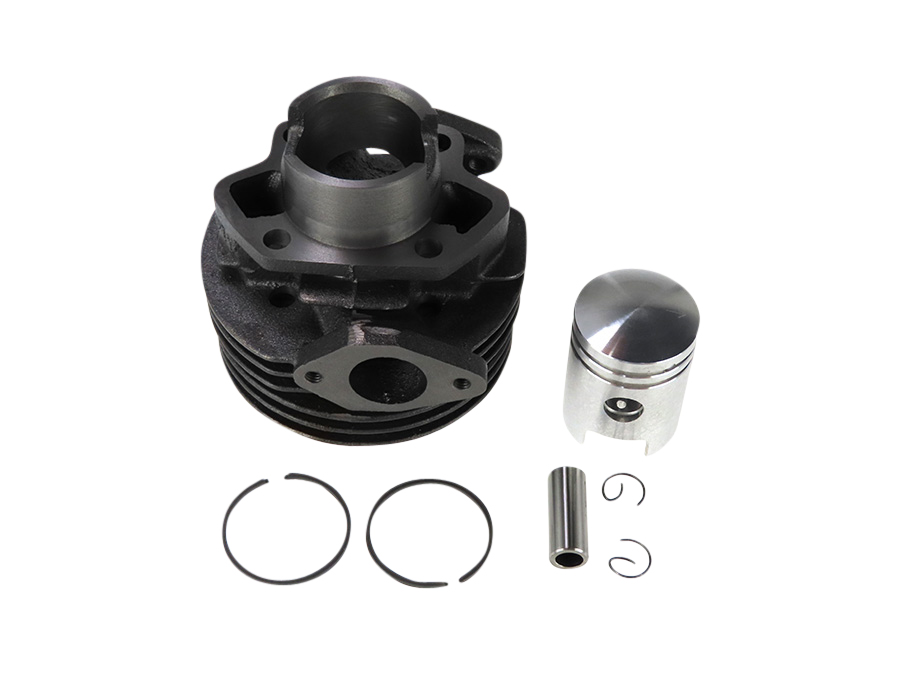

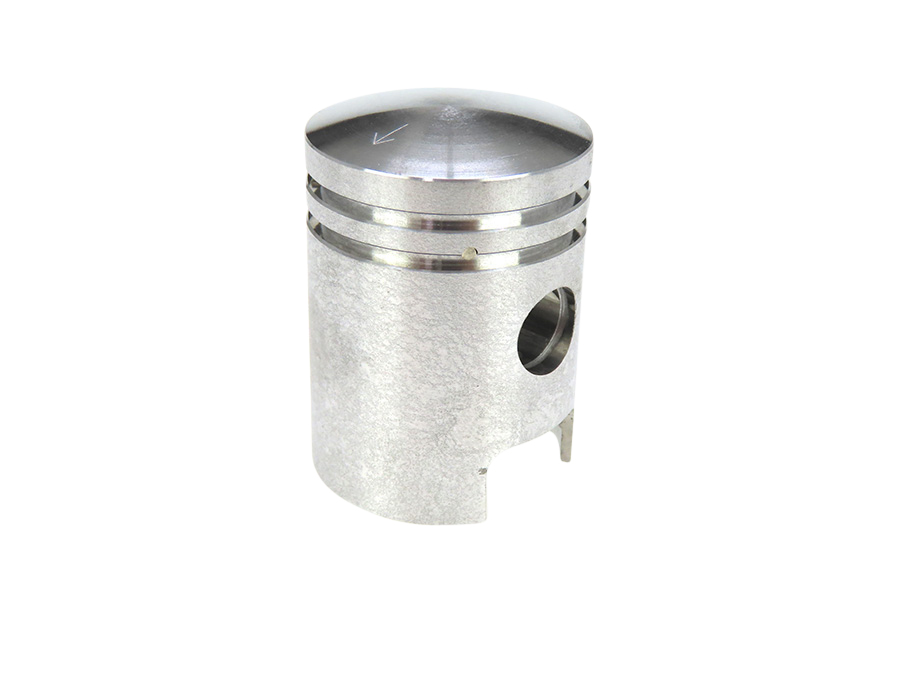

• Comes with piston, piston pin 12mm and piston rings
• Excl. gasket set

Suitable to:

• Puch VS50R
• Puch DS50R
• Puch VZ50R
• Puch MC50 with R-engine block

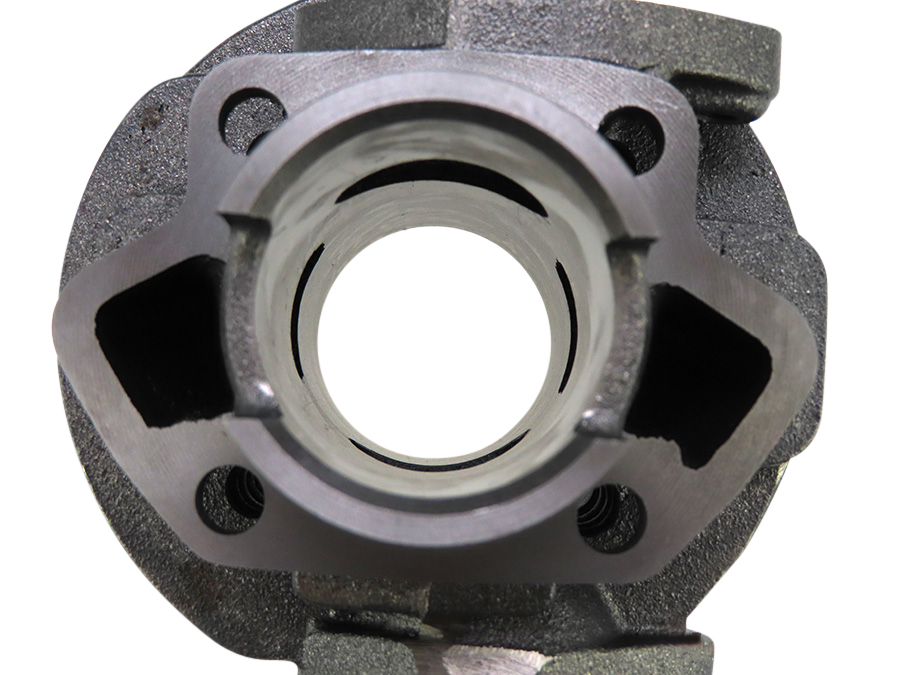

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 32mm
• F: 44mm
• G: M6
• H: 49mm
• I: 23mm
• J: 23mm
• K: 23mm
