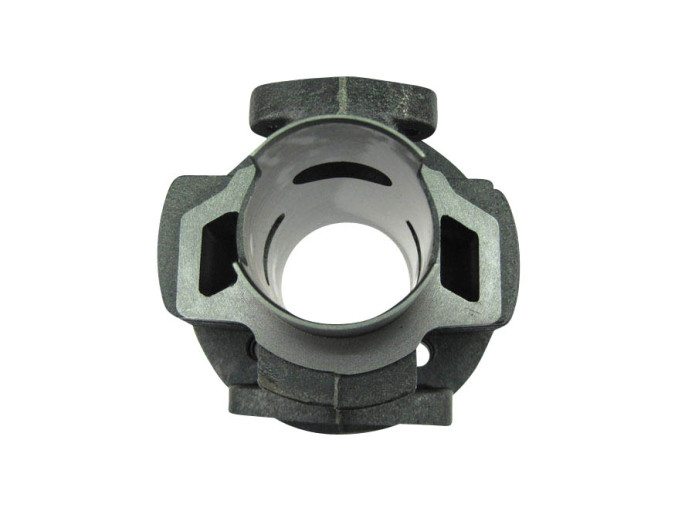

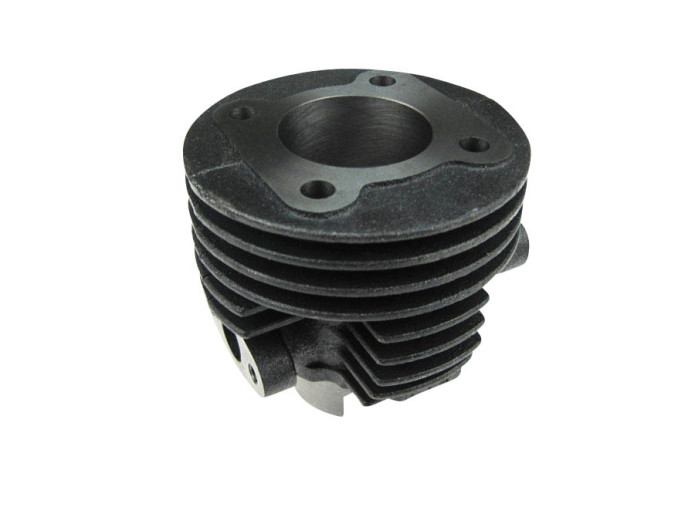

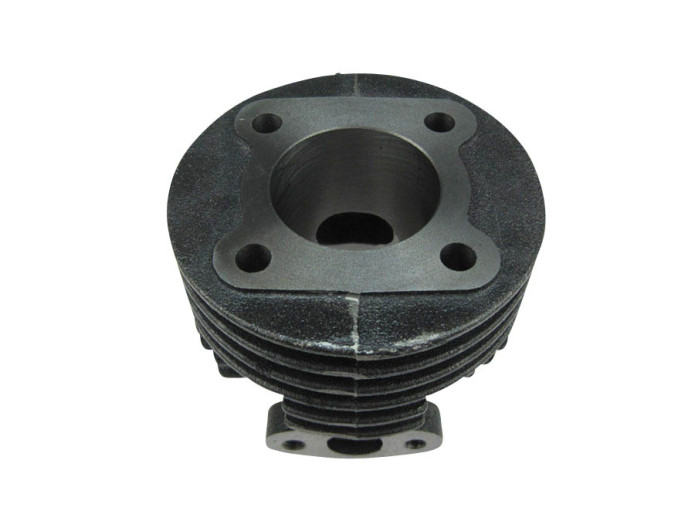

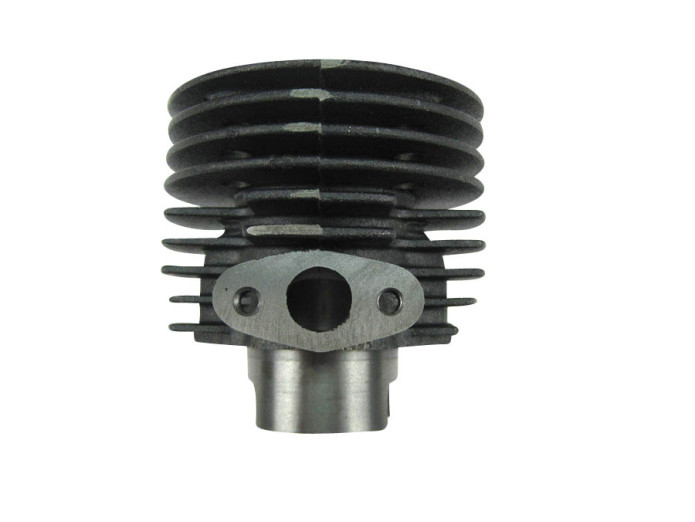

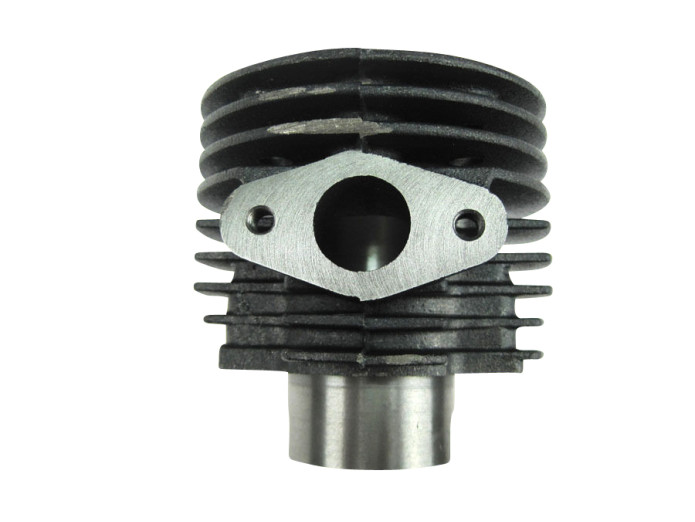

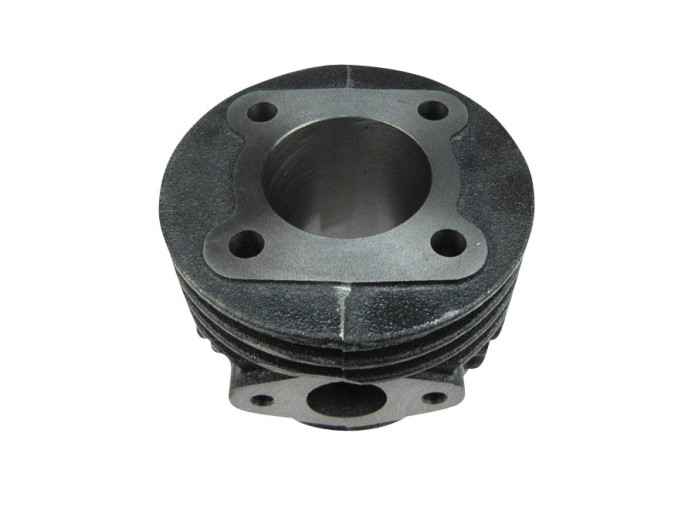

Cylinder 60cc pin 10 Puch MV / VS / DS / MS / X30 NG2AH / Velux

Cylinder 40mm Puch MV / VS / DS / MS / Velux

• Cast iron 40mm / 60cc

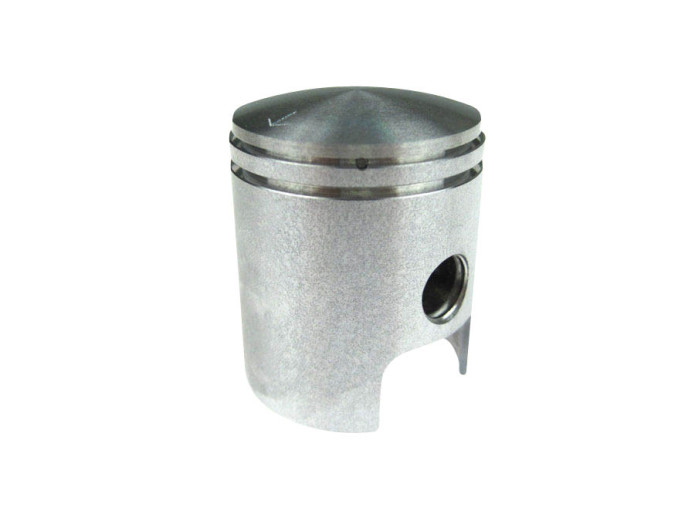

• Piston with L-ring (pistonring)
• Complete with piston (10mm pin)
• Without gaskets
• Also for Puch X30 NG2AH
• Inlet diameter 14mm
• Exhaust diameter: 19mm

Note:

• When using this cylinder on a Puch Velux, the small opening next to the spool port in the engine block must be closed. This can be done, for example, with kneadable metal.

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 19mm
• F: 42mm
• G: M6
• H: 31mm
• I: 15mm
• J: 15mm
• K: 15mm

Measurements piston

• A: 4mm
• B: 24mm
• C: 22mm
• D: 10mm
