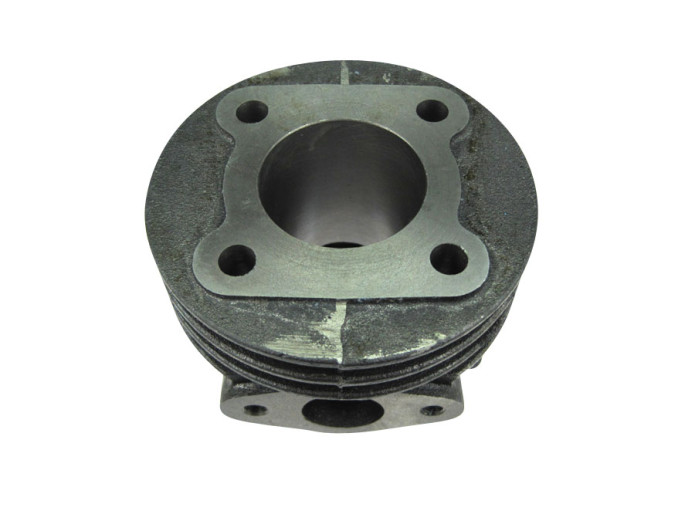

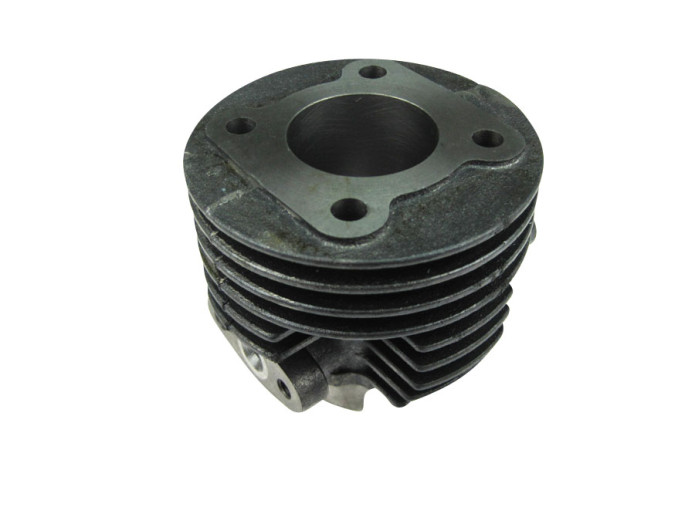

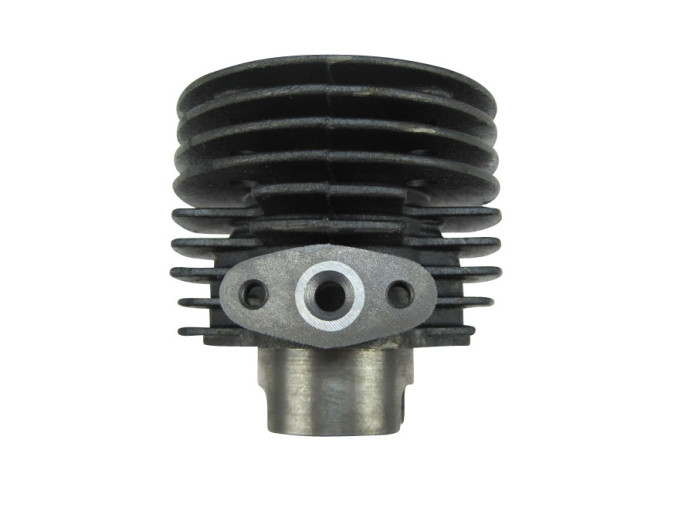

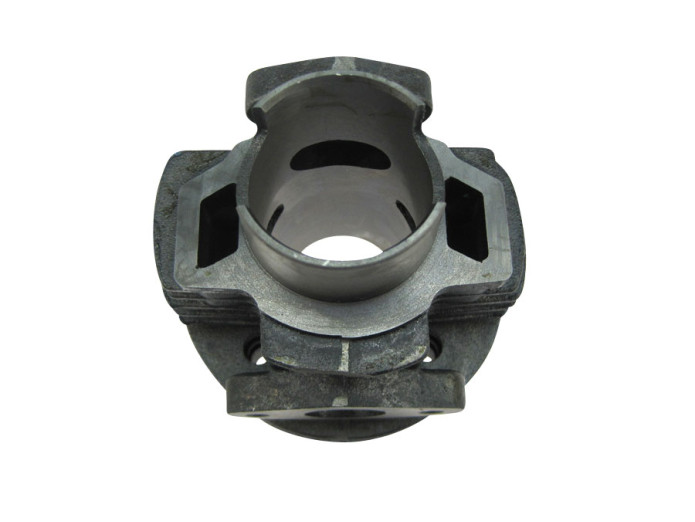

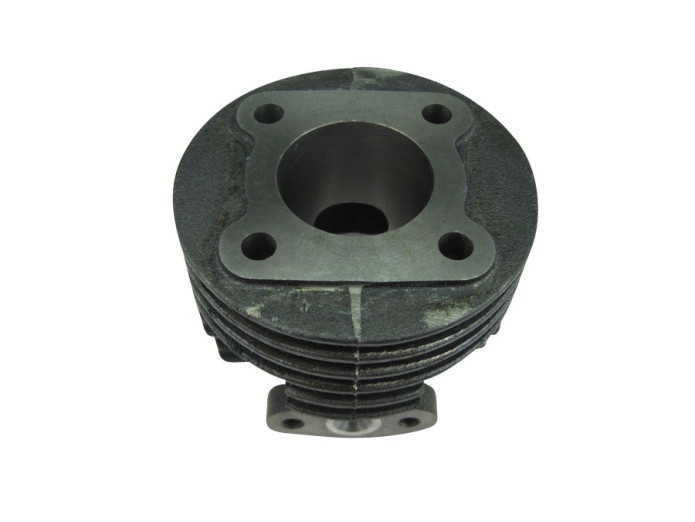

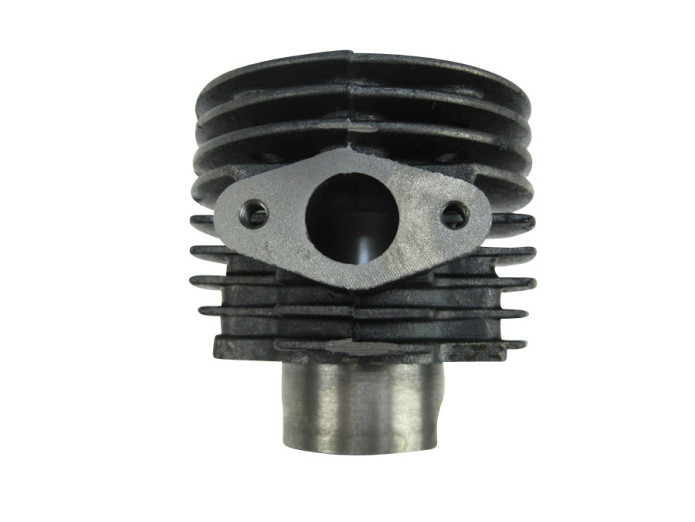

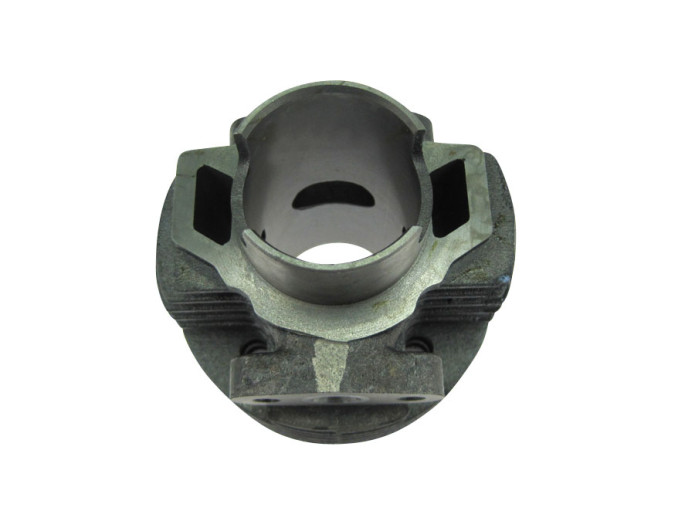

Cylinder 50cc pin 12 Puch MV VS DS MS X30 NG2AH / Velux 25 km/h NTS

Cyilinder 38mm Puch MV / VS / DS / MS / Velux

• Cast iron 38mm/50cc.
• Complete with piston (12mm pen).
• Without gaskets.
• 7mm Inlet
• 25 km/h version
• Also for Puch X30 NG2AH

Note: When using this cylinder on a Puch Velux, the small opening next to the spool port in the engine block must be closed. This can be done, for example, with kneadable metal.

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 19mm
• F: 42mm
• G: M6
• H: 32mm
• I: 14mm
• J: 14mm
• K: 14mm

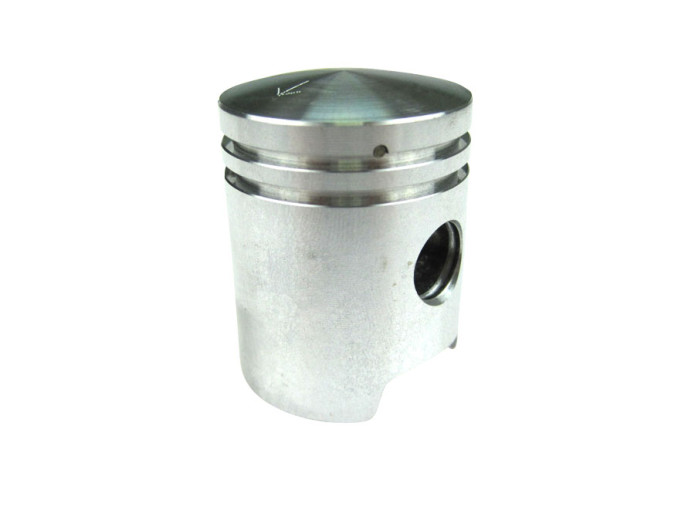

Measurements piston

• A: 3mm
• B: 22mm
• C: 24mm
• D: 12mm
