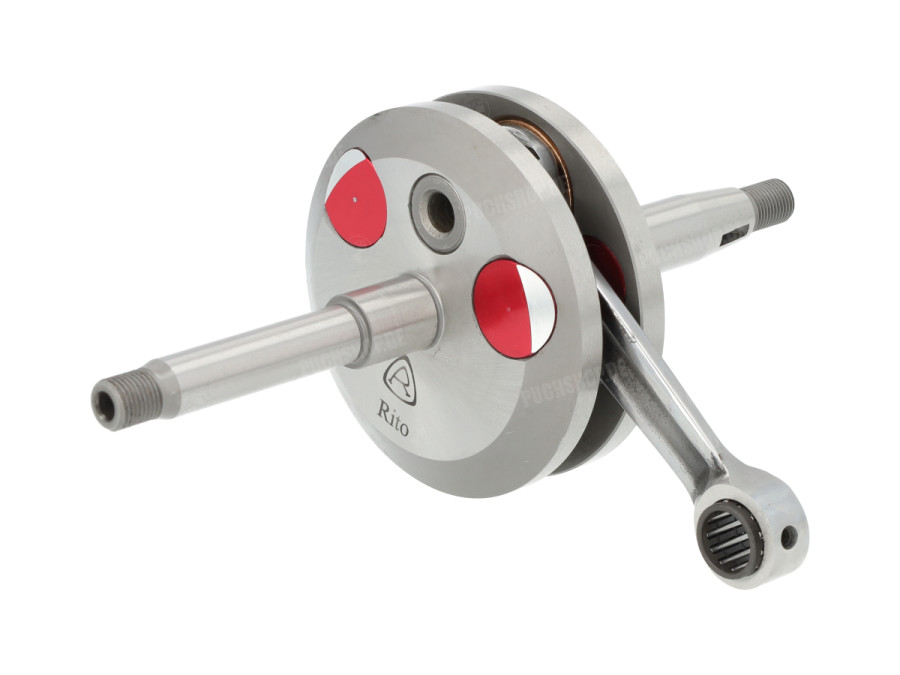

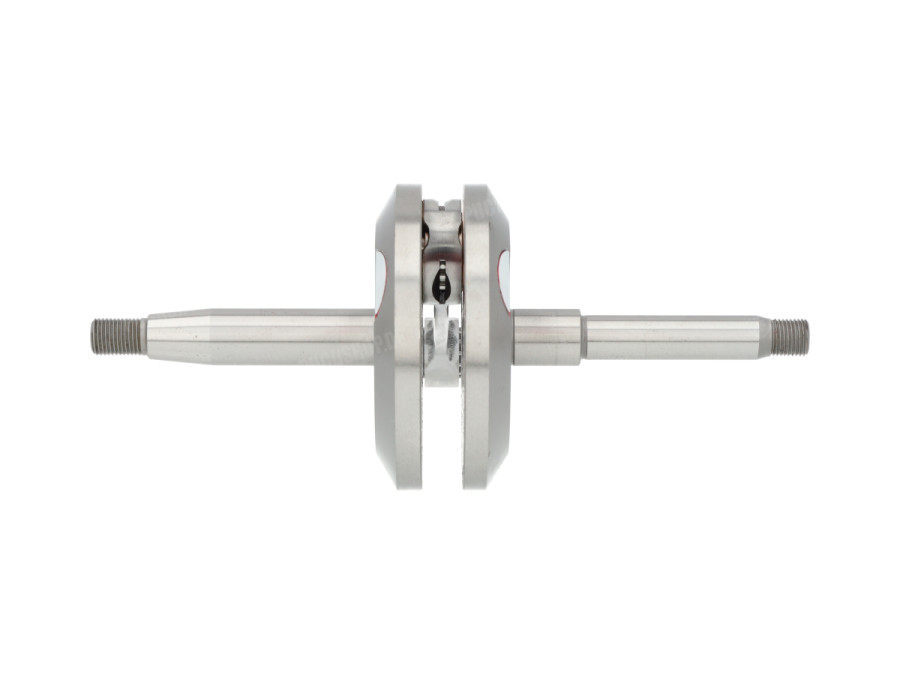

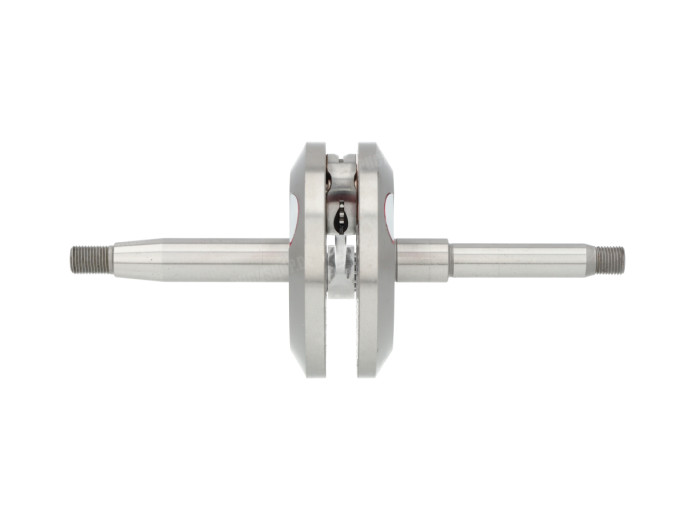

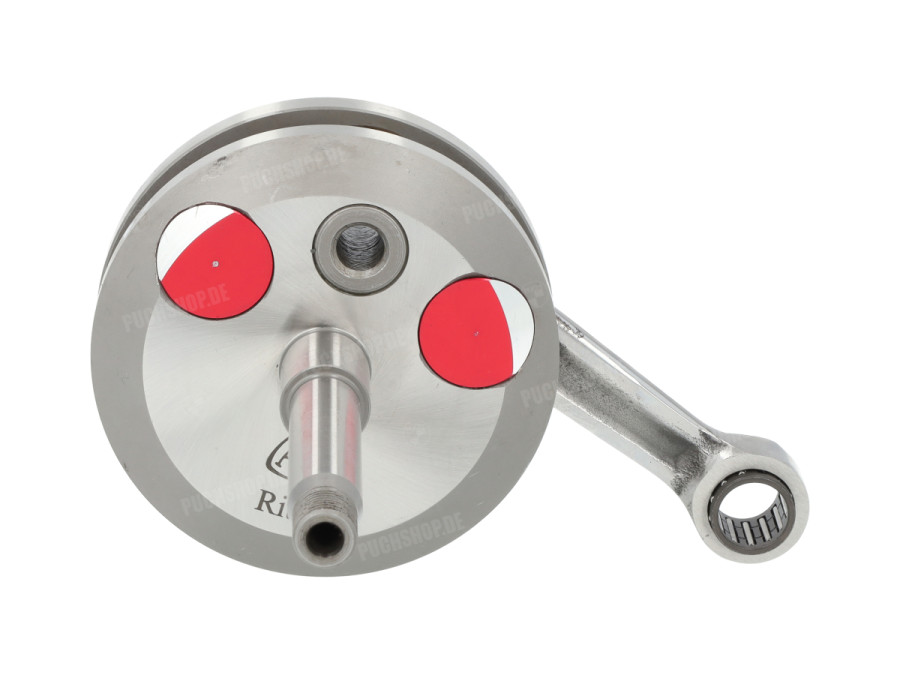

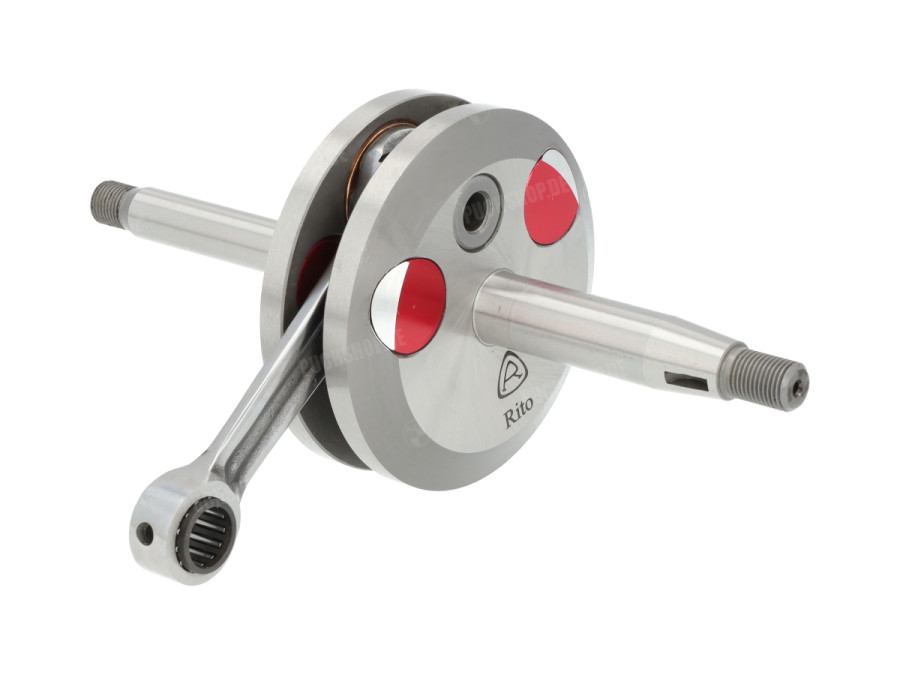

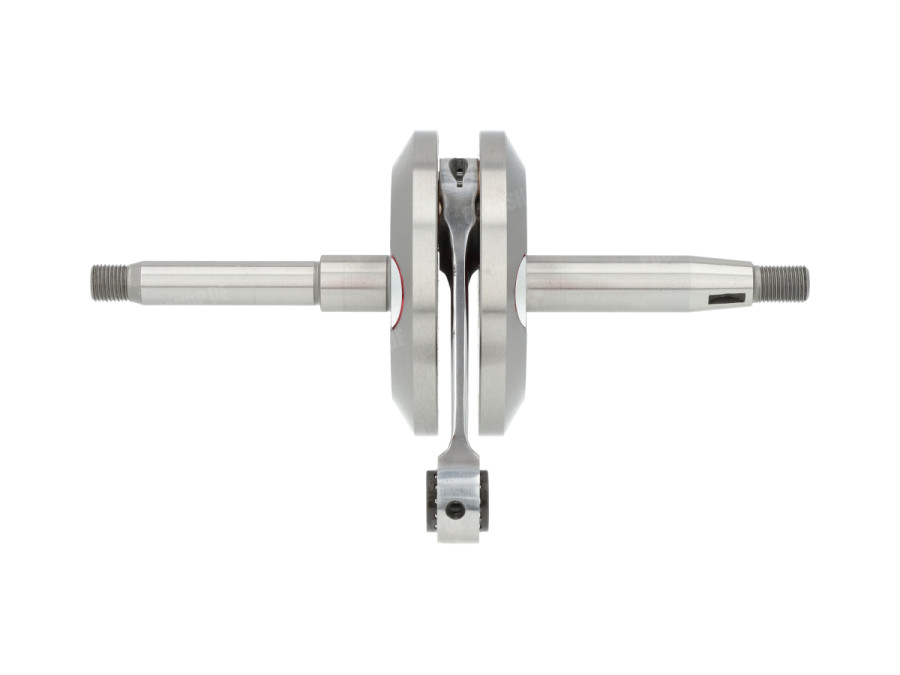

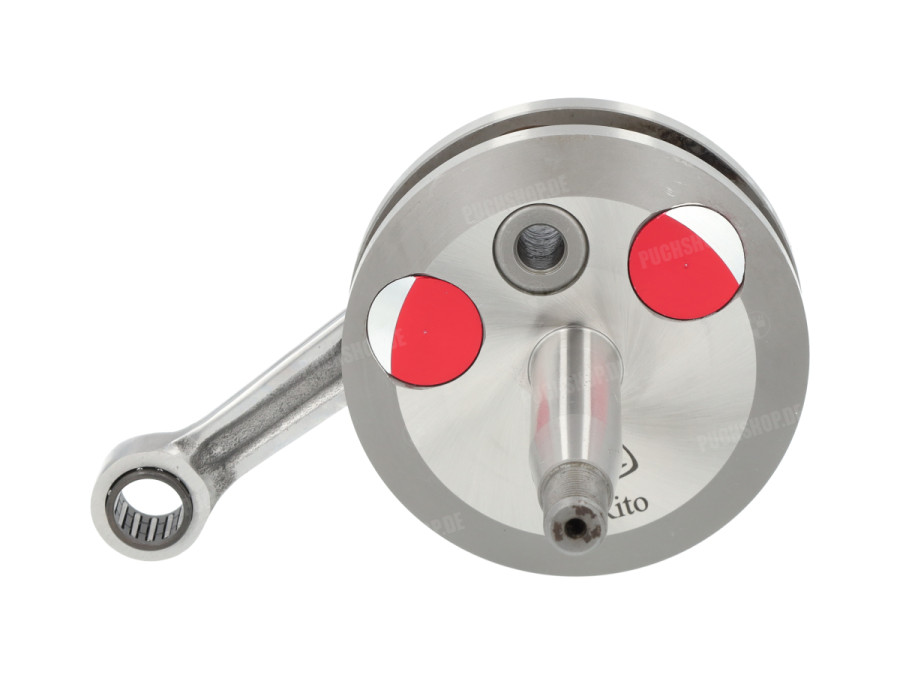

Crankshaft Sachs Engine type 505 and 50/5 pin 12mm Rito

Race crankshaft for Sachs 505 en 50/5 mopeds

• The racing crankshaft is designed for high loads and has a maximum pre-compression through the padded holes
• Suitable for: Hercules Prima GT GX, Supra MK 1 MK 2 KTM MS, DKW and a lot others with Sachs 505/1, 505/2, 505/3 engines


Sizes:

• Overall length of the shaft on the ignition side: 73.0 mm
• Diameter on ignition side: 15 mm
• Overall length of shaft on clutch side: 77 mm
• Diameter of shaft directly next to crankshaft cheek clutch side: 15 mm
• Diameter of shaft 2nd clutch mounting part: 11.5 mm
• Nut size on either end: M10x1mm
• Needle bearing is included (for 12mm piston pin).
